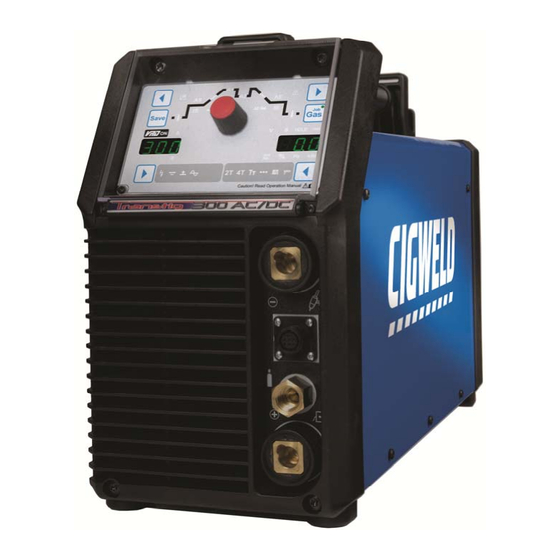

- Page 1 AC/DC Welding Inverters AC/DC Welding Inverters Transtig 220AC/DC & Transtig 300AC/DC Transtig 220AC/DC & Transtig 300AC/DC Product Information Product Information CONFIDENTIAL AND PROPRIETARY...
-
Page 2: Table Of Contents
..8 – 10 Transtig 220AC/DC – Features, Contents, Spares ... . . 11 – 14 Transtig 300AC/DC – Features ,Contents, Spares ... . 15 – 17 Optional Accessories . -
Page 3: A) Features & Benefits Overview
Features and Benefits Overview Control Panel 50mm Dinse Protective Cover Connections Shielding Gas IP23S 3 Year Limited Remote Control Solenoid Control Protection Class Warranty Socket CONFIDENTIAL AND PROPRIETARY Slide 3 December 17, 2013... -
Page 4: Features
- Will Shut the Unit Down if Voltage Exceeds 35 VOLTS DC whilst not Welding Compliant to AS 60974.1 and AS 1674.2 Power Factor Correction (PFC) with Transtig 220AC/DC only Power Factor Correction (PFC) with Transtig 220AC/DC only less than 15A for 220A/18.8V@40%... - Page 5 Features HF (High Frequency) Start in TIG Mode Pulse Welding Capabilities in TIG mode Spot Welding in TIG mode Max Electrode Size 220AC/DC: 4.0mm; 300AC/DC: 5.0mm Stores up to 100 welding jobs Digital Voltage and Amperage Meters Intelligent Fan Control CONFIDENTIAL AND PROPRIETARY Slide 5 December 17, 2013...
-
Page 6: Additional Selling Points
Additional Selling Points Perfect Balance of Components: State of the art technology ensure the perfect balance of shielding gas control arc dynamics and welding of shielding gas control, arc dynamics and welding power – giving you a superior weld result Shielding Gas Control: Gas control is at your fingertips. - Page 7 Additional Safety Deadman Switch* on Electrode Holder (Available option) – Ensures that Voltage at the Electrode before you Start is ZERO th t V lt t th El t d b f St t i ZERO VOLTS DC – Voltage Increases to <23 VOLTS DC (VRD on) when the Operator Presses the Deadman Switch to Start Welding Presses the Deadman Switch to Start Welding...
- Page 8 Control Panel Overview Back Button Forward Button Select Weld Select Weld Parameters Parameters Tiptronic Save Gas Purge Volts Welding Amps Welding Parameter Parameter Welding Type Welding Mode Control Knob Adjusts Weld Parameter Value CONFIDENTIAL AND PROPRIETARY Slide 8 December 17, 2013...
- Page 9 Control Panel – Weld Parameter Selection Back Button Forward Button Base current (A1) Trough current (A2) Up Slope Control Down Slope Control Start Current (AS) Start Current (AS) Crater Current (AE) Crater Current (AE) Gas Pre-Flow Time Gas Post-Flow Time Start Current Time (tS) Crater Current Time (tE) Electrode...
- Page 10 Control Panel – Weld Function Selection HF Start Alternating Spot Welding Stick (Normal) (TIG DC– or TIG AC) Current (AC) TIG Modes (DC– or DC+) Direct Current Tiptronic Direct Current Pulse (DC+) (Latch) (DC–) Welding CONFIDENTIAL AND PROPRIETARY Slide 10 December 17, 2013...
- Page 11 Transtig 220 AC/DC – Features Features 240V 15A Supply Input TIG (GTAW): 220A @ 40% Duty Cycle TIG (GTAW) Welding Current Range: 3 – 220A Stick (GMAW): 170A @ 40% Duty Cycle Stick (GMAW) Welding Current Range: 10 – 170A ...
- Page 12 Transtig 220AC/DC Power Source – Contents Transtig 220AC/DC Power Source Contents Transtig 220AC/DC Welding Inverter Power Source Shi ldi Shielding Gas Hose Assembly (Quick Connect Type) bl (Q i k C Operating Manual Power Source Part Number W1007221...
- Page 13 Transtig 220AC/DC Plant – Contents Transtig 220AC/DC Plant Contents Transtig 220AC/DC Power Source C/ C Comet Professional Argon Regulator/Flowmeter TIG Torch 26F with flex head, trigger switch & 8 pin remote control connection TIG Torch Accessories Kit ...
- Page 14 Transtig 220AC/DC – Spare Parts CONFIDENTIAL AND PROPRIETARY Slide 14 December 17, 2013...
- Page 15 Transtig 300AC/DC – Features Features 415V Supply Input TIG (GTAW): 300A @ 30% Duty Cycle TIG (GTAW) Welding Current Range: 5 – 300A Stick (GMAW): 200A @ 60% Duty Cycle Stick (GMAW) Welding Current Range: 10 – 200A ...
- Page 16 Transtig 300AC/DC Power Source – Contents Transtig 300AC/DC Power Source Contents Transtig 300AC/DC Welding Inverter Power Source Shi ldi Shielding Gas Hose Assembly (Quick Connect Type) bl (Q i k C Operating Manual Power Source Part Number W1007301 CONFIDENTIAL AND PROPRIETARY Slide 16 December 17, 2013...
- Page 17 Transtig 300AC/DC – Spare Parts CONFIDENTIAL AND PROPRIETARY Slide 17 December 17, 2013...
- Page 18 TIG Torch W4014604 – Spare Parts TIG Torch 26F with flex head, Trigger switch & 8 pin remote control connection Note: TIG Torch W4014604 is rated for 200A DC@30% and 300A DC@14% TIG TORCH SPARE PARTS ITEM PART NUMBER DESCRIPTION W7005900 Trigger Assembly for 26F Torch W7005901...
-
Page 19: Optional Accessories
Optional Accessories OPTIONAL ACCESSORIES PART NUMBER DESCRIPTION 646757 Lead Set 5m, 400A with 50mm² Dinse Connectors 646325 Lead Set 8m, 400A with 50mm² Dinse Connectors 646763 Electrode Holder with 8m Lead, Trigger Switch (Deadman Switch) and 50mm² Dinse Plug W4014604 W4014604 TIG T TIG Torch 26F with Flex Head, 4m Lead, Trigger Switch and Remote Control and 50mm²... - Page 20 Electrode Lead (Deadman Switch) 646763 ELECTRODE LEAD SPARE PARTS ITEM PART NUMBER DESCRIPTION W7006000 Rubber boot for electrode holder switch W7006001 W7006001 S itch for electrode holder Switch for electrode holder W7006002 Dinse 50mm² for electrode holder 646142 400A electrode holder handle assembly U0A706900 Cable plug 8 pin CONFIDENTIAL AND PROPRIETARY...
-
Page 21: Applications
Applications Transtig 300AC/DC - 415V Transtig 220AC/DC - 240V/15A Schools/TAFES Schools/TAFES Rental & Hire Companies Rental & Hire Companies Agricultural Regions Home & Hobby Workers Boat Building/Marine Applications t B ildi /M i ... -
Page 22: Warranty Information
Warranty Information CONFIDENTIAL AND PROPRIETARY Slide 22 December 17, 2013...
