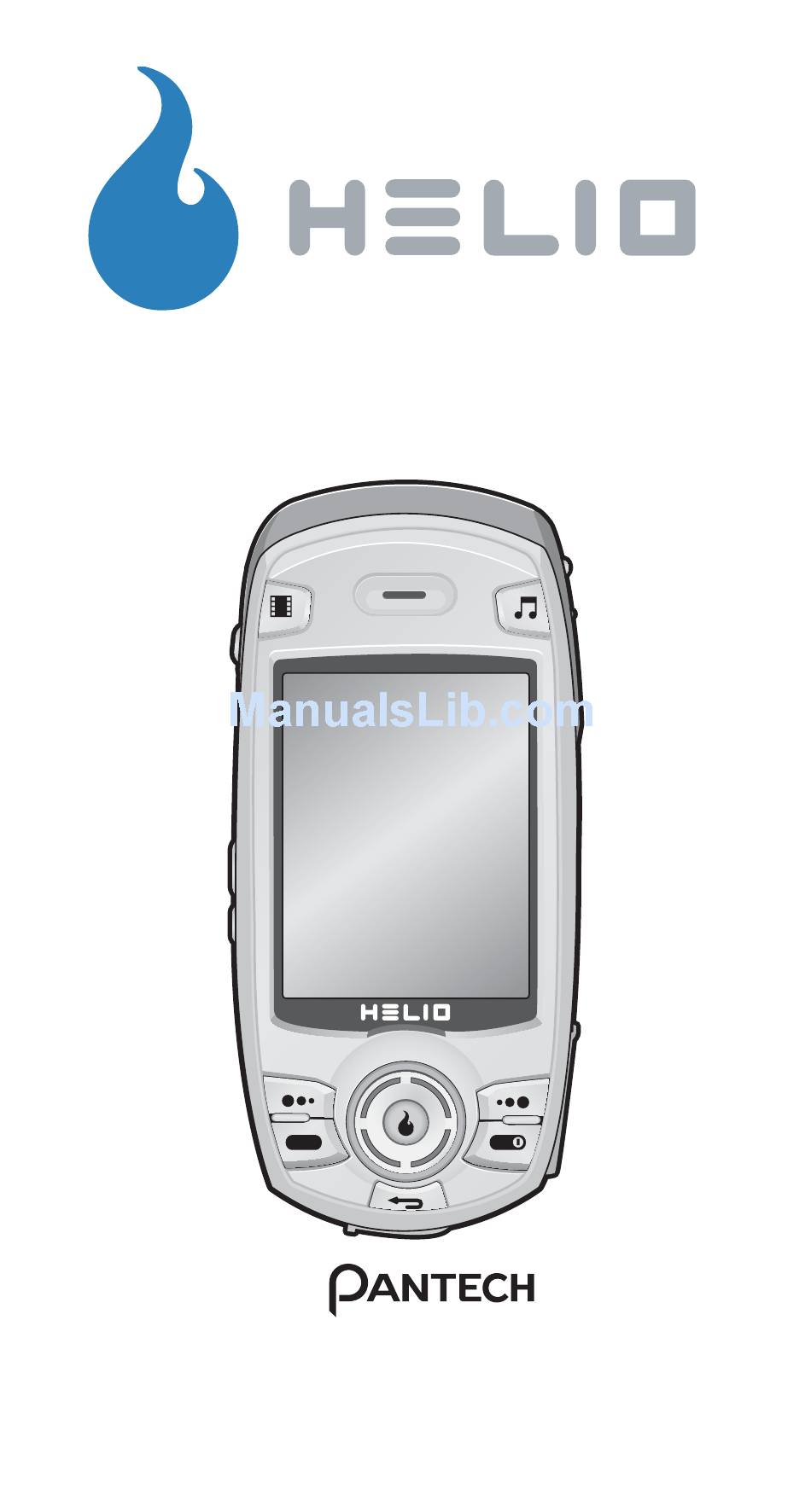

  • Page 1 HERO User’s Manual...
  • Page 2 LEGAL Hero User’s Manual. © 2006 Pantech Wireless, Inc. © 2006 Helio LLC. All rights reserved. Under copyright law, this manual may not be reproduced in any form, in whole or in part, without the prior written consent of Pantech Wireless, Inc and Helio LLC.
  • Page 3 • Product meets current FCC Radio Frequency Exposure Guidelines. FCC Equipment Authorization ID: PP4PN-E8300. Additional details within and at http://fcc. gov/oet/fccid. • TTY compatible. • Phone appearance and features may vary from device shown. • Screen shots simulated. Actual results vary. •...
  • Page 4 WELCOME hank you for choosing the Helio ® Hero mobile device, developed by Pantech. Pantech’s dedicated team of top researchers have designed your mobile device to support high speed communication services, such as web browsing and data services, and the device has an animated graphic menu system for easy access to its many features.

  • Page 5: Table Of Contents

    CHAPTER 1. BEFORE USING YOUR DEVICE ... 9 INSIDE THE PACKAGE ... 10 DEVICE DESCRIPTION ... 11 DEVICE VIEW ... 11 FUNCTION KEYS ... 12 DISPLAY INDICATORS ... 13 BATTERY USAGE ... 15 BATTERY INSTALLATION ... 15 BATTERY REMOVAL ... 15 BATTERY CHARGING ...
  • Page 6 TABLE OF CONTENTS CHAPTER 3. MEMORY FUNCTIONS ... 33 STORING CONTACT INFO ... 34 ENTERING LETTERS, NUMBERS, AND SYMBOLS ... 35 STANDARD INPUT MODE ... 36 T9 INPUT MODE ... 37 NUMERIC MODE ... 38 SYMBOL MODE ... 38 KOREAN MODE ... 38 MAKING A CALL FROM THE CONTACT LIST ...
  • Page 7 CONTACT ... 83 NEW CONTACT ... 83 CONTACT LIST ... 84 GROUPS ... 85 SPEED DIALS ... 87 CALL LOG ... 88 CALL TIMER ... 90 SERVICE NUMBER ... 92 SYNC CONTACTS ... 93 MY NUMBER ... 94 APPS ... 95 THE LOST SISTER ...
  • Page 8 TABLE OF CONTENTS CHAPTER 5. SAFETY AND WARRANTY ... 135 SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES ... 136 SAFETY INFORMATION FOR FCC RF EXPOSURE ... 141 SAR INFORMATION ... 142 FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS DEVICES ... 144 FDA CONSUMER UPDATE ...

  • Page 9: Chapter 1. Before Using Your Device

    CHAPTER 1 BEFORE USING YOUR DEVICE This chapter provides important information about using the Hero, including: INSIDE THE PACKAGE DEVICE DESCRIPTION DISPLAY INDICATORS BATTERY USAGE BATTERY HANDLING INFORMATION...

  • Page 10: Inside The Package

    INSIDE THE PACKAGE BEFORE USING This package should include all items pictured below. If any are missing or different, immediately contact the Helio store where you bought your mobile device. Hero Battery Charger Screen Cleaner USB Cable...

  • Page 11: Device Description

    DEVICE DESCRIPTION This device is a single-mode 3G digital phone with camera and web browsing capabilities. The Hero weighs 4.84 oz. The dimensions are 1.93” × 4.27” × 0.95”. ■ DEVICE VIEW VOD Key Earpiece MOD Key Display Screen Navigation Keys Back Key Camera Key...

  • Page 12: Function Keys

    BEFORE USING ■ FUNCTION KEYS Display Indicators See page 13 for a list of icons. VOD Key Camera Key In Idle Mode, press and hold to open camera viewfinder In Camera Mode, press to shoot a photo or video NAVIGATION PAD In Idle Mode Press Up for Surf Down for Video+Music...

  • Page 13: Display Indicators

    DISPLAY INDICATORS ■ DISPLAY INDICATORS Signal Strength Current signal strength: the more lines, the stronger the signal Roaming Device is out of Helio service area Calling Call Lock Voice Privacy Standby Privacy Mode Text Voice Text & Voice Text & Pic Pic &...

  • Page 14: Before Using

    BEFORE USING Airplane Mode Device is in Airplane Mode and cannot make or receive voice or data calls Anniversary An anniversary is set Alarm / Wakeup Call An alarm or wakeup call is set Ring Vibrate then Ring Ring and Vibrate Dormant Device is in Dormant Mode during a data call.

  • Page 15: Battery Usage

    BATTERY USAGE ■ BATTERY INSTALLATION As shown in the picture below, position the metal locators of the battery in the holes located in the bottom of the device. ➊ Place the battery on the back of the device and slide into place. ➋...

  • Page 16: Battery Charging

    BEFORE USING ■ BATTERY CHARGING POWER CONNECTION ➊ Ensure the battery is installed. ➋ Plug the Wall Charger into a standard outlet. Plug the other end of the Wall Charger into the bottom of the device. • When you charge the battery with the device off, you will see a charging status screen.

  • Page 17: Battery Capacity

    BATTERY USAGE BATTERY USAGE TIMES Battery life is subject to your device usage and configuration. Battery Capacity Low Gain Mode High Gain Mode BATTERY STANDBY TIME Battery life is subject to your device usage and configuration. Battery Capacity STD 1200 mAh These times are for a new battery.

  • Page 18: Battery Handling Information

    BEFORE USING ■ DOs • Only use the battery and charger approved by the manufacturer. • Only use the battery for its original purpose. • Keep the battery temperature between 41ºF (5ºC) and 95ºF (35ºC). • If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using.

  • Page 19: Chapter 2. Basic Operation

    CHAPTER 2 BASIC OPERATION This chapter addresses and explains the basic features of your mobile device, including: TURNING THE DEVICE ON AND OFF ACCESSING THE MENU MENU SUMMARY BASIC FUNCTIONS DURING A CALL MAKING AN EMERGENCY CALL...

  • Page 20: Turning The Device On And Off

    BASIC OPERATION ■ TURNING THE DEVICE ON Slide the device open, then press and hold the Power On logo and animation appears and the wake up tone sounds. • If the device is locked, enter your four-digit password to unlock it when “Password” appears on the display. •...

  • Page 21: Accessing The Menu

    ACCESSING THE MENU Your device can be customized via the menu. Each function can be accessed by scrolling with the Navigation Key or by pressing the number that corresponds with the menu item. ➊ To access the menu in idle mode, slide the device open and press ➋...

  • Page 22: Menu Summary

    BASIC OPERATION MAIN MENU 1. STYLE 1. Rings 2. Download 3. Screens 4. Download 5. Call Screens 6. Download 7. H.O.T. Screens 8. Download 2. SURF 3. SNAP 1. Camera 2. Video Camera 3. Photo Album 4. Video Album 5. Settings 6.

  • Page 23: Basic Operation

    MENU SUMMARY MAIN MENU 2ND DEPTH 5. Email 6. Voice Mail 7. Spam Inbox 8. Delete Msgs 9. Settings 1. New Contact 5. CONTACT 2. Contact List 3. Groups 4. Speed Dials 5. Call Log 6. Call Timer 7. Service Number 8.
  • Page 24 4. Font 5. Backlight 6. External Keys 7. Network Light 8. Device Closed 9. Downloads MENU SUMMARY 4TH DEPTH 1. Rings 2. Bell Rings 1. My Screens 2. World Time 3. Anniversary 1. Helio 2. Pantech 1. VideoScreens 2. Screens...
  • Page 25 MENU SUMMARY MAIN MENU 2ND DEPTH 3. Call 4. Network 5. Device 6. Security 7. Language 8. Airplane Mode BASIC OPERATION 3RD DEPTH 4TH DEPTH 1. Answer Call On 2. Auto Functions 3. TTY 1. Helio Settings 2. Network Mode 1.

  • Page 26: Basic Functions

    BASIC OPERATION ■ MAKING A CALL NUMBER ➊ Slide the device open and enter a phone number. To modify the phone number you have entered: • Erase one digit at a time by pressing • Erase the entire number by pressing and holding To send a text or photo message to the phone number: •...

  • Page 27: Answering A Call

    BASIC FUNCTIONS ■ ANSWERING A CALL ➊ When your device rings or vibrates, slide it open and press to answer the incoming call. (Depending on your device settings, you may also answer incoming calls by opening the phone or by pressing any number key.) To ignore an incoming call and silence the ring, press [Silent].

  • Page 28: Lock Mode

    BASIC OPERATION ■ LOCK MODE ➊ To lock the device, slide it open, then press and hold ➋ To unlock the device, press any function key (except ■ THREE-WAY CALLING With Three-Way Calling, you can talk to two people at the same time.

  • Page 29: Call Waiting

    BASIC FUNCTIONS ■ CALL WAITING Notifies you of an incoming call when you are already on a call by sounding a beep tone and displaying the caller’s phone number. To answer another call while on the phone, press This places the first call on hold. To switch back to the first caller, press Call Waiting is a system dependent feature.

  • Page 30: Adjusting Volume

    BASIC OPERATION ■ ADJUSTING VOLUME Adjust the volume of the ring, key beep, and speaker. ➊ Select one of the following: • Ring: Controls the ring volume • Call: Controls the call volume • Effect: Controls the volume of special effects •...

  • Page 31: During A Call

    DURING A CALL ■ AVAILABLE OPTIONS DURING A CALL To display menu options during a call, press the call volume, press the Navigation Key up or down. To mute the call (the other party can’t hear you, but you can hear them), press [Mute].

  • Page 32: Making An Emergency Call

    BASIC OPERATION Dialing 911 puts the device in the Emergency Call Mode. Note that you can also dial 911 when your device is locked or you are out of the service area. Emergency Number ■ 911 IN LOCK MODE 911 service is available even when the device is locked. ➊...

  • Page 33: Chapter 3. Memory Functions

    CHAPTER 3 MEMORY FUNCTIONS This chapter addresses memory functions, including: STORING CONTACT INFO ENTERING LETTERS, NUMBERS, AND SYMBOLS MAKING A CALL THROUGH THE CONTACT LIST...

  • Page 34: Storing Contact Info

    MEMORY FUNCTIONS The contact list stores up to 1200 entries. ➊ Slide the device open, enter the phone number, press Update Contact. Press ➋ If you select New Contact, the phone number will appear above a list. Press the Navigation Key up or down to choose the type of number you’re adding, as indicated by the icon.

  • Page 35: Entering Letters, Numbers, And Symbols

    ENTERING LETTERS, NUMBERS, & SYMBOLS T9 input mode will automatically be activated when necessary to enter letters and numbers. As shown below, there are five available modes: T9 input mode (T9Word), capitalized standard input mode (ABC), initial caps standard input mode (Abc), numeric mode (123), symbol mode (Symbols), and Korean mode (Korean).

  • Page 36: Standard Input Mode

    MEMORY FUNCTIONS ■ STANDARD INPUT MODE Use the number keys to enter letters, numbers, and symbols. ➊ Enter letters using the keypad as follows: Press 1 time 2ABC 3DEF 4GHI 9WXYZ To enter a symbol, press desired symbol appears (. @ ? ! - , & : ‘ change the input mode, press To enter a space, press ➋...

  • Page 37: T9 Input Mode

    ENTERING LETTERS, NUMBERS, & SYMBOLS ■ T9 INPUT MODE The T9 input mode incorporates a built-in dictionary to determine a word based on the characters entered. Using T9, a word can be entered more quickly by pressing a key once per character. ➊...

  • Page 38: Numeric Mode

    MEMORY FUNCTIONS ■ NUMERIC MODE Allows you to enter numbers. ➊ Press [Abc] and select 123 to select numeric mode. ➋ To enter a number, press a digit key. ■ SYMBOL MODE Allows you to enter symbols. ➊ Press [Abc] and select Symbols to select symbol mode.

  • Page 39: Making A Call From The Contact List

    MAKING A CALL FROM THE CONTACT LIST ■ ONE-TOUCH/TWO-TOUCH DIALING Ideal for frequently dialed numbers, this feature allows contact list entries to be dialed via the keypad with only one or two key presses. ONE-TOUCH DIALING: 1–9: Press and hold the corresponding memory number for more than one second.
  • Page 40 MEMO...

  • Page 41: Chapter 4. Menu Functions

    CHAPTER 4 MENU FUNCTIONS This chapter addresses accessing the menu and using its functions and features to customize your device: STYLE SURF SNAP TEXT CONTACT APPS PLAN VIDEO+MUSIC SETUP...

  • Page 42: Style

    MENU FUNCTIONS ■ RINGS ➊ Press [Menu] ➋ Select your ringtone, volume, and vibrate and ring settings. To download rings, press STYLE [Menu]...

  • Page 43: Screens

    STYLE ■ SCREENS ➊ Press [Menu] ➋ Select your idle screen options. Press to view the current options. Note that you can change the currently selected setting while previewing by pressing the Navigation Key left or right. To download screens, press MENU FUNCTIONS [Preview] [Menu]...

  • Page 44: Call Screens

    MENU FUNCTIONS ■ CALL SCREENS ➊ Press [Menu] ➋ Select the screen to display when a call is coming in. To download call screens, press STYLE [Menu]...

  • Page 45: Screens

    STYLE ■ H.O.T. SCREENS To turn on H.O.T. ➊ Press [Menu] ➋ Highlight a H.O.T. screen and press ➌ Select Turn On H.O.T. and press ➍ Close and re-open the device. The H.O.T. screen is now running. To turn off H.O.T.: ➊...

  • Page 46: Surf

    SURF MENU FUNCTIONS ■ ACCESS HELIO ONLINE You can access news, sports, weather, and email from your mobile device. Contact Helio for a list of available websites and service details. To launch the mobile web browser and access websites through your mobile device, press [Menu] press the Navigation Key up.
  • Page 47 SURF Asks for a URL and navigates to it. FORWARD Navigates to the next page in the history list. This is only available if you have navigated backward in the history. BOOKMARKS Allows you to create and navigate to bookmarks: Creates a bookmark for the current page.
  • Page 48 MENU FUNCTIONS To edit an existing folder: ➀ Select the folder to be edited by pressing using the Navigation Key. ➁ To change the folder name, select New Folder Name, press keypad, press (Note that you cannot change the name of the Favorites folder.) To delete the selected folder, select Delete Selected Folder and press...

  • Page 49: Setup Options

    SURF SETUP OPTIONS Sets browser settings: • Scrolling Mode: Changes the page scrolling mode: Line by Line, Half Page, or Single Page. • Autosave Last Menu Selection: Saves the last menu selection and returns to that menu when you bring up the browser menu again.

  • Page 50: Snap

    MENU FUNCTIONS ■ PHOTO CAMERA Taking pictures with your mobile device’s built-in camera is as simple as choosing a subject, pointing the lens, and pressing a button. TAKING A PHOTO ➊ Open the camera cover by sliding the release clockwise. ➋...
  • Page 51 SNAP TAKING A PHOTO THROUGH THE MENU ➊ Ensure the camera cover is open. ➋ Press [Menu] ➌ Point the camera lens at your subject. You can check the photo framing through the main display screen. ➍ Press or the side camera button photo.
  • Page 52 SNAP MENU FUNCTIONS When the device is closed: BRIGHTNESS Press the Navigation Key up/down to adjust the brightness. The current brightness level appears at the bottom of the screen. ZOOM Use the buttons to change the magnification. The current zoom level appears on the right side of the screen.
  • Page 53 SNAP MENU FUNCTIONS CAMERA MODE MENU Press [Menu] to bring up the menu in Camera Mode: 1. Resolution Selects the picture resolution. Device open: 320×240, 240×320, or 240×180 Device closed: 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240, 240×320, or 240×180 2. White Balance Adjusts the white balance: Auto, Outside, Cloudy, Fluorescent, or Bulb.
  • Page 54 SNAP MENU FUNCTIONS 7. Timer Sets the camera’s timer: Timer Off, 2sec, 5sec, or 10sec. 8. Effect Selects a picture effect: Effect Off, Gray, Sepia, Purple, Blue, Green, Negative, Old Film, B&W Film, Posterize, Mono Posterize, Sketch, Conte, Mosaic, Emboss, Sharpen, Colored Pencil, Pencil, Gorgeous, Thin, High Contrast, Low Contrast, or Milky.

  • Page 55: Video Camera

    SNAP ■ VIDEO CAMERA Taking videos with your mobile device’s built-in camera is as simple as choosing a subject, pointing the lens, and pressing a button. ➊ Open the camera cover to enter Camera Mode. ➋ If the device is closed, press the Navigation Key left to enter Video Mode.
  • Page 56 SNAP MENU FUNCTIONS VIDEO MODE OPTIONS When the device is open and in Video Mode, several camera options are available: PREVIEW Press to preview saved videos. FLASH Press to set the flash: Auto, Off, or On. When the device is closed: WHITE BALANCE Press the Navigation Key left to adjust the white balance: Auto, Outside, Cloudy, Fluorescent, or Bulb.
  • Page 57 SNAP When the device is open: WHITE BALANCE Press to adjust the white balance: Auto, Outside, Cloudy, Fluorescent, or Bulb. BRIGHTNESS Press the Navigation Key left/right to adjust the brightness. The current brightness level appears at the bottom of the screen. ZOOM Press the Navigation Key up/down to change the magnification.
  • Page 58 SNAP MENU FUNCTIONS 3. White Balance Sets the white balance: Auto, Outside, Cloudy, Fluorescent, or Bulb. 4. Flash Sets the flash: On While Recording, Off, or On. 5. Quality Sets the video quality: High, Standard, or Economy. 6. Camera Mode Sets the camera mode: Auto, Portrait, Landscape, Portrait_Landscape, or Night.
  • Page 59 SNAP MENU FUNCTIONS 9. Preview Slide Close Determines whether a preview stops when the device is closed: Stop Preview or Continue Preview. 0. Video Sound Sets the video sound: Camcorder or Beep. *. Memory Sets the location for saved video: Int. Memory or Ext. Memory.

  • Page 60: Photo Album

    MENU FUNCTIONS ■ PHOTO ALBUM In Review Mode you can view all the pictures you have taken, store selected images in your mobile device, send pictures to the Online Album, delete images, and access additional picture options. ➊ Press [Menu] ➋...

  • Page 61: Video Album

    SNAP ■ VIDEO ALBUM In Review Mode, you can view all the videos you have taken, store selected videos, send videos to the Online Album, delete videos, and access additional video options. ➊ Press [Menu] ➋ In Review Mode, you can view all the videos you have stored.

  • Page 62: Settings

    SNAP MENU FUNCTIONS ■ SETTINGS Allows you to set camera options. ➊ Press [Menu] ➋ Press [Save] to save the options.

  • Page 63: Print Photos

    SNAP ■ PRINT PHOTOS The Hero comes equipped with a 2-megapixel built-in camera that allows you to print images directly to a printer using PictBridge technology. A USB cable must be connected between your Hero device and the printer before any printing can occur. ➊...

  • Page 64: Memory Info

    SNAP MENU FUNCTIONS ■ MEMORY INFO Displays internal or external memory information. ➊ Press [Menu] ➋ Select Internal or External with the Navigation Key. ➌ The memory information appears. ➍ To return to the previous page, press...

  • Page 65: Text

    TEXT ■ NEW TEXT MSG To compose a new text message: ➊ Press [Menu] ➋ The Message Contents field is highlighted. Type a new text message, then press • By pressing Copy Text: Saves the message text to the Quick Text list. Paste Text: Pastes text from the Quick Text list.

  • Page 66: Text Messages

    MENU FUNCTIONS ■ TEXT MESSAGES NEW TEXT MSG Composes a new text message. TIMED TEXT Composes a timed text message, which will be sent at a specified time: ➊ Press [Menu] ➋ The Message Contents field is highlighted. Type a new text message and press ➌...
  • Page 67 TEXT INBOX The Inbox holds received text messages. ➊ Press [Menu] ➋ Select a message and press displayed. To delete a message, press Press [Reply] to reply to the message. Press to forward the message. Press from the following: DELETE MESSAGE Deletes the current message.
  • Page 68 MENU FUNCTIONS OUTBOX Holds sent text messages or messages waiting to be sent. ➊ Press [Menu] ➋ Select a message and press displayed. To delete a message, press Press [Del] to delete the message. Press to resend the message. DRAFTS Holds draft messages from the Inbox/Outbox.
  • Page 69 TEXT TIMED TEXT BOX Holds timed text messages. ➊ Press [Menu] ➋ The timed text message list displays. To delete all messages, press Msgs. ➌ Select a message and press displayed. To delete a message, press ➍ To edit a message, press message, press SAVED Holds saved messages from the Inbox/Outbox.

  • Page 70: New Pic Msg

    MENU FUNCTIONS ■ NEW PIC MSG To compose a new picture message: ➊ Press [Menu] ➋ The Message field is highlighted. Type a message and push the Navigation Key down. • By pressing Emoticon: Inserts an emoticon. Quick Text: Inserts text from the Quick Text list. ➌...

  • Page 71: Pic Messages

    TEXT ■ PIC MESSAGES COMPOSE Composes a new picture message. INBOX The Inbox holds received picture messages. ➊ Press [Menu] ➋ Select a message box: Received Msg, Saved (saved received messages), or Spam Msg (messages marked as spam). ➌ Select a message and press delete a message, press [Menu], you can choose from the following: •...
  • Page 72 MENU FUNCTIONS OUTBOX Holds sent picture messages or messages waiting to be sent. ➊ Press [Menu] ➋ Select a message box: Sent Msg (sent messages) or Saved (saved sent messages). ➌ Select a message and press displayed. To delete a message, press ➍...
  • Page 73 TEXT DRAFTS Holds draft messages from the Inbox/Outbox. ➊ Press [Menu] ➋ The list of draft messages displays. To delete all messages, press ➌ Select a message and press delete a message, press ➍ Once a message has been displayed, edit it and press [Send] to send it.
  • Page 74 MENU FUNCTIONS SETTINGS Manages messaging settings. ➊ Press [Menu] ➋ Set the following picture message options: • Background: Sets an image, photo, or color background, or no background. • Font Color: Sets the font color. • Msg Rcv Alert: Sets alert options for message received alerts: Alarm Settings: Select 1 Time, Every 2min, or Mute.

  • Page 75: Email

    TEXT MENU FUNCTIONS ■ EMAIL Takes you to the web email interface. ➊ Press [Menu]...

  • Page 76: Voice Mail

    MENU FUNCTIONS ■ VOICE MAIL To access voice mail: Press [Menu] In Idle Mode, press and hold To clear the message icon on the main display: Press [Menu] TEXT...

  • Page 77: Spam Inbox

    TEXT MENU FUNCTIONS ■ SPAM INBOX ➊ Press [Menu]...

  • Page 78: Delete Msgs

    MENU FUNCTIONS ■ DELETE MSGS ➊ Press [Menu] ➋ Enter your password (the default password is '0000'). ➌ Select one of the message folders by pushing the Navigation Key up/down and pressing • Text Inbox • Text Outbox • Text Drafts •...

  • Page 79: Settings

    TEXT ■ SETTINGS MSG ALERT Sets message alert options: ➊ Press [Menu] ➋ Select one of the following options with the Navigation Key: • Alarm Ring Set: Set the alarm ring type by pushing the Navigation Key left or right: 1 Time, Every 2min, or Mute. •...
  • Page 80 MENU FUNCTIONS QUICK TEXT Allows you to edit the Quick Text list. ➊ Press [Menu] ➋ To add a message, press ➌ Enter the message, then press ➍ The Quick Text list is displayed. – To delete a message, press Delete.
  • Page 81 TEXT SPAM MSG SETTINGS Sets spam options: RESTRICTED LIST ➊ Press [Menu] ➋ To add a number to the spam list, press ➌ Enter the phone number, then press ➍ The list of all spam phone numbers is displayed. – To delete a phone number, press –...
  • Page 82 MENU FUNCTIONS RESTRICTED TEXT ➊ Press [Menu] ➋ To enter a new phrase, press ➌ Enter the phrase, then press ➍ The list of all restricted phrases is displayed. – To delete a phrase, press – To enter a new phrase, press ➎...

  • Page 83: Contact

    CONTACT The contact list stores up to 1200 entries, each of which can be assigned to a group. Entries can be retrieved by name, phone number, or group. ■ NEW CONTACT Adds a new entry. ➊ To add a new entry to the contact list, press [Menu] ➋...

  • Page 84: Contact List

    MENU FUNCTIONS ■ CONTACT LIST Displays all the entries stored in your contact list. You can find an entry quickly by entering all or part of a name. ➊ Press [Menu] ➋ The list of names in your contact list is displayed alphabetically.

  • Page 85: Groups

    CONTACT ■ GROUPS Allows you to classify contacts into groups. ADD NEW GROUP ➊ Press [Menu] ➋ Press [Add]. ➌ Enter a new group name. ➍ Press , select whether or not this should be a Secret Group, then press CHANGE GROUP NAME ➊...
  • Page 86 MENU FUNCTIONS DELETE GROUP ➊ Press [Menu] ➋ Use the Navigation Key to select the group. ➌ Press [Menu] and select Delete. ➍ Press , select Yes, then press CHANGE ORDER ➊ Press [Menu] ➋ Press [Menu] and select Change Order. ➌...

  • Page 87: Speed Dials

    CONTACT ■ SPEED DIALS In idle mode, you can place a call to a number stored in speed dial by pressing and holding the location number on the keypad. For a 2-digit location number, press the first number then press and hold the second number.

  • Page 88: Call Log

    MENU FUNCTIONS ■ CALL LOG Displays information about all received and dialed calls. ALL CALLS ➊ Press [Menu] ➋ A list of the 40 most recent received and dialed calls displays. If a number is stored in your contact list, only the name appears.
  • Page 89 CONTACT INCOMING CALLS ➊ Press [Menu] ➋ A list of the 20 most recent received calls displays. OUTGOING CALLS ➊ Press [Menu] ➋ A list of the 20 most recent dialed calls displays. MENU FUNCTIONS...

  • Page 90: Call Timer

    MENU FUNCTIONS ■ CALL TIMER Checks the usage time and manages your calls within the limit you set. The 11 timers include Voice Sent Time, Voice Received Time, WWW Use Time, Data Sent Time, and Data Received Time: LAST CALL ➊...
  • Page 91 CONTACT LIFETIME CALLS ➊ Press [Menu] ➋ The call timers for all calls made on the device displays. ➌ To return to the previous page, press MENU FUNCTIONS...

  • Page 92: Service Number

    MENU FUNCTIONS ■ SERVICE NUMBER Gives access to service numbers. ➊ Press [Menu] ➋ Select the desired number: • Information (411) • Customer Care (611) • Emergency (911) CONTACT...

  • Page 93: Sync Contacts

    CONTACT ■ SYNC CONTACTS Allows you to synchronize your contacts between your mobile device and your Helio online contact list. ➊ Press [Menu] ➋ Select one of the following options using the Navigation Key: • Sync Contacts: Syncs contacts with your online contact list. •...

  • Page 94: My Number

    MENU FUNCTIONS ■ MY NUMBER Displays and allows you to edit your information. ➊ Press [Menu] ➋ Change your information as desired: First Name, Last Name, Birthday, Mobile Phone Number, Home Phone Number, Email Address, Home Address, Picture. ➌ To save your information, press CONTACT...

  • Page 95: Apps

    APPS ■ THE LOST SISTER The player becomes Jack, the main character of the game, and goes to the front to rescue his kidnapped sister from the wicked wizard Pandemes. In a previous war, Jack killed Pandemes’s two sisters—to exact his revenge, Pandemes has kidnapped Jack’s sister and waits for Jack with his monsters in the dungeon’s darkness.
  • Page 96 MENU FUNCTIONS WEAPONS Short Sword Long Sword SPECIAL ITEMS • Key: Moves Jack on to the next stage. • Armor: Refills Jack’s energy when he is in a critical situation. • Double Damage: Doubles the damage to an enemy for 10 seconds.
  • Page 97 APPS GAME SCREENS • Player Health: Shows Jack's remaining energy. If the gauge runs out, Jack dies. • Enemy Health: Shows the energy level of the enemy that is fighting against you. • Damage Spells: Shows the number of magical attacks available for use.

  • Page 98: Plan

    MENU FUNCTIONS ■ CALENDAR Allows you to set event reminders. ➊ Press [Menu] ➋ Use the Navigation Key to choose a date in the calendar. Press between the monthly, weekly, and daily views. Press [View] to view events on the selected date. Press [Menu] to select one of the following: •...
  • Page 99 PLAN MENU FUNCTIONS TITLE Use the keypad to enter a title. START TIME Use the keypad to set a start time and then press to select A.M. or P.M. END TIME Use the keypad to set an end time and then press to select A.M.
  • Page 100 PLAN MENU FUNCTIONS NEW ANNIVERSARY ➀ Set the following options: TITLE Use the keypad to enter a title. ANNIVERSARY Use the keypad to enter the date of the anniversary. ANNUALLY Press to set an annual reminder. CONTENTS Use the keypad to enter a description for the anniversary.

  • Page 101: Wakeup Call

    PLAN ■ WAKEUP CALL Sets a wakeup call. ➊ Press [Menu] ➋ Set the wakeup call options: SET WAKEUP CALL Press the Navigation Key left/right to select Off, Mon– Fri, Mon–Sat, or Everyday. NO HOLIDAY Press to select. ALARM TIME Use the keypad to set an alarm time and then press to select A.M.
  • Page 102 PLAN MENU FUNCTIONS RINGTONE Set a ringtone by pushing the Navigation Key left/right. VIBRATE Press the Navigation Key left/right to select Ring Only, Vibrate Only, Silent, Vib Then Ring, or Ring + Vib. SCREEN Set a screen by pushing the Navigation Key left/right. ➌...

  • Page 103: Alarm

    PLAN ■ ALARM ➊ Press [Menu] ➋ To set a new alarm, press ➌ Select the alarm type: • 10min: Alarm goes off after 10 minutes. • 20min: Alarm goes off after 20 minutes. • 30min: Alarm goes off after 30 minutes. •...
  • Page 104 MENU FUNCTIONS ALARM TIME Use the keypad to set an alarm time and then press to select A.M. or P.M. MEMO Use the keypad to enter an alarm message. ➎ Press [Save] to save the alarm. ➏ Press [Menu] to select the following options: •...

  • Page 105: Anniversary

    PLAN ■ ANNIVERSARY ➊ Press [Menu] ➋ To set a new anniversary, press ➌ Set the following options: DATE Use the keypad to enter the date. TITLE Use the keypad to enter a title for the anniversary. ➍ Press [Save] to save the anniversary. ➎...

  • Page 106: World Time

    MENU FUNCTIONS ■ WORLD TIME Displays the time and date in major cities around the world. ➊ Press [Menu] ➋ Select a city with the Navigation Key. ➌ The world map appears with the city and its date and time. If Daylight Savings Time (DST) does not apply, the displayed time may be different from the actual time during DST.

  • Page 107: Tip Calculator

    PLAN MENU FUNCTIONS ■ TIP CALCULATOR Calculates gratuity for restaurant bills. ➊ Press [Menu] ➋ Enter the total bill. ➌ Enter the tip percentage. ➍ Enter the number of ways to split the bill. ➎ The total cost per person appears. ➏...

  • Page 108: Calculator

    MENU FUNCTIONS ■ CALCULATOR A standard four-function calculator. ➊ Press [Menu] ➋ Follow the instructions below to calculate 8 × 6 ÷ 4 – 2.5: • Enter 8. • Push the Navigation Key up (×). • Enter 6. • Push the Navigation Key down (÷). •...

  • Page 109: Voice Recorder

    PLAN ■ VOICE RECORDER Allows you to record reminder messages of up to four minutes (total). ➊ Press [Menu] ➋ To record a new voice memo, press ➌ To stop recording a memo and save it, press [Save]. ➍ The list of all memos is displayed. Select a memo and press [Play] to play it back.

  • Page 110: Stop Watch

    MENU FUNCTIONS ■ STOP WATCH Simultaneously times up to 20 different events. ➊ Press [Menu] ➋ To measure a time period: ➀ To start the stop watch, press ➁ To pause it, press ➂ Press to reset the stop watch. ➃...

  • Page 111: Notepad

    PLAN ■ NOTEPAD Allows you to compose and store reminders and notes. (Note that there is an 220-character limit.) ➊ Press [Menu] ➋ To enter a new text memo, press page 35 for details on entering letters, numbers, and symbols). ➌...

  • Page 112: Video+Music

    VIDEO+MUSIC MENU FUNCTIONS ■ VIDEO Allows you to view the videos stored on your mobile device. ➊ Press [Menu] You can also press in Idle Mode to access your videos. To download videos from the Helio Store, press [Menu]...

  • Page 113: Music

    VIDEO+MUSIC MENU FUNCTIONS ■ MUSIC Allows you to listen to the music stored on your mobile device. ➊ Press [Menu] You can also press in Idle Mode to access your music. To download music from the Helio Store, press [Menu]...

  • Page 114: Memory Info

    MENU FUNCTIONS ■ MEMORY INFO Displays internal or external memory information. ➊ Press [Menu] ➋ Select Internal or External using the Navigation Key, then press appears. ➌ To return to the previous page, press VIDEO+MUSIC . The memory information...

  • Page 115: Setup

    SETUP ■ SOUND Sets options for rings, group rings, special effects, alerts, vibration, volume, and missed calls. RINGS Sets ring type, volume, ring/vibrate, and ring time for incoming calls: ➊ Press [Menu] ➋ Set your ring options: • Ringtone: Select the ringtone by pushing the Navigation Key left/right.
  • Page 116 MENU FUNCTIONS GROUP RINGS Sets a ringtone for each contact group: ➊ Press [Menu] ➋ Select a group. ➌ Set the group ringtone by pushing the Navigation Key left/right. ➍ To save, press ALERTS Sets ringtones for alerts: ➊ Press [Menu] ➋...
  • Page 117 SETUP VIBRATION Sets the vibration style: ➊ Press [Menu] ➋ Set your vibration style: • Normal • Increasing • Decreasing • Long->Short • Short->Long ➌ To save, press VOLUME Controls the ring, call, effect, alert, alarm, message notice, game, and on/off volumes: ➊...

  • Page 118: All Mute

    MENU FUNCTIONS SOUND EFFECTS Sets the sound effects for your device: ➊ Press [Menu] ➋ Set your sound effects: • Slide Open: Select the sound played when the device is opened: Default, Acoustic, Samurai, or None. • Slide Closed: Select the sound played when the device is closed: Default, Acoustic, Samurai, or None.
  • Page 119 SETUP DOWNLOADS Lists rings and bell rings you have downloaded. RINGS Press [Menu] BELL RINGS Press [Menu] MENU FUNCTIONS...

  • Page 120: Display

    MENU FUNCTIONS ■ DISPLAY Allows you to customize the display. SCREENS Sets the background images to display on the main screen. MY SCREENS ➀ Press [Menu] ➁ Select screen options: • Screen: Select a screen. • Animated Sticker: Select an animated sticker to appear on the screen.
  • Page 121 SETUP WORLD TIME ➀ Press [Menu] ➁ Select a city with the Navigation Key. ➂ To preview the settings, press ➃ To save, press ANNIVERSARY ➀ Press [Menu] ➁ The list of anniversaries is displayed. ➂ Select an anniversary with the Navigation Key. To preview, press ➃...
  • Page 122 MENU FUNCTIONS MENU THEME Selects a display menu style: ➊ Press [Menu] ➋ Select Helio or Pantech with the Navigation Key. To preview, press ➌ To save, press FONT Selects the display font style: ➊ Press [Menu] ➋ Select the desired font.

  • Page 123: Navigation Key

    SETUP EXTERNAL KEYS Configures the Navigation Key LED color: ➊ Press [Menu] ➋ Select one of the following options with the Navigation Key: • Normal Usage: Sky Blue, Purple, Red, Green, Blue, or Yellow Green. • Incoming Call: Fantastic, Red/Blue, Normal, Rainbow, Tropical, or Cotton Candy.
  • Page 124 MENU FUNCTIONS DEVICE CLOSED Sets options controlling the display when the device is closed: Press [Menu] ➊ Select one of the following options with the ➋ Navigation Key: • Display: Selects the screen displayed when the device is closed: Clock (Power Save) or Top Screen. •...

  • Page 125: Call

    SETUP ■ CALL Allows you to customize call options. ANSWER CALL ON Sets answering options: ➊ Press [Menu] ➋ Select one of the following options with the Navigation Key: • Receive Call: Select Slide Open, Open & Any Key, Open & Send Key, or Send Key Only.

  • Page 126: Auto Functions

    MENU FUNCTIONS AUTO FUNCTIONS Sets auto function options: ➊ Press [Menu] ➋ Select one of the following options with the Navigation Key: • Auto Redial: Automatically redials after a set time interval. • AutoRcvEarmicrophone: If headset is connected, calls are automatically answered.

  • Page 127: Network

    SETUP ■ NETWORK Allows you to customize network options. HELIO SETTINGS Sets Helio network options: ➊ Press [Menu] ➋ Enter your password (the default password is '0000'). ➌ Select the option you wish to change, press the setting using the keypad, then press •...

  • Page 128: Device

    MENU FUNCTIONS ■ DEVICE Displays information about your device (memory info, software version, mobile number) and resets the device to default settings. MEMORY INFO Displays internal or external memory information. ➊ Press [Menu] ➋ Select Internal or External and press ➌...
  • Page 129 SETUP RESET Resets the device to default settings or clears the contact list. ➊ Press [Menu] ➋ Select Delete Contacts or Reset Defaults and press ➌ Enter your password (the default password is '0000'). ➍ When “Initialize?” appears on-screen, select Yes and press When you select Yes, your device will reboot and erase all contacts or reset all settings to factory defaults.

  • Page 130: Security

    MENU FUNCTIONS ■ SECURITY Prevents unauthorized use of your device. PHONE LOCK Prevents the device from being used without entering the password first. ➊ Press [Menu] ➋ Enter your password (the default password is '0000'). ➌ Press to turn Autolock Mode on/off. FUNCTION LOCK Requires a password when accessing the camera, starting the web browser, making an outgoing call, making an international call,...

  • Page 131: Info Lock

    SETUP ➍ Select the function to be locked/unlocked with the Navigation Key, then press – To lock all functions, press All Lock. – To unlock all functions, press select All Unlock. • Camera • • Outgoing Call • Int’l Call •...
  • Page 132 MENU FUNCTIONS ➍ Select the function to be locked/unlocked with the Navigation Key, then press – To lock all functions, press All Lock. – To unlock all functions, press All Unlock. • My Number Sending • Contacts • Call Log •...

  • Page 133: Language

    SETUP ■ LANGUAGE Selects the language in which text is displayed on-screen. ➊ Press [Menu] ➋ Select either English or Korean. ➌ To save, press MENU FUNCTIONS...

  • Page 134: Airplane Mode

    MENU FUNCTIONS ■ AIRPLANE MODE Airplane Mode allows you to use many of your device’s features, such as games and voice recording, when you are on an airplane or in another area where making or receiving voice or data calls is prohibited.

  • Page 135: Chapter 5. Safety And Warranty

    CHAPTER 5 SAFETY AND WARRANTY This chapter addresses the safety guidelines and precautions to follow when operating your device. Before operating your device, please be aware of all safety details. This chapter also contains the terms and conditions of services and the warranty for your phone.

  • Page 136: Safety Information For Wireless Handheld

    SAFETY AND WARRANTY Read This Information Before Using Your Handheld Portable Cellular Telephone EXPOSURE TO RADIO FREQUENCY SIGNALS Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

  • Page 137: Driving Safety

    SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES DRIVING SAFETY Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them.

  • Page 138: Other Medical Devices

    SAFETY AND WARRANTY ELECTRONIC DEVICES Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. PACEMAKERS The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker.

  • Page 139: Posted Facilities

    SAFETY INFORMATION FOR SAFETY AND WARRANTY WIRELESS HANDHELD PHONES POSTED FACILITIES Turn your phone OFF where posted notices so require. OTHER SAFETY GUIDELINES AIRCRAFT FCC and Transport Canada Regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. BLASTING AREAS To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area”...
  • Page 140 DO NOT use unauthorized accessories. • DO NOT disassemble the phone or its accessories. If service or repair is required, return unit to an authorized Pantech cellular service center. If unit is disassembled, the risk of electric shock or fire may result.

  • Page 141: Safety Information For Fcc Rf Exposure

    SAFETY INFORMATION FOR FCC RF EXPOSURE WARNING! READ THIS INFORMATION BEFORE USING CAUTIONS In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.

  • Page 142: Sar Information

    SAR INFORMATION SAFETY AND WARRANTY THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S.
  • Page 143 SAR INFORMATION SAFETY AND WARRANTY The SAR testing for Body-worn operation was performed with a belt clip that provided a 20mm separation. The User’s Manual indicates that any holsters/clips used with this device should contain no metallic components. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.

  • Page 144: Fcc Hearing-Aid Compatibility (Hac)

    SAFETY AND WARRANTY On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids.
  • Page 145 FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS DEVICES In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage”...

  • Page 146: Fda Consumer Update

    SAFETY AND WARRANTY 1. Do wireless phones pose a health hazard? The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used.
  • Page 147 FDA CONSUMER UPDATE SAFETY AND WARRANTY FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group: •...
  • Page 148 FDA CONSUMER UPDATE SAFETY AND WARRANTY 4. What are the results of the research done already? The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories.
  • Page 149 FDA CONSUMER UPDATE 6. What is FDA doing to find out more about the possible health effects of wireless phone RF? FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF).
  • Page 150 SAFETY AND WARRANTY 8. What has FDA done to measure the radiofrequency energy coming from wireless phones ? The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leadership of FDA scientists and engineers.
  • Page 151 FDA CONSUMER UPDATE SAFETY AND WARRANTY 10. What about children using wireless phones? The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones.
  • Page 152 SAFETY AND WARRANTY 12. Where can I find additional information? For additional information, please refer to the following resources: • FDA web page on wireless phones (http://www.fda.gov/cdrh/phones/index.html) • Federal Communications Commission (FCC) RF Safety Program (http://www.fcc.gov/oet/rfsafety) • International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de) •...

  • Page 153: Protect Your Warranty

    Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.

  • Page 154: Month Limited Warranty

    SAFETY AND WARRANTY Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or...
  • Page 155 In addition, you may telephone us at (800) 962-8622, or email us at HandsetHelp@Pantech.com THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S...

  • Page 156: Safety And Warranty

    SAFETY AND WARRANTY Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
  • Page 157 MEMO...
  • Page 158 HERO CD KA/A PRT-SGA000001/04.06-1...

Table of Contents
