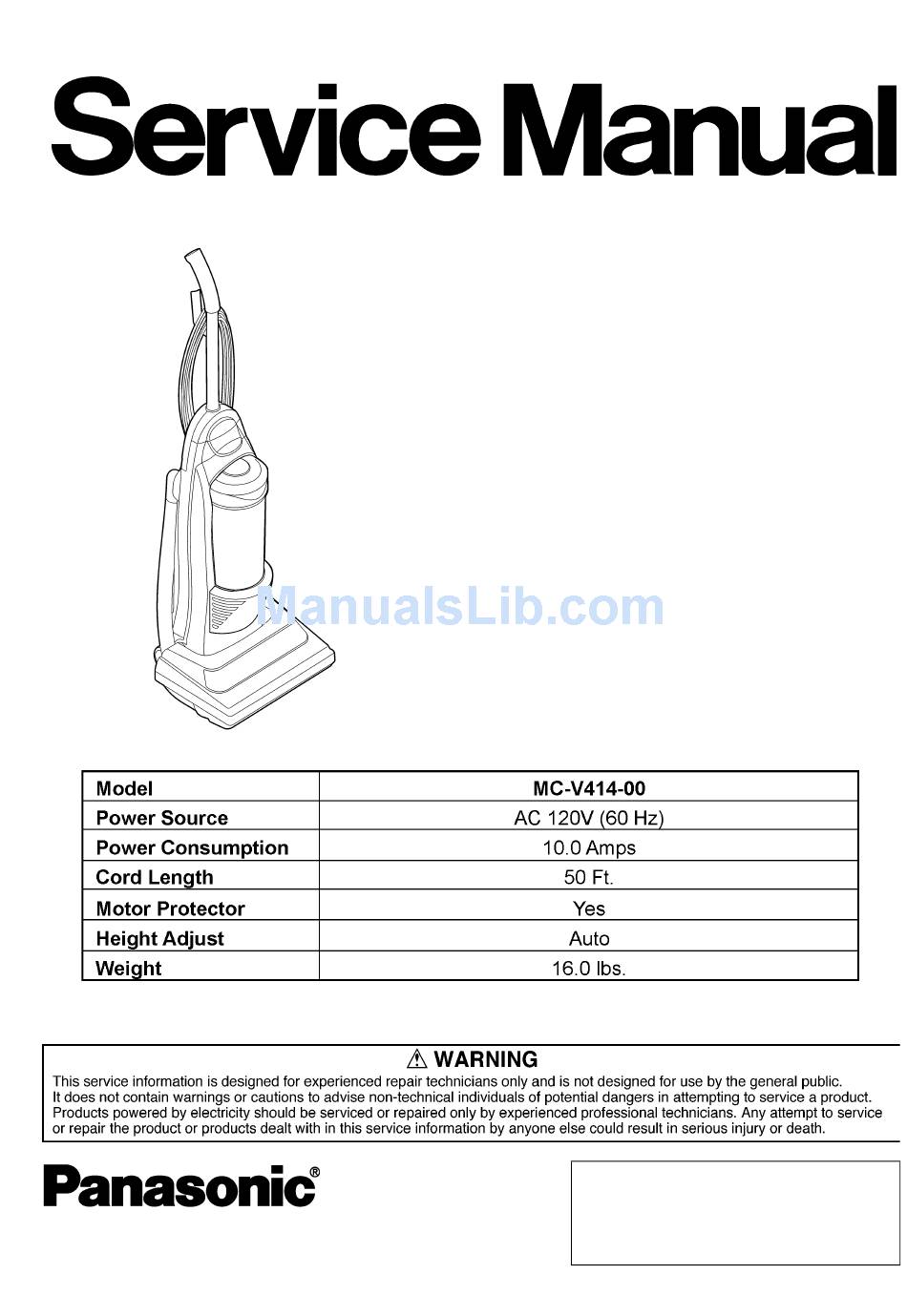

Page 1: Vacuum Cleaner
Specifications are subject to change without notice for further improvement. Order Number MAC0401005C1 Vacuum Cleaner MC-V414 00 © 2004 PANASONIC CONSUMER ELEC- TRONICS COMPANY, DIVISION OF MAT- SUSHITA ELECTRIC CORPORATION OF AMERICA. All rights reserved. Unauthorized copying and distribution is a violation of law. - Page 2 MC-V414 00...
-
Page 3: Wiring Diagram And Drawing
MC-V414 00 1 WIRING DIAGRAM AND DRAWING Wiring Diagram 1.1. -
Page 4: Pictorial Diagram
MC-V414 00 PICTORIAL DIAGRAM 1.2. NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical compo- nent or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage. -
Page 5: Exploded View And Parts List
MC-V414 00 2 EXPLODED VIEW AND PARTS LIST 2.1. Body 2.1.1. Exploded View... - Page 6 MC-V414 00 2.1.2. Parts List (Body) Ref. No. Part No. AC78KCHTZV07 Dust Compartment AC60KBRSZU01 Dust Cover AC94EAPNZY02 Power Cord AMC-1CTCE23 Wire Connector AC02LBJAZ000 Rear Cover Packing AC40AYUZV00 Body Packing, Left AC39AAJFZV00 Body Packing, Right AC01EAMMZ000 On/Off Switch AC01EAMMZV07 ON/Off Button...
-
Page 7: Nozzle Housing
MC-V414 00 2.2. Nozzle Housing 2.2.1. Exploded View... -
Page 8: Parts List ( Nozzle Housing)
MC-V414 00 Nozzle Housing) 2.2.2. Parts List ( Ref. No. Part No. AC01ACHTZU03 Nozzle Housing AC21H2XZU03 Window AMC25S-V00 Shaft (Plastic) AC10A2VZV07 Furniture Guard AMC81A-V00 Packing (Nozzle) AMC43A-2V0 Frame AMC58A-2V0 Spring (Pedal) AMC47A-2V0U Pedal AXTN4+16BFY Screw (Frame) AC28SJPZ00 Belt AC91AARFZ00 Lower Plate Assembly... -
Page 9: Packing Material
2.3. Packing Material 2.3.1. Exploded View 2.3.2. Parts List Ref. No. Part No. Part Name & Description AC61ZCHTZOOO Packaging Assembly ACO1ZCHTZOOO Operating Instructions Quantity Remarks Includes 1 and items a-g MC-V414 00... -
Page 10: Replacement Instructions
Lower Plate 3.1.1. Removal 1. Place handle in low position. 2. Turn the vacuum cleaner over exposing the underside. Release the lower plate by pressing the two (2) latches that secure it inward. 3. Separate the lower plate from the vacuum. -
Page 11: Nozzle Housing Replacement
Push the nozzle hose down into the slot in the nozzle housing. Make sure that the tab on the hose supporter is inserted into the slot. 5. Install the belt, agitator assembly, and the lower plate according to the respective instructions. MC-V414 00... -
Page 12: Motor Replacement
MC-V414 00 3.5. Power Cord Replacement 3.5.1. Removal 1. Remove the seven (7) screws that secure the dust cover and remove the dust cover. 2. Remove the two (2) wire connectors, disconnect the wires and pull the cord from the back of the unit. -
Page 13: Carbon Brush Replacement
2. Make sure that the amp terminal on the bottom of the brush assembly is inserted into the receptacle on the motor. 3. Replace the Phillips screw that was removed. 4. Repeat steps 1-3 for the other brush assembly. MC-V414 00...
