AirKing 3C614F Operating Instructions & Parts Manual

MODEL/MODELO/MODELE 3C614F/9166F
10
11
2
14
+ +
+
+
15

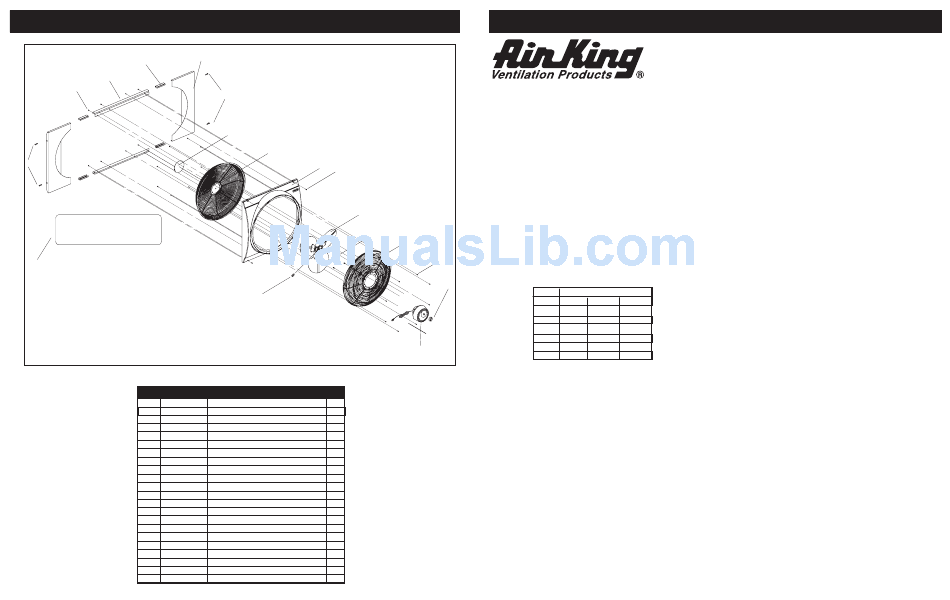

LISTE DES PIECES DE REMPLACEMENT
Clé No de Pièce
1 02030213
2 2090008
3 5097005BK
4 5090045
5 5082090BKB
6 2010722UV
7 5097002BK
8 02084613
9 2060087
10 02090508
11 2060086
12 05010109
13 5090044
14 2091413
15 2084076
16 2090024
Rev. Q 4/14
9
14
8
7
6
16
5
4
13
Description Qte
Moteur Assemblage 1
Vis #8 x 1,27 cm de type PPH 25 ZP 24
Grille intérieure 1
Vis #10-32 x 1,27 cm HWH Serr F-ZP 3
Lame 1
Bâti 1
Grille extérieure 1
Plaque centrale 1
Panneau latéral 2
Guide en caoutchouc 4
Canal 2
Bouton de l'interrupteur 1
Vis de réglage 0,64 cm 28 x 0,95 cm 1
Vis à bois #8 x 1,91 cm 4
Gabarit 1
Vis #8 x 1,91 cm PPH de type 25 ZP 4
8
OPERATING INSTRUCTIONS & PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DE-
SCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY
WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
DESCRIPTION

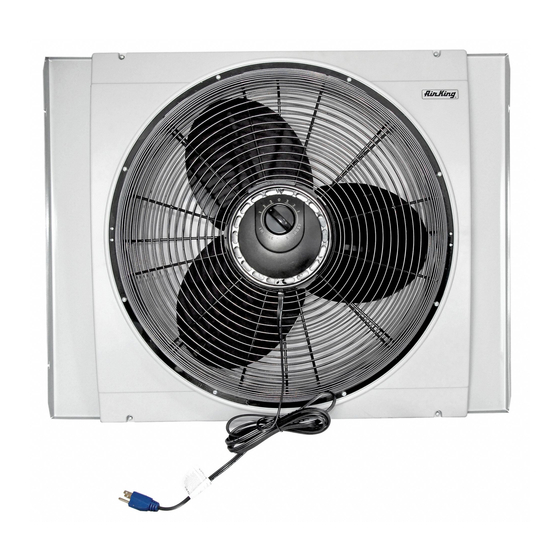

The Air King® 20" (50.8 cm) Whole House Window Fan features three
intake and three exhaust speeds. Fan will fit windows 27" (68.6 cm) to
38" (96.5 cm) wide x 26-1/4" (66.7 cm) high. The adjustable side panels
are designed to accommodate Fan mounting either inside or outside
interior window trim. The 3-paddle Fan blade is driven by a permanently
lubricated, permanent split capacitor motor with 6' (1.8 m), 18/3 cord
set.
SPECIFICATIONS
Motor ...................................... 120V, 60 Hz
3
Blade diameter ....................... 20" (50.8 cm)
Speeds .................................... 3 Intake, 3 Exhaust
Control .................................... Rotary Switch
2
Approvals ................................ ETL Listed. Close mesh Fan guard
meets OSHA requirements.
12
MODEL 3C614F/9166F
SPEED HIGH
CFM 3560
M 3 /s 1.68
RPM 1600
Amps 1.4
Watts 170
1
dB A 64
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to person, including the
following:
1. Read all instructions before using Fan.
2. Make certain that the power source conforms to the electrical
requirements of the Fan.
3. Use this Fan only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electrical
shock, or injury to persons.
4. Unplug power cord before installing, servicing, or moving the
Fan.
WARNING:
DO NOT DEPEND UPON THE ON-OFF
SWITCH AS THE SOLE MEANS OF DISCONNECTING
POWER WHEN INSTALLING OR SERVICING THE FAN.
ALWAYS UNPLUG THE POWER CORD.
5. This Fan must NOT be used in potentially dangerous
locations such as flammable, explosive, chemical-laden
or wet atmospheres.
6. The power cord is equipped with a three-prong grounded plug
that must be inserted into a matching receptacle. Under no
circumstances should the grounding prong be cut off the plug.
Where a two-prong wall receptacle is encountered, it must
be replaced with a properly grounded three-prong receptacle
2085109A
Rev. Q 4/14
20" WHOLE HOUSE WINDOW FAN
20" (50.8 cm) MODEL 3C614F/9166F
installed in accordance with the National Electrical Code (NEC)
and all applicable local codes and ordinances. This work must
be done only by a qualified electrician, using copper wire only.
Contact your Grainger Distributor.
WARNING:
USE OF A THREE-PRONG TO TWO-PRONG
ADAPTER IS NOT RECOMMENDED. IMPROPER CONNEC-
TION MAY CREATE THE RISK OF ELECTROCUTION. USE
OF SUCH ADAPTERS IS NOT PERMITTED IN CANADA.
7. Where possible, avoid the use of extension cords. If they must
be used, minimize the risk of overheating by ensuring that they
are UL listed. Never use a single extension cord to operate
more than one Fan.
8. Do not operate any Fan with a damaged cord or plug or
after the Fan malfunctions, has been dropped or damaged
in any manner. Return Fan to authorized service facility for
examination, electrical or mechanical adjustment or repair.
9. Do not insert or allow fingers or foreign objects to enter any
ventilation or exhaust opening as it may cause an electric shock
MED LOW
or fire, or damage the Fan. Do not block or tamper with the
3120 2510
Fan in any manner while it is in operation.
1.47 1.18
10.Always place the Fan on a stable, flat, level surface when
1450 1100
operating to avoid the chance of the Fan overturning. Locate
1.2 1.0
the Power Cord so the Fan or other objects are not resting on
145 115 it. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route cord
57 50
under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
11.This Fan is not intended for use in wet or damp locations.
Never locate a Fan where it may fall into a bathtub or other
water container.
12. Do not use Fan outdoors.
13.This Fan is not suitable for use in agricultural facilities including
areas where livestock, poultry or other animals are confined.
Please refer to National Electric Code (NEC) Article 547-7
(2008), or applicable state or local codes or standards relating
to electrical requirements for Agricultural Buildings. THIS FAN
DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE
547-7 (2008).
14. This Fan is not suitable for use in hazardous locations. Please
refer to National Electric Code (NEC) Article 500 or applicable
state or local codes or standards relating to electrical
requirements for Hazardous locations. THIS FAN DOES NOT
MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
WARNING:
REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK – DO NOT USE THIS FAN WITH ANY
SOLID STATE SPEED CONTROL DEVICES.
SAVE THESE INSTRUCTIONS
1
2085109A
