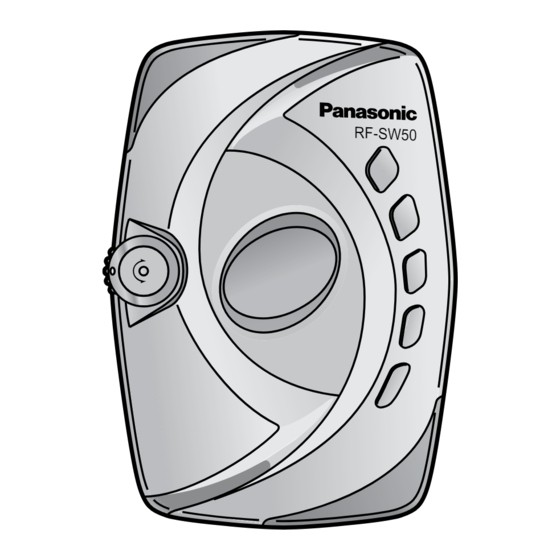

Panasonic RF-SW50 Operating Instructions

FM-AM 2 Band Receiver

Operating Instructions

RF-SW50
Model No.
RF-SW 50
Before connecting, operating or adjusting this
product, please read these instructions complete-
ly. Please keep this manual for future reference.
INSTALL A BATTERY.

CONNECT THE HEADPHONES.

Plug in firmly.
Plug type: 3.5 mm ( 1 / in.) stereo
8
Arm Belt
To attach the arm belt
1 Rest the clip on the back of the unit so it
fits inside the guides, then slide it so it
clicks into place.
Clip
1
2
Guide (on the back of
the unit)
To detach the arm belt clip
Press both sides of the clip and push to slide out.
1
2
1
The serial number of this product can be found on the
back of the cassette compartment cover or inside the
battery compartment.
Please note it in the space provided below and keep
as a permanent record of your purchase to aid identi-
fication in the event of theft.
RF-SW50
MODEL NUMBER
SERIAL NUMBER
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of
America
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company, Division of
Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial
Park, Carolina, Puerto Rico 00985
c 2003 Matsushita Electric Industrial Co., Ltd.
Printed in Taiwan.
P
3
Press in and down towards
the minus end.
-
+
One R03/LR03, AAA, UM-4
battery
R L
Ë
2
1 Put the belt on your
arm.
2 Adjust the strap with
the fabric fastener.
Fabric fastener
Ensure the clip is fixed firmly or it can fall off.

Supplied Accessories

Stereo Headphones (RFEV718P) • • • • • • • • • • 1
Arm Belt (RKHT0002) • • • • • • • • • • • • • • • • • • 1
Batteries • • • • • • • • • • • • • • • • • • • • • • • • • • • 4
Be sure to give the model number and color of the
unit when purchasing replacement headphones.
≥To order accessories contact 1-800-332-5368
or the website (http://www.panasonic.com).
≥Use numbers indicated in parentheses when
asking for replacement parts.
p
CAUTION:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the conditions that
this device does not cause harmful interference.
Any unauthorized changes or modifications to
this equipment would void the user's authority to
RQTT0539-P
operate this device.
F0203TH0
CHANGING
THE TONE
XBS
ON OFF
1
RELEASE HOLD.
HOLD
2
SELECT THE BAND.
"AM"
"OFF"
ª To turn off Press [≥AM/FM/OFF, %MODE

Troubleshooting Guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if
the remedies indicated in the chart do not solve the problem,
contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@pana-
sonic.com, or the website (http://www.panasonic.com).
PROBLEM
No operations.
≥No sounds.
≥A gritty noise is heard.
≥Cannot hear– too noisy.

Specifications

Frequency range:
Jack:
Power requirement: Battery; DC 1.5 V
Dimensions :
(WkHkD)
Mass:
(without battery)
Note:
Specifications are subject to change without notice.
Mass and dimensions are approximate.
Play time:
[When used in hold mode, at 25eC (77eF) and
on a flat and stable surface]
Alkaline dry
cell battery;
≥The play time may be less depending on the
operating conditions.
BATTERY CONDITION
(When the radio is off)
FULL
3
SELECT THE STATION.
(UP)
"FM"
(DOWN)
/ ] during reception and select "OFF".
BEFORE CALLING
CHECKPOINT
≥Is the battery worn?
≥Is the unit in the hold state?
≥Has the battery been installed with its polarities (+,-)
reversed?
≥Is the headphones plug firmly connected to [Ë] jack?
≥Is the plug dirty?
≥Separate the unit from mobile phones.
FM; 87.9–107.9 MHz
(0.2 MHz steps)
87.5–108.0 MHz
(0.1 MHz/0.05 MHz steps)
AM; 520–1710 kHz
(10 kHz steps)
522–1629 kHz
(9 kHz steps)
Output; HEADPHONES
(R03/LR03, AAA, UM-4 battery)
68.1k97.8k25.2 mm
(2 11 ⁄ 7 ⁄
qk3 qk1q)
16 8
74 g (2.6 oz.)
FM; About 25 hours
AM; About 26 hours
EMPTY
4
ADJUST THE
VOLUME.
VOL
5
When a station is tuned in.
