Panasonic SA-HE70 Operating Instructions Manual

Av control receiver
Hide thumbs Also See for SA-HE70:
Table of Contents

Advertisement

Quick Links

TV
VCR
DVD
AUDIO
TUNER/BAND
TAPE
CD
DIRECT TUNING/
1
2
3
DISC ENTER
4
5
6
10/ENTER
POWER
7
8
9
0
yy
w
q
TOP MENU
MENU
ENTER
8
DISPLAY
SUBWOOFER
SPEAKERS
- HELP
- BAND
/
/
- RESET
- FM MODE MEMORY
EFFECT
LEVEL
-
+
DSP
DISC/
SOUND MODE SFC
TEST
TUNING
SOUND MODE
DECK 1/2
2
1
PRESET
TV/VIDEO
CH
MUTING
-
+
VOLUME
PHONES
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read
these instructions completely.
Please keep this manual for future reference.
P
PC
VOLUME
INPUT SELECTOR
SFC MODE
DOWN
UP
TAPE MONITOR
SUBWOOFER
DOLBY
PRO LOGIC 2
BASS/TREBLE
BALANCE
DIGITAL INPUT
DVD 6CH INPUT
3
4
L
R

Table of contents

Before use
Step 4
Others
...................................................................................
Reference
..............................................................................
AV Control Receiver
Operating Instructions
SA-HE70
Model No.
................................
................................................................
....................................................................
4
6
8
10
............................................................................
...........................................................................
..................................................................
........................................................
...........................................................
...........................................................................
.....................................................................
........................................................................
.........................................................
....................................................
2
3
3
12
14
14
15
15
16
17
17
18
18
19
Back cover
RQT6193-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-HE70 and is the answer not in the manual?

Questions and answers

Roger comaling
May 27, 2025

Do you have mother board HE70

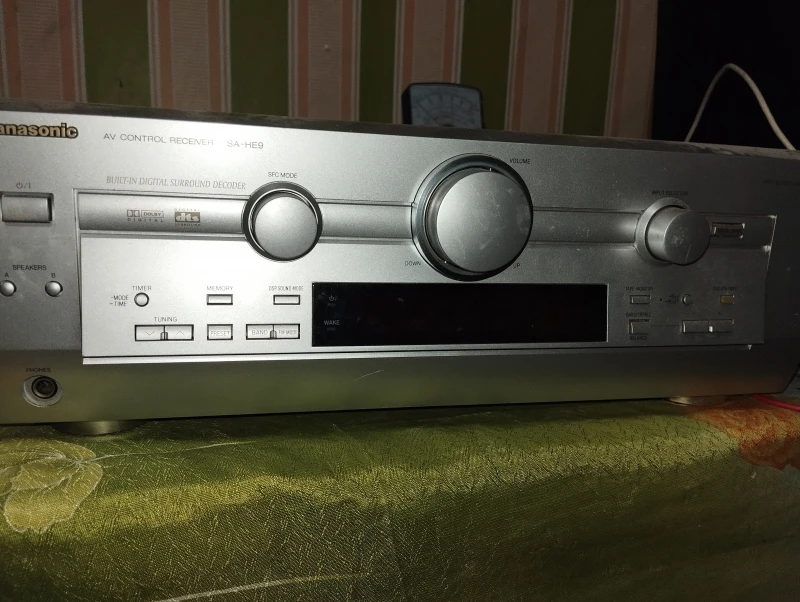

User image 6835e0dfcb9e0
0
1 comments:
Mr. Anderson
May 27, 2025

The Panasonic SA-HE70 is being parted out from a working unit, and the seller requests that buyers specify which part they need. This suggests the motherboard may be available, but you must contact the seller to confirm availability.

This answer is automatically generated

0

Related Manuals for Panasonic SA-HE70

Summary of Contents for Panasonic SA-HE70

  • Page 1: Table Of Contents

    Making a recording Using outdoor antennas Reference Troubleshooting guide Specifications Maintenance Warranty (U.S.A.) Product Service Servicenter List (U.S.A.) Listening caution AV Control Receiver Operating Instructions SA-HE70 Model No. Table of contents Speaker connections Equipment connections Settings Basic operations Back cover RQT6193-P...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference. Safety 1. Power source—Connect the unit to a power source of the type described in these instructions or as marked on the unit.

  • Page 3: Supplied Accessories

    In particular, do not place tape decks or CD/DVD players on this unit as heat radiated from it can damage your software. (Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site (http://www.panasonic.com). POWER SPEAKERS PHONES (R6, AA, UM-3)

  • Page 4: Placement Of Speakers

    Step 2 3 4 Placement of speakers Connecting speakers Other connections are possible depending on your speaker system. See your speaker system’s operating instructions for details. Front speakers – Impedance: 6–8 Subwoofer Active subwoofer INPUT Monaural connection cable RQT6193 Speaker connections Turn off the receiver before connecting the speakers.

  • Page 5: Speaker Cable

    Peripheral equipment and cables sold separately unless otherwise indicated. Front speakers (A left B right) Place on the left and right of the TV at seated ear height so that there is good coherency between the picture and sound. Center speaker (C) Place underneath or above the center of the TV.

  • Page 6: Tv, Vcr And Dvd Player

    Step Stereo connection cable White To connect equipment, refer to the appropriate operating instructions. Note ¡Do not bend the optical fiber cable. ¡Turn off all components before making any connections. ¡Use digital connection to enjoy Dolby Digital or DTS ( \ page 10). ¡Use analog connection to enjoy sources that cannot be decoded on this unit and to record a source ( \ pages 10 and 15).

  • Page 7: Cd/Tape Deck/Antennas

    Peripheral equipment and cables sold separately unless otherwise indicated. Optical fiber cable CD, Tape deck and antennas Antennas FM indoor antenna (included) Fix the other end of the antenna where reception is best. Adhesive tape AM loop antenna (included) Using the antenna holder When attaching the Fit the holder into the holes on the AM loop antenna to...

  • Page 8: Settings

    Step Change the settings to suit your speakers and units to the environment in which you are using them. Before making any changes, read the descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions. LARGE:For speakers that can reproduce a full sound range, particularly SMALL: For speakers that cannot adequately reproduce the bass range.
  • Page 9 SFC MODE POWER SFC MODE SPEAKERS DOWN SPEAKERS - HELP - BAND – RESET – FM MODE MEMORY DOLBY TUNING SOUND MODE PRO LOGIC 2 PRESET PHONES Select “SIZE”. Select the speaker. SFC MODE Select Select the speaker. “DISTANCE”. SFC MODE Select “FILTER”.

  • Page 10: Adjust The Volume

    Step 1 2 3 POWER Switch on. Turn SPEAKERS SPEAKERS on. Select input. INPUT SELECTOR TUNER TAPE For CD, DVD, TV DIGITAL INPUT Select digital or analog input. Select the DSP SOUND MODE sound mode. Start play of the source. VOLUME Adjust the volume.
  • Page 11 SFC MODE DOWN POWER POWER SFC MODE DOWN SPEAKERS - HELP - BAND – RESET – FM MODE MEMORY DOLBY TUNING SOUND MODE PRO LOGIC 2 PRESET PHONES SPEAKERS SOUND MODE PRO LOGIC 2 MOVIE Use this mode when playing movie software, especially videotapes, recorded in Dolby Surround.

  • Page 12: Control Guide

    Control guide Band select/FM mode select button [-BAND, –FM MODE] For switching between AM and FM. If reception is poor in FM, press and hold until “MONO” appears to switch to monaural mode. Help/reset button [-HELP, –RESET] Press if an error message appears. A message offering a possible solution scrolls across the display.
  • Page 13 VOLUME INPUT SELECTOR DIGITAL INPUT TAPE MONITOR SUBWOOFER BASS/TREBLE BALANCE Program format indicators [L, C, R, S, SL, SR, LFE] Show the channels contained in the digital input signal. They do not light when input is analog. L: Front channel (left) C: Center channel R: Front channel (right) S: If the surround channel is monaural.

  • Page 14: Presetting

    Presetting TUNING - BAND – FM MODE POWER SFC MODE SPEAKERS - HELP - BAND – RESET – FM MODE MEMORY DOLBY TUNING SOUND MODE PRO LOGIC 2 PRESET PHONES PRESET Automatic presetting - BAND 1 1 Press [ – FM MODE ] to select “FM”.

  • Page 15: Making A Recording

    Making a recording VOLUME POWER SFC MODE DOWN SPEAKERS - HELP - BAND – RESET – FM MODE MEMORY DOLBY TUNING SOUND MODE PRO LOGIC 2 PRESET PHONES Recording on a tape deck or VCR You can record to a tape deck connected to TAPE REC (OUT) or to a VCR connected to VCR OUT.

  • Page 16: Troubleshooting Guide

    In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or web site (www.panasonic.ca), or an authorized Servicentre closest to you.

  • Page 17: Specifications

    Specifications (IHF’78) I AMPLIFIER SECTION Rated minimum sine wave RMS power output 40 Hz–20 kHz both channels driven 0.9 % total harmonic distortion 100 W per channel (6 ) 1 kHz continuous power output both channels driven 0.05 % total harmonic distortion 105 W per channel (6 ) Total harmonic distortion rated power at 40 Hz–20 kHz...

  • Page 18: Warranty (U.s.a.)

    If you ship the product For product information or assistance with product operation: In the U.S.A., contact the Panasonic Customer Call Center at 1- 800-211-7262, or e-mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or web site (www.panasonic.ca), or an authorized...

  • Page 19: Servicenter List (U.s.a.)

    Servicenter List (U.S.A.) RQT6193...

  • Page 20: Listening Caution

    DEALER ADDRESS ____________________________ _____________________________________________ TELEPHONE NUMBER _________________________ Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com 2001 Matsushita Electric Industrial Co., Ltd. Printed in Malaysia THE FOLLOWING APPLIES ONLY IN THE U.S.A.
