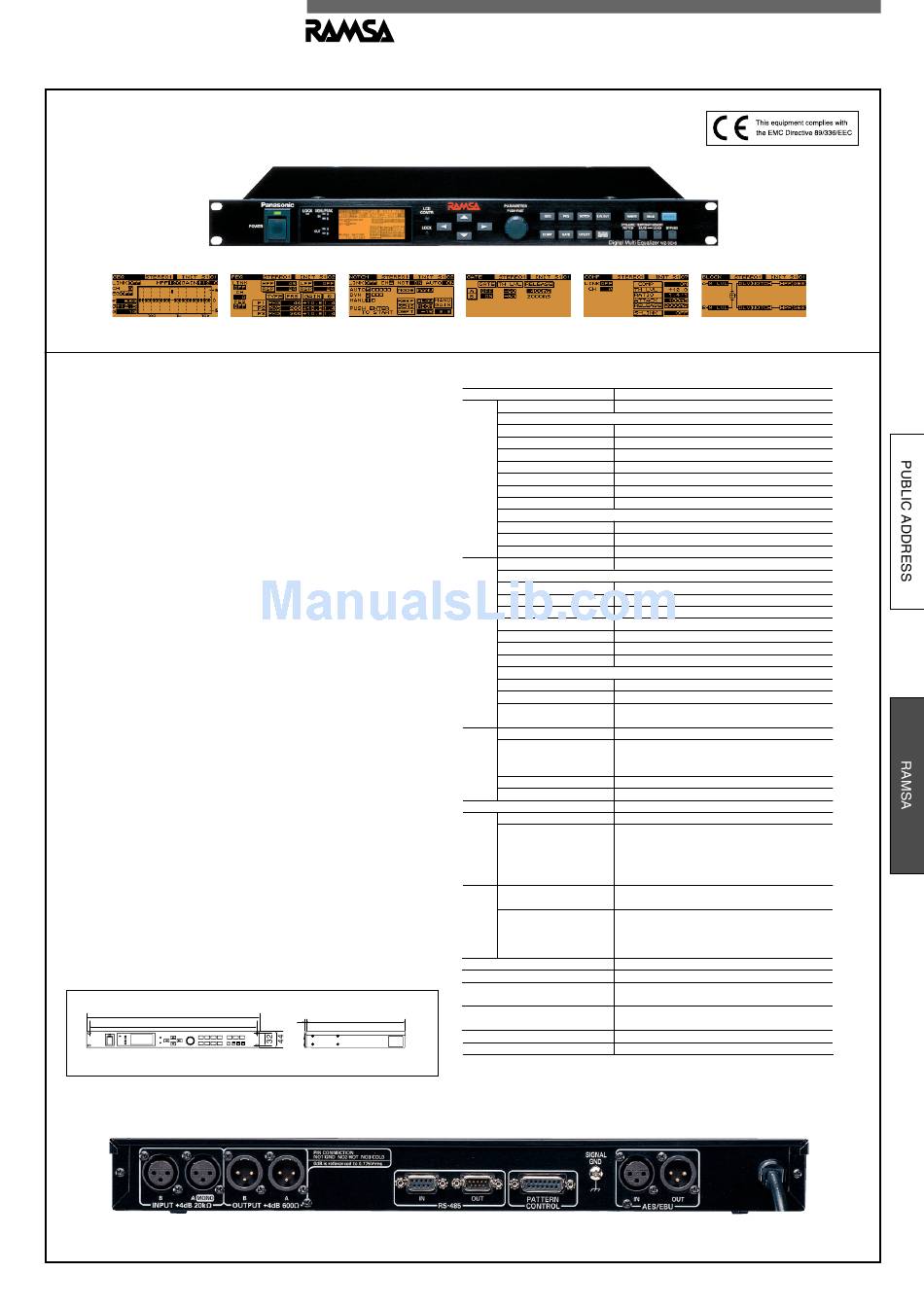

Panasonic WZ-DE45NH Specification Sheet

Digital multi equalizer
Hide thumbs


Advertisement

Quick Links

Digital Multi Equalizer
WZ-DE45NH
GEQ
PEQ
2 inputs and 2 outputs.
6 functions: Graphic equalizer function, parametric
equalizer function, delay function, notch filter function,
compressor/limiter function and noise gate function.
Built-in a digital audio interface and conforms to the
AES/EBU format.
24-bit A/D and D/A converters are employed for analog
inputs and outputs to offer a dynamic range close to that
of an analog device.
The notch filter can be automatically set to match the
sound field.
All settings can be saved in up to 16 patterns in the
memory.
Dimensions
480
465

Rear Panel

D I G I T A L S I G N A L P R O C E S S O R S
NOTCH
GATE

SPECIFICATIONS

Model No.
Input
Output No. of Channels
General Frequency Response
User Memory
External Type
Control Connector
Pattern Type
Control
Power Supply
Power Consumption
Heat Flow
Stacking Conditions
5
275
Dimensions
Weight (approx.)
Unit : mm
Note: "RAMSA-NET" is a protocol exclusive to Matsushita Communication Industrial Co., Ltd.,
used to send and receive data between the host computer and two or more audio control units
connected to it with communication lines.
COMP
No. of Channels
2 ch
Analog
Type
Electronic balance
Rated Input
+4 dB
Maximum Input
+24 dB or more
Connector
XLR-3-31 or equivalent, x2
Input Impedance
20 kΩ
In-Phase Reject Ratio
40 dB or more
24-bit ∆-∑ type
A/D Converter
Digital
Type
AES/EBU format, for professional use
Sampling Frequency
48 kHz±0.1%
Connector
XLR-3-31 or equivalent, 1 connector
2 ch
Analog
Type
Electronic balance
Rated Output
+4 dB±1 dB
Maximum Output
+24 dB or more (at 10 kΩ load)
Output Impedance
150Ω
Connector
XLR-3-32 or equivalent, 4 connectors
Applicable Load Impedance 600Ω or more
24-bit ∆-∑type
D/A Converter
Digital
Type
AES/EBU format, for professional use
Sampling Frequency
48 kHz
Connector
XLR-3-31 or equivalent, 1 connector
(Recommended cable: Canare Electric DA206 or equivalent)
20 to 20,000 Hz, +0.5, –1.0 dB
Dynamic Range
Analog input/output (typ, IHF-A)
115 dB (noise gate ON)
109 dB (noise gate OFF)
THD
0.015% at +4 dB, 20 to 20,000 Hz, 30 kHz LPF (at 600Ω load)
Crosstalk
–70 dB or less (10 kHz)
16 memories + 1 simple memory
RS-485 RAMSA-NET (See Note.)
D-SUB 9-pin, IN/OUT 1 each, setscrew M2.6
Recommended connectors
Male: OMRON XM2A-0901 or equivalent
Female: OMRON XM2D-0901 or equivalent
Hood: OMRON XM2S-0911 or equivalent
Make contact type, No. of control patterns: 12 + MUTE, BYPASS
Anti-reverse diode provided
Connector
D-SUB 15-pin, setscrew M2.6
Recommended connectors
Male: OMRON XM2A-1501 or equivalent
Hood: OMRON XM2S-1511 or equivalent
AC220V~
~ AC240V 50/60 Hz
16 W (as defined in the Electrical Appliances Control Act)
16 W (12 kcal)
* The figure in parentheses is calorific value per hour.
2 units high maximum
* If you are using 3 units or more, leave a space for a unit or more every 2 units.
480 (W) x 44 (H) x 280 (D) mm (without rubber feet)
4.5 kg
BLOCK
WZ-DE45NH
