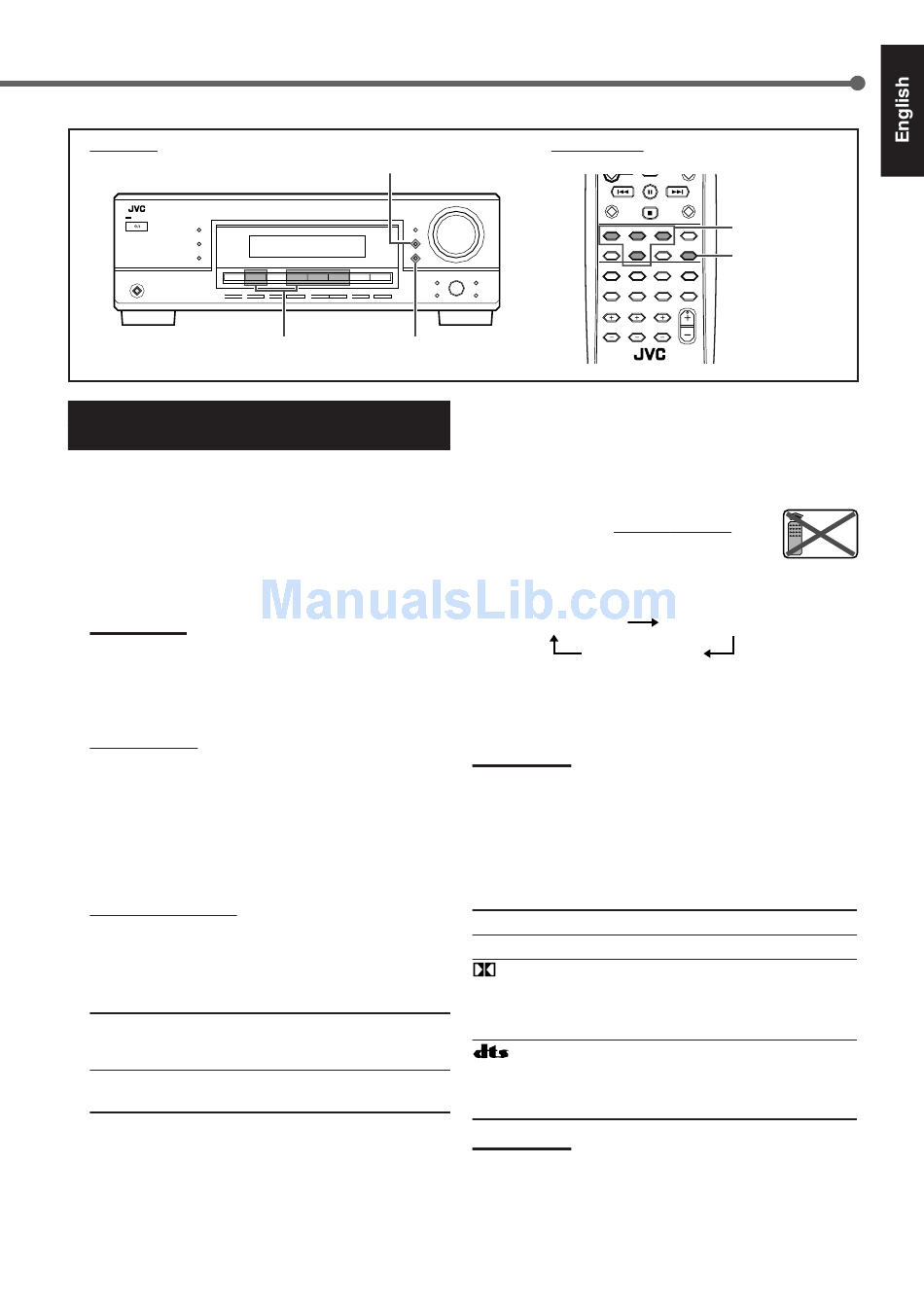

Front panel
SURROUND
DSP
SURROUND/DSP
OFF
D I G I T A L
PHONES
D I G I T A L SPEAKERS
S U R R O U N D P R O L O G I C
ON/OFF
Selecting the Analog or Digital Input
Mode
When you have connected digital source components using
both the analog connection (see pages 7 – 9) and the digital
connection (see page 10) methods, you need to select the
input mode correctly.
1
Press one of the source selection buttons—
DVD, TV SOUND, CD, or TAPE/CDR*—for
which you want to change the input mode.
Note:
* Among the sources listed above, you can select the digital input
only for the sources for which you have selected the digital input
terminals. (See "Selecting the Digital Input Terminals—DIGITAL
IN" on page 16.)
2
Select digital input mode.
On the front panel
Press INPUT DIGITAL.
"DIGITAL AUTO" appears on the display.
The DIGITAL AUTO indicator also lights up.
To change the input mode back to analog input, press
INPUT ANALOG.
"ANALOG" appears on the display for a while.
The ANALOG indicator lights up.
From the remote control
Press ANALOG/DIGITAL.
• Each time you press the button, the input mode
alternates between the analog input ("ANALOG") and
the digital input ("DIGITAL AUTO").
DIGITAL AUTO Select this for the digital input mode.
The receiver automatically detects the
incoming signal format.
ANALOG Select this for the analog input mode
(initial setting).
INPUT DIGITAL
RX–6030V AUDIO/VIDEO CONTROL RECEIVER
DIGITAL AUTO SPK 1 2 ONE TOUCH OPERATION BASS BOOST INPUT ATT EON RDS SLEEP
ANALOG L C R VOLUME
PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO
LINEAR PCM S.WFR LFE
DIGITAL LS S RS
CH–
SUBWOOFER OUT FM/AM TUNING FM/AM RESET FM MODE MEMORY
ON/OFF
Source selection
INPUT ANALOG
buttons
Remote control
DISPLAY MODE
REMOTE CONTROL RM SRX
If the following symptoms occur while playing Dolby Digital or
DTS encoded software with "DIGITAL AUTO" selected,
change the digital input mode.
• Sound does not come out at the beginning of playback.
• Noise comes out while searching or skipping chapters or
tracks.
Press INPUT DIGITAL on the front panel
repeatedly to select "DOLBY DIGITAL" or "DTS
SURROUND."
• Each time you press the button, the digital input mode
changes as follows:
DIGITAL AUTO
DTS SURROUND
• To play back software encoded with Dolby Digital, select
"DOLBY DIGITAL."
• To play back software encoded with DTS Digital Surround,
select "DTS SURROUND."
Note:
When you turn off the power or select another source, "DOLBY
DIGITAL" or "DTS SURROUND" is canceled and the digital input mode
is automatically reset to "DIGITAL AUTO."
The ANALOG indicator and digital signal format indicators on
the display indicate what type of signal comes into the
receiver.
ANALOG Lights when the analog input is selected.
LINEAR PCM Lights when Linear PCM signals come in.
DIGITAL • Lights when Dolby Digital signals come in.
• Flashes when "DOLBY DIGITAL" is
selected for software not encoded with
Dolby Digital signals.
• Lights when DTS signals come in.
• Flashes when "DTS SURROUND" is
selected for software not encoded with
DTS signals.
Note:
When "DIGITAL AUTO" cannot recognize the incoming signals, no
digital signal format indicators light up on the display.
Source selection
buttons
ANALOG/DIGITAL
6030J
Remote
NOT
DOLBY DIGITAL
17
