PREFACE

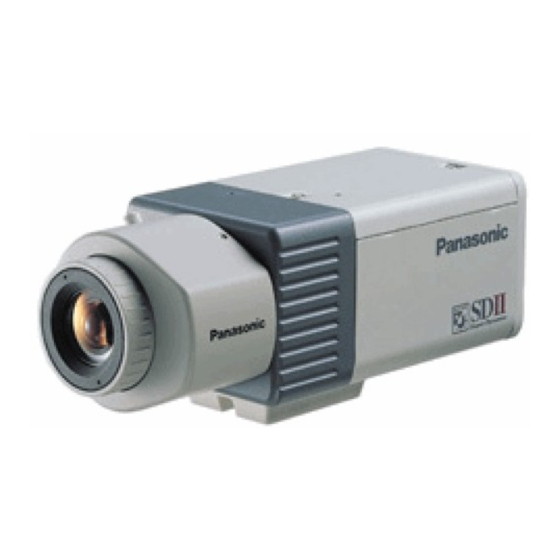

Panasonic's WV-CP470 (WV-CP474) series color digital camera introduces a new level of
high picture quality and high resolution through the use of a 1/3-inch interline transfer CCD
image sensor having 771 horizontal pixels (picture elements), and digital signal processing
LSIs. This model offers cutting-edge technology for advanced video surveillance.
PRECAUTIONS
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers.
There are no user-serviceable parts inside. Ask a qualified service personnel for servic-
ing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged
by improper handling or storage.
3. Do not expose the camera to rain or moisture, not try to operate it in wet areas.
If the camera becomes wet, turn the power off immediately and ask qualified service
personnel for servicing. Moisture may damage the camera and also cause electric
shock.
4. Do not use strong or abrasive detergents when cleaning the camera body.
Use a dry cloth to clean the camera when dirty. When the dirt is hard to remove, use a
mild detergent and wipe gently. Then wipe off the remaining detergent with a dry cloth.
5. Clean the CCD faceplate with care.
Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton
tipped applicator and ethanol.
6. Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether the camera is in use or not, never
aim it at the sun or other extremely bright objects. Otherwise, blooming or smear may
be caused.
7. Do not operate the camera beyond the specified temperature, humidity or power
source ratings.
Use the camera at temperatures within –10 °C to +50 °C (14 °F - 122 °F), and humidity
below 90 %. The input power source is 120 V AC 60 Hz for WV-CP470 and DC 12 V/AC
24 V for WV-CP474.
Caution:
To prevent fire or electric shock hazard, use a UL listed cable (VW-1, style 1007) for
the DC 12 V or AC 24 V Input Terminal.
Before attempting to connect or operate this product,
Color CCTV Cameras

Operating Instructions

WV-CP470
Model No.
WV-CP474
N1101-1121
V8QA5915BN
NOTE: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interfer-
ence when the equipment is operated in a
commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency
energy and, if not installed and used in accor-
dance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential
area is likely to cause harmful interference in
which case the user will be required to correct
the interference at his own expense.
FCC Caution: To assure continued compli-
ance, (example - use only shielded interface
cables when connecting to computer or
peripheral devices). Any changes or modifica-
tions not expressly approved by the party
responsible for compliance could void the
user's authority to operate this equipment.
The serial number of this product may be found
on the top of the unit.
You should note the serial number of this unit
in the space provided and retain this instruction
as a permanent record of your purchase to aid
identification in the event of theft.
Model No.
Serial No.
Printed in Japan
N 19
For U.S.A
