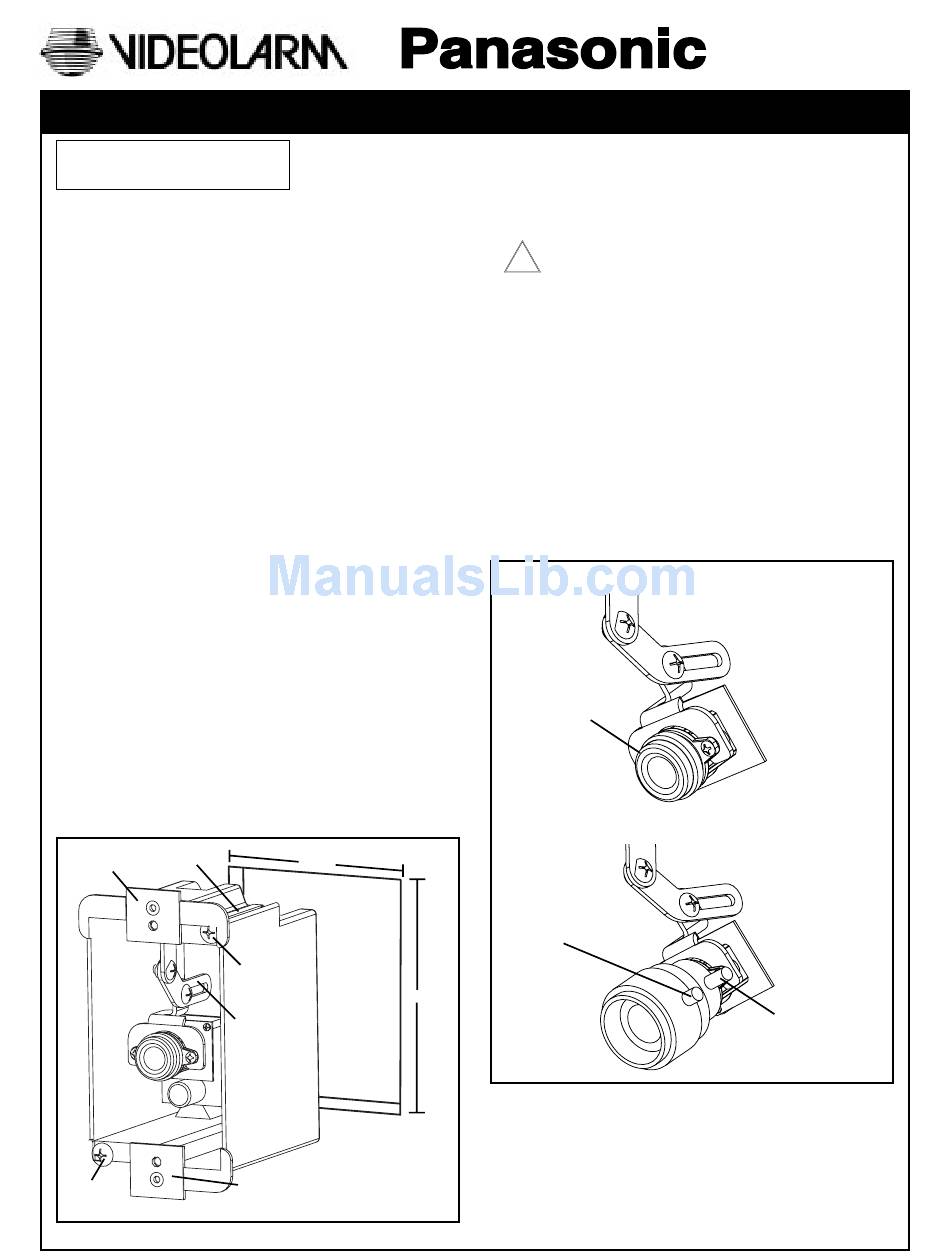

Panasonic VIDEOLARM PCF3 Product Instructions

Manufactured by:
Before attempting to connect or operate this product, please read these instructions completely.
MODEL: Miniature Camera
PCF3, PCV3
DESCRIPTION: Recessed Wall Housing, Color Camera
STANDARD INSTALLATION PROCEDURE
INCLUDES MODELS: PCF3, PCV3
Remove equipment from box, contents include:
CONTENTS INCLUDE:
(1) Flush Mount Box
(1) Cover plate with window
(2) Allen wrench security head tool
(2) Stainless steel 6-32x1/2" captive Security head screws
(1) Camera mount bracket
(1) Camera mount arm
(1) Bottom mount bracket
(2) 4-40 x 1/4" screws
(2) Star washers
(2) 2-56 x 3/16" Screws
(1) Camera, lens, and PC Board
1. Locate the area on the wall where the housing will be
installed and cut a 2 1/4" x 3 3/4" hole into the wall.
2. Run the necessary wiring/cables to this cutout and pull
wiring/cables through opening.
3. Using the security tool, loosen the 2 security head
screws on the cover plate and remove it.
4. Feed the wiring/cables through one or more of the
cable entry holes in the back of the flush mount box.
5. Install the housing into the cutout in the wall and
tighten the Phillips head screws on the front of the
box. This will pull the lock tabs forward to secure
the box to the wall.
Top Mount
Lock Tab
Bracket
Lock Tab
Screw
for
2 1/4"
Cut Out
Lock Tab
Screw
3 3/4"
Camera
Mount Arm
Bottom Mount
Bracket
PRODUCT INSTRUCTIONS
6. Remove the top mount bracket. This will allow you to
remove the camera/PC Board assembly from the unit.
7. Once you have removed the camera assembly, make
the necessary connections to the PC Board.
!
USE CLASS 2 POWER ONLY
5. Hand place the top mount bracket and camera into the
unit. Check the angle of the camera, remove the
bracket/camera and make any necessary adjustments.
Once you have achieved the desired camera angle,
reattach the top bracket and camera to the housing.
Fine focusing can be achieved by manually rotating the
lens.
6. Fine focusing (see diagram below):
Fixed Lens: Manually rotate the lens until a clear picture is
achieved.
Vari-Focal Lens: First, adjust the Magnification Lock Screw
to the desired magnification (telephoto
to wide angle). Tighten the Lock Screw.
Next, adjust the Focus Lock Screw until a
clear picture is achieved. Tighten the
Lock Screw.
Camera Fine Focus
Manual focus
Focus Lock Screw
81-IN3048-9922
Fixed Lens Camera
PCF3
Vari-focal Lens Camera
PCV3
Magnification
Lock Screw
