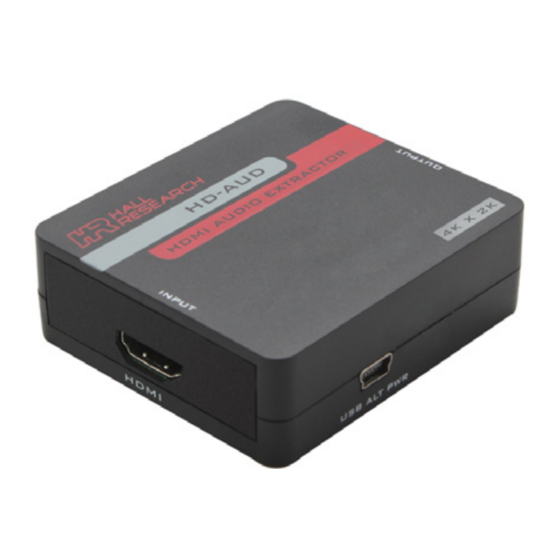

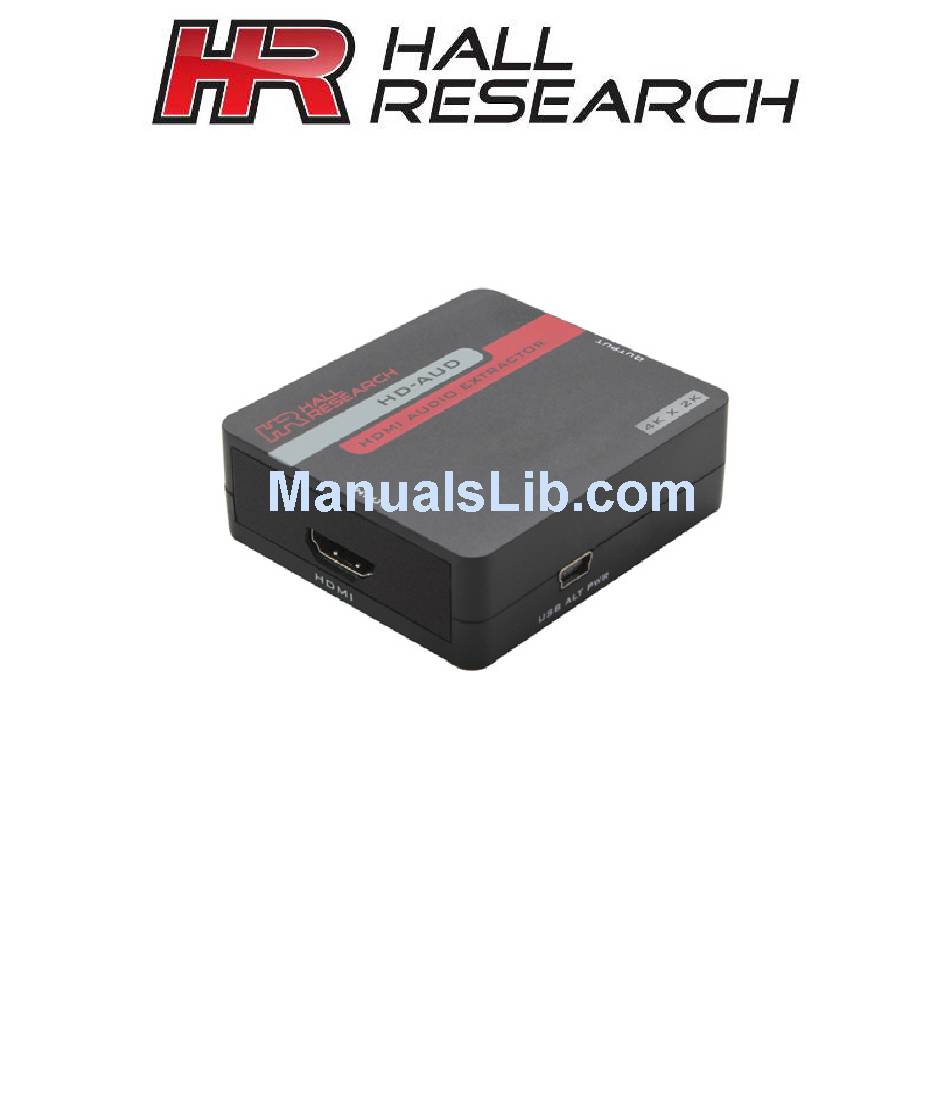

- Page 1 User’s Manual HD-AUD HDMI Repeater and Audio Extractor UMA1233 Rev N/C...
- Page 2 Introduction Use this compact HDMI Repeater to buffer HDMI signals (helps resolve compatibility issues), and extract the stereo audio (analog L/R) from the video. The repeater consumes very little power and most HDMI sources can power it just using the HDMI connection.
- Page 3 Features Buffers and re-clocks HDMI signals Extracts audio from HDMI input Works with or without display Supports Full HD and 4Kx2K (UHD) USB to mini-USB cable included - 3 -...
-
Page 4: Specifications
Specifications Input ports: 1x HDMI Output ports: 1x HDMI , 1x 3.5mm Dimensions: 60x55x20 mm (2.36x2.16x0.79 inch) Weight: 40g (1.5 oz) - 4 -... - Page 5 Application Block Diagram - 5 -...
