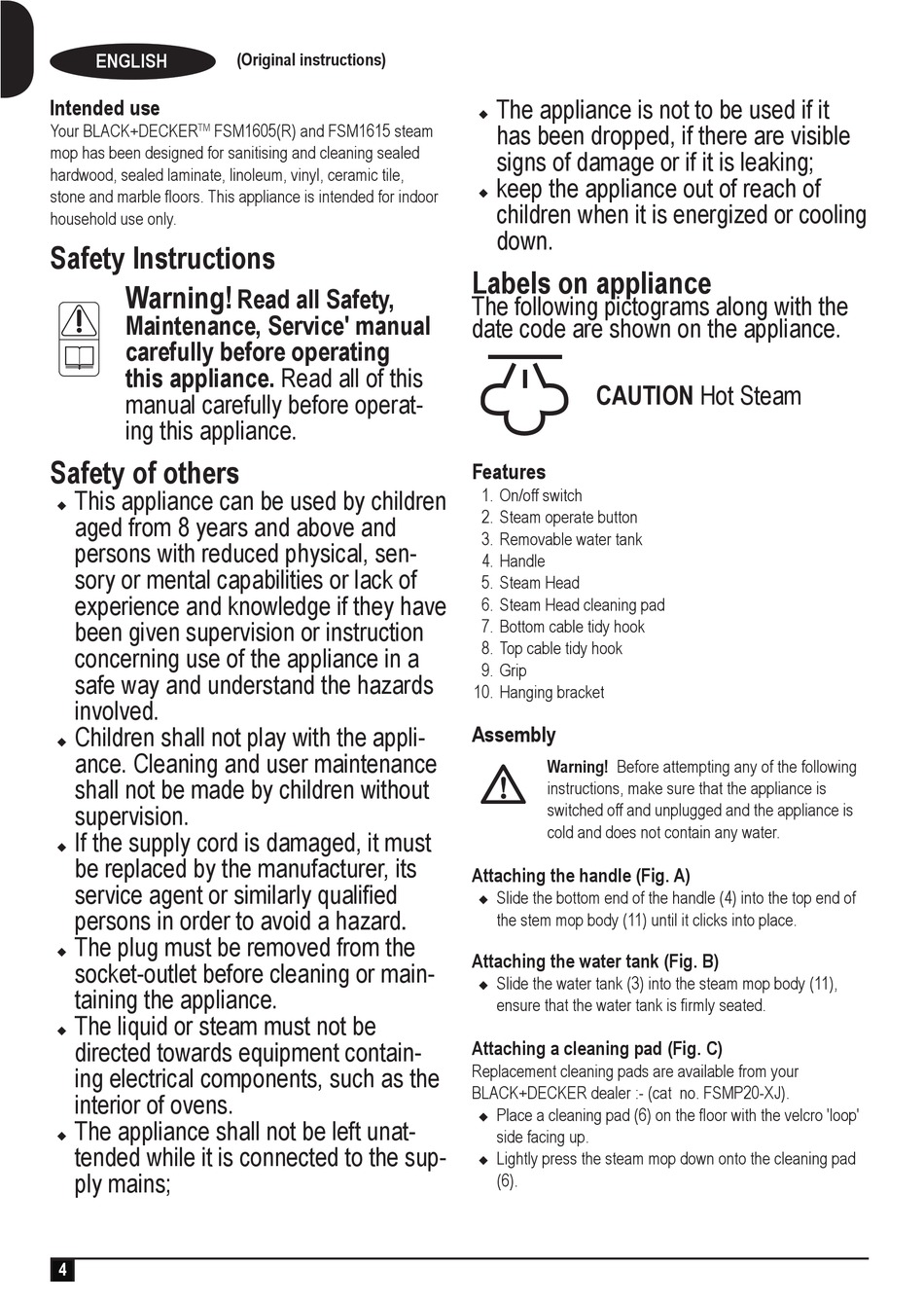

FSM1605(R) and FSM1615 steam
mop has been designed for sanitising and cleaning sealed
hardwood, sealed laminate, linoleum, vinyl, ceramic tile,
stone and marble floors. This appliance is intended for indoor
household use only.
Maintenance, Service' manual
carefully before operating
this appliance. Read all of this
manual carefully before operat-
ing this appliance.
Safety of others
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sen-
sory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
Children shall not play with the appli-
ance. Cleaning and user maintenance
shall not be made by children without
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard
The plug must be removed from the
socket-outlet before cleaning or main-
taining the appliance.
The liquid or steam must not be
directed towards equipment contain-
ing electrical components, such as the
interior of ovens.
The appliance shall not be left unat-
tended while it is connected to the sup-
Read all Safety,
The appliance is not to be used if it
has been dropped, if there are visible
signs of damage or if it is leaking;
keep the appliance out of reach of
children when it is energized or cooling
Labels on appliance
The following pictograms along with the
date code are shown on the appliance.
CAUTION Hot Steam
1. On/off switch
2. Steam operate button
3. Removable water tank
5. Steam Head
6. Steam Head cleaning pad
7. Bottom cable tidy hook
8. Top cable tidy hook
10. Hanging bracket
Warning! Before attempting any of the following
instructions, make sure that the appliance is
switched off and unplugged and the appliance is
cold and does not contain any water.
Attaching the handle (Fig. A)
Slide the bottom end of the handle (4) into the top end of
the stem mop body (11) until it clicks into place.
Attaching the water tank (Fig. B)
Slide the water tank (3) into the steam mop body (11),
ensure that the water tank is firmly seated.
Attaching a cleaning pad (Fig. C)
Replacement cleaning pads are available from your
BLACK+DECKER dealer :- (cat no. FSMP20-XJ).
Place a cleaning pad (6) on the floor with the velcro 'loop'
side facing up.
Lightly press the steam mop down onto the cleaning pad
