Summary of Contents for Jovision IPC
-

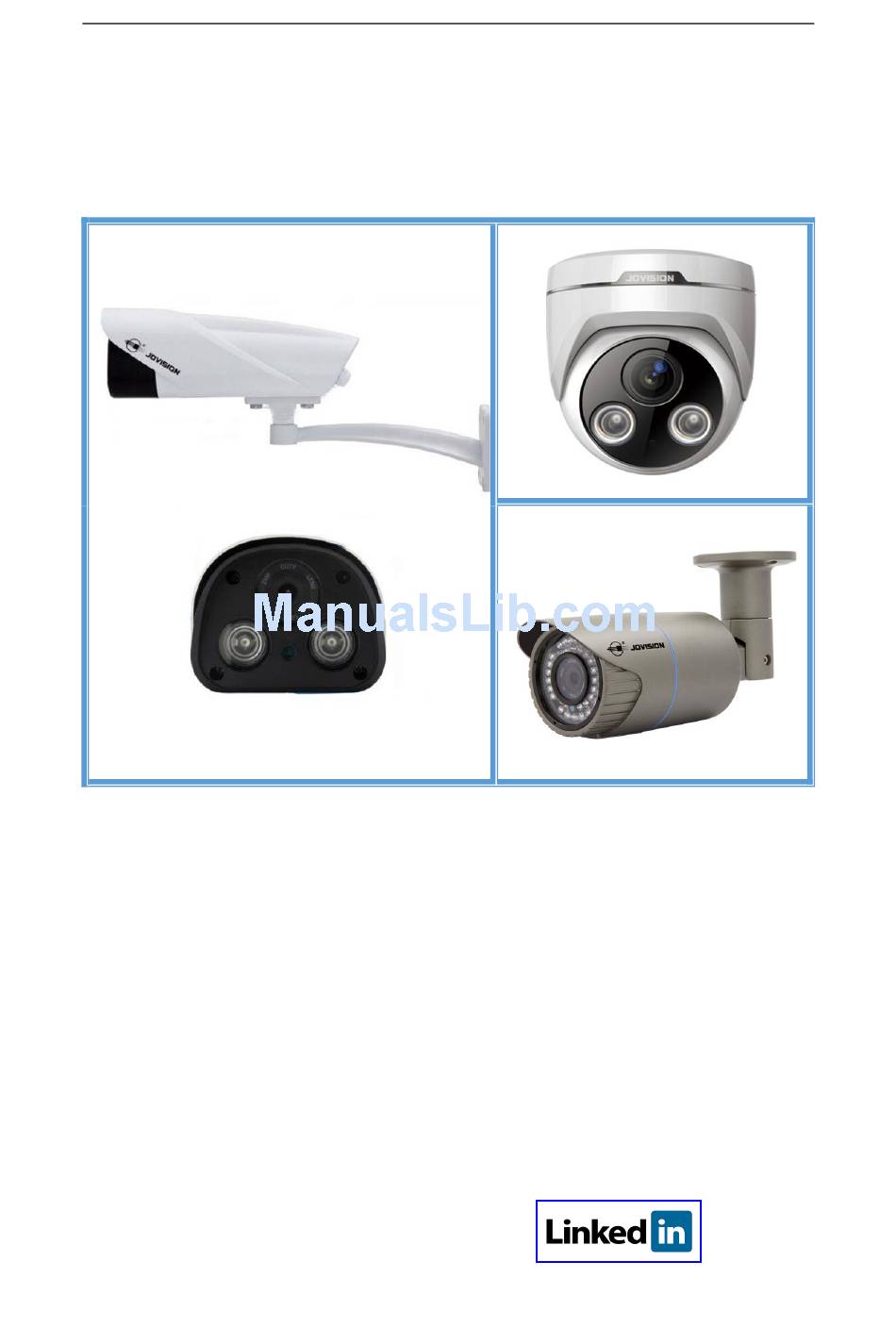

Page 1: Network Camera
Jovision Network Camera Quick Start Guide JOVISION NETWORK CAMERA QUICK START GUIDE Copyright© Jovision Technology Co., Ltd. All rights reserved. http://www.jovision.london Email:sales@jovision.london... -
Page 2: Statement
Jovision Network Camera Quick Start Guide Statement Thank you for choosing Jovision, this user manual is intended for users of network IP Camera. It includes instructions on how to use the product. The software embodied in the product is governed by the user license agreement covering that product. -
Page 3: Table Of Contents
Jovision Network Camera Quick Start Guide Contents Statement ............................1 Appearance and Interface ......................... 3 1.1 Box Type ..........................3 1.2 Dome Type .......................... 3 Installation............................4 2.1 Box Camera Mounting ......................4 2.2 Dome Camera Ceiling Mounting ..................5 Access Network Camera over LAN .................... -
Page 4: Appearance And Interface
Jovision Network Camera Quick Start Guide Appearance and Interface 1.1 Box Type Name Description Lens Optical imaging element IR LED IR light to realize night mode monitor Photo-resistance Light-controlled variable resistor, control IR cut filter switch Audio-input Connect audio input device... -
Page 5: Installation
Jovision Network Camera Quick Start Guide Installation 2.1 Box Camera Mounting Before you start: These box cameras can be installed to wall or ceiling. Wall mounting is taken as an example in this section; if you adopt ceiling mounting, you can also take below procedure as a reference. -
Page 6: Dome Camera Ceiling Mounting
Jovision Network Camera Quick Start Guide 2.2 Dome Camera Ceiling Mounting Steps: Use the screws to fix the mounting base to the ceiling. 2. Rotate the back box counterclockwise to secure it to the mounting base, use the lock screw to secure the dome camera. -
Page 7: Access Network Camera Over Lan
Jovision Network Camera Quick Start Guide Access Network Camera over LAN 3.1 Network Connection To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, as shown above, and install the CloudSEE or JNVR software to search and access the network camera. - Page 8 Jovision Network Camera Quick Start Guide Note: JNVR will automatically connect the added device with default network camera account (Username: abc Password: 123), if you have changed the password, the device cannot be connect and show “Wrong Password” in Channel Status.
-
Page 9: Ie Browser
Jovision Network Camera Quick Start Guide You can access the IPC in LAN by visiting the camera IP in browser. Camera Address: http://<camera IP> But you need to configure Internet options first to allow the ActiveX control to install. 1. Open IE, Internet... -
Page 10: Access Network Camera Over Wan
Jovision Network Camera Quick Start Guide Access Network Camera over WAN 4.1 Network Connection Network Camera Router Computer This section explains how to connect the network camera through Internet. You need to connect the network camera to Internet and install CloudSEE software to access the network camera. - Page 11 Jovision Network Camera Quick Start Guide Click “Group”, and select the device just added, right click and select Connect (or double click the source) The live view of the camera added will display In the live view window. Also you can adjust the settings of any dvr, nvr or ip camera remotely this can be done by clicking the right button on the mouse and clicking remote settings in the menu.
-
Page 12: Cloudsee App
Jovision Network Camera Quick Start Guide CloudSEE App, makes it possible to watch camera live view on smart phone, supports all CloudSEE products, including DVR, NVR, network camera, USB DVR and DVR cards. Note: The steps apply to both iOS and Android. -
Page 13: Account And Password
Jovision Network Camera Quick Start Guide Tap the device, live video of the camera will display. Account and Password 5.1 Change Password Connect the camera in client software, right click on the live video, click “Remote setting”, and the dialog box appears. -
Page 14: Safety Instruction
Jovision Network Camera Quick Start Guide Safety Instruction 6.1 Warnings Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. If the product does not work properly, please contact your dealer or the nearest service center. -
Page 15: Appendix
Jovision Network Camera Quick Start Guide...
