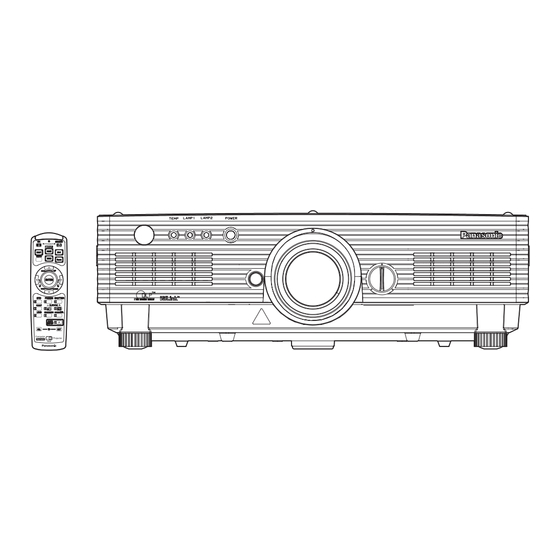

Panasonic PT-DW5000UL Operating Instructions Manual
Dlp based projector for commercial use
Hide thumbs
Also See for PT-DW5000UL:
- Setup and operation manual (37 pages) ,
- Service manual (132 pages)
Related Manuals for Panasonic PT-DW5000UL
Summary of Contents for Panasonic PT-DW5000UL
-
Page 1: Operating Instructions
Operating Instructions Based Projector Commercial Use PT-D5600U Model No. PT-D5600UL PT-DW5000U PT-DW5000UL Read these instructions completely before operating this unit. TQBJ 0200... -
Page 2: Important Safety Notice
This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most performance out of your new product, and that you will be pleased with your Panasonic DLP based projector. - Page 3 For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.> Declaration of Conformity PT-D5600U/PT-D5600UL/PT-DW5000U/PT-DW5000UL Panasonic Panasonic North America One Panasonic Way 4B-9, Secaucus, NJ 07094 1-800-524-1448 or 1-800-526-6610 pjscservice@us.panasonic.com...
-
Page 4: Table Of Contents
Contents IMPORTANT SAFETY NOTICE ...2 Precautions with regard to safety ...5 Accessories ...7 Precautions on handling ...8 Name and function of parts...9 Remote control ...9 Front and side of the projector ...11 Rear view of the main unit/Controls on rear panel ...12 Side-mounted connection terminals ...13 Using the remote control unit ...14 Loading dry cells ...14... -
Page 5: Precautions With Regard To Safety
Precautions with regard to safety WARNING If a problem occurs (such as no image) or if you notice smoke or a strange smell coming from the projector, turn off the power and disconnect the power cord from the wall outlet. •... - Page 6 Precautions with regard to safety Do not place liquid containers on top of the projector. • If water spills onto the projector or gets inside it, fire or electric shocks could result. • If any water gets inside the projector, contact an Authorized Service Center. Do not insert any foreign objects into the projector.
-
Page 7: Accessories
Use only the Specified battery. • If incorrect batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result. Do not look into the lens while the projector is being used. •... -
Page 8: Precautions On Handling
Precautions on handling Precautions on transport Make absolutely sure that the lens cap is in place when transporting the projector or carrying it around. Both the projector and the projection lens are precision-made and, as such, are susceptible to vibration and impacts. When transporting the projector and lens or carrying them around, place them in the boxes in which they were housed at the time of purchase, and take care to keep them away... -
Page 9: Name And Function Of Parts
Name and function of parts Remote control < When the operation mode selector set to Projector > Remote control operation indicator lamp The lamp flashes when any remote control button is pressed. POWER ON ( I ) button (page 23) Turns on the power if the MAIN POWER has been put to the “l”... - Page 10 Name and function of parts Remote control wired terminal (page 16) To use the wired output terminal, connect the remote control and the main unit with the M3 stereo mini jack cable available in the market. Remote control transmitter window Operate the remote control aiming at the remote control receiver window on the main unit.
-
Page 11: Front And Side Of The Projector
Front and side of the projector Status LED lights Side-mounted (Refer to the figure connection terminals on the right.) (page 13) AC IN terminal (page 23) Connect the supplied line power cord into this receptacle. Do not connect any other cable to this socket. Air filter (page 42) Burglar lock Attach a commercial burglar prevention cable (e.g.,... -
Page 12: Rear View Of The Main Unit/Controls On Rear Panel
Name and function of parts Rear view of the main unit Ventilation holes Lamp unit cover The lamp unit is housed. MAIN POWER switch (page 23) Use this switch to turn on “I” and off “O” the main power applied to the projector. Remote control receiver window (rear) (page 14) This also receives the signal beam coming from the remote control. -
Page 13: Side-Mounted Connection Terminals
Side-mounted connection terminals VIDEO IN VIDEO IN terminal (page 22) An input terminal for video signals. (BNC) S-VIDEO IN terminal (page 22) An input terminal for S-video signals. (MIN4-pin DIN) This terminal complies with S1 signals and automatically toggles between 16:9 and 4:3 according to the size of input signals. -
Page 14: Using The Remote Control Unit
Using the remote control unit Loading dry cells When loading batteries into the battery compartment of the remote control, make sure that their polarities are correct. 1. Open battery compartment lid. Open the lid in the order of steps 2. Insert the dry cells. Into battery compartment, with their polarities orientated as indicated ( compartment. -
Page 15: Setting Projector Id Number To Remote Control
Setting projector ID number to remote control Every projector has its ID number and the ID number of the controlling projector must be set to the remote control in advance so that the user can operate the remote control. The ID number of the projector is set to “ALL”... -
Page 16: Using A Wired Remote Control
Using the remote control unit Using a wired remote control When multiple main units are connected in the system, connect the units with the M3 stereo mini jack cable available in the market to simultaneously control the multiple main units with a single remote control unit through the REMOTE1 IN/OUT terminal. -
Page 17: Projection Distances By Projection Lens
Projection distance by projection lens Listed in the table below are the lens projection distances for the PT-D5600U (lens included), PT-D5600UL (lens sold separately), PT-DW5000U (lens included) and PT-DW5000UL (lens sold separately). • PT-D5600U, PT-D5600UL Screen aspect ratio 4:3 Standard... - Page 18 Installation Screen aspect ratio 16:9 Standard zoom lens Projected screen size (16:9 aspect ratio) (1.8–2.5) Diagonal Height Width length Minimum (SH) (SW) (SD) (LW) 1.27 0.62 1.11 1.95 (50") [2'04"] [3'63"] [6'40"] 1.52 0.75 1.33 2.35 (60") [4'36"] [2'45"] [7'72"] 1.78 1.55 0.87...
- Page 19 • PT-DW5000U, PT-DW5000UL Screen aspect ratio 16:9 Standard zoom lens Projected screen size (16:9 aspect ratio) (1.8–2.5) Diagonal Height Width Minimum Maximum length (SH) (SW) (SD) (LW) (LT) 1.27 0.62 1.11 1.98 2.63 (50") [2'04"] [3'63"] [6'49"] [8'63"] 1.52 0.75 1.33...
-
Page 20: Calculation Formulas For Projection Distance By Lens Types
Wide-angle fixed- focus lens Wide-angle zoom lens Intermediate-focus zoom lens Long-focus zoom lens Ultra-long-focus zoom lens • PT-DW5000U, PT-DW5000UL Screen aspect 16:9 Standard zoom lens Wide-angle fixed- focus lens Wide-angle zoom lens Intermediate-focus zoom lens Long-focus zoom lens... -
Page 21: Connection
Inserting a time base corrector (TBC) in the projector’s video line will relieve this problem. • The projector only accepts composite-video, S-video, analog-RGB (with TTL sync. level), and digital signal. • Some PC models are not compatible with PT-D5600U/PT-D5600UL/PT-DW5000U/PT-DW5000UL projectors. • The pin assignments on the S-VIDEO IN terminal are as follows: Pin No. -
Page 22: Example Of Connecting With Av Products
Connection Example of connecting with AV products DVD player VIDEO IN Red (Connect P Blue (Connect P Green(Connect Y) • When connecting with a video deck, be sure to use the one with a built-in time base corrector Attention (TBC) or use a TBC between the projector and the video deck. •... -
Page 23: Projection
Projection SYNC/HD VIDEO IN S-VIDEO IN RGB 1 IN REMOTE 1 REMOTE 2 Powering up the projector When using an optional lens, install a projection lens before powering up the projector. (Refer to page 25.) Remove the lens cover beforehand. Connect the supplied power cable. -
Page 24: Powering Off The Projector
Projection Powering off the projector Press the POWER OFF “ Select “OK” with press the ENTER button. (or press the POWER OFF “ again.) The projection of the image stops, and the power indicator of the main unit lights up orange. (The cooling fan keeps running.) Wait until the power indicator of the main unit turns to red (i.e., until the... -
Page 25: How To Install And Remove The Projection Lens (Optional)
How to install and remove the projection lens (optional) How to install the projection lens Align the guide of the projection lens with the guide groove in the main unit. Turn the lens clockwise until it clicks into place. Guide groove Guide Guide groove Guide Projection lens... -
Page 26: Automatic Adjustment (Auto Setup)
Automatic adjustment (AUTO SETUP) Automatic adjustment function adjust the resolution, clock phase and image position automatically when dots- structured analog RGB signals such as computer signal are supplied. (Automatic adjustment is not available if moving picture input signals or signals having a dot clock frequency of more than 108 MHz are supplied.) When DVI signals are input, the image position is adjusted automatically. -
Page 27: On-Screen Menus
On-screen menus Structure of menu screens Menus are extensively used for configuring, adjusting or reconfiguring the projector. The menus structure is as follows: MENU MENU PICTURE POSITION ADVANCED MENU LANGUAGE OPTION1 OPTI0N2 TEST PATTERN SECURITY NETWORK SELECT ENTER EXIT NETWORK (page 38) NETWORK HOST NAME... -
Page 28: Basic Menu Operations
On-screen menus Basic menu operations Press the “MENU” button. The MENU appears on the screen. MENU PICTURE POSITION ADVANCED MENU LANGUAGE OPTION1 OPTI0N2 TEST PATTERN SECURITY NETWORK SELECT ENTER EXIT Select (highlight) the desired item with buttons. Selected items are displayed in blue. MENU PICTURE POSITION... -
Page 29: Adjusting The Picture
Adjusting the picture • For RGB signals • For DVI signals PICTURE PICTURE MODE GRAPHIC PICTURE MODE BRIGHT BRIGHT CONTRAST CONTRAST COLOR TEMP. DEFAULT COLOR TEMP. WHITE GAIN WHITE GAIN SHARPNESS SHARPNESS SYSTEM SELECT SELECT RETRN • For S-Video/Video signals •For YP PICTURE PICTURE MODE... -
Page 30: Tv-System
Adjusting the picture Gray scale control is exercised to suit the images, and optimal images with a clear contrast are projected. ON : AI compensation is enabled. OFF : AI compensation is disabled. TV-SYSTEM (For S-Video/Video signals) The setting that corresponds to the TV system is selected here. -
Page 31: Zoom
• If you choose an aspect ratio that does Attention not match the source video’s aspect ratio, you will see a picture with an aspect ratio not the same as that of the original picture. Choose the appropriate aspect ratio carefully to match that of the original picture. -
Page 32: How To Use Advanced Menu
How to use ADVANCED MENU ADVANCED MENU DIGITAL CINEMA REALITY BLANKING INPUT RESOLUTION CLAMP POS. RASTER POSITION XGA MODE SXGA MODE SXGA SELSCT ENTER RETRN DIGITAL CINEMA REALITY (Only for input of S-Video/ Video/ YP 576i] signals.) ON: Set at ON when you need to faithfully capture images shot at 24 frames per second as in movies. -
Page 33: Raster Position
RASTER POSITION When the whole area where the input picture can be displayed is not used, the picture can be moved to any position inside the display area. : These adjust the value in the horizontal direction. : These adjust the value in the vertical direction. -
Page 34: Option1 Settings
OPTION1 settings OPTION1 COLOR CORRECTION CONTRAST MODE AUTO SIGNAL BACK COLOR BLACK SUB MEMORY LIST DVI EDID EDID2:PC SELECT ENTER RETRN COLOR CORRECTION : Standard setting USER : The six colors of red, green, blue, cyan, magenta and yellow can be adjusted and registered for each of four signal systems: Video, S-Video, RGB and Press the ENTER button to make the... -
Page 35: Option2 Settings
OPTION2 settings OPTION2 FRONT/REAR FRONT DESK/CEILING DESK LAMP SELECT DUAL LAMP POWER HIGH RS232C SYSTEM INFORMATION FAN CONTROL1 NORMAL FAN CONTROL2 HORIZ. FUNC1 AUTO POW. OFF DISABLE PASSWORD SELECT RETRN The projector has an ID number setting function that helps the user to control two or more projectors either simultaneously or separately with a single remote control. -
Page 36: Rs232C
OPTION2 settings RS232C This sets the communication parameters at the serial terminals. For details on the serial terminals, refer to “Using the serial terminals” (pages 39). IN BAUDRATE : 9 600, 19 200 or 38 400 is selected. IN PARITY : NONE, EVEN or ODD is selected. -
Page 37: Displaying The Internal Test Pattern
Black on white ground Window White on black ground The PT-DW5000U and PT-DW5000UL support the 4:3 frame format. Setting the security The projector’s security function enables the password input screen to be displayed or a company’s URL address to be set and displayed underneath the projected images. -
Page 38: Setting The Network
Setting the network The settings required for the network must be established in order to use the web browser (page 46) functions that the PC uses to control the projector. NETWORK HOST NAME DHCP IP ADDRESS SUBNET MASK GATEWAY MAC ADDRESS STORE SELECT ENTER... -
Page 39: Using The Serial Terminals
Using the serial terminals The main unit is equipped with SERIAL terminals located in its terminal section on the side, and this terminal is compliant with RS232C. Also a serial output terminal is provided to enable plural projector control. Examples of connection Single projector <Terminal section on projector side>... -
Page 40: Control Commands
Using the serial terminals Control commands When controlling the projector from a computer, the following commands are available: Function of Command command Power “ON” To confirm that the power is Power ON, use a “Power query” “STANDBY” command. Parameter Power query 000 = STANDBY 001 = Power “ON”... -
Page 41: Indication Of Lamp Monitor
Indication of lamp monitor This projector is equipped with 3 indicators to show when a lamp needs replacement or there is an abnormal internal temperature. These lamps flash or light up to indicate a problem. Turn the power off and follow the steps below. Name of monitor Lamp lamp... -
Page 42: Cleaning And Replacement Of Air Filter
Cleaning and replacement of air filter If too much dust accumulates on the air filter, [AIR FILTER] appears at the lower left of the screen, and the temperature monitor (TEMP) will blink once. If even more dust is allowed to accumulate, the temperature inside the main unit will rise, the temperature monitor (TEMP) will blink twice, and the power is turned off. -
Page 43: Replacing Of Lamp Unit
Replacing the lamp unit WARNING! When replacing the lamp, allow it to cool for at least one hour before handling it. Precautions on lamp unit replacement Remove the power plug and confirm that the surroundings of the lamp unit have cooled off. Be careful when handling a light source lamp. -
Page 44: Lamp Unit Replacement Steps
Replacing the lamp unit Lamp unit replacement steps • After 1 500 hours (4 000 hours when long life lamp units are used) of operating the same lamp, it Attention is only possible to operate the unit for approximately 10 minutes. Steps completed within 10 minutes. - Page 45 Insert the power cord plug into the wall outlet and then press the MAIN POWER switch. Press the “ I ” button so that a picture is projected onto the screen. MENU Press the “MENU” button to display the MAIN MENU PICTURE screen, and then press the POSITION...
-
Page 46: Using Web Browser Control
Enter “user1” in the user name field, then enter the password in the password field. The default setting is “panasonic” (all lower case). If you have changed the password, enter the new password here. The host name set in the projector is displayed in the “Realm”... -
Page 47: Basic Control Page
Basic control page This page is the first page displayed when the projector is accessed through a web browser. To move from another page, click [Projector control], then [Basic control]. Control button Click this item, and a projector control page appears. -
Page 48: Monitor Information Page
Using Web Browser Control Monitor information page Click [Projector control], then [Status information] to display the Status information page. This page displays the projector statuses established for the items shown below. Displays the firmware version of the projector main unit. Displays the type of projector. -
Page 49: E-Mail Setup Page
When [FAILED] has appeared for an item Parameter MAIN CPU BUS OPTICS MODULE TEMPERATURE INPUT AIR TEMPERATURE AROUND LAMP TEMPERATURE LAMP REMAIN TIME LAMP STATUS SHUTTER AIR FILTER OPTICS MODULE TEMP.SENSOR INPUT AIR TEMP.SENSOR AROUND LAMP TEMP. SENSOR BATTERY AIRFLOW SENSOR COLOR WHEEL E-mail setup page With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be... - Page 50 Using Web Browser Control E-mail setup page (Continuing) Select the conditions for sending the second E-mail. ERROR: an error is detected by self-diagnosis. LAMP RUNTIME: remaining lamp service time has reached the value set INPUT AIR TEMPERATURE: intake air temperature has reached the Note •...
-
Page 51: Dns Server Setup Page
DNS server set up page Click [Network set up], then [DNS server set up] to display the DNS server set up page. POP server setup page The POP server is set on this page when POP authentication is required for mail transmissions. Click [Network set up], then [POP server set up] to display the POP server setup page. -
Page 52: Contents Of Mail Sent
Using Web Browser Control Contents of mail sent • Mail with the contents shown below is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : D5600 ----- E-mail setup data ----- TEMPERATURE WARNING SETUP... -
Page 53: Network Config Page
Network config page Enter the name of the projector here. Enter the host name here if it is required when the DHCP server is going to be used, for instance. Network status page Click [Network set up], then [Network status] to display the Network status page. Set this to ON to enable the DHCP client function. -
Page 54: Using The Pjlink
Second number: 0 = Lamp OFF; 1 = Lamp ON Parameter responds with following values: “11 12 21 22 31” Responds with the name set in “HOST NAME” of “NETWORK” Responds with “Panasonic” Responds with “D5600” or “DW5000” Responds with version number and so on Responds with “1”... -
Page 55: Before Asking For Service
Before asking for service Symptoms • Is the power cord plug correctly plugged in? • Is the MAIN POWER turned on? • Is electricity running to the power outlet? • Is the temperature monitor (TEMP) indicator on the front of the unit flashing or Power does turned on? (See page 41) not turn on... -
Page 56: Specifications
5 000 lm Horizontally 15.73 kHz/15.63 kHz, vertically 59.94 Hz/50 Hz Horizontally 15 kHz–91 kHz, vertically 50 Hz–85 Hz, Panasonic Intelligent Auto Scanning (PIAS) system Dot clock frequency Less than 108 MHz Compliant with HDCP EDID1:480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i... - Page 57 Width: 45 mm (1.8"), Thickness: 23 mm (0.9"), Depth: 145 mm (5.7") ET-PKD55 ET-PKD55S PT-D5600U/PT-D5600UL ET-DLE100, ET-DLE200, ET-DLE300, ET-DLE400, ET-DLE050 PT-DW5000U/PT-DW5000UL ET-DLE100, ET-DLE200, ET-DLE310, ET-DLE410, ET-DLE050 ET-RMRC2 ET-LAD55 (single bulb), ET-LAD55W (double bulbs) ET-LAD55L (single bulb), ET-LAD55LW (double bulbs) PT-DW5000U PT-DW5500UL : 0.7 V[p-p] 75 Ω...
-
Page 58: Compatible Signal List
AA = the images are projected at the highest quality (With XGA for the PT-D5600U/PT-D5600UL; with XGA/WXGA 1 280 x 768 for the PT-DW5000U/PT-DW5000UL); A = the images are converted by the image processing circuit and projected; B = the amount of data is scaled down and simplified images are projected. -
Page 59: Dimensions
Dimensions SYNC/HD VIDEO IN S-VIDEO IN RGB 1 IN RGB 2 IN DVI-D IN REMOTE 1 REMOTE 2 SERIAL >PC< TBMU448 Installation dimensions diagram (Figure 1 : Dimensions applying when one unit is used) Exhaust 50 cm (19.7") • Leave a clearance of at least 50 cm so that the ventilation opening on the rear panel will not be blocked. Attention •... -
Page 60: Français Information
NOTES IMPORTANTES CONCERNANT LA SÉCURITÉ AVERTISSEMENT: POUR RÉDUIRE LES RISQUES DE FEU OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CE PRODUIT À L’EAU OU À L’HUMIDITÉ Le symbole de la flèche en forme d’éclair, dans un triangle, avertit l’usager de la présence de “tensions dangereuses” à l’intérieur du produit qui peuvent être de force suffisante pour constituer un risque de choc éIectrique aux personnes. - Page 61 Précautions concernant la sécurité AVERTISSEMENT En cas de problème (ex: pas d’image) ou si le projecteur émet de la fumée ou une odeur de brûlé, coupez le courant et débranchez le cordon électrique de la prise. • Ne pas continuer d’utiliser le projecteur dans ces cas, autrement cela peut entraîner un incendie ou des chocs éIectriques.
- Page 62 Précautions concernant la sécurité Ne pas placer le projecteur sur des surfaces instables. • Si le projecteur est placé sur une surface qui est inclinée ou instable, il risque de tomber ou de se renverser et cela peut causer des blessures ou des dommages. Ne pas placer le projecteur dans I’eau ou ne pas le laisser se mouiller.
- Page 63 Attention Ne pas installer le projecteur dans des endroits humides ou poussiéreux ou dans des endroitsoù le projecteur peut entrer en contact avec de la fumée ou la vapeur. • L’utilisation du projecteur dans de telles conditions peut causer un incendie ou des chocs électriques. Pour débrancher le cordon d’alimentation, tenir la fiche et non pas le cordon.
-
Page 64: Mise Au Rebut
Précautions pour la manipulation Précautions pour le transport S’assurer absolument que le capuchon d’objectif est en place pour transporter le projecteur ou le déplacer. Le projecteur et la lentille de projection sont fabriqués avec précision et, en tant que tels, sont sensibles aux vibrations et aux chocs. -
Page 65: Remplacement De La Lampe
Remplacement de la lampe Attention ! Lorsque vous remplacez la lampe, laissez-la refroidir au moins une heure avant de la manipuler. Précautions pour le remplacement de la lampe Retirez la fiche du cordon d’alimentation et assurez-vous que la section qui entoure la lampe est refroidie. Soyez prudent en manipulant la lampe source de lumière. - Page 66 Remplacement de la lampe Procédure de remplacement de la lampe • Au bout de 1 500 heures (4 000 heures lorsque des blocs lampes longue durée sont utilisés) de Attention fonctionnement pour une même lampe, le projecteur ne peut plus fonctionner que pendant environ 10 minutes.
- Page 67 Branchez la fiche du cordon d’alimentation dans la prise murale et actionnez l’interrupteur MAIN POWER. Appuyez sur la touche “ I ” afin de projecteur une image sur l’écran. Appuyez sur la touche “MENU” pour afficher l’écran du menu MENU principal, puis utilisez les touches IMAGE curseur sur “OPTION2”...
