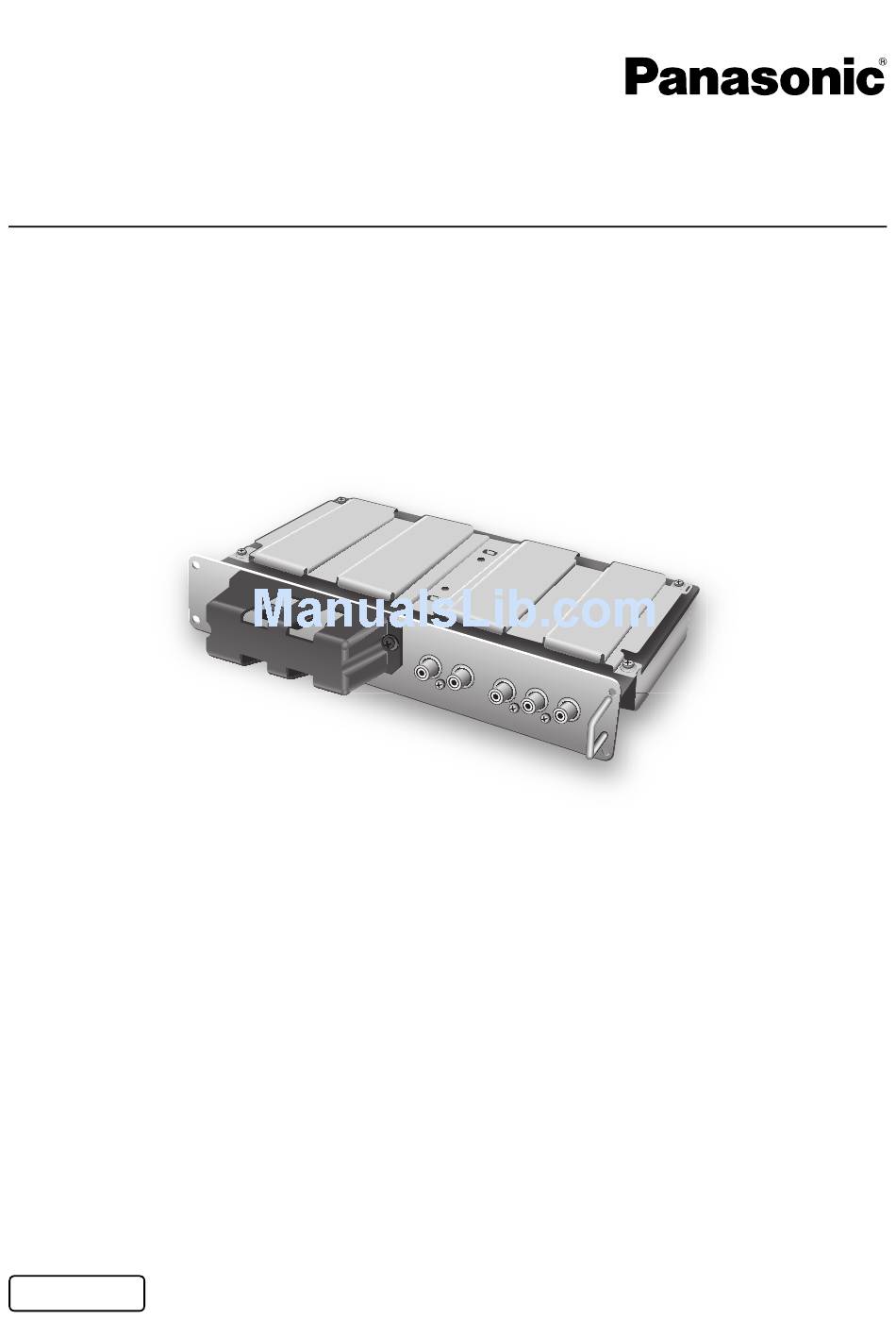

Operating Instructions

Wireless Presentation Board
TY-FB10WPE
Model No.
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this
manual for future reference.
English
TQZH893-2

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TY-FB10WPE

Summary of Contents for Panasonic TY-FB10WPE

  • Page 1: Operating Instructions

    Operating Instructions Wireless Presentation Board TY-FB10WPE Model No. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. English TQZH893-2...

  • Page 2: Table Of Contents

    Please note the following. • Panasonic cannot be held liable for any direct or indirect damages resulting from the use or malfunction of this unit. • Panasonic cannot be held liable for damages arising from data corruption or loss as a result of using this unit.

  • Page 3: Safety Precautions (Be Sure To Observe)

    Safety Precautions WARNING • Never attempt to disassemble or modify this product. To avoid fire, shock or failure. • If you sense smoke, an odd odor, or unusual noises while in operation, immediately unplug the display. Switch off the display and unplug the power cord plug from the supply outlet. To avoid fire or shock, do not leave the power of the display turned on.

  • Page 4: Accessories

    Accessories • Remote control • Terminal function label (1 sheet) [N2QAFB000009] INPUT ASPECT ENTER INDEX RETURN MENU ID SET ID ALL • Screw × 4 (Slot cover cramping screw) • Screw × 2 ( Screws for cramping wireless card protection cover) Slot Nos.

  • Page 5: Software Licensing Agreement

    If a problem should occur with the Software while Licensee is using the Software, Licensee should notify Panasonic of the problem by telephone or letter. Panasonic shall undertake to notify Licensee of whether the problem is a known error in the program (“bug”), or whether the way in which the Software is to be used should be modified.

  • Page 6: Notes On Using Wireless Connection

    Notes on Using Wireless Connection Wireless equipment that has obtained a certificate of conformity is supplied with this unit. Wireless connection function of the unit uses radio waves in the 2.4 GHz band. A radio station license is not required, but be sure to read and fully understand the following items before use. Do not use near other wireless equipment.
  • Page 7 Notes on Using Wireless Connection Channels that can be used The channels (frequency range) that can be used differ according to the country or region. Refer to the table below. Country or region Japan England, Germany, France, Spain, Italy, Belgium, Austria, Sweden, Norway, Denmark, Switzerland, Holland, Finland, Portugal, Greece Singapore...

  • Page 8: Parts And Their Functions

    Parts and their functions Remote control POWER ON button Input selector button Select the setting suitable for the connected device. Function in the same way as the INPUT button on the remote control for the display. (Refer to the instructions for the display.) Screen mode button Function in the same way as the ASPECT button on the remote...

  • Page 9: Installing And Removing The Wireless Card/Installing And Removing The Unit To The Display

    Installing and removing the wireless card/Installing and removing the unit to the display Insert the wireless card into the unit. (Push it until a click is heard.) ※ When removing the card, push it until a click is heard and then remove it.

  • Page 10: Check Your Computer

    • Install the wireless LAN card driver beforehand. For details on how to install the driver, refer to the instructions accompanying the wireless card. • Refer to the following URL for the types of wireless LAN cards that system operation capabilities are confirmed. http://panasonic.co.jp/pavc/global/projector/ Check 2 Logon user’s settings •...

  • Page 11: Software Installation

    Software Installation System requirements The computer must meet the following requirements in order to use the supplied software. Microsoft Windows 2000 Professional/XP Home Edition/XP Professional CPU: Intel Pentium III 600 MHz or faster, or compatible processor ® ® (800 MHz or faster is recommended when using live mode) RAM: 256 MB or more Empty hard disk capacity:...
  • Page 12 Software Installation Contents on Provided CD-ROM When inserting the provided CD-ROM into the computer, the installer starts up automatically and the following screen appears. Notes • Shut down all software currently active on Windows. Otherwise, installation may not be possible. •...

  • Page 13: Installation Free Set Up

    • Operation is slower compared to when the computer is used with Wireless Manager ME 4.0 installed. Software Uninstall Wireless Manager ME 4.0 From the desktop, select [Start] → [All Programs] → [Panasonic Wireless Display] → [Uninstall Wireless Manager mobile edition 4.0]. Follow the instructions appearing on the screen and uninstall the software.

  • Page 14: Making Connections

    • “Simple” settings are for use with projectors that use the same software and do not function with this unit. Connections Click [ ] on the desktop, or select [Start] → [All Programs] → [Panasonic Wireless Display] → [Wireless Manager mobile edition 4.0]. When the [Input User Name] window appears Set the icon and user name, and click [OK].
  • Page 15 Making Connections Click [Detailed]. The units that can be connected are displayed on the “Select Access Port” window. Network When you specify the network number (See page 44) set on the unit from one of [1], [2], [3], [4], and [U (USER)] units that are presently switched on in the selected network number are displayed in [Projector Name].
  • Page 16 Making Connections In [Network], select the network number set for the unit. • Units powered on in the chosen network group are listed. • This value is set to [1] by default. • For details on setting a network number for the unit, see page 44. Note If the selected unit does not appear some time after this operation, select the network number again, and check the selection status.

  • Page 17: Connection Error Messages

    Making Connections Connection error messages When wireless LAN connection cannot be established, [ Click the [ ] button at this time to display information on resolving the issue as shown below. The displayed information is as follows. Detected issue Displayed information A firewall or [****] is installed.
  • Page 18 Making Connections Detected issue Displayed information When a change in The settings of Wireless Network the settings made connection have been changed. by the utility has When a Wireless LAN Card utility or been detected any other utilities are active, stop the operation of such utilities, then restart the application.

  • Page 19: Other Operations For Connection

    Other operations for connection Canceling the connection Click [ ] on the launcher. The following window appears. When connecting the unit for the first time The “Preservation of a Profile” window appears. Set the save destination and file name, and click [OK]. If you do not need to create a profile, click [Close].

  • Page 20: Operations When Password Entry Is Required For Connection

    Other operations for connection Operations when password entry is required for connection When a unit with the [ ] mark is selected, the window shown to the right appears. Enter the password and click [OK]. (See page 48) Notes • Click [CANCEL] at the password entry window to return to launcher (See page 22). •...

  • Page 21: Searching By Unit's Id

    Other operations for connection Searching by unit’s ID Even if there are two or more units with the same name, an ID ([Disp] + 4-digit number) is assigned to each unit to enable the units to be identified. When you click [ID Search], a search for the unit of the specified ID is carried out from among the units that are presently switched on, from all channels other than [U].

  • Page 22: Various Display Methods

    Various display methods Description of the launcher The launcher always appears on the computer screen, and can be used to perform various operations. • By default, the “simple launcher” is displayed. Select the launcher using the Simple Launcher <> Full Launcher select button. The display mode that the system was in when Wireless Manager ME 4.0 was exited is activated the next time the programme is started.
  • Page 23 Various display methods Full launcher Live Mode: Displays the computer screen over the entire display screen. (See page 24) Select Access Port: Displays the “Select Access Port” window. (See page 15) Virtual remote control: Does not function on this unit. Multi Live Mode: Display the screens of multiple computers on the divided display screen.

  • Page 24: Live Mode

    Various display methods Live mode Connect a computer to a unit, and display the computer screen over the entire display screen. Press the [INDEX] button on the remote control to turn the display screen into a full screen display (the status when no index window is displayed). If you press the [INDEX] button once or twice when index windows are displayed on the display screen, the screen will switch over to a full screen display.

  • Page 25: Multi Live Mode

    Various display methods Multi live mode Switching from one style to another Multi live mode has “4-screen multi style”, “4-screen index style” and “16-screen index style”. Styles are switched by the remote control. How to operate Press the [INDEX] button of the remote control to change the style. •...
  • Page 26 Various display methods 4-screen multi style Connect up to four computers to one display, and then divide the display screen into four parts, and simultaneously display the screens for the four computers on the display screen. Press the [INDEX] button on the remote control to turn the display screen into a full screen display (the status when no index window is displayed).
  • Page 27 Various display methods 4-screen index style When the display is set to “4-screen index style”, connect up to four computers to one unit, and then simultaneously display the screens for the four computers on the index windows and also on a large screen. Press the [INDEX] button of the remote control to switch the display screen to “4- screen index style”.
  • Page 28 Various display methods Enlarged display • Use the [ ] buttons on the remote control to move the focus (yellow box) to the image to be enlarged, and press the [ENTER] button. The image is enlarged and displayed at the top of the display screen.
  • Page 29 Various display methods 16-screen index style When the display is set to “16-screen index style”, connect up to 16 computers to one unit, and simultaneously display the screens for the 16 computers on index windows and also on a large screen. Press the [INDEX] button of the remote control to switch the display screen to “16- screen index style”.

  • Page 30: Multiple Source Live Mode

    Various display methods Multiple Source Live Mode You can simultaneously display one computer’s screen on up to eight units. Press the [INDEX] button on the remote control to turn the display screen into a full screen display (the status when no index window is displayed). If you press the [INDEX] button once or twice when index windows are displayed on the display screen, the screen will switch over to a full screen display.
  • Page 31 Various display methods Check the status indication on the launcher to make sure that transmission is possible (check that the green lamp is lit). Click [ ] on the launcher. The displays selected in step 5 will begin displaying. Notes •...

  • Page 32: Multiple Source Multi Live Mode

    Various display methods Multiple Source Multi Live Mode Connect up to four computers to each of up to eight units, and display in each unit by the 4-screen multi style. Press the [INDEX] button on the remote control to turn the display screen into a full screen display (the status when no index window is displayed).
  • Page 33 Various display methods Select and click the display position. The computer image is transmitted to the selected quarter of the display screen. Switching to a different position Select and click a different display position in step 8 above. Enlarged display If [ ] is clicked with a computer, display screens temporarily change to full screen display.

  • Page 34: Useful Functions

    Useful Functions Selective area transmission By using the selective area window, you can specify the necessary information alone from the computer screen, and display it on the display screen. Click [ ] on the launcher. Selective area window (green) appears on computer screen. Surround the desired part to be sent to the display with the selective area window.

  • Page 35: Secondary Display Transmission

    Useful Functions (cont.) Secondary display transmission You can set the computer screen and the display screen to the multi-monitor mode, and use the computer screen as the primary monitor and the display screen as the secondary monitor. Click [ ] on the launcher. Check the status indication on the launcher to make sure that transmission is possible (check that the green lamp is lit).

  • Page 36: One Shot Function

    Useful Functions (cont.) One shot function A snapshot of the current computer screen is transmitted to the display Cancel all live mode transmission. Press the [INDEX] button on the remote control to turn the display screen into a full screen display (the status when no index window is displayed). If you press the [INDEX] button once or twice when index windows are displayed on the display screen, the screen will switch over to a full screen display.

  • Page 37: Functions Used With Each Display Method

    Useful Functions (cont.) Functions used with each display method Live mode When connected to one unit Multi live mode One shot Multiple Source Live Mode When connected to multiple units Multiple Source Multi Live Mode One shot = Yes, = No Available when no live is done.

  • Page 38: Setting Options

    Setting options Various picture quality and live mode settings are available when using Wireless Manager ME 4.0. Setting option window Click [ ] on the launcher. The “Option” window shown to the right appears. Click the desired tab to be set. Click [OK].
  • Page 39 Setting options (cont.) Key setting You can set shortcut key combinations that let you control the Wireless Manager ME 4.0 functions by computer keyboard operations. Select the mode or the function to be set for the shortcut key, and click it. Select one from [Ctrl], [Alt], and [Shift].

  • Page 40: Version Information

    Setting options (cont.) Other Launcher size setting You can select the launcher button size. Automatic connection setting You can perform automatic settings for newly connected units. • If the [Make an automatic connection] box is checked and a unit is registered as a destination for automatic connection when Wireless Manager ME 4.0 is started, “Select Access Port”...

  • Page 41: Using Webbrowser

    Using WebBrowser You can use the PC’s WEB browser to make various settings related to the wireless LAN connection and controlling the display to which the Wireless Presentation Board is attached. Computer settings Connect unit and computer. (See page 14) Proxy server settings Release the proxy settings of the WebBrowser used.

  • Page 42: Description Of Each Screen

    Using WebBrowser Notes • No password is set when shipped from the factory. • Password used in this page is for accessing the web control window. (See page 48) • If you forget the password, initialize the unit using the remote control. (See page 53) •...
  • Page 43 Using WebBrowser Monitor information window Displays current display status To access this page from another page, click “Display Control” on the menu and “STATUS” on the submenu. Note Monitor information is refreshed every 30 seconds. Current correct information can be checked by clicking [View] → [Refresh]. Display control window You can make various display settings.

  • Page 44: Network Settings Screen

    Using WebBrowser Network Settings Screen You can make the network settings on the unit when connecting without computer administrator rights, when connecting through an access point (infrastructure mode), or when making security settings. (See page 51, Other Connection Methods) Click [Network Settings] on the menu. Click NEXT.
  • Page 45 Using WebBrowser Detailed Network Settings Screen (1/3) NETWORK: Sets a name for the network number. DHCP* ON : If a DHCP server exists in the network to which the unit is connected, the IP address will automatically be acquired. DHCP OFF: If a DHCP server does not exist in the network to which the unit is connected, additionally set [IP ADDRESS*], [SUBNETMASK*] and [GATEWAY*].
  • Page 46 Using WebBrowser Detailed Network Settings Screen (3/3) AUTHENTICATION:OPEN or SHARED ENCRYPTION: Used to select and set the encryption system. NONE: When no encryption is used. This can be selected when [AUTHENTICATION] is [OPEN] or [SHARED]. WEP*: When WEP is used for the encryption system. KEY1 to KEY4: Selects the key numbers to use by default and sets the keys.
  • Page 47 Important data is protected even if [ENCRYPTION] is set to [NONE] for video and audio data because AES encryption is carried out for all network numbers beforehand. Default settings of [USER1] – [USER3] NETWORK: USER1 – USER3 DHCP OFF HOST NAME: FB10WP SSID: Panasonic Display MODE: AD HOC AUTHENTICATION: OPEN ENCRYPTION: NONE IP ADDRESS: 192.168.10.100 SUBNETMASK: 255.255.255.0...

  • Page 48: Change Password Screen

    Using WebBrowser Change Password Screen Sets a password for each feature. • Click [Network Settings] on the menu. WEB password setting Sets the password to use when accessing the WEB browser control screen. Click [WEB] on the submenu. Enter the old password and the new password, and then click OK. •...
  • Page 49 Using WebBrowser WM Authentication Settings Sets the password to use when starting Wireless Manager ME4.0. Click [WM] on the submenu. Password: Enable: Set when enabling authentication. Next, enter the password. • The password may contain one-byte alphabetic characters (upper and lower case) and numeric characters. •...
  • Page 50 Using WebBrowser (cont.) Remote control ID Settings Screen When using more than one unit, you can set an ID to restrict the use of the remote control. Access is not allowed unless the remote control ID matches that set for the unit. This ID can be set using the remote control as follows.

  • Page 51: Other Connection Methods

    Start WEB browser control and make network settings using [USER1] to [USER3] under [Network] on the menu. DHCP* IP ADDRESS* 192.168.10.100 SUBNETMASK* 255.255.255.0 SSID* Panasonic Display MODE AD HOC* AUTHENTICATION OPEN* (Some computers may require connection by [SHARED*] authentication.) ENCRYPTION NONE…When not performing encryption WEP…When performing encryption...
  • Page 52 Other Connection Methods Exit Wireless Manager ME 4.0 running on the computer. Make settings on the computer. a) Click [Start] → [Control Panel] → [Network and Internet Connections] → [Network Connections], right click [Wireless Network Connections], and click [Properties], then [Wireless Network Connection Properties] window appears.

  • Page 53: Returning To The Initial Settings

    Returning to the Initial Settings You can return the changed settings to the initial conditions. (Exit the Wireless Manager before proceeding.) ID SET Push key of remote control once . Then Push key three times. “RESET!” is displayed at the upper left of the screen. INPUT ASPECT ENTER...

  • Page 54: Glossary

    Glossary Category Item Access point TCP/IP IP address Common Setting of DHCP connections Subnetmask Gateway Descriptions Abbreviation for Local Area Network. This is a network with a relatively narrow range such as inside a company. These are stations for relaying electromagnetic signals between computers in a wireless LAN.
  • Page 55 Glossary (cont.) Category Item AD_HOC INFRASTRUCTURE (infrastructure mode) SSID Open System/ OPEN Shared Key/ SHARED Advanced setting of connection WPA-PSK TKIP   Descriptions This is the mode in which computers communicate with each other directly, rather than via access points. This is the mode in which communications are performed via the access point.

  • Page 56: Frequently Asked Questions

    Frequently Asked Questions Check the following points once more before requesting repair. No wireless connection can be made between my unit and my computer. • Is Wireless Manager ME 4.0 running? Wireless Manager ME 4.0 must be started in the computer in order to enable wireless transmissions of images to the unit. <When a setting error for the wireless LAN card has been detected>...
  • Page 57 Frequently Asked Questions No wireless connection can be made between my unit and my computer. (cont.) <When Windows Firewall has been detected> Has your firewall in Windows XP been disabled? The firewall in Windows XP must be disabled in order to connect to a wireless network. How to disable the firewall in Windows XP 1.
  • Page 58 Frequently Asked Questions Wireless connection is lost shortly. • If live transmission is cancelled or if the connection is lost, re-establish the connection from the launcher. The connection has been lost in the multi live mode. • If a computer with a certain version of the Intel Centrino mobile technology (wireless LAN) is connected to the unit, the multi live mode may be released.

  • Page 59: Trademarks

    Frequently Asked Questions There is a time lag between operations at the computer and results in the displayed image. • Wireless Manager ME 4.0 reads the screen, compresses the data and transmits it to the unit. In the unit, the received data are extracted and then displayed.
