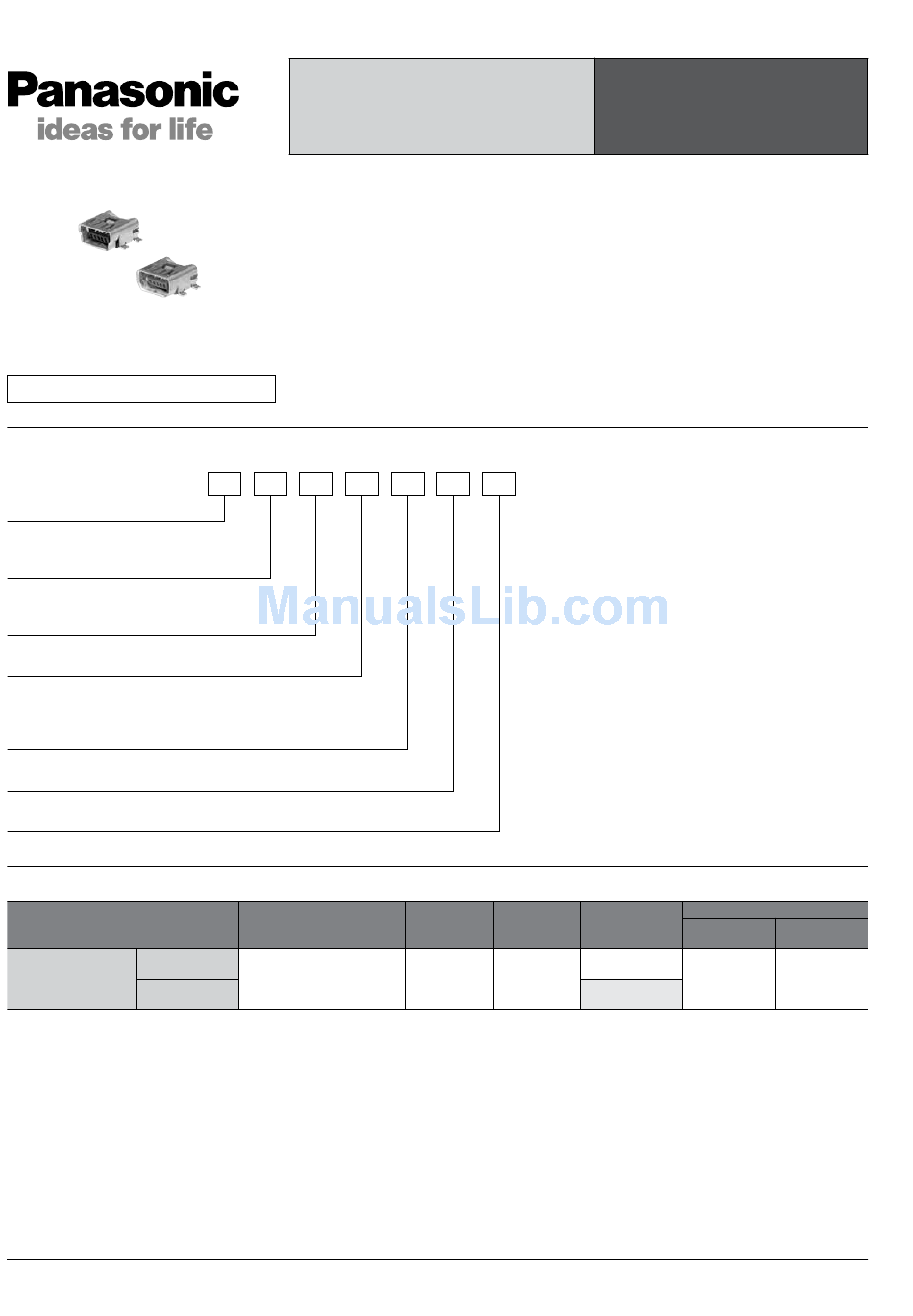

AXJ4
Compliance with RoHS Directive

ORDERING INFORMATION

AXJ
4: Mini USB connectors
<Receptacle>
1: 5 contacts receptacle
(Compliant with the Mini USB standard)
<Composition>
3: Mini B right angle type
6: Mini AB right angle type
<Mounting type>
1: Standard, with suction tape
<Terminal and Retention fitting>
1: Terminal portion: SMD,
Retention fitting portion: SMD,
Positioning bosses: Provided
<Flange shape>
0: Without flange
<Package>
G: Embossed tape packaging
PRODUCT TYPES
Type
Mini B
5 contacts receptacle
Right angle type
(Compliant with the
Mini AB
Mini USB standard)
Right angle type
Matsushita Electric Works, Ltd.
MINIATURE INTERFACE
CONNECTOR COMPLIANT
WITH USB 2.0/ON-THE-GO
FEATURES
1. Compliant with USB 2.0-OTG
(Transmission speed: 480 Mbps)
2. 7.7 mm deep space-saving size
Since the depth is 7.7 mm, the occupied
space is approx.
15% smaller than competing standard
connectors (depth: approx 9.0 mm).
3. Reinforced fixing strength between
the body and shell
The high strength allows for the forcible
insertion of a plug.
4
1
1
Terminal shape
Terminal position: SMD
Clips (retention fitting): SMD
1
0
G
Positioning
Flange
bosses
Provided
Without flange
Mini USB (AXJ4)
CONNECTORS
APPLICATIONS
1. DSC, PMP, DVC, IC recorders
2. Mobile phones, PDA, smart phones
3. Compact PC peripherals (e.g.
external HDD, memory card readers)
4. Game machines
Packing quantity
Part number
Inner carton
(Embossed)
AXJ413110G
1,200
AXJ416110G
http://www.mew.co.jp/ac/e/
Outer carton
6,000
