12. Technical specifications
Receiver
Power Supply
AC 220 - 230 V / 50 Hz
Weight
approx. 185g
Dimensions (H x W x L)
approx. 4,5 x 14,5 x 18,5 cm
Copy of Instruction Manual
Synchro Exit
6,3 mm adapter: 3,5mm
Transmitter
Battery
12 V
Hot-shoe
under 0,01 mA
Weight
approx. 70g
Dimensions (H x W x L)
approx. 3,6 x 5 x 6 cm
Permitted operation
-10 °C to + 40 °C
temperature
Storage conditions
Dry and dust-free in carton at
-20 °C to +50 °C

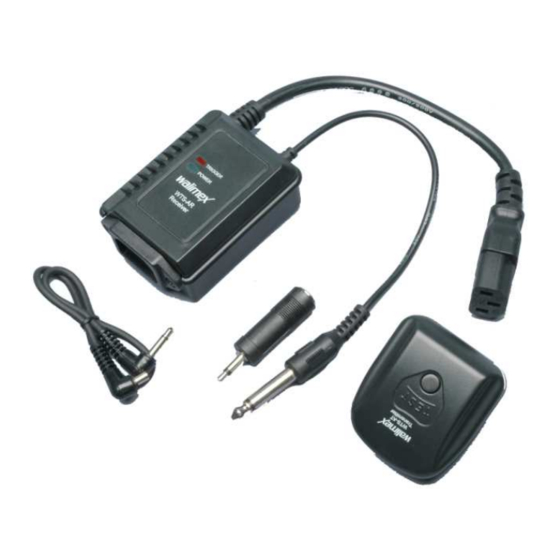

CY-A 4-Channel Remote Trigger Set
Gewerbering 26
86666 Burgheim
Tel.: +49 84 32 / 9489-0
Fax: +49 84 32 / 9489 - 8333
eMail:
info@foto-walser.de
www.foto-walser.de
12
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for walimex CY-A
Summary of Contents for walimex CY-A
- Page 1 -10 °C to + 40 °C temperature Storage conditions Dry and dust-free in carton at -20 °C to +50 °C CY-A 4-Channel Remote Trigger Set Gewerbering 26 86666 Burgheim Tel.: +49 84 32 / 9489-0 Fax: +49 84 32 / 9489 - 8333 eMail: info@foto-walser.de...
- Page 2 Content Change battery How to understand this instruction manual ........4 WARNING Markings on the device ..............4 Please just use batteries, which comply with the required specifications. Markings in the instruction manual ........... 4 See Technical Specifications. Important safety notes..............5 1.Use a Phillips screwdriver to loose the screw on the bottom side of the Unpack and check the device ............
- Page 3 Thank you very much for your confidence. We wish you much pleasure and Maintenance success with your new device. Continuous inspections The walimex CY-A 4-Channel Remote Trigger Set consists of one Before every With every transmitter and one receiver. It is compatible with all studio flashes,...
- Page 4 How to understand the instruction manual Operation of the device Markings on the device Trigger test button 1. Before starting your work, please check the function of your devices This marking means, that your device meets the safety and trigger your studio flash through the test button on the requirements of all relevant European Directives.
- Page 5 See Technical Specifications. Important safety notes If the values should differ, please contact info@foto-walser.de or tel. 49 WARNING 84 32 / 9489-0. Danger of electric shock, burn hazard 5. Connect the power cord with the Please note, that the device is still connected with the supply voltage socket on the device and with the even if it is switched off.
- Page 6 Unpack and check the device Sync Cord Transmitter 1. Please unpack the device carefully. 2. Please check, if the delivery is complete: • 1 CY-A 4-Channel Remote Trigger Set o 1 Receiver o 1 Transmitter o 1 Sync Cord Quick-start guide o 1 Adapter Phone Jack 3,5 mm •...
