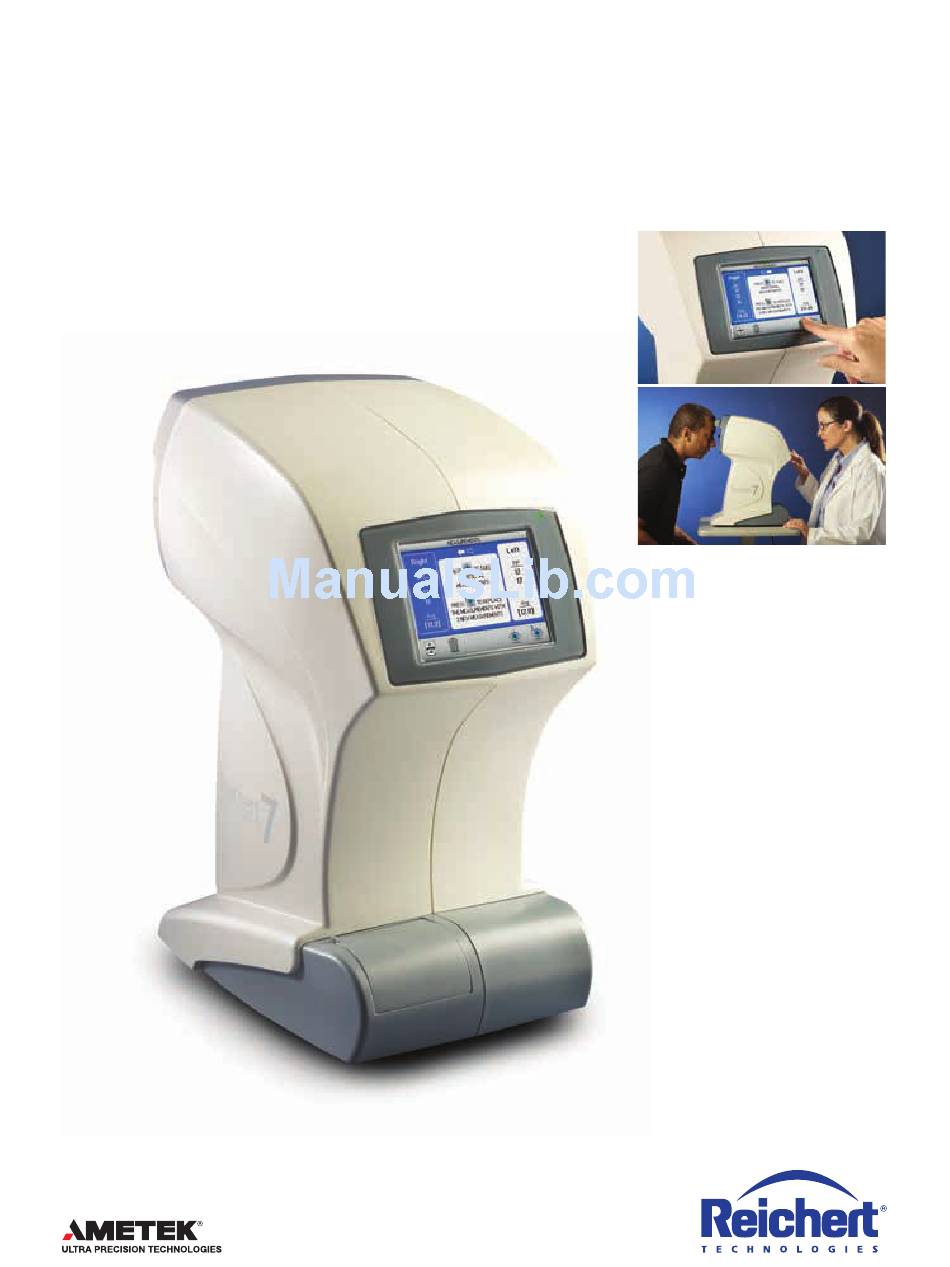

- Page 1 Reichert ® Auto Tonometer User’s Guide...
- Page 2 The information contained in this document was accurate at time of publication. Specifications subject to change without notice. Reichert, Inc. reserves the right to make changes in the product described in this manual without notice and without incorporating those changes in any products already sold.
-
Page 3: Table Of Contents
Contents Warnings & Cautions ..................4 Symbols ......................6 Introduction ...................... 7 Indications for Use ..................7 Contraindications ..................7 Instrument Setup ....................8 Unpacking Instructions ................8 Shipping Protector ..................8 Application of Input Power ................. 9 Disconnection of Input Power ..............9 Parts Identification ................... -
Page 4: Warnings & Cautions
INJURY TO THE OPERATOR OR PATIENT MAY OCCUR. WARNING: MODIFICATIONS TO THIS INSTRUMENT ARE NOT ALLOWED. ANY MODIFICATION TO THIS UNIT MUST BE AUTHORIZED BY REICHERT OR SERIOUS INJURY TO THE OPERATOR OR PATIENT MAY OCCUR. WARNING: IF THIS INSTRUMENT IS MODIFIED, APPROPRIATE INSPECTION AND TESTING MUST BE CONDUCTED TO ENSURE CONTINUED SAFE USE OF THIS INSTRUMENT. - Page 5 PRECAUTIONS. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CONTROL OF REICHERT TECHNOLOGIES OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS. CAUTION: DO NOT USE SOLVENTS OR STRONG CLEANING SOLUTIONS ON ANY PART OF THIS INSTRUMENT AS DAMAGE TO THE UNIT MAY OCCUR.
-
Page 6: Symbols
Symbols Symbol Information The following symbols appear on the instrument: Caution symbol indicating important operating and maintenance instructions that are included in this User’s Guide Type B Applied Part Alternating Current Power Protective Earth Connection ON / OFF Date of Manufacture 2016 Manufacturer Catalog Number... -
Page 7: Introduction

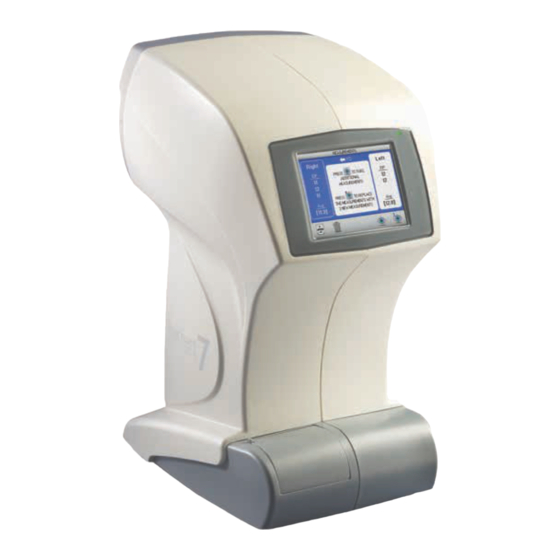

7 Auto Tonometer. ® The Reichert 7 is an auto-aligning, non-contact tonometer used to measure the intraocular pressure of the eye by delivering a very soft air puff or puffs to the eye. This User’s Guide is designed as a training and reference manual for operation, maintenance, and troubleshooting. -
Page 8: Instrument Setup
Instrument Setup Great care has been taken to deliver your new Reichert 7 Auto Tonometer to you safely. The container and packaging was specially designed to transport this unit. Please retain the packaging if future transportation is required. Unpacking Instructions... -
Page 9: Application Of Input Power
WARNING: DO NOT REMOVE THE OUTSIDE COVERS OF THE UNIT OR ATTEMPT TO REPAIR ANY INTERNAL PARTS. REPAIR AND SERVICE OF THE UNIT MUST BE PERFORMED BY EXPERIENCED PERSONNEL OR DEALERS THAT ARE TRAINED BY REICHERT. CAUTION: ENSURE THAT THE VOLTAGE APPLIED TO THE UNIT IS THE SAME AS THE VOLTAGE THAT IS INDICATED ON THE DATA PLATE NEXT TO THE INPUT CORD RECEPTACLE OR DAMAGE TO THE UNIT MAY OCCUR. -
Page 10: Parts Identification
6. ON/OFF Switch: Switch that controls input power to the unit. “O” indicates OFF, and “ | ” indicates “ON.” 7. USB Port: Communication port that transfers data to a computer. 8. Main Power Connector and Fuse Holder: Connection point for input power and the fuses. -
Page 11: Icon Definition
Instrument Setup continued) Icon Definition The Reichert 7 incorporates a user-friendly icon/menu-based operating system that will increase the speed of measurements, training and use. Listed below are the icons that are used during the operation of this instrument. Icon Description MENU —... -
Page 12: Default Settings
Instrument Setup continued) Default Settings The Reichert 7 has default settings that are set at the factory. To view a summary of these settings, refer to page 13. To view a detailed definition and explanation of each setting, refer to pages 14 through 17. Follow these steps to customize the default settings: 1. Touch the screen on the MENU icon. -
Page 13: Customized Options
Printer: Reichert Practice: Communication Port Setup: (page 16) 1200, 2400, 4800, 9600, 19200 Baud: None, Even, Odd Parity: 7, 8 Data Bits: 1, 1.5, 2 Stop Bits: General Setup: (page 17) Language: Eng, Fra, Deu, Esp, Por, Ita Tone: On, Off... -
Page 14: Tonometer Settings
Instrument Setup continued) Tonometer Settings The following options are available in the Tonometer Setup menu: Parameters Settings PRESSURE Choose either kilo Pascals (kPa) or millimeter of mercury (mmHg). MEASUREMENTS Choose the average of 3 readings (Avg.[3]) or 4 readings (Avg.[4]). 16050-101 Rev. -
Page 15: Printout Settings
Instrument Setup continued) Printout Settings The following options are available in the Printout Setup menu: Parameters Settings DATE FMT Choose the date format to display on the printer paper: D=Day, M=Month, Y=Year. TIME FMT Choose the time format: AM/PM or 24 HR. DATE Change the current date. -
Page 16: Communication Settings
Instrument Setup continued) Communications Settings The Reichert 7 can transfer data to an external device, such as a computer, through the USB port. The following options are available in the Communications Setup menu: Parameters Settings BAUD Serial transmission data rate, transfers in bits per second (bps). -
Page 17: General Settings
Instrument Setup continued) General Settings The following options are available in the General Setup menu: Parameters Settings LANGUAGE Sets the language that appears on the Operator Display. TONE Sets the audible tone indicator (“beep”) to be silent (OFF) or audible (ON). SLEEP Sets the duration of time (5, 10, 20 or 90 minutes) that the instrument is inactive before it enters the “sleep”... -
Page 18: Instructions For Use
Instructions for Use Alignment and Measurement When power is applied to the Reichert 7, it initially performs a system check. After completion of the system check, the title screen will be displayed. The Operator Display then displays a message to move the Forehead Rest fully to the left or right until it locks into position (if it is not already in this position). - Page 19 (continued) Slide headrest left or right The Reichert 7 features a fully automated alignment system that enables the instrument to align itself to the apex of the patient’s left or right eye. This innovative system makes the measurement process quicker and more comfortable for the patient. Perform the following steps to take a measurement of the patient’s eye.
- Page 20 Instructions for Use continued) Alignment and Measurement (continued) Proper Patient Alignment Improper Patient Alignment (Chin close to unit.) (Chin moved away from unit.) Note: If the patient cannot see the green target, use the canthus marks on the sides of the instrument to set the vertical alignment of the eye, and then ask the patient to move forward until the center of their forehead is pressed against the Forehead Rest pad.
- Page 21 Instructions for Use continued) Alignment and Measurement (continued) 3. Once the patient is leaning against the Forehead Rest, touch the Measure icon to begin the measurement process. Note: Touching the Measure icon (one puff) will initiate a measurement with one puff. Touching the Triple Measure icon (three puffs) will initiate a measurement with three rapid puffs.
- Page 22 Instructions for Use continued) Alignment and Measurement (continued) 5. After the measurement is completed for the first eye, ask the patient to move their forehead away from the instrument. 6. There are several options available at this point: a. The Forehead Rest may be slid to the opposite side to continue taking measurements on the other eye.
-
Page 23: Demo Puff
Pressing the button under the DEMO icon initiates a sample air puff. This can be used to demonstrate the air puff to the patient. After the DEMO button is pressed and the air puff is delivered, the Reichert 7 conducts a systems check to ensure its optimum performance. -
Page 24: Low Confidence Readings
Low Confidence Readings During the measurement process, the Reichert 7 may detect a condition that could create a low confidence reading, identified by an asterisk after the reading. Asterisk readings can result from blinking or interference from a patient’s eyelashes. These measurements are highlighted with an asterisk next to the reading as shown below. - Page 25 Low Confidence Readings (continued) Measurements with the Reichert 7 are made within a few milliseconds after the instrument “puffs” the eye. Since this measurement cycle is so short, IOP readings can be acquired at different times within a cardiac pulse period. Therefore, repetitive readings for an eye may fluctuate from 2 to 4 mmHg during this cardiac period.
-
Page 26: Too Far Activated
Too Far Activated During the measurement process, the Reichert 7 may detect a situation where the patient’s eye is too far from the nosepiece. Should this occur, the instrument will return to the home position, and the screen will change to that shown below. -
Page 27: Printing Measurement Data
— — [16.3] [16.0] Reichert Sample Printout If you decide not to make a printout, touch the CLEAR DATA icon. This will clear all data from the memory and the screen. The instrument is now ready for the next patient. -
Page 28: Cleaning & Maintenance
(1 cc of liquid dish soap to one liter of clean, filtered water (filtered below 5 microns)). Note: If the Forehead Rest pad must be sanitized, a sterile wipe may be used occasionally. Note: Replacement Forehead Rest Pads can be purchased through your local authorized Reichert dealer under P/N 16050-170. -
Page 29: Positioning Windows And Airtube Cleaning
Cleaning & Maintenance continued) Positioning Windows and Airtube Cleaning When the Positioning Windows or the Applanation Windows become occluded with contaminants, degradation of the positioning signal occurs. When signal degradation occurs, the system may not recognize or position at the center of the eye. Consequently, the instrument will not find the center of the eye or align off center, which may prevent the unit from taking a measurement or can cause asterisk readings. -
Page 30: Forehead Rest Pad Replacement
Cleaning & Maintenance continued) Forehead Rest Pad Replacement The Reichert 7 tonometer has a removable Fore- Indent head Rest Pad, to allow for easier replacement of the pad. On the bottom part of the Forehead Rest Pad, there is a small indent, which is to allow room Figure CL-1. -
Page 31: Troubleshooting
Troubleshooting Help Screens The Reichert 7 includes HELP screens, which provide useful information and tips on its operation. These screens are intended to be used as a quick reference to a selection of operations. To access the HELP menu, touch the MENU icon. Press the DOWN ARROW icon until the cursor box is positioned on HELP. -
Page 32: Chart Of Common Errors
Troubleshooting continued) Chart of Common Errors The following chart provides details of common problems and solutions for the Reichert 7. Definition Probable Cause Solution Screen blank. Unit is in Sleep Mode. Touch any icon. ON/OFF Switch is set to OFF. -
Page 33: Print-Related Errors
Troubleshooting continued) Print-Related Errors If your printer runs out of paper during a print cycle, the following message will appear: Note: If the printer paper runs out before printing all the measurement data, the data will be stored. Once the printer paper is replaced, a complete print out of all measurement data will start. 16050-101 Rev. -
Page 34: Specifications
60-85 VA Frequency: 50/60 Hz Fuses: Time-Lag (2.5A, 250V), 5 X 20mm Measurement Range: 0 – 60 mmHg (ISO 8612 Tonometer Standard 7 – 60 mmHg) Measurement Accuracy: The measurement accuracy of IOP is per ISO 8612. Operational Conditions 70°C Environmental:... -
Page 35: Classifications
The Reichert 7 is classified as IPX0 Equipment. IPX0 Equipment is ordinary equipment enclosed without protection against ingress of water. According to the mode of operation, the Reichert 7 is a Continuous Operation instrument. 16050-101 Rev. K... -
Page 36: Guidance Tables
Table 201 – Guidance and Manufacturer’s Declaration Electromagnetic Emissions All Equipment and Systems Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The Reichert 7 is intended for use in the electromagnetic environment specified below. The customer or user of the Reichert 7 should ensure that it is used in such an environment. Electromagnetic Environment Emissions Test Compliance - Guidance -... - Page 37 – Guidance and Manufacturer’s Declaration Electromagnetic Immunity Equipment and Systems that are NOT Life-supporting Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The Reichert 7 is intended for use in the electromagnetic environment specified below. The customer or user of the Reichert 7 should ensure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic...
- Page 38 The Reichert 7 is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the Reichert 7 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF Communications Equipment and the Reichert 7 as recommended below, according to the maximum output power of the communications equipment.
-
Page 39: Warranty
U.S. Patent, Reichert will defend such action at its expense and will pay costs and damages awarded in any such action, provided that Reichert shall have sole control of the defense of any such action with information and assistance (at Reichert’s expense) for such defense, and of all negotiation for the settlement and compromise thereof. - Page 40 Depew, NY 14043 Toll Free 888-849-8955 Phone: 716-686-4500 Fax: 716-686-4555 Email: reichert.information@ametek.com www.reichert.com Authorized European Representative AMETEK GmbH Business Unit Reichert Carl-von-Linde-Strasse 42 85716 Unterschleissheim/Munich Germany Email: info.reichert-de@ametek.com Tel: +49 (89) 315 8911 0 Fax: +49 (89) 315 891 99 ISO-9001/13485 Certified 16050-101 Rev.
