Baxi Fires Division 750 Owner's Manual

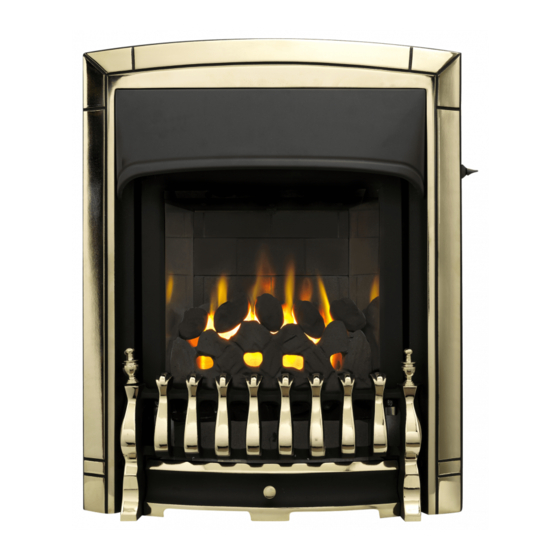

Inset live fuel effect gas fire
Hide thumbs Also See for 750:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
5115979/01
OWNER GUIDE
Model 750
INSET LIVE FUEL EFFECT GAS FIRE
INCORPORATING THE
BAXI FIRES DIVISION
CONTROL
With
ALPHA, DECADENT,
DREAM, ELEGANT,
ETERNAL or
OBSESSION fascia
(GC No. 32-032-58)
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
We trust that this guide gives sufficient details to enable this appliance to be operated
and maintained satisfactorily. However, if further information is required, our
Baxi Fires Division Technical Helpline will be pleased to help.
Telephone 08706 061 065 (National call rates apply in the United Kingdom)
In the Republic of Ireland telephone 0044 8706 061 065.
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference.
This guide to be left with the owner
© Baxi Heating U.K. Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750 and is the answer not in the manual?

Questions and answers

Related Manuals for Baxi Fires Division 750

Summary of Contents for Baxi Fires Division 750

  • Page 1 We trust that this guide gives sufficient details to enable this appliance to be operated and maintained satisfactorily. However, if further information is required, our Baxi Fires Division Technical Helpline will be pleased to help. Telephone 08706 061 065 (National call rates apply in the United Kingdom) In the Republic of Ireland telephone 0044 8706 061 065.
  • Page 2 BS EN ISO 9001 quality system accepted by the British Standards Institute. The Highest Standards Baxi Fires Division is a member of the Society of British Gas Industries which works to ensure high standards of safety, quality and performance. Careful Installation Baxi Fires Division is a CORGI registered company.

  • Page 3: Table Of Contents

    OWNER GUIDE LIST OF CONTENTS Section Page SAFETY APPLIANCE DIMENSIONS GAS CONSUMPTION OPERATING YOUR FIRE The Oxysafe flame sensing and flue blockage safety system. Lighting the pilot. Lighting with a taper. CLEANING YOUR FIRE Metal Parts Ceramic fuel effect and rear wall. Burner.

  • Page 4: Safety

    OWNER GUIDE SAFETY IF YOU SMELL GAS DON’T SMOKE EXTINGUISH ALL NAKED FLAMES DON’T TURN ELECTRICAL SWITCHES ON OR OFF TURN OFF THE GAS SUPPLY AT THE METER OPEN DOORS AND WINDOWS TO GET RID OF THE GAS IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE DIRECTORY Do have the fire installed by a competent person.

  • Page 5: Appliance Dimensions

    OWNER GUIDE Do get advice about the suitability of any wall covering near your fire. Soft wall coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by heat. They may, therefore, scorch or become discoloured when close to a heating appliance.

  • Page 6: Gas Consumption

    Has a minimum natural gas input of 2.7kW (Gross) Has a minimum natural gas output of 1.4kW Model 750 when converted using kit number 0595221 Has a maximum propane gas input of 6.1kW (Gross) Has a maximum propane gas output of 3.5kW Has a minimum propane gas input of 4.3kW (Gross)

  • Page 7: Lighting The Pilot

    OWNER GUIDE Lighting the pilot. The control markings are shown in figure 2. Slide the control button to the bottom (ignition) position marked In this position, the electronic ignition system should cause a series of sparks that should light the pilot. Within four seconds of the pilot igniting, the main burner should light at its minimum setting.

  • Page 8: Lighting With A Taper

    Figure 3. Lighting with a taper CLEANING YOUR FIRE To maintain the high performance and quality finish of your Baxi Fires Division appliance, please follow these guidelines: Before attempting to clean the fire, please remember to turn off the fire and wait for the appliance to cool.

  • Page 9: Burner

    OWNER GUIDE Burner. The burner surface can be carefully cleaned to remove any loose particles after taking off the ceramic fuel effect pieces. Make sure that no particles are pushed into the burner holes. CERAMIC FUEL EFFECT REFITTING The installer and owner guide for the ceramic fuel effect is separate from this guide. The installer may have attached it to this guide or placed it inside.

  • Page 10: Servicing

    OWNER GUIDE Servicing. In the United Kingdom servicing can be carried out either by a Baxi Fires Division service engineer or a CORGI registered installer. If you require your fire to be serviced, please contact Baxi Fires Division Service on 08706 090 081 and quote the following details;...
