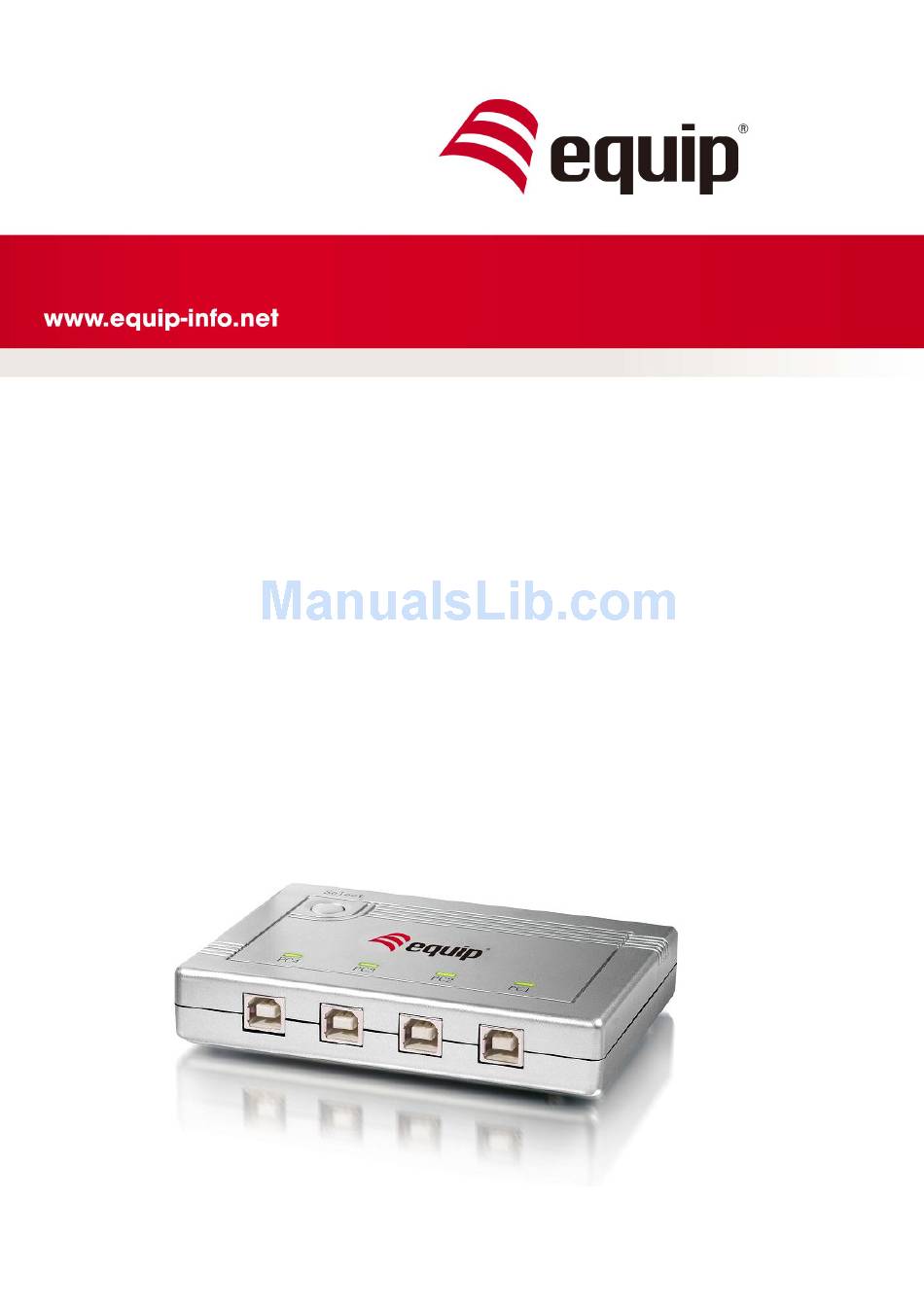

- Page 1 4-Port USB 2.0 SHARING SWITCH Universal | 128544...
-
Page 2: Package Contents
1. Introduction Thank you for purchasing equip™ 4-Port USB 2.0 Sharing switch. The Intelligent USB Sharing Switch allows four computers to share one USB printer or other USB 2.0 device. It can save your cost, time, space, power, and equipment to improve efficiency. -
Page 3: Application Diagram
2. Application Diagram 3. Cable Diagram USB A-B Cable: 4. Technical Specifications Model No. 128544 4 x USB Type B, female Connectors 1 x USB Type A, female Push Button (for PC/MAC/SUN) USB Device Selection Hot Key (for PC only) -
Page 4: Led Indication
5. LED Indication l If one of PC ports is connected to the USB port, the PC port LED is lit. Only one LED is lit each time. l The PC LED flash means USB device emulation or USB host enumeration of PC is processed or the other PC is going to sleeping mode.
