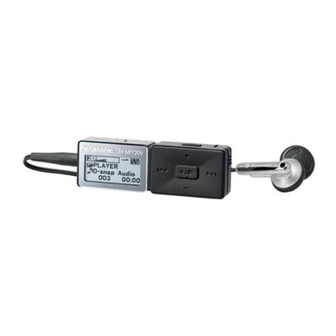

Panasonic SV-MP710SV Operating Instructions Manual

Dear Customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this
product, please read the instructions
completely. Please keep this manual for future
reference.
Note "EB" on the packaging indicates the United Kingdom.
EG EB
En
Matsushita Electric Industrial Co., Ltd.
Web site: http://www.panasonic.co.jp/global
Supplied accessories
Use the numbers indicated in parentheses when asking for replacements
parts. "As of March 2005"
1 AC Adaptor For the United Kingdom
(N0JZCD000004)
1 Rechargeable battery with case
Recommended replacement rechargeable battery:
ZBRP-BP65HE (Nickel-metal hydride rechargeable battery)
1 Pair of stereo earphones (L0BAB0000188)
1 USB Cable (K1HA05AD0003)
1 CD-ROM (USB Driver)
1 Neck lanyard (RFAT0006-Q)
Caution:
Take care when using the neck lanyard. If
used improperly, it can be a choking hazard.

Location of Controls

Microphone
REC/STOP
–MODE
Display
Turn on, off (Press
Example: MUSIC
and hold)/
Play/Stop
Earphones jack
(3.5 mm stereo)
Operating Instructions

Digital Audio Player

SV-MP710V
Model No.
SV-MP720V
Caution
This unit is not waterproof
and should not be exposed
to excessive moisture.
RQTT0685-B
For Continental Europe
(N0JZCD000008)
Battery lid
Skip/Search
HOLD switch
USB port
Windows Media Player (Version 9.0) Free download from
•
http://www.microsoft.com/downloads/
• Supports playback of MP3 and WMA (DRM) music files
• Built-in microphone for voice recording
• Built-in FM tuner with recording function
• Portable data storage device (Plugs in directly to your PC)
• Language learning with repetition and comparison.
• Total play list (MUSIC, FM RADIO, IC RECORDER) can contain
up to 383 tracks.
These tables show the mode menu items available in the MUSIC,
LEARN, FM RADIO, IC RECORDER and SYSTEM modes.
MUSIC
Mode
CONCERT 3D
WEAK/ NATURAL/
STRONG/ 3D SET
SOUND
EQ SETTING
NORMAL/ ROCK/
JAZZ/ POP/ CLASSIC/
USER DEFINE
NORMAL/ ALL-REP/
PLAY
ONE-REP/ RANDOM
Information (Artist/
INFO.
File format/ Bit Rate)
SINGLE TRACK/
ERASE
PLAYLIST/ ALL ERASE
IC RECORDER
Mode
RECORD HQ/ SP/ LP
SPEED LOW-NOR
SINGLE TRACK/
ERASE
ALL VOICE
M0305SF0
Rechargeable battery (included)
1
Insert the
rechargeable battery.
2
Charge the battery.
• "CHARGING..."
appears on the
display after
connecting the AC
adaptor.
• Recharging also take place when
connected to a computer's USB port
if the player is off. ( → page 2)
Operation cannot be guaranteed if you
use a USB hub or extension cable.
Battery indicator
Volume
• You can not play the unit while charging.
Note
• The unit is in the standby condition when the AC adaptor is connected. The
primary circuit is always "live" as long as the AC adaptor is connected to an
electrical outlet.
• The configuration of the AC adaptor differs according to the area.
• Ensure the AC adaptor cable is kept as straight as possible. Bending it too
much may cause an accident.
• After recharging is complete, you have to disconnect USB cable and wait
about 20 minutes before removing the battery.
1
FM RADIO
Options Mode
AUTO Freq. set/ Channel set
PRESET
BAND STEP 50 kHz/ 100 kHz/ 200 kHz
LEARN
Mode
NORMAL/ ALL-REP/
PLAY
ONE-REP
TIME/ TRACE/ T.TIME
REPEAT
SET
LOW-NOR
SPEED
SINGLE TRACK/
ERASE
PLAYLIST/ ALL ERASE
SYSTEM
Options
LANGUAGE/ AUTO OFF/
BACKLIGHT/ CONTRAST/
SOUND GRAPHIC/ SLEEP TIME
1
AC Adaptor
Insert so
2
the arrow
is facing
1 upwards
Recharging time: Approx. 6 hours
• The display will turn off when
recharging is complete.
Empty → Recharge
Full
Options
Options
Mode
Charge before
initial use
3
2
3
To a
household
mains
socket
