Allen-Bradley PowerFlex 753 Quick Start Manual page 29

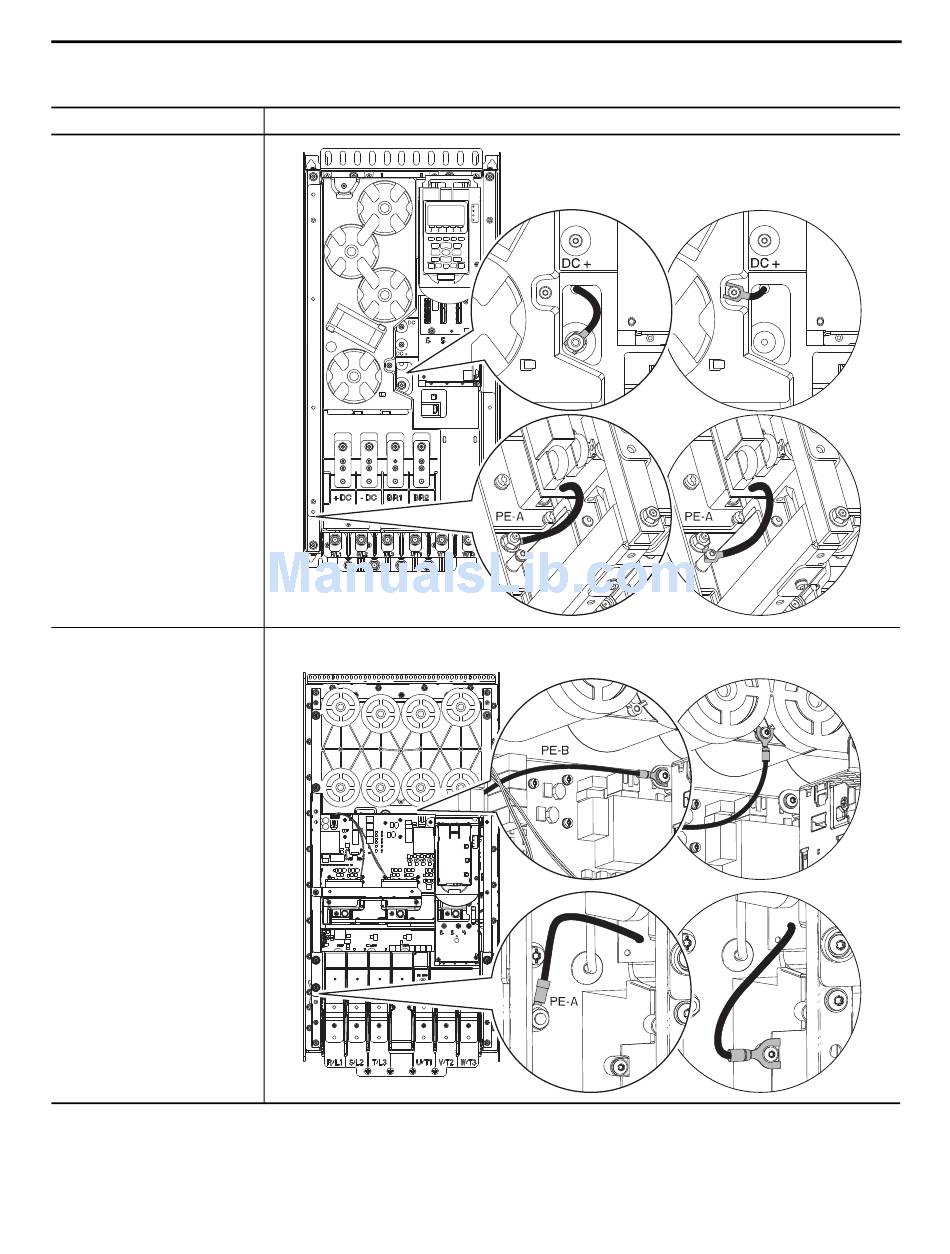

Table 1 - Power Jumper Locations for Frames 1...10
Drive
Frame 6
Wire Connectors
• Torque: 1.36 N•m (12.0 lb•in)
• Tools: 7 mm hex socket
and T20 Hexalobular
Frame 7
Wire Connectors
• Torque: 1.36 N•m (12.0 lb•in)
• Tools: 7 mm hex socket
and T20 Hexalobular
(Continued)
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Jumper Locations
Connected
Common Mode
PE-B
E4
MOV
Connected
Common Mode
MOV
Reference Section
Disconnected
PE-B
E4
Disconnected
29
