Allen-Bradley PowerFlex 753 Quick Start Manual page 25

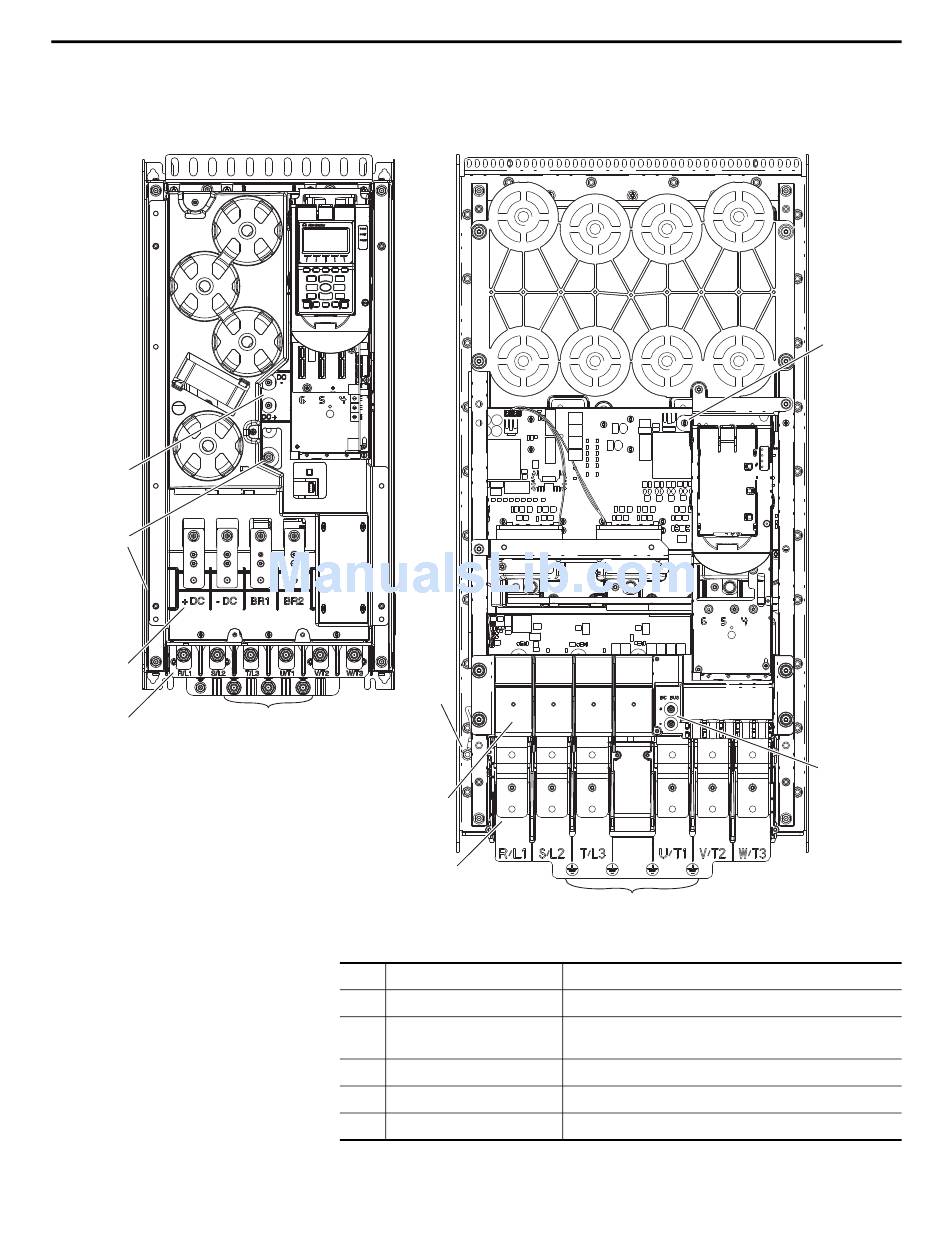

Wall Mount Frames 6 and 7 Power Terminal and Termination Point Locations
Wall Mount Frame 6
(5)
(4)
(3)
(1)
400/480V drives shown.
(4)
(2)
(3)
(1)
No. Name
(1) Power Terminals
(2) PE Grounding Studs
(3) DC Bus and Brake Terminals
(4) PE-A and PE-B
(5) DC+ and DC-
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Wall Mount Frame 7
(2)
Description
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3
Terminating point to chassis ground for incoming AC line and motor
shield.
+DC, -DC, BR1, BR2 (Optional)
MOV and CMC Jumpers
Bus Voltage Test Points
Reference Section
(4)
(5)
25
