Reference Section

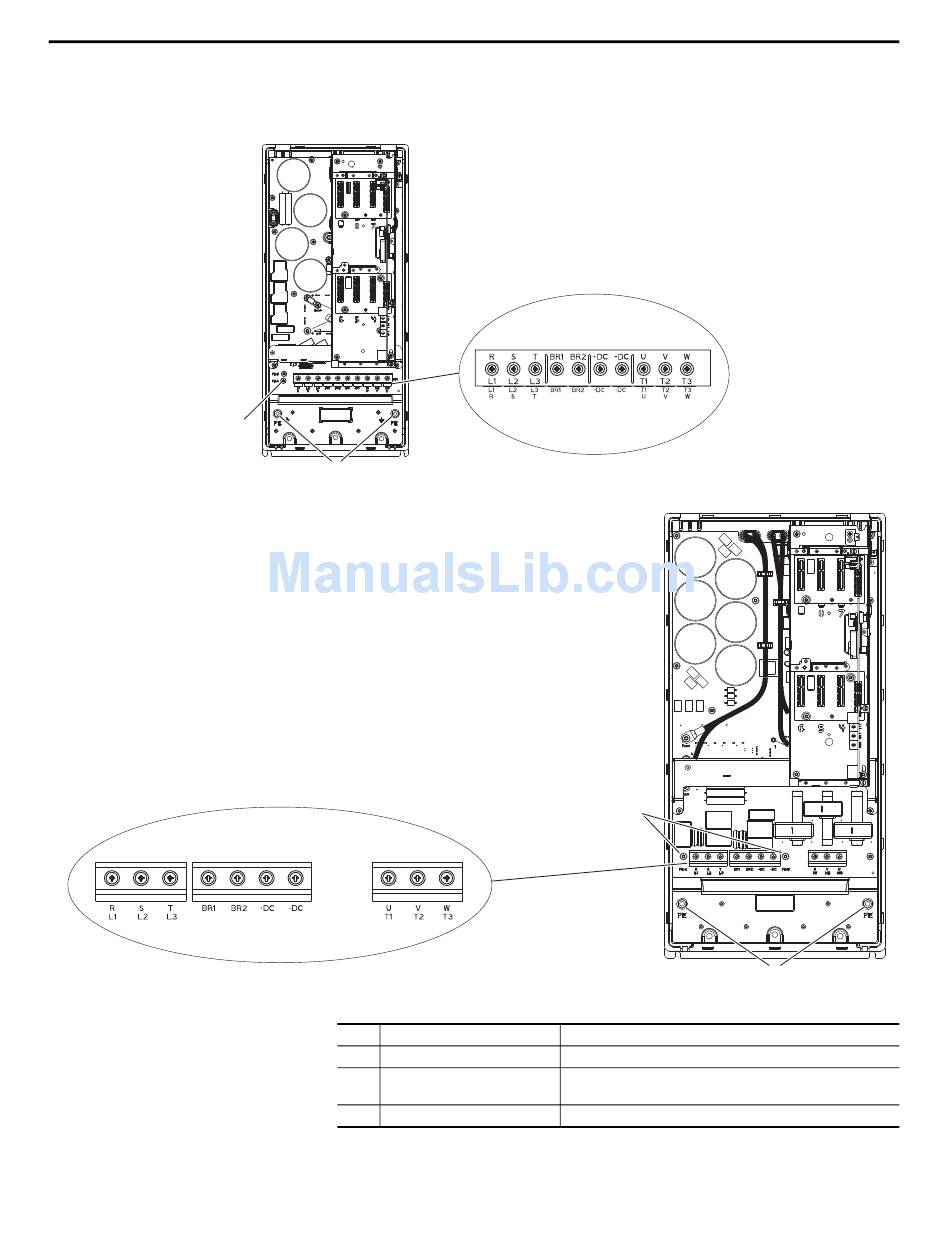

Wall Mount Frames 4...5 Power Terminal Block and Termination Point Locations
24
Wall Mount Frame 4
(3)
(2)
(1)
No.
Name
(1)
Power Terminal Block
(2)
PE Grounding Studs
(3)
PE-A and PE-B
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
(1)
Wall Mount Frame 5
(3)
Description
R/L1, S/L2, T/L3, BR1, BR2, +DC, -DC, U/T1, V/T2, W/T3
Terminating point to chassis ground for incoming AC line and motor
shields.
MOV and CMC Jumpers
(2)
