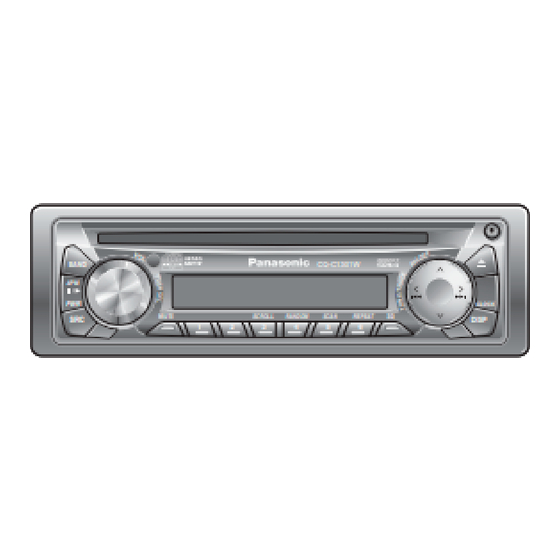

Panasonic CQ-C1301W Operating Instructions

Specifications
General FM Stereo Radio
Power supply : DC 12 V (11 – 16 V), test voltage Frequency range : 87.50 MHz – 108.00 MHz
14.4 V, negative ground Usable sensitivity : 6 dB/µV (S/N 30 dB)
Current consumption : Less than 2.2 A (CD mode; 0.5 W 4 Frequency response : 30 Hz – 15 kHz (±3 dB)
channels) Alternate channel selectivity : 75 dB
Maximum power output : 50 W x 4 (at 1 kHz), volume control Stereo separation : 35 dB (1 kHz)
maximum Image rejection ratio : 70 dB
Tone adjustment range : Bass: ±12 dB at 100 Hz, Treble: ±12 IF rejection ratio : 100 dB
dB at 10 kHz Signal to noise ratio : 62 dB
: 4 – 8 Ω
Speaker impedance
AM Radio
Pre-amp output voltage : 2.5 V (CD mode, 1 kHz, 0 dB)
: 200 Ω
Pre-amp output impedance
Frequency range : 531 kHz – 1 602 kHz
Dimensions (W x H x D) : 178 x 50 x 160 mm
Usable sensitivity : 28 dB/µV (S/N 20 dB)
Weight : 1.3 kg
Disc Player
Sampling frequency : 8 times oversampling
DA converter : 1 bit DAC System
Pick-up type : Astigma 3-beam
Light source : Semiconductor laser
Wave length : 790 nm
Note:
Frequency response : 20 Hz – 20 kHz (±1 dB)
¡
Specifications and design are subject to modification without
Signal to noise ratio : 96 dB
notice due to improvements.
Total harmonic distortion : 0.01 % (1 kHz)
Wow and flutter : Below measurable limits ¡ Some figures and illustrations in this manual may be different
Channel separation : 75 dB
from your product.
Accessories
Instruction kit Installation kit (YEP0FZ5698) Mounting Collar
(YEFX0217263)
Operating Instructions Lock Cancel Plate
(English : YEFM285618)
(êÛÒÒÍËÈ : YEFM285640)
Q'ty: 2 Trim Plate
( : YEFM285641)
(YEFC051002)
Mounting Bolt
( : YEFM285642)
(YEFM285643: )
Q'ty: 1 Power Connector
Q'ty: 1 set
Rubber Bushing (YEAJ02877)
Installation Instructions
(English, êÛÒÒÍËÈ, ,
Q'ty: 1
: YEFM293903) Remote Control Unit
POWER SOURCE MENU
SRC SRC SRC SEL SEL SEL VOL VOL VOL
BAND SET BAND BAND MUTE MUTE MUTE
(YEFM293904: ) 1 1 2 2 3 3
4 4 RANDOM SCAN 5 5 REPEAT 6 6 (includes a battery)
TUNE 7 7 8 8 TUNE 9 9
NUMBER # # 0 0 DISP DISP DISP
Q'ty: 1 set (EUR7641010)
CAR AUDIO
Note:
¡
The number in parentheses underneath each accessory part name is the part number for maintenance and service.
¡
Accessories and their part numbers are subject to modification without prior notice due to improvements.
¡ Mounting Collar and Trim Plate are mounted on the main unit at shipment.
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
YEFM285618A NT1204-1015
Preparation
1 2
Set your car's ignition switch to the ACC Press [DISP] (Display).
or ON position. The demonstration screen is canceled, and no more
appears.
The demonstration screen appears.
3
Press [SRC] (PWR: Power).
AC C
ON
Note: If you would like to turn on the power and make
the demonstration message appear, hold down [SRC]
(PWR) for more than 4 seconds.
Pull the insulation film out from Note: Battery Information:
the backside of the remote con- Battery Type: Panasonic lithium battery (CR2025) (Included
trol gently. in the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
The 24-hour system is used for the clock.
Clock Display at Power Off
1
Press [DISP] (CLOCK).
Press [DISP] to change the display.
(clock display)
Display off
2
Hold down [DISP] (CLOCK) for more than
2 seconds.
Hours blinks
3
Adjust the hour.
Hours set
[[]: sets the hour ahead.
[]]: sets the hour back.
4
Press [DISP] (CLOCK).
Minutes blinks
5
Adjust the minute.
Minutes set
[[]: sets the minute ahead.
[]]: sets the minute back.
6
Press [DISP] (CLOCK).
Complete
Note:
"ADJUST" is displayed before adjusting the clock.
¡
Hold down []]
¡ or [[] to change numbers rapidly.
BAND
CQ-C1301W
APM
Operating Instructions
PWR CLOCK
MUTE SCROLL RANDOM SCAN REPEAT SQ
SRC DISP
1 2 3 4 5 6
Q'ty: 1
Q'ty: 1
Q'ty: 1
Q'ty: 1
¡Please read these instructions carefully before using this product and keep this manual for future reference.
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected compo-
nents, and assembled by people who are proud of the reputation their work has built for our company. We know this product will bring
you many hours of enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a
member of our family.
Printed in China
Maintenance
This unit is designed and manufactured to ensure the minimum of maintenance. Use a dry, soft cloth for routine exteri-
or cleaning. Never use benzine, thinner, or other solvents.
If the replaced fuse fails, contact your nearest authorized Panasonic Service Center.
Warning
¡ Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest
authorized Panasonic Service Center.
Anti-Theft System
This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable.
Caution
¡ Do not touch the contacts on the face plate and the main
¡ This face plate is not waterproof. Do not expose it to
water or excessive moisture.
¡ If dirt or other foreign substances get on the contacts,
¡ Do not remove the face plate while driving your car.
¡ Do not place the face plate on the dashboard or nearby
areas where the temperature rises high.
Clock display
Removing Mounting
1 1
Turn off the power.
2
Press [ ]. The face plate will open. 2
3
Pull it out toward you.
1
2
Safety Information
WMA MP3 CD Player/Receiver
■
Read the operating instructions for the unit and all other compo-
nents of your car audio system carefully before using the system.
CQ-C1301W
They contain instructions about how to use the system in a safe and
effective manner. Panasonic assumes no responsibility for any prob-
lems resulting from failure to observe the instructions given in this
manual.
This pictograph intends to alert you to the presence of
important operating instructions and installation instruc-
tions. Failure to heed the instructions may result in
Warning
severe injury or death.
Warning
Observe the following warnings when using this
unit.
❑ The driver should neither watch the display nor operate
the system while driving.
Watching the display or operating the system will distract the driv-
er from looking ahead of the vehicle and can cause accidents.
Always stop the vehicle in a safe location and use the parking
brake before watching the display or operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative grounded
12 V DC battery system. Never operate this product with other bat-
tery systems, especially a 24 V DC battery system.
❑ Keep batteries and insulation film out of reach of infants.
Batteries and insulation film can be ingested, so keep them out of
the reach of infants. If an infant ingests a battery or insulation film,
please seek immediate medical attention.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the prod-
uct yourself. If the product needs to be repaired, consult your
dealer or an authorized Panasonic Servicenter.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an abnormal
state (has foreign objects in it, is exposed to water, is smoking, or
smells), turn it off immediately and consult your dealer.
❑ The remote control unit should not lie about in the car.
If the remote control unit lies about, it could fall on the floor while
TEXT
driving, get wedged under the brake pedal, and lead to a traffic
accident.
❑ Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it replaced
with the fuse prescribed for this unit by a qualified service engi-
neer. Incorrect replacement of the fuse may lead to smoke, fire,
and damage to the product.
Notes on Discs
If you use commercial CDs, they must have the label
shown at right.
Some copy-protected music CDs are not playable.
How to hold a disc
¡
Do not touch the underside of a disc.
¡ Do not scratch on a disc.
¡ Do not bend a disc.
¡ When not in use, keep a disc in a case.
Do not use irregularly shaped discs.
Do not leave discs in the following places:
¡
Direct sunlight
¡
Near car heaters
¡ Dirty, dusty and damp areas
¡ Seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label with a ballpoint pen or
other hard-point pens.
¡ You may have trouble playing back some CD-R/RW discs
recorded using CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.
¡ CD-R/RW discs are less resistant to high temperatures and
unit, since this may result in poor electrical contact.
high humidity than ordinary music CDs. Leaving them
wipe them off with a clean and dry cloth. inside a car for extended periods may damage and make
playback impossible.
¡ Some CD-R/RWs cannot be played back successfully due
to incompatibility among writing software, a CD recorder
(CD-R/RW drive) and the discs.
¡ This player cannot play the CD-R/RW discs if the session is
not closed.
Slide the left side of the face plate in place. ¡ This player cannot play the CD-R/RW discs which contain
other than CD-DA or MP3/WMA data (Video CD, etc.).
Press the right end of face plate until a
¡ Be sure to observe the instructions of the CD-R/RW disc
for handling it.
"click" is heard.
Recording MP3/WMA files on a CD-media
¡ You are recommended to minimize the chances of mak-
ing a disc that contains both CD-DA files and MP3/WMA
files.
¡ If CD-DA files are on the same disc as MP3 or WMA files,
the songs may not play in the intended order, or some
songs may not play at all.
¡
When storing MP3 data and WMA data on the same disc,
2
use different folders for each data.
¡ Do not record files other than MP3/WMA files and unnec-
essary folder on a disc.
1
¡ The name of MP3/WMA file should be added by rules as
shown in the following descriptions and also comply with
the rules of each file system.
■
This manual uses pictographs to show you how to use the product
safely and to alert you to potential dangers resulting from improper Caution
connections and operations. The meanings of the pictographs are
explained below. It is important that you fully understand the mean- Observe the following cautions when using this
ings of the pictographs in order to use this manual and the system
unit.
properly.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and traffic
conditions while driving.
This pictograph intends to alert you to the presence of
❑ This unit is designed for use exclusively in automo-
important operating instructions and installation instruc-
biles.
tions. Failure to heed the instructions may result in
Caution
❑ Do not operate the unit for a prolonged period with the
injury or material damage.
engine turned off.
Operating the audio system for a long period of time with the
engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive
Observe the following warnings when installing.
heat.
❑ Disconnect the lead from the negative (–) battery termi-
Otherwise these will raise the interior temperature of the unit,
nal before installation. and it may lead to smoke, fire, or other damage to the unit.
Wiring and installation with the negative (–) battery terminal con- ❑ Do not use the product where it is exposed to water,
nected may cause electrical shock and injury due to a short circuit. moisture, or dust.
Some cars equipped with the electrical safety system have specific
Exposure of the unit to water, moisture, or dust may lead to
procedures of battery terminal disconnection.
smoke, fire, or other damage to the unit. Make especially sure
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
that the unit does not get wet in car washes or on rainy days.
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY SYSTEM
Observe the following cautions when installing.
RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL
❑ Refer wiring and installation to qualified service per-
INJURY OR DEATH.
❑ Never use safety-related components for installation,
sonnel.
Installation of this unit requires special skills and experience. For
grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank, brake, maximum safety, have it installed by your dealer. Panasonic is
not liable for any problems resulting from your own installation
suspension, steering wheel, pedals, airbag, etc.) for wiring or fix-
ing the product or its accessories. of the unit.
❑ Follow the instructions to install and wire the product.
❑ Installing the product on the air bag cover or in a location
Not following the instructions to properly install and wire the
where it interferes with airbag operation is prohibited.
❑ Check for piping, gasoline tank, electric wiring, and other product could cause an accident or fire.
❑ Take care not to damage the leads.
items before installing the product.
When wiring, take care not to damage the leads. Prevent them
If you need to open a hole in the vehicle chassis to attach or wire
from getting caught in the vehicle chassis, screws, and moving
the product, first check where the wire harness, gasoline tank, and
parts such as seat rails. Do not scratch, pull, bend or twist the
electric wiring are located. Then open the hole from outside if pos-
leads. Do not run them near heat sources or place heavy objects
sible.
❑ Never install the product in a location where it interferes on them. If leads must be run over sharp metal edges, protect
the leads by winding them with vinyl tape or similar protection.
with your field of vision.
❑ Use the designated parts and tools for installation.
❑ Never have the power cord branched to supply other
Use the supplied or designated parts and appropriate tools to
equipment with power.
install the product. The use of parts other than those supplied or
❑ After installation and wiring, you should check the nor-
designated may result in internal damage to the unit. Faulty
mal operation of other electrical equipment.
installation may lead to an accident, a malfunction or fire.
The continuation of their using in abnormal conditions may cause
❑ Do not block the air vent or the cooling plate of the unit.
fire, electrical shock or a traffic accident.
Blocking these parts will cause the interior of the unit to over-
❑ In the case of installation to an airbag-equipping car,
heat and will result in fire or other damage.
confirm warnings and cautions of the vehicle manufactur-
er before installation.
❑ Make sure the leads do not interfere with driving or get-
ting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
Notes on MP3/WMA
Note: MP3/WMA encoding and writing software is not sup-
plied with this unit.
TEXT Points to remember when making MP3/WMA files
Common
Printed side
¡ High bit rate and high sampling frequency are recom-
mended for high quality sounds.
¡ Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
¡ The playback sound quality differs depending on the
encoding circumstances. For details, refer to the user
manual of your own encoding software and writing soft-
ware.
MP3
¡ It is recommended to set the bit rate to "128 kbps or
Do not use irregularly shaped discs.
more" and "fixed".
WMA
<Correct> <Wrong>
¡ It is recommended to set the bit rate to "64 kbps or
more" and "fixed".
¡ Do not set the copy protection on the WMA file to enable
this unit to play back.
Caution
¡ You may encounter trouble in playing MP3/WMA files or
displaying the information of MP3/WMA files recorded with
Never assign the ".mp3", or ".wma" file name
certain writing software or CD recorders.
extension to a file that is not in the MP3/WMA
¡ The file extension ".mp3" or ".wma" should be assigned to
format. This may not only produce noise from
each file depending on the file format.
the speaker damage, but also damage your
¡ This unit does not have the play list function.
hearing.
¡
Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
Display Information
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Displayed items
Romeo
¡ CD-TEXT
Note: Apple HFS, UDF 1.50, MIX mode CD, CD Extra is not Disc title
supported.
Track title
¡
Compression formats MP3/WMA
Folder name
(Recommendation: "Points to remember when making
File name
MP3/WMA files" on the right.)
¡ MPEG 1 audio layer 3 ¡ Windows Media
Displayable characters
Bit rate: 32 k – 320 kbps Audio Ver. 2, 8
¡ Name files and folders in accordance with the standard of
Bit rate: 64 k – 192 kbps
VBR: Yes
each file system. Refer to the instructions of writing soft-
Sampling frequency: VBR: No
ware for details.
32, 44.1, 48 kHz Sampling frequency:
¡
ASCII character set and special characters in each lan-
32, 44.1, 48 kHz
¡ MPEG 2 audio layer 3
guage can be displayed.
Bit rate: 8 k – 160 kbps
VBR: Yes Note:
¡ With some software in which MP3/WMA format files
Sampling frequency:
have been encoded, the character information may not be
16, 22.05, 24 kHz
displayed properly.
¡ Undisplayable characters and symbols will be converted
into an asterisk (
❑ Do not install the product where it is exposed to strong
vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If the
installation is not stable, the unit may fall down while driving and
this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position with the
front end up at a convenient angle, but not more than 30˚.
The user should bear in mind that in some areas there may be
restrictions on how and where this unit must be installed.
Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is com-
pleted before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set of
speaker leads. (except for connecting to a tweeter)
Observe the following cautions when handling the
battery for the remote control unit.
●
Use only specified battery (CR2025).
●
Match the polarity of the battery with the (+) and (–) marks in
the battery case.
●
Replace dead battery as soon as possible.
●
Remove the battery from the remote control unit when not using
it for an extended period of time.
●
Insulate the battery (by placing them in a plastic bag or covering
them with vinyl tape) before disposal or storage.
●
Dispose of the battery according to the local regulations.
●
Do not disassemble, recharge, heat or short the battery. Do not
throw a battery into a fire or water.
In case of battery leakage
●
Thoroughly wipe the battery liquid off the battery case and insert
new battery.
●
If any part of your body or clothing comes into contact with bat-
tery liquid, wash it with plenty of water.
●
If battery liquid comes into contact with your eyes, wash them
with plenty of water and get immediate medical attention.
Caution
THIS PRODUCT IS A CLASS 1 LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Folder selection order/file playback order
Root Folder
1
(Root Directory)
2
q
Folder Selection
4
e
In the order 1 – 8
3
w
File Selection
In the order –
5
q y
6
r
8 t
y
7
Tree 1 Tree 2 Tree 3 Tree 4 Tree 8
(Max.)
Maximum number of files/folders
¡ Maximum number of files: 999
¡ Maximum number of files in one folder: 255
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 255 (Root folder is includ-
ed.)
Note:
¡ This unit counts the number of folders irrespective of the
presence or absence of MP3/WMA file.
¡ If the selected folder does not contain any MP3/WMA
files, the nearest MP3/WMA files in the order of playback
will be played.
¡ Playback order may be different from other MP3/WMA
players even if the same disc is used.
¡ "ROOT" appears when displaying the root folder name.
¡ MP3 (ID3 tag)
Album name
Title name/Artist name
¡ WMA (WMA tag)
Album name Windows Media, and the Windows logo
are trademarks, or registered trade-
Title name/Artist name
marks of Microsoft Corporation in the
United States and/or other countries.
Copyright
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself per-
sonally.
No warranty
Above description complies with our investigations as of
December 2004. It has no warranty for reproducibility and
).
displayability of MP3/WMA.
