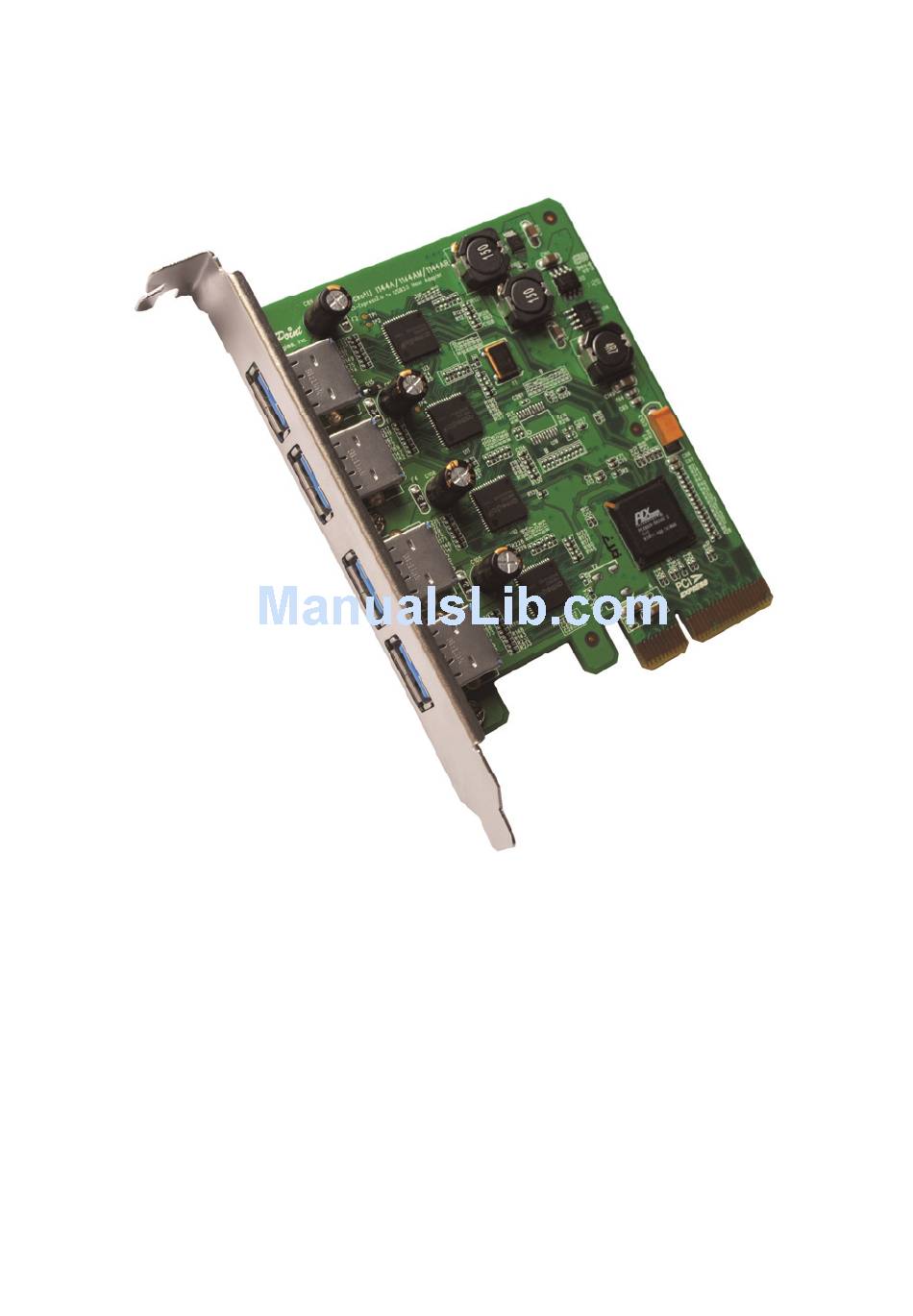

- Page 1 RocketU Quad USB3.0 for Mac Host Controller Quick Installation Guide V1.2 1 ...
- Page 2 Content HighPoint RocketU Quad USB 3.0 for Mac– PCI‐Express 2.0 ........... 3 Installing the RocketU Series Host Adapter .............. 4 Driver Installation (RocketU Quad USB 3.0 for Mac) ............ 4 Login RAID Management .................... 5 Connecting USB Storage Devices ................... 6 Kit contents ........................ 6 Customer Support ...................... 6 FCC Part 15 Class B Radio Frequency Interference statement ........ 7 ...

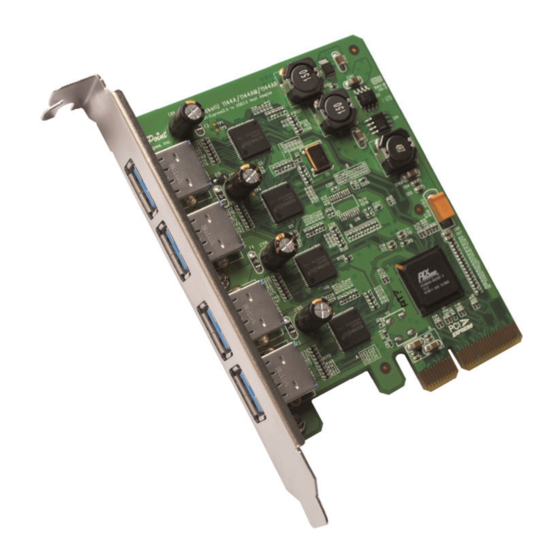

- Page 3 HighPoint RocketU Quad USB 3.0 for Mac– PCI‐Express 2.0 HighPoint USB 3.0 HBA’s – High‐Performance External Storage for Your Mac HighPoint has capitalized on recent advances in USB 3.0 connectivity, and has made 5Gb/s per‐port performance a reality. USB 3.0 is no longer limited to plug‐and‐play device hubs; RocketU HBA’s take External USB 3.0 storage to the next level. HighPoint RocketU Quad USB 3.0 for Mac RocketU series deliver class‐leading 20Gb/s transfer bandwidth, and are optimized for external SSD and hard drive configurations. Each of the 4 dedicated USB 3.0 ports supports 5Gb/s transfer speeds. The RocketU Quad USB 3.0 for Mac HBA’s alsoprovided RAID level support including RAID 0, 1, 5, 10 and JBOD. Key Features PCI‐Express 2.0 x4 Total Transfer Bandwidth up to 20Gb/s Four dedicated 5Gb/s Super Speed USB 3.0 type‐A ports Optimized for external USB drives and drive enclosures Backwards compatible with USB 2.0 & 1.1 Driver support for Mac OS X RocketU Quad USB3.0 for Mac support RAID Level 0, 1, 5, 10 and Single disk. 3 ...
- Page 4 Installing the RocketU Series Host Adapter Note: Make sure the system is powered‐off before installing the RocketU series host adapter. Open the system chassis and locate an unused PCI‐Express (2.0 or 1.0) ×4(×8, ×16) slot. Remove the PCI‐Express slot cover. Gently insert the RocketU series into the PCI‐Express slot, and secure the bracket to the system chassis. After installing the adapter, attach the hard disks or disk enclosure to the RocketU series card using the proper USB cables. Close and secure the system chassis. Driver Installation (RocketU Quad USB 3.0 for Mac) Once you have installed the RocketU Quad USB 3.0 for Mac and booted your Mac system, follow these instructions to install the driver and HighPoint Web RAID Management software: Insert the RocketU Quad USB 3.0 for Mac Card Install Disc into your Mac and navigate to the DMG folder. Double‐click on the “dmg” file to mount the disc image containing the Mac OS X software and drivers. Double‐click on the installer package labeled to start the installation process. Follow the on‐screen steps to complete the installation process. After the install has completed, you will be prompted to restart your computer. You will need to restart in order to use the RocketU Quad USB 3.0 for Mac Card. Then, restart the computer. 4 ...
- Page 5 Login RAID Management Open a Web browser. The following example uses the default OS X browser, Safari. Click the icon to start the Safari Web Browser, and type in http://127.0.0.1:7402 in the address bar to Login to the Management Interface. The following page should appear: Note: Please refer to the file of folder: Install_HighPoint_RocketU Quad USB 3.0 for Mac.pdf for the specific use of steps. 5 ...
- Page 6 Connecting USB Storage Devices Make sure your computer is operational. Connect the enclosure or hard disk to the HighPoint RocketU HBA with USB 3.0 cables. Allow the drives/enclosure to spin up for a few moments. Once the devices are ready, they will be recognized by the operating system and can be accessed as needed. Kit contents RocketU Quad USB 3.0 for Mac HBA Software CD Quick Installation Guide Customer Support If you encounter any problems while utilizing the RocketU series host adapter, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint‐tech.com/websupport/ HighPoint Technologies, Inc. websites: http://www.highpoint‐tech.com http://www.hptmac.com 6 ...
- Page 7 FCC Part 15 Class B Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed ...
