Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Operating Instructions
Plasma Television

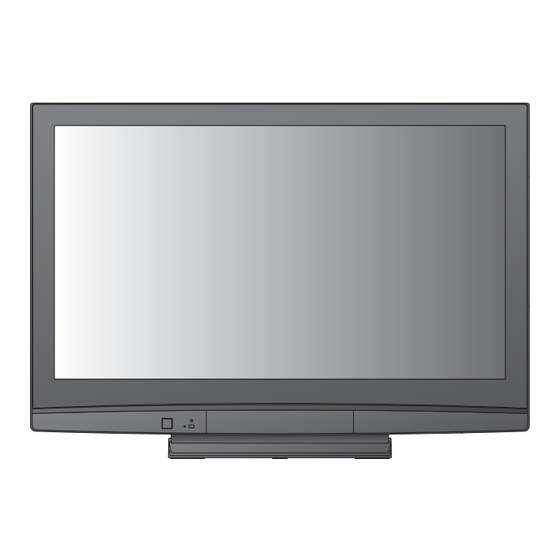

TH-37PV80P
Model No.
TH-42PV80P
Advertisement
Table of Contents
Related Manuals for Panasonic Viera TH-37PV80P
Summary of Contents for Panasonic Viera TH-37PV80P
-
Page 1: Operating Instructions
Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance. English... - Page 2 Turn your own living room into a movie theatre! Experience an amazing level of multi-...
-
Page 3: Table Of Contents
media excitement Enjoy rich multi-media Amplifi er with DVD Recorder Speaker system Contents Be Sure to Read • Safety Precautions ······································ 4 (Warning / Caution) • Notes ··························································· 5 • Maintenance ··············································· 5 Quick Start Guide • SD memory Card Accessories / Options •... -
Page 4: Safety Precautions
• Using an unapproved pedestal or other fi xtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. • Use approved pedestals / mounts (p. 6). Do not allow children to handle SD Card •... -
Page 5: Notes
Caution When cleaning the TV, remove the mains plug • Cleaning an energized TV may cause electrical shock. When the TV is not going to be used for a long period of time, remove the mains plug • This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet. -
Page 6: Accessories / Options
Accessories / Options Standard accessories Remote Control • N2QAYB000241 Operating Instructions Pan European Guarantee Card • This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children. Optional accessories Wall-hanging bracket (vertical) -
Page 7: Assembling The Pedestal
Do not use the pedestal if it becomes warped or physically damaged. • If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened. •... -
Page 8: Identifying Controls
Accessories / Options Rear of the TV Attach the clamper hole Insert the clamper in a hole Identifying Controls Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On. Mains power On / Off switch •... - Page 9 When in Standby mode, switches TV On Programme Information (p. 15) • Displays programme information Programme Up / Down • Selects programme in sequence VCR / DVD Panasonic equipment operations (p. 19) Normalize (p. 20) • Resets picture and sound settings to their default levels Input mode selection •...
-
Page 10: Basic Connection
Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst. Example 1 Connecting aerial TV only... - Page 11 Example 3 Connecting DVD Recorder / VCR and Set top box TV, DVD Recorder / VCR and Set top box Rear of the TV • HDMI 1 HDMI 2 VIDEO VIDEO S VIDEO HDMI 3 COMPONENT AUDIO AUDIO Fully wired HDMI compliant cable Push until both side tabs click...
-
Page 12: Auto Setup
Auto Setup Search and store TV programmes automatically. These steps are not necessary if the setup has been completed by your local dealer. INPUT OPTION SD CARD EXIT RETURN Plug the TV into mains socket and switch On (Takes a few seconds to be displayed) Select the language Menüsprache Deutsch... - Page 13 Many features available on this TV can be accessed via the On Screen Display menu. How to use remote control MENU Open the main menu Move the cursor / select the menu Move the cursor / adjust levels / select from a range of options Access the menu / store settings after adjustments have been made or options have been set RETURN...
-
Page 14: Watching Tv
Watching TV INPUT MULTI WINDOW OPTION SD CARD ASPECT EXIT RETURN Volume Other useful functions Hold Freeze / unfreeze picture Check or change the current programme status instantly Display the selectable Teletext Character Set settings for Sets the teletext language Setup Menu (p. - Page 15 Other useful functions Display Information banner • Also appears when changing a programme Example: 1 BBS CH05 Sound System Features available / Message meanings Display Information Sound mute On banner Teletext service available • To confi rm another tuned programme name •...
-
Page 16: Viewing Teletext
Viewing Teletext You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is provided by the broadcasters. What is FLOF (FASTEXT) mode? In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. - Page 17 Stop automatic updating (If you wish to hold the current page without updating) HOLD Return to the main index page INDEX Call up a View a favourite page stored favourite F.P. page Watch TV and Teletext in two windows at once View in MENU multi...
-
Page 18: Watching Videos And Dvds
Watching Videos and DVDs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input. • To connect the equipment The Remote Control is capable of operating some functions of selected Panasonic external equipment. INPUT OPTION SD CARD EXIT... -
Page 19: Vcr Dvd Player
Panasonic equipment connected to the TV can be directly operated with the remote control. VCR / DVD switch Select VCR to operate Panasonic VCR or DVD equipment Select DVD to operate Panasonic DVD equipment or Player home theatre Standby Set to Standby mode / Turn on... -
Page 20: How To Use Menu Functions
How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. INPUT OPTION SD CARD EXIT RETURN MULTI WINDOW DIRECT TV REC To return to TV at any time EXIT To return to the previous screen RETURN To change menu... -
Page 21: Viera Link
Overview Main Menu VIERA Link Picture Sound Setup • Only available items can be selected. VIERA Link Menu Pause Live TV Access Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema (p. 37) Picture Menu Viewing Mode Dynamic Contrast Brightness... -
Page 22: Menu List
How to Use Menu Functions Menu list Menu Item Pause Live TV Direct TV Rec VIERA Link Control Speaker Selection Viewing Mode Contrast, Brightness, Colour, Sharpness Tint Colour Balance Colour Management P-NR 3D-COMB Reset to Default Mode Bass Treble Balance Headphone Volume Surround Volume Correction... - Page 23 Menu list Menu Item AV Colour System Service List Edit VIERA Link Q-Link AV1 / AV2 out Power off Link Power on Link Download Child Lock Auto Setup Manual Tuning Off Timer OSD Language Teletext Teletext Character Set Shipping Condition Power Save Side Panel Picture Overscan...
-
Page 24: Editing Programmes
Editing Programmes You can skip unwanted programmes or edit programmes. INPUT OPTION SD CARD EXIT RETURN To return to TV EXIT Display the menu MENU Select “Setup” Main Menu VIERA Link Picture Sound Setup Select “Service List Edit” Setup Menu Service List Edit Access Link Settings... - Page 25 You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted programmes. Select a service and add / delete Service List Editor BBC1 ***** ***** You can change the programme name and programme position. •...
-
Page 26: Tuning Programmes
Tuning Programmes You can retune all the TV programmes when moving house or search for new services which may have recently started broadcasting. INPUT OPTION SD CARD EXIT RETURN To return to TV EXIT Display the menu MENU Select “Setup” Main Menu VIERA Link Picture... - Page 27 Automatically retune all programmes received in the area. • If a Child Lock PIN number (p. 28) has been set, it must be entered. Start Auto Setup Auto Setup All tuning data will be erased EXIT Start Auto Setup RETURN •...
-
Page 28: Control Programme Audience
Control Programme Audience You can lock specific programmes / AV input terminals and control who watches them. (When the locked programme / input is selected, a message appears; by entering the PIN number, you can watch it.) INPUT OPTION SD CARD EXIT RETURN To return to TV... -
Page 29: Restore Settings
Restore Settings Resets the TV to its original condition, i.e. no programmes tuned in. All settings (programmes, picture, sound quality, etc.) are reset. INPUT OPTION SD CARD EXIT RETURN To return to TV EXIT Check the message and initialise Shipping Condition All tuning data will be erased Are you sure? Are you sure? -
Page 30: Input Labels
Input Labels For easier identifi cation and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment. • To select the input mode INPUT OPTION SD CARD EXIT RETURN To return to TV EXIT p. -
Page 31: Displaying Pc Screen On Tv
Displaying PC Screen on TV The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected. • To connect PC p. 40 INPUT OPTION SD CARD EXIT RETURN To return to TV... -
Page 32: Viewing From Sd Card (Photos)
Viewing from SD Card Still images recorded by digital cameras will be displayed. INPUT OPTION SD CARD EXIT RETURN To return to TV EXIT SD CARD Insert the SD Card • Warning message for output signal is displayed. Enter SD mode (Photo View Mode) •... - Page 33 Electrical interference, static electricity, or erroneous operation may damage the data or card. • Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.) Message Cannot read fi le Is SD Card in? No valid fi...
-
Page 34: (Q-Link / Viera Link)
Use fully wired SCART cable. • HDMI cable Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. Recommended Panasonic’s HDMI cable part number: • RP-CDHG10 (1.0 m) • RP-CDHG15 (1.5 m) • RP-CDHG20 (2.0 m) • RP-CDHG30 (3.0 m) •... - Page 35 Preparations • Connect the DVD Recorder / VCR with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” • Q-Link connection p. 34 • Set up the DVD Recorder / VCR. Read the manual of the equipment. •...
- Page 36 Link Functions Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 3” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically.
- Page 37 Features available (Using VIERA Link Menu) You can pause the live TV programme and resume later. • This function is available with DIGA Recorder which has HDD and “HDAVI Control 3” function. • Connect DIGA Recorder with both HDMI and SCART cables to use this function. •...
- Page 38 Link Functions Features available (Using VIERA Link Menu) You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver). • This function is available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3”...
- Page 39 • About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment. • If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case HDMI1.
-
Page 40: External Equipment
External Equipment These diagrams show our recommendations for how to connect the TV to your various equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifi cations (p. 47). (VIDEO) (S-VIDEO) (M3 stereo mini plug) Headphones To adjust volume... - Page 41 HDMI equipment Recorder Fully wired HDMI compliant cable (Listening) HDMI 1 HDMI 2 HDMI 3 AUDIO RCA cable (Listening) COMPONENT AUDIO OUT Conversion adapter (if necessary) (Viewing) VIDEO VIDEO S VIDEO COMPONENT AUDIO (Viewing) To watch satellite broadcasts Computer cable To record / playback DVD Recorder /...
-
Page 42: Technical Information
Technical Information The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 15) Auto Auto aspect determines the best aspect ratio to use to fi ll your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture. - Page 43 If miniSD Card is used, insert / remove it together with the adapter. • Check the latest information on the card type at the following website. (English only) http://panasonic.co.jp/pavc/global/cs/ DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA). Note •...
- Page 44 • PC signal is magnifi ed or compressed for display, so that it may not be possible to show fi ne detail with suffi cient clarity. PC connection TH-37PV80P 768 × 720 pixels 1,024 × 720 pixels Signal Name Pin No.
-
Page 45: Faqs
FAQs Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow images (noise) • Check the position, direction, and connection of the aerial. - Page 46 FAQs Problem Chaotic image, noisy No image can be displayed Blurry or distorted image (no sound or low volume) Unusual image is displayed No sound is produced Sound level is low or sound is distorted Sound is unusual Pictures from external equipment are unusual when the equipment is connected via HDMI...
-
Page 47: Specifi Cations
Design and Specifi cations are subject to change without notice. Mass and Dimensions shown are approximate. • This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024. TH-37PV80P VHF H1 - H2 (ITALY) UHF E21 - E69 CATV S1 - S10 (M1 - M10) -
Page 48: Licence
Warranty Service purposes. Model Number Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic-europe.com 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Serial Number...
