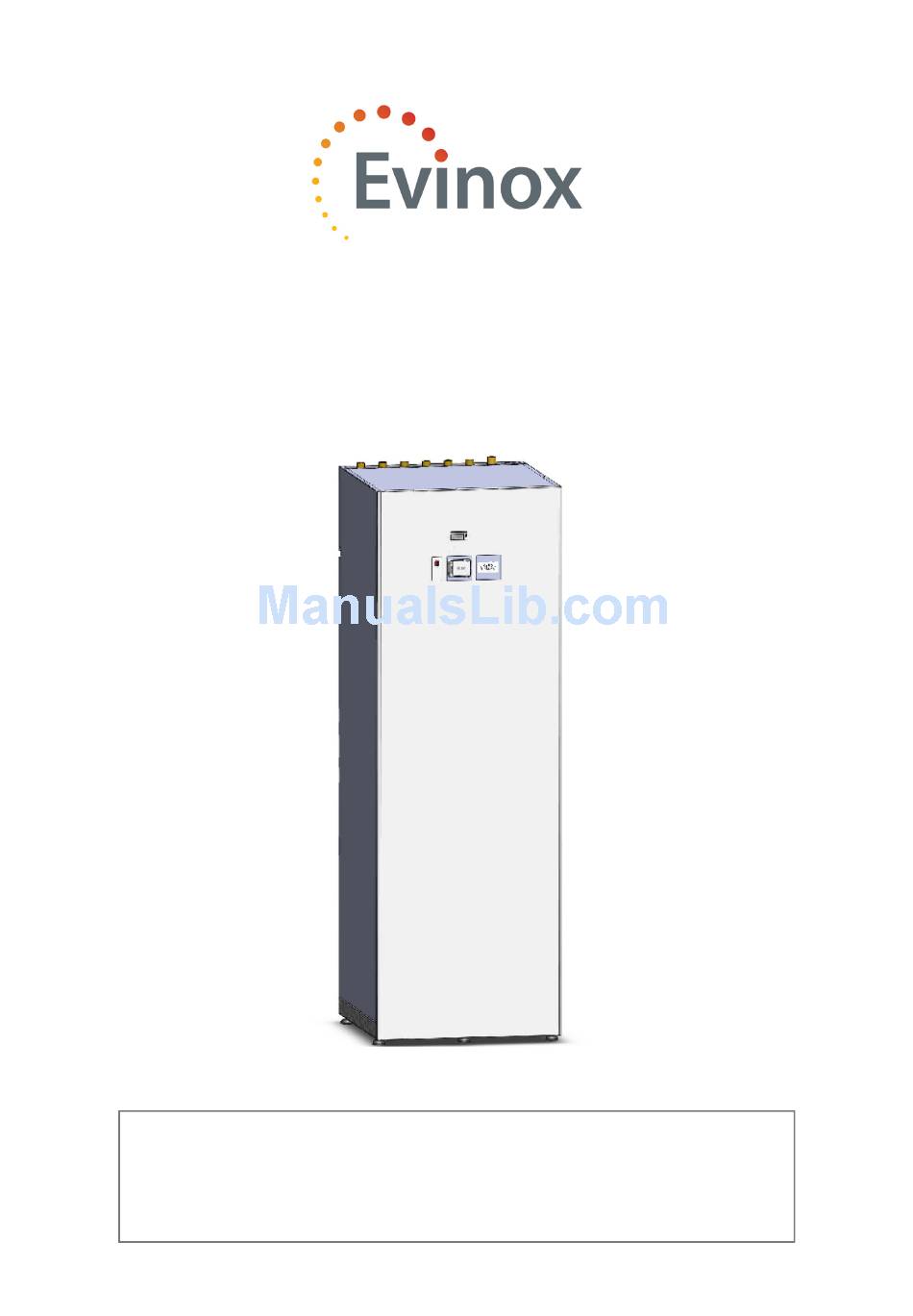

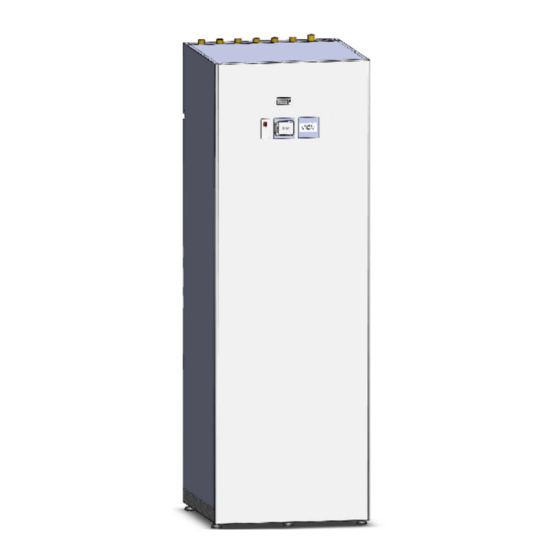

- Page 1 ModuSat FS 300 & 400 Instructions for Installation and Service ModuSat FS Standard & Premier 300 & 400 Floor Standing Storage Models Evinox Ltd T. +44 (0)1372 722277 E. technical@evinox.co.uk W. www.evinox.co.uk 2551196D...
-
Page 2: Table Of Contents
Contents GENERAL INFORMATION ............4 Warnings ..................4 Benefits ..................6 Integrating renewable energy ............6 ModuSat central plant ..............6 Regulation and monitoring system ..........7 Symbols ..................7 ... - Page 3 Preinstallation rig ................ 34 3.10 Position of the tundish ..............35 CIRCUIT FILLING WATER ............37 Water treatment ................37 Water characteristics ..............37 Precautions .................. 38 Corrosion prevention ..............38 ...
-
Page 4: General Information
It also does not require a chimney connection. The Evinox ModuSat satellite heating system has been designed to provide apartments and communal housing developments with independent fast recovery hot water and high efficiency heating. - Page 5 Epsom Surrey KT19 9AP Tel : + 44 (0)1372 722277 Fax : + 44 (0)1372 744477 www.evinox.co.uk Main features (BS EN12897 2006) ModuSat FS 300 ModuSat FS 400 Max primary pressure 8,0 bar 8,0 bar Max operating primary temperature 80 °C 80 °C...
-
Page 6: Benefits
The Evinox ModuSat satellite heating system can be integrated with renewable technology very effectively. The main plant can include a combination of renewable energy sources such as solar, ground source heat pumps or CHP, with top up boiler plant, to further improve energy savings. -
Page 7: Regulation And Monitoring System
Compliance EVINOX declares that all ModuSat units comply with European Standards 73/23/CE and 93/68/CE for low voltage electric safety, it also declares that they meet the European Standards 89/336/CE for electromagnetic compatibility. -
Page 8: Safety Instructions
1.7 Safety Instructions All installation and maintenance operations must be carried out by registered engineers according to the current governing regulations In case of water leaks: Remove the electric power supply Close the main water supply valve Inform the authorised maintenance personnel In case the pump is directly connected to an ambient thermostat, make sure that this is provided with an ON/OFF switch. -
Page 9: Technical Features
2 TECHNICAL FEATURES ModuSat is a terminal for district heating plants for heating, cooling and domestic hot water production thanks to its 300 or 400 litre storage, and ready for remote reading. The primary hot fluid is provided by a central boiler that supplies all units through a main pump. -
Page 10: Schematic Principle
2.1 Schematic principle ModuSat unit for heating, DHW production, heat and fresh water metering, ready for remote reading. It’s composed of: A: primary circuit return B: primary circuit supply C: domestic hot water D: domestic cold water E: apartment circuit return F: apartment circuit supply G: domestic hot water return 1: domestic hot water storage AISI 316L... -
Page 11: Versions Available
2.2 Versions available ModuSat FS is available in three different configurations, Standard, Plus and Premier. The following table shows the components fitted on board according to the three versions. Legend: X included O option 300-400 300-400 300-400 Component STANDARD PLUS PREMIER Copper pipework Pipework insulation... -
Page 12: Technical Characteristics
2.3 Technical characteristics Electrical ModuSat 300 ModuSat 400 230 (400 Vac with immersion heater) Electric supply Frequency 50 Hz Current absorption (w/o el. Heater) 1,5 A Immersed electric heater 9000 W – 400 Vac Hydraulic connections ModuSat 300 ModuSat 400 1”... -
Page 13: Components
2.4 Components Please find here listed the main components technical characteristics. 2.4.1 Expansion vessel Max operating pressure: 4,5 bar Max operating temperature: +90 °C Factory charge: 1 +/- 20% bar Nominal volume: 14 litres Colour: Where secondary return circuits are used then an additional expansion vessel may be required 2.4.2 Pump... - Page 14 Temperature difference range: 3 / 70 °C (max accuracy) Temperature sensors: Pt1000, DIN/IEC751B Max. temperature deviation of pairing sensors: <0,01 °C Internal storage: EEPROM Display: LCD (8 digits + prompting character) word height 8,5 mm Communication mode: M-BUS or RS485 ...
- Page 15 2.4.6 DHW safety valve The temperature and pressure relief valves (TP) 309 series are made in compliance with the essential safety requirements laid down by Directive 97/23/EC of the European Parliament and the Council of the European Union for harmonisation of Member States with regard to pressurised equipment.
- Page 16 2.4.10 Electronic control This is a custom designed electronic controller for heat/cooling management units. It includes all the measurement and control circuits to drive pumps, valves and other devices used in such applications. It has also three communication channels to connect it to slave devices as well as to a main communication bus used to collect data from the modules.
- Page 17 pressure relief valve and optional use balanced cold water connector. It is good practice to fit the "unvented kit" above the top level of the EBS-1 tank. In this way if it is required to replace the "unvented kit" it is not necessary to drain all tank. Please find below how to install the "unvented kit".
-
Page 18: Control Specification
2.5 Control specification All Evinox satellites are equipped with a regulation system for heating and DHW temperature control. The regulation strategy foresees different applications: radiators, fancoils, underfloor heating and can be configured accordingly. 2.5.1 Heating When the room temperature Ta drops below the set point Ts: ... -
Page 19: Pressure Loss And Head
2.6 Pressure loss and head The following diagrams show the primary circuit pressure loss according to the ModuSat equipping and the head feature head available to the apartment circuit. The head available for the apartment circuit is given by the difference between the pump head and the ModuSat pressure loss. -
Page 20: Dhw Capacity
2.7 DHW capacity The quantity of DHW depends on the storage capacity, the supply temperature, the primary temperature and the cold water temperature. The following table shows the max DHW quantity according to the tank capacity and the primary circuit temperature with: ... - Page 21 For a satisfactory domestic comfort, it is generally allowed to adopt a value of 15 l/min for a bathroom comprising a 150-litre bath and 9 l/min shower. It should be noted that the reduction in the primary flow will influence the time of the warm up of the stored water regeneration, but that at the moment of the first draw off, the ModuSat contains the total capacity at the temperature of the primary circuit (the specific flow takes into account two successive hot water draw of)
-
Page 22: Energy Loss
2.8 Energy loss A thermal storage involves heat loss due to transmissions, radiations etc. The diagram here below shows the heat losses for the three different models according to the storage temperature. The tests have been carried out with a room temperature of 20 °C. 22 ... -
Page 23: Problems And Solutions
35 mm detailed attention is not given to this type 60 to 100 50 mm of installation practice. Evinox will not be held responsible for problems generated by bad design or bad installation practice. Recommendations: Use good installation practice by using pitcher tees and swept bends instead of square tees and elbows ... -
Page 24: Sizing Of The Primary Circuit
In order to guarantee the hydraulic independence of the boilers and of the installation, a mixing header is installed between the boilers and the primary distribution system. Use either Evinox headers or Evinox packaged boilers with built in headers. 2.10.1 Design of the boiler room The ModuSat’s provide each apartment with heating and the production of hot water and... - Page 25 The examples below correspond to the sizing of ‘standard’ housing units. For installations known as ‘luxury’ or for specific hot water requirements, please contact the technical department at Evinox. The calculated power is the power required at the boiler room outlet. The basic hypotheses for these calculations tend to the best sizing of the boiler room plant in order to obtain the best efficiency of annual generation.
- Page 26 2.10.4 Small installations up to 10 units Taking into account the relatively short peak period, storage, and speed of regeneration, the coincidence factor typically used for sizing a hot water production unit located in the boiler room can be weighted. Indeed, even if the boiler room only has to satisfy mainly the production of hot water, this will only be for a short period, during which the inertia of the building will limit any lowering of the room temperature.
- Page 27 2.10.6 Refurbishment projects When the ModuSat is installed within a refurbishment project and the central boiler room is preserved, the power of this boiler room will in the majority of the cases be reduced. The fact of individualising the production of domestic hot water (300 or 400 litres available in each apartment) can imply a lower power boiler plant size for the provision of hot water.
- Page 28 primary circulation of the horizontal distributions to the hours of use of hot water and thermal maintenance of the hot-water tanks (i.e. a few hours per day). The boiler room can profit from the systems of regulation and programming. Nevertheless, the temperature of the primary circuit will not be lowered under 60°C, in order to ensure a production of satisfactory domestic hot water on demand.
-
Page 29: Installation
3 INSTALLATION MODUSAT is delivered in a proper packaging, after removing it check the integrity of the unit as well as the presence of all parts. In case of damage or missing parts contact the supplier. Packaging materials must not be left at children’s reach because potentially harmful. -
Page 30: Modusat Positioning
For the unpacking of the appliance from the carton, it is recommended at least two people perform any lift. It is recommended to cut the base end of carton and open the carton flaps. Ensure the protective packing over the ModuSat tappings on the top of unit is kept in place, then remove carton by sliding up over the unit. -
Page 31: Checks Before Connecting The Modusat
Next rinse the entire circuit to make sure all products used to wash it are removed. During this process, it is forbidden to use any chemical or other products not approved by EVINOX. The non observance of this rule invalidated the warranty. Remove the electric power supply before any installation operation. -
Page 32: Modusat 300 Dimensions
3.6 ModuSat 300 dimensions 32 ... -
Page 33: Modusat 400 Dimensions
3.7 ModuSat 400 dimensions 33 ... -
Page 34: Hydraulic Connections
One or more pumps suitable to handle the pressure drops on the primary circuit, in order to guarantee the proper operation of all modules. The circuit must be filled with clean water. Refer to EVINOX technical office for approved additional products. -
Page 35: Position Of The Tundish
3.10 Position of the tundish The opening temperature of the P & T valve is 90°C. The position of the tundish shall be visible to the occupants and shall be positioned away from any electrical devices. Refer to the drawing on this page for tundish position, discharge pipe and connection details. - Page 36 3.10.1 Worked example The example below is for a G 1/2 temperature relief valve with a discharge pipe (D2) having 4 no. elbows and length of 7m from the tundish to the point of discharge. From Table 1 Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2) from a G 1/2 temperature relief valve is 9.0m ...
-
Page 37: Circuit Filling Water
4 CIRCUIT FILLING WATER Being the primary a closed circuit, it isn’t connected to the fresh water supply. Therefore the circuit must be checked for leakage that can compromise the integrity and correct operation of the unit. 4.1 Water treatment It’s important to prevent Parameter Recommended... -
Page 38: Precautions
4.3 Precautions The correct operation of a unit, as well as the whole heating system, depends on the water quality. Often water treatment is considered an unnecessary cost, not considering the amount of damage that can result from this choice. The warranty of the ModuSat is strictly related to the absolute respect of the instructions and procedures indicated in this manual as well as the The warranty doesn’t cover damage caused by scale and corrosion due to... -
Page 39: Bionibal Dosage And Use
Once the circuit is well cleaned, fill it with water again and add BIONIBAL according to the dosage indicated below : To guarantee the ModuSat, Evinox insists that only its own heating system water conditioning products are used : BIONIBAL corrosion inhibitor ... -
Page 40: Freeze Prevention
4.6 Freeze prevention In case it is necessary to guarantee frost as well as corrosion prevention, IT IS ADVISABLE to use BIONIBAGEL, being this compatible with BIONIBAL (except when different directives are given for boiler protection) BIONIBAGEL has specifically been developed to be used in circuits treated with BIONIBAL or as a multi-function fluid for new installations. -
Page 41: Electric Connections
5 ELECTRIC CONNECTIONS MODUSAT requires a 230/240V mains connection. Before attempting and installation, repair or maintenance work remove the electric supply line, possibly with an external switch. Follow the instructions below to connect the electric power supply to the unit: cover pipes and cables in order not to damage them ... -
Page 42: Room Module Connection
5.2 Room Module connection The Room Module is a white ABS box with graphic display. It must be installed in the apartment in such a way to read the average room temperature. It has to be connected to the ModuSat (please refer to the electrical diagram) by means a 4x0.35 mm2 screened cable. -
Page 43: Electric Diagram Modusat Standard
5.3 Electric diagram ModuSat Standard 43 ... -
Page 44: Electric Diagram Modusat Premier
5.4 Electric diagram ModuSat Premier 44 ... - Page 45 5.5 Electric diagram ModuSat Premier 45 ...
-
Page 46: Commissioning
6 COMMISSIONING Before starting to use the unit: check that the tank, primary and secondary circuits are full or relevant fluids check that the air has been removed from the circuits and that the relief valve is properly closed ... - Page 47 NOTE: Check flow and return connections are correct before any water flows through the ModuSat to prevent damage to the heat meter. Hydraulic Connections Each input / output of the ModuSat must be isolated to allow for maintenance. Operating pressure must remain within the values indicated in the technical data. Close the isolation immediately and cut electricity if there is leakage inside the module.
-
Page 48: Warranty
5 years for the stainless steel tank and its integrated exchange 2 years for parts and labour * (Where Evinox do not carry out the commissioning or have a developer agreement in place the two year warranty will cover parts with no... - Page 49 Replacement parts are chargeable until passed as faulty by Evinox, when a credit will be provided. Any parts that have failed as a result of poor servicing or misuse will not be covered by our warranty.
-
Page 50: Use
7 USE Ensure the instructions below are followed to guarantee the correct operation. Before starting any maintenance operation remove the electric supply using the switch outside the unit. Then close the manual valves of the circuits object of the maintenance. Empty the parts that contain hot water before proceeding;... - Page 51 Procedure: Close mains supply cock Drain down hot water system including the tank (Use drain cock and/or the expansion relief valve) Check pressure in expansion vessel(s) and recharge if necessary. Remove filter in line strainer; Clean or replace; Reassemble; Refill system ...
-
Page 52: Room Unit
7.3 Room Unit Parameter Setting This operation allows the user to set the temperature set point for comfort, reduced, anti-freeze and Hot Water, which will follow the daily or weekly set time schedule. Temperature - Comfort 20.0 °C 20.0 °C - Reduced 18.0 °C - Hot Water... - Page 53 The user can read the consumption figures for the unit, for example: C for heating, C1 cooling (when present) and C2 cold water (Only when a cold water meter is installed within the dwelling and connected to the Evinox system) The display also shows the temperature and flow rate related to the three counters. Counters 21.5 °C...
-
Page 54: Uk Approval
8 UK APPROVAL 54 ... - Page 55 Evinox reserves the right to make changes and improvements which may necessitate alteration to the specification without prior notice. Evinox Ltd T. +44 (0)1372 722277 E. technical@evinox.co.uk W. www.evinox.co.uk 2551196D...
