2.4

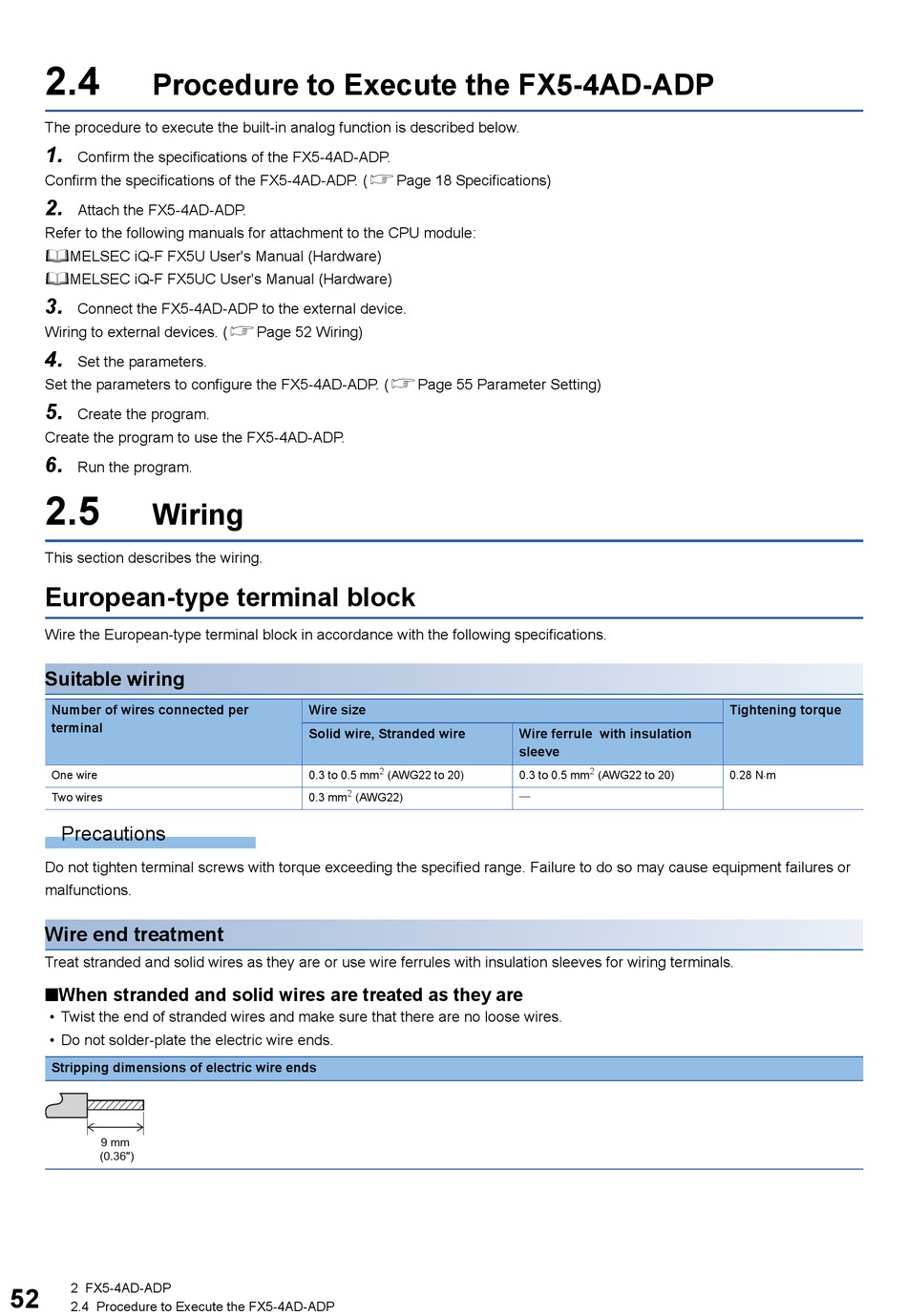

Procedure to Execute the FX5-4AD-ADP

The procedure to execute the built-in analog function is described below.
1.
Confirm the specifications of the FX5-4AD-ADP.
Confirm the specifications of the FX5-4AD-ADP. (Page 18 Specifications)
2.
Attach the FX5-4AD-ADP.
Refer to the following manuals for attachment to the CPU module:
MELSEC iQ-F FX5U User's Manual (Hardware)
MELSEC iQ-F FX5UC User's Manual (Hardware)
3.
Connect the FX5-4AD-ADP to the external device.
Wiring to external devices. (Page 52 Wiring)
4.
Set the parameters.
Set the parameters to configure the FX5-4AD-ADP. (Page 55 Parameter Setting)
5.
Create the program.
Create the program to use the FX5-4AD-ADP.
6.
Run the program.
2.5

Wiring

This section describes the wiring.

European-type terminal block

Wire the European-type terminal block in accordance with the following specifications.
Suitable wiring
Number of wires connected per
terminal
One wire
Two wires
Precautions
Do not tighten terminal screws with torque exceeding the specified range. Failure to do so may cause equipment failures or
malfunctions.
Wire end treatment
Treat stranded and solid wires as they are or use wire ferrules with insulation sleeves for wiring terminals.
■When stranded and solid wires are treated as they are
• Twist the end of stranded wires and make sure that there are no loose wires.
• Do not solder-plate the electric wire ends.
Stripping dimensions of electric wire ends
9 mm
(0.36")
2 FX5-4AD-ADP
52
2.4 Procedure to Execute the FX5-4AD-ADP
Wire size
Solid wire, Stranded wire
2
0.3 to 0.5 mm
(AWG22 to 20)
2
0.3 mm
(AWG22)
Wire ferrule with insulation
sleeve
2
0.3 to 0.5 mm
(AWG22 to 20)
Tightening torque
0.28 Nm
