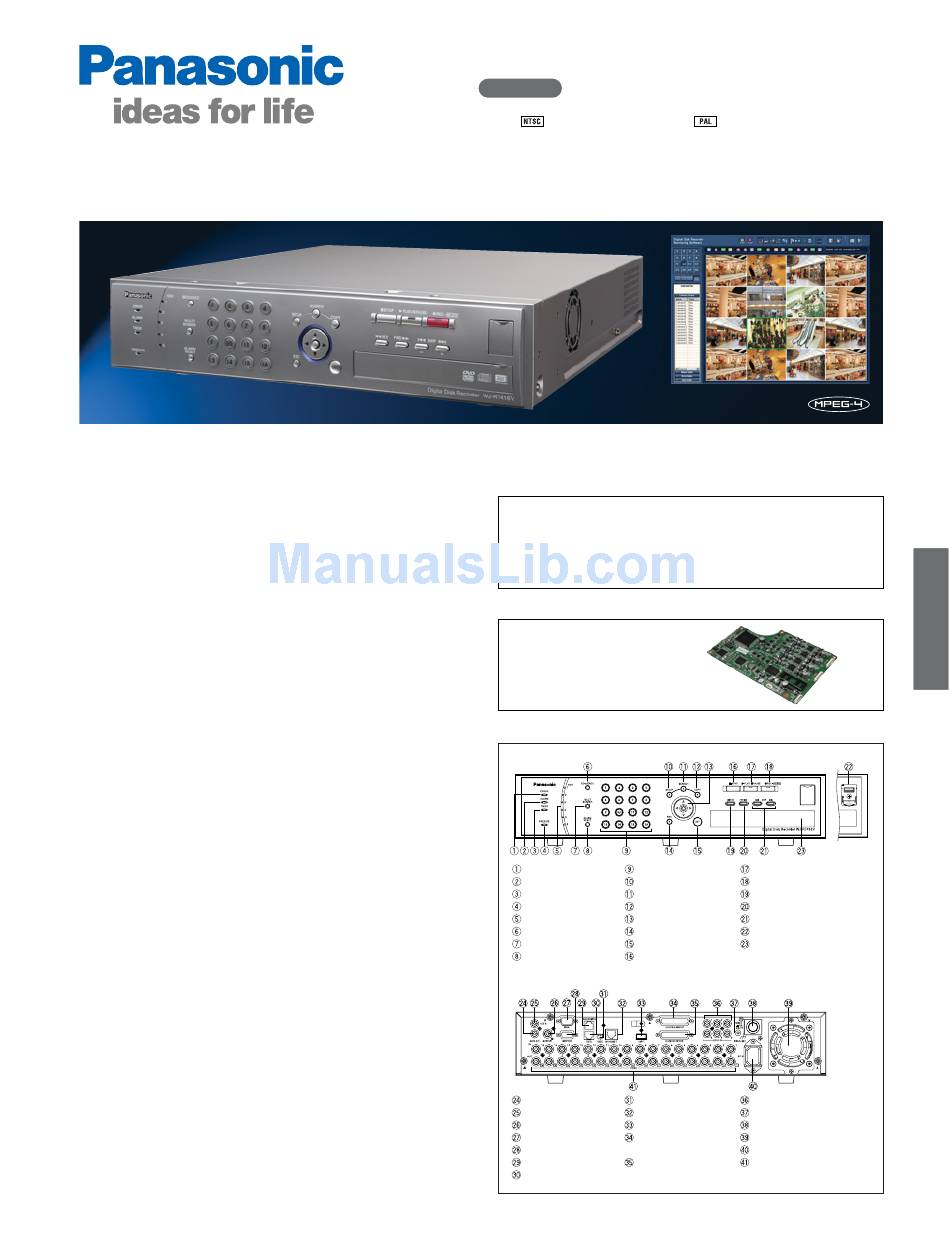

Panasonic WJ-RT416K Specifications

16CH Real-Time MPEG-4 Digital Disk Recorder supporting 480 ips

Key Features

• Equipped with 8 Dual Core Encoders, all 16 cameras can be
recorded at 30 ips (NTSC) / 25 ips (PAL) per channel.
• MPEG-4: High quality and high compression technology for economical recording
• Supports multiplexed video and control data over the coax (4ch default, additional
4ch by optional board WV-PB4164) and RS-485 camera control (channel 1 ~ 16)
• Panasonic Camera Control: Pan/Tilt, Zoom, Focus, Iris, Preset Position, Auto mode (depends
on the camera model) with a system controller, the monitoring software or the web browser.
• Various Recording Modes: Manual, Timer, Event (Pre/Post)
• Flexible Recording/Playback Controls: REC, PLAY, Pause, Stop, FF,
REW, Prev Record, Next Record
• Various Display Modes: 4 / 6 / 9 / 16 split screen display (Live)
• 16 alarm inputs and 4 alarm outputs
• Synchronized audio recording for 16 channels
• Direct Search and List Search (Time & Date, Event Type, Camera number)
• Alarm notification via e-mail
• Three user levels: Manager, Operator and Viewer
Camera partitioning setting can be applied to each user level.
• VMD (Video Motion Detector): Mask area: 24 x 20, Sensitivity: 01 ~ 99
• Recorded image data can be copied to CD-R, DVD-R, DVD+R, USB memory (FAT32),
USB HDD (FAT32) via COPY interface (Specified model only) or DVD-R, CD-R via
internal DVD drive (WJ-RT416V), Viewer software can be included when copying.
• Equipped with 6 HDD slots (5 HDD slots and 1 DVD drive for V models)
• HDD Safety Mode to protect HDDs during installation
• Optional WV-CU650 or WV-CU950 system controllers can be connected (RS-485). Playback
speed can be controlled by Jog/Shuttle. Direct camera preset position program is also available.
• Integration capability with System150* 1
to System150/650 can control WJ-RT416. Cameras connected to System150/650 can
be controlled from the monitoring software (RT4Client) or the web browser.
• Built-in network interfaces (10Base-T / 100Base-TX) for remote monitoring and operation
• Multi-recorder, Multi-site system can be made with the provided
monitoring software (RT4Client).
• Recorded video and audio data can be downloaded to the client PC
with the monitoring software (RT4Client) or the web browser.
Downloaded images can be played by the viewer software (RT4Viewer).
• The viewer software (RT4Viewer) can convert recorded audio and video
data into Windows Media-format, and also can extract audio to wav file.
®
• Up to 16 network clients can monitor live spot images (total network video stream is 16,
Refresh rate depends on the number of streams, recording mode and playback mode).
• Up to 4 playback streams can be sent to the network.
• Selectable Unicast/Multicast for efficient network utilization
*1 System150 version 2.2 or later *2 System650 version 3.0 or later
16CH Real-Time MPEG-4 Digital Disk Recorder
or System650* 2 : System controllers connected
WJ-RT416
Version 1.5
WJ-RT416
(120 V AC)
<With 1x 250GB HDD>
WJ-RT416K
(120 V AC)
<Without HDD>
WJ-RT416V
(120 V AC)
<With DVD drive, 1x 250GB HDD>
WJ-RT416VK
(120 V AC)
<With DVD drive, without HDD>

Standard Accessories

• CD-ROM* ...................................... 1 pc.
• Installation Guide .......................... 1 pc.
* The followings are included on the CD-ROM.
• Operating instructions of the monitoring software (PDF)
• Monitoring software (RT4Client, including the viewer software)

Optional Accessory

4CH Camera Control Board
WV-PB4164

Part Names and Functions

Front View
Error Indicator Camera Selection Buttons
Alarm Indicator Setup Button
Timer Indicator Search Button
Operate Indicator Copy Button
HDD Access Indicators Arrow Button
Sequence Button Escape Button
Multi-screen Button Set Button
Alarm Reset Button Stop Button
Rear View
Audio Output Connector Mode Switch
AUX Input Connector Network Port
Monitor 1 Connector Copy 1 Port
Serial Terminal Audio Input/
Monitor 2 Terminal Alarm Output Terminal
RS-485 Port Alarm Input/
Data Port Control Terminal
Series
WJ-RT416
(220 ~ 240 V AC)
<With 1x 250GB HDD>
WJ-RT416K
(220 ~ 240 V AC)
<Without HDD>
WJ-RT416V
(220 ~ 240 V AC)
<With DVD drive, 1x 250GB HDD>
WJ-RT416VK
(220 ~ 240 V AC)
<With DVD drive, without HDD>
/ 400 ips
(NTSC) (PAL)
The followings are for installation.
• Power cable (for NTSC model) ..... 1 pc.
• Power cable (for PAL model) ..... 2 pcs.
• HDD mounting screws, sleeves, dampers
• Rack mounting brackets ............. 2 pcs.
• Fixing screw for rack mounting brackets ... 8 pcs.
COPY2
Inside the cover
Play/Pause Button
Record/Record Stop Button
Fast Reverse Playback Button
Fast Forward Playback Button
Skip Buttons
Copy 2 Port
Internal CD/DVD drive
(Only for the WJ-RT416V)
Audio Input Connectors
Signal Ground Terminal
Power Button
Cooling Fan
Power Cord Inlet
Video Input Connectors/
Video Output Connectors
