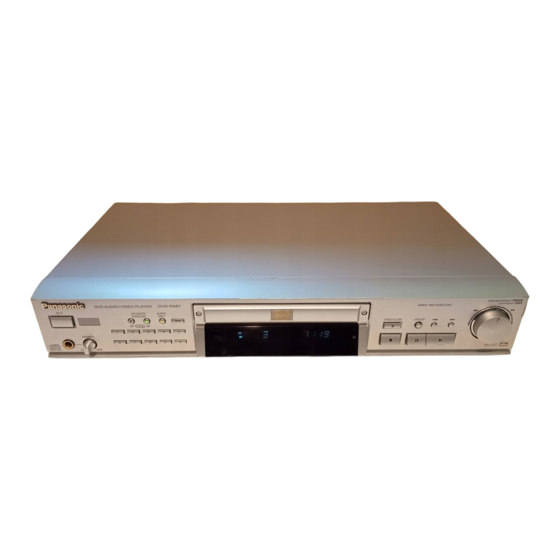

DVD AUDIO/VIDEO PLAYER
Operating Instructions
DVD-RA61
Model No.
AUDIO / VIDEO
EB
E
A
EN EU
Region number supported
by this player
Region numbers are allocated to DVD players
and DVD-Video according to where they are
sold.
For the United Kingdom and
Continental Europe
≥The region number of this player is "2".
≥The player will play DVD-Video marked with
labels containing "2" or "ALL".
Example:
2
ALL
For Asia
≥The region number of this player is "3".
≥The player will play DVD-Video marked with
labels containing "3" or "ALL".
Example:
3
ALL
For Australia and N.Z.
≥The region number of this player is "4".
≥The player will play DVD-Video marked with
labels containing "4" or "ALL".
Example:
4
ALL
For Russia
≥The region number of this player is "5".
≥The player will play DVD-Video marked with
labels containing "5" or "All".
Example:
5
ALL
[Only\for\the\United\Kingdom]
Note:
"EB" on the packaging indicates the United King-
dom.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
RQT6043-B
1
2
4
2
3
6
2
4
6
2
3
5
Advertisement
Table of Contents
Related Manuals for Panasonic DVD-RA61
Summary of Contents for Panasonic DVD-RA61
-
Page 1: Operating Instructions
DVD AUDIO/VIDEO PLAYER Operating Instructions DVD-RA61 Model No. AUDIO / VIDEO EN EU Region number supported by this player Region numbers are allocated to DVD players and DVD-Video according to where they are sold. For the United Kingdom and Continental Europe ≥The region number of this player is “2”. -
Page 2: Dear Customer
Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions care- fully. CAUTION! THIS PRODUCT UTILIZES A LASER. CONTROLS PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZ- ARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. -
Page 3: Table Of Contents
Table of contents Getting started Caution for AC Mains Lead ......03 Accessories ........04 Connection to a television . -
Page 4: Accessories
Accessories Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. ∏ Remote ∏ Batteries ..2 control ..1 for remote control (N2QAJB000018) Note... -
Page 5: The Remote Control
The remote control Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit. R6, AA, UM-3 ≥Insert so the poles (i and j) match those in the remote control. ≥Do not use rechargeable type batteries. Selecting TV screen type OPEN/CLOSE Í... -
Page 6: Control Reference Guide
∫ DVD-R discs [VCD] [CD] Panasonic DVD-R recorded and finalized on a Panasonic DVD video re- corder are played as DVD-Video on this unit. It may not be possible to play these discs in all cases due to the type of disc or condition of the recording. -
Page 7: Basic Play
Basic play OPEN/CLOSE Í TOP MENU 3, 4, 2, 1/ GROUP ENTER ENTER PAGE SUBTITLE AUDIO SKIP SLOW/SEARCH :, 9 STOP PAUSE PLAY ∫ CANCEL > AUDIO HP-V.S.S. SP-V.S.S. ANGLE ONLY REPEAT SETUP MODE REPEAT [DVD-A] [DVD-V] [VCD] [CD] Preparation Turn on the television and select the appropriate video input on the televi- sion to suit the connections for the player. -
Page 8: Playing Mp3 Discs
Basic play GROUP ENTER GROUP PAGE SUBTITLE AUDIO SKIP SLOW/SEARCH :, 9 STOP PAUSE CANCEL CANCEL AUDIO HP-V.S.S. SP-V.S.S. ONLY REPEAT SETUP MODE REPEAT Playing MP3 discs MP3 refers to the type of music file that is compressed using MPEG audio layer 3. -
Page 9: Skipping Chapters Or Tracks
Skipping chapters or tracks [DVD-A] [DVD-V] [VCD] [CD] During play or while paused Press [:] or [9]. ≥Each press increases the number of skips. Frame-by-frame viewing [DVD-A] [DVD-V] [VCD] Remote control only While paused Move [2] or [1]. The frame changes each time you move the joystick. ≥The frames change in succession if you hold the joystick in position. -
Page 10: Selecting Still Pictures-Page Skip
Basic play 3, 4, 2, 1/ GROUP ENTER ENTER PAGE PAGE SUBTITLE SKIP STOP PAUSE CANCEL CANCEL AUDIO HP-V.S.S. SP-V.S.S. ONLY SP-V.S.S. HP-V.S.S. REPEAT SETUP MODE REPEAT Selecting still pictures—Page Skip [DVD-A] Remote control only During play Press [PAGE]. The page changes each time you press the button. To enjoy even higher quality sound—... -
Page 11: Changing The Play Sequence
Changing the play sequence [DVD-A] [VCD] [CD] Remote control only While stopped Press [PLAY MODE] to select the play mode. The mode changes each time you press the button. Select the mode then follow the procedures in the next column to start play. All group play [DVD-A] To play all the groups in succession... -
Page 12: Repeat Play
Repeat play 2, 1/ GROUP ENTER ENTER PAGE SUBTITLE SKIP STOP PAUSE ∫ CANCEL CANCEL HP-V.S.S. SP-V.S.S. REPEAT SETUP MODE REPEAT MODE [DVD-A] [DVD-V] [VCD] [CD] Remote control only A-B repeat play You can repeat a section between points A and B within a title or track. During play Press [A-B REPEAT] at the starting point (A). -
Page 13: Changing Soundtracks, Subtitle Languages And Angles
Changing soundtracks, subtitle languages and angles OPEN/CLOSE 3, 4, 1 GROUP ENTER MARKER PAGE RETURN SUBTITLE AUDIO SUBTITLE SKIP SLOW/SEARCH STOP PAUSE PLAY CANCEL > AUDIO HP-V.S.S. SP-V.S.S. ONLY ANGLE REPEAT PLAY SETUP MODE REPEAT MODE [DVD-A] [DVD-V] Remote control only Some DVDs have multiple soundtracks, subtitle languages and camera angles, and you can change these during play. -
Page 14: Using Graphical User Interface (Gui) Screens
Using Graphical User Interface (GUI) screens 3, 4, 2, 1/ GROUP ENTER ENTER PAGE SUBTITLE SKIP STOP PAUSE CANCEL HP-V.S.S. SP-V.S.S. REPEAT SETUP MODE GUI screens are menus that contain information about the disc or unit. These menus allow you to perform operations by changing this informa- tion. -
Page 15: Unit Information/Shuttle Screen
ª Unit information Play menu 1 2 3 ✱ ✱ – – – a A-B repeat [DVD-A] [DVD-V] [VCD] [CD] (➡ page 12) [ENTER] (start point) ➡ [ENTER] (finish point) To cancel: [ENTER] b Repeat play [DVD-A] [DVD-V] [VCD] [CD] (➡ page 12) ≥DVD-Audio Track (T)(>Whole group (G)(>OFF ^-----------------------------------------------------------J... -
Page 16: Home Theater
Home Theater—Enjoying more powerful sound This unit has built-in Dolby Digital and DTS decoders (➡ page 21). You can enjoy the powerful movie theater and hall-like sound available with Dolby Digital and DTS by connecting an amplifier with 5.1-channel input terminals. -
Page 17: Recording To Mds Or Cassette Tapes
Note ≥The equipment connections described are examples. ≥Peripheral equipment and optional cables sold separately unless otherwise indicated. ≥Before connection, turn off all equipment and read the appropriate operating instructions. To enjoy stereo or Dolby Pro Logic ª Analog connection Connect an analog amplifier or system component. DIGITAL AUDIO OUT AUDIO OUT ( PCM/BITSTREAM ) -
Page 18: Changing Settings
Changing settings This chart shows the settings for this unit. Change the settings to suit your preferences and to suit the unit to the environment in which it is being used. These settings are retained in memory until they are changed, even if the unit is turned off. See page 19 for details on menu operation. -
Page 19: Common Procedures
OPEN/CLOSE 3, 4, 2, 1/ GROUP ENTER MARKER ENTER PAGE RETURN SUBTITLE AUDIO SKIP SLOW/SEARCH STOP PAUSE PLAY CANCEL CANCEL > AUDIO HP-V.S.S. SP-V.S.S. ONLY ANGLE REPEAT PLAY SETUP MODE REPEAT MODE SETUP Common procedures Remote control only See page 18 for menu and option details. Press [SETUP] to show the menus. -
Page 20: Digital Output
Changing settings Delay time (b) [DVD-V] (Dolby Digital, center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference. -
Page 21: Safety Precautions
Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high tem- peratures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources. -
Page 22: Troubleshooting Guide
Troubleshooting guide Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions. - Page 23 Picture Picture distorted. ≥Some distortion is normal during SEARCH. ≥The screen may be disrupted briefly when you turn on and off the AUDIO ONLY feature. : ≥Ensure that the equipment is connected properly. 4 No picture. ≥Make sure the television is on. ≥Ensure the television’s video input setting (e.g., VIDEO 1) is correct.
-
Page 24: Specifications
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/ Audio performance: (1) Frequency response: ≥DVD (linear audio): ≥DVD-Audio:...
