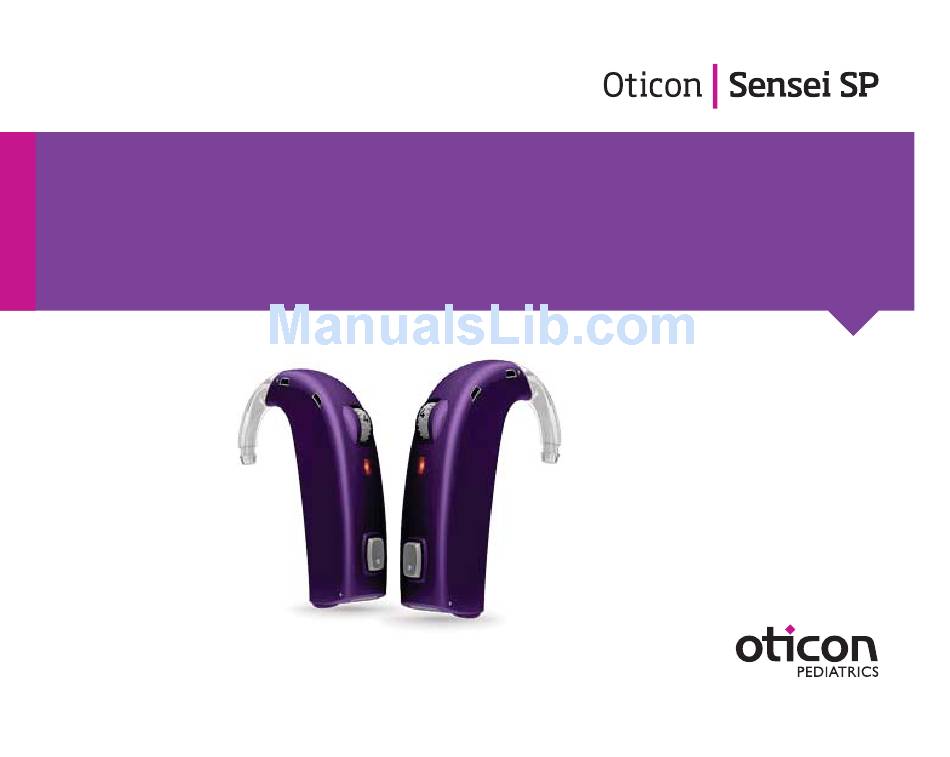

- Page 1 INSTRUCTIONS FOR USE BTE13 SP...
- Page 2 Introduction to this booklet Intended use This booklet guides you in how to use and maintain your new The hearing instruments are intended to amplify and transmit sound hearing instrument. Please read the booklet carefully including to the ear and thereby help compensate for hearing loss. The hearing the Warning section.
-
Page 3: Table Of Contents
Table of content About Instrument view Change volume Identify left and right hearing instrument Volume Control and ConnectLine (Optional) Battery (size 13) Tamper-resistant battery door (optional) Start up Turn the hearing instrument on and off Wireless accessories (optional) When to replace a battery Direct Audio Input - DAI (optional) Replace the battery FM (optional) - Page 4 Instrument view What it does What it is Sound hook Microphone Sound in openings Tube Volume Change volume wheel and mute the instrument Sound out Earmold Push button Change programs Battery door Contains the battery. Battery door is also Nail grip Open the the on/off switch battery door...
-
Page 5: Identify Left And Right Hearing Instrument
Identify left and right hearing instrument Battery (size 13) It is important to distinguish between the left and the right Your hearing instrument is a miniature electronic device that runs instrument as they might be programmed differently. Insert the on special batteries. To activate the hearing instrument, you must colored indicators provided for your LEFT and RIGHT instruments. -
Page 6: When To Replace A Battery
Turn the hearing instrument on and off When to replace a battery The battery door is also used to switch the hearing instrument on and When the battery power is low, the visual indicator (LED) will rapidly off. To preserve the battery, make sure your instrument is switched off blink and the user will hear 2 beeps (if enabled). -
Page 7: Replace The Battery
Replace the battery 1. Remove 2. Uncover 3. Insert 4. Close MultiTool Fully open the Remove the Insert the new Close the battery door. The The MultiTool can be used for battery door. sticky label from battery into the instrument will play a jingle. battery change. - Page 8 Caring for your hearing instrument The MultiTool The MultiTool contains a brush and a wire loop for cleaning ear wax When handling your hearing instrument, hold it over a soft surface from the earmold. The brush can be replaced and purchased from to avoid damage in case you drop it.
-
Page 9: Sound Hook With Earmold
Sound hook with earmold Put on the hearing instrument with earmold The earmold is customized for you Step 1 Step 2 and fits your ear. Gently pull your ear outwards Place the hearing instrument and press the earmold in the behind your ear. -
Page 10: Put On The Hearing Instrument With Earmold And Smartfit™ Trainer
Put on the hearing instrument with earmold and SmartFit™ Trainer Your hearing instrument may have SmartFit™ Trainer, a guidance help for parents and caregivers when inserting the earmold. Your Hearing Care Professional may enable or disable the SmartFit™ Trainer. The LED indicator will remain ON for up to 20 seconds while the system checks the earmold insertion and fit. -
Page 11: Clean The Earmold
Clean the earmold Wash the earmold The earmold should be cleaned Replace the tubing Step 1 Step 2 Step 3 regularly. Use a soft cloth to The tubing between the earmold clean the surface of the mold. and the instrument should be Use the MultiTool wire loop replaced when it becomes to clean the opening. -
Page 12: Mute The Hearing Instrument (Optional)
Optional features and accessories Mute the hearing instrument (optional) The features and accessories described on the following pages are Use the mute function if you need to silence the instrument while optional. Please contact your Hearing Care Professional to find out wearing it. -
Page 13: Change Programs (Optional)
Change programs (optional) To be filled out by the Hearing Care Professional Your hearing instrument can have up to 4 different programs. Program Sound you will hear When to use These are programmed by your Hearing Care Professional. When using when activated FM, DAI or Streamer, two additional programs are automatically added. -
Page 14: Change Volume
Change volume The volume wheel may be activated. The volume wheel allows you to adjust the volume in specific situations to the level you feel comfortable with. The volume wheel has markings 1, 2, 3 and 4 and a ‘click’ position: Use the volume wheel to mute the instrument by turning below setting 1 until it clicks. -
Page 15: Volume Control And Connectline (Optional)
Volume Control and ConnectLine (Optional) When adjusting the volume to the preferred level the visual indicator (LED) will blink and two beeps can be heard (if enabled). Make sure to set the volume control on the instrument in the 1 to 4 range to enable use of the Streamer for remote control, phone calls During audio streaming, adjust the volume on the Streamer. -
Page 16: Tamper-Resistant Battery Door (Optional)
Quick reset Tamper-resistant battery door (optional) If you wish to return to the standard settings of the instrument To keep the battery out of reach of infants, small children and programmed by your Hearing Care Professional, simply open and people with cognitive impairments, a tamper-resistant battery door then close the battery door. -
Page 17: Wireless Accessories (Optional)
Unlock the battery door Lock the battery door Wireless accessories (optional) As an enhancement to your wireless hearing instrument a broad range of wireless accessories are available. ConnectLine Remote Control ConnectLine is a family of The Remote Control offers an products that allows you to opportunity to change program receive audio signals from... -
Page 18: Direct Audio Input - Dai (Optional)
Direct Audio Input - DAI (optional) Attaching the DAI adapter Insert the DAI cord into the adapter Direct Audio Input allows your hearing instrument to receive signals directly from external sources such as TV, radio, music players, etc. The DAI adaptor is mounted to your instrument and connected to an external sound source via a DAI cord. -
Page 19: Fm (Optional)
FM (optional) Attaching an FM receiver Your hearing instrument supports the option of attaching an FM receiver as part of an FM system. The FM system allows you to receive speech or audio signals directly to your hearing instrument from a dedicated FM transmitter. -
Page 20: Other Options (Optional)
Other options (optional) Telecoil Telecoil helps you hear better when using a telephone with a built-in loop or when you are in buildings with teleloop systems such as theatres, churches or lecture rooms. This symbol or a similar sign is shown wherever a teleloop has been installed. Autophone Autophone can automatically activate a phone program in the hearing instrument, if your telephone... -
Page 21: Audible And Visual Indicator (Led) Summary Table
Audible and visual indicator (LED) summary table Volume Audible Visual (LED) Preferred volume Programs Audible Visual (LED) e e e Maximum volume Program 1 e e e Minimum volume Program 2 e e e Program 3 e e e e Warnings Audible Visual (LED) - Page 22 Warnings You should familiarize yourself fully Usage of hearing instruments • Batteries have occasionally been If a battery or hearing instrument is with the following general warnings • Hearing instruments should be used mistaken for pills. Therefore, check swallowed, see a doctor immediately before using your hearing instrument only as directed and adjusted by your your medicine carefully before swal-...
- Page 23 Warnings Dysfunction • Your hearing instrument has a • If you have an active brain implant, X-ray, CT, MR, PET scanning and • Be aware of the possibility that wireless transmission. Please keep please contact the manufacturer of electrotherapy your hearing instrument may stop the hearing instrument at least 6 in.
- Page 24 Warnings Avoiding heat and chemicals Power instrument Possible side effects Interference • Your hearing instrument must never • This is a power instument and • Wearing earmolds may cause an • Your hearing instrument has been be exposed to extreme heat e.g. left special care should be exercised in accelerated accumulation of ear wax.
-
Page 25: Troubleshooting Guide
Troubleshooting guide Symptom Possible causes Solutions Worn-out battery Replace the battery No sound Clogged tube or earmold Clean earmold Clogged sound outlet Clean earmold Moisture Wipe battery with a dry cloth and/or dry tube Intermittent or reduced sound Worn-out battery Replace the battery Clogged damping filter in sound hook Contact your Hearing Care Professional for assistance... -
Page 26: Water Resistant (Ip58)
Water resistance (IP58) Conditions Your hearing instrument is water 1. Gently wipe off any water Operating conditions Temperature: +33°F to +104°F resistant, which means it is designed 2. Open the battery door and remove Relative humidity: 5% to 93%, non-condensing to be worn in all daily life situations. -
Page 27: Warranty Certificate
Warranty certificate International warranty Name of owner: _____________________________________________________ Your hearing instrument is covered applicable national legislation govern- by an international limited warranty ing the sale of consumer goods. Your Dispenser: _________________________________________________________ issued by the manufacturer for a Hearing Care Professional may have period of 36 months from the date of issued a warranty that goes beyond Dispenser address: __________________________________________________... -
Page 28: Mobile Phone
Mobile phone rating is 7 (M4 + M3) for the acoustic The above equipment performance coupling and 5 (T2 + T3) for the telecoil measurements, categories and system Some hearing instrument users have a combined rating of 6 or greater would coupling. -
Page 29: Technical Information
Technical information The hearing instrument contains a Operation is subject to the following The hearing instrument contains a Due to the limited space available on module with: two conditions: radio transmitter using short range the instruments, all relevant approval 1. This device may not cause harmful magnetic induction technology markings are found in this document. - Page 30 Oticon declares that this hearing Declaration of Conformity is available Settings overview for your hearing instrument instrument is in compliance with the from the manufacturer. essential requirements and other rele- Left Right vant provisions of Directive 1999/5/EC. Manufactured by: Oticon A/S Volume wheel Kongebakken 9 Program shift...
-
Page 31: Technical Data
TECHNICAL DATA BTE13 SP About Start up Handling Options Warnings More info... - Page 32 BTE13 SP BTE13 SP 2CC Coupler 0 dB SPL ref. 20 mPa dB SPL OSPL90 – Output Sound Pressure Level measured Peak OSPL90 139 dB SPL Input: 90 dB SPL. according to HF Average OSPL90 131 dB SPL Technical setting: A0 American National Peak Full-on Gain 78 dB...
- Page 33 People First is our promise to empower people to communicate freely, interact naturally and participate actively www.oticonusa.com 0000161867000001...
