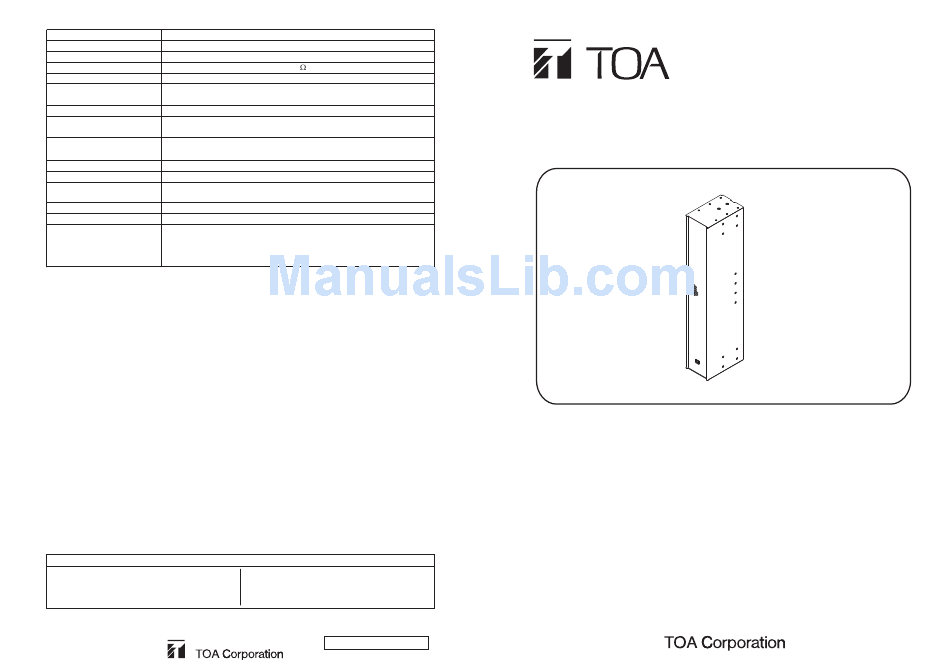

11. SPECIFICATIONS
Model No.
Enclosure
Power Handling Capacity
Impedance
Sensitivity (1 W, 1 m)
Frequency Response
(Deviation -10 dB)
Crossover Frequency
Directivity Angle
Speaker Component
Low frequency: 10cm (4") cone type x 8
High frequency: 2.5cm (1") balanced dome type x 24
Input Terminal
Operating Temperature
Finish
Enclosure: MDF, White Paint
Front Grille: Punched Steel Plate, White Paint
Dimensions
Weight
Matching transformer: MT-S0601
Optional products
Extension plate: SR-EP4
Flying bracket: SR-FB4
Wall tilt bracket: SR-TB4
Note: The design and specification is subject to change without notice for improvement.
Accessories:
Mounting Bracket .......... 2 pcs
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamichi, Chuo-ku, Kobe,
Hyogo, Japan
TZ-S240W-AS
Bass reflex type
Continous: 240 W, Program: 480 W
8
94 dB
95 - 20,000 Hz
2.5 kHz
o
Horizontal: 100
o
Vertical: 5
M4 screw terminal x 2
o
o
-10 ~ +50 C
160 (w) x 950 (h) x 262 (d) mm
17 kg
Wall mounting bracket: SR-WB4
Floor stand: SR-FS4
Stand adapter: SR-SA4
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
URL: http://www.toa.com.sg/
533-06-263-0A

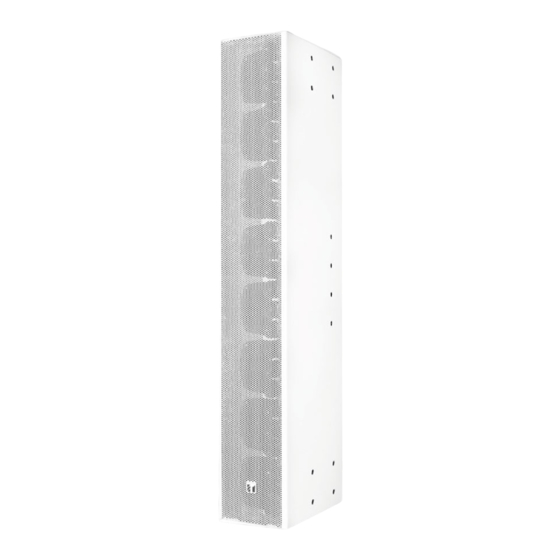

SLIM ARRAY SPEAKER
TABLE OF CONTENTS
1. SAFETY PRECAUTION .............................
2. GENERAL DESCRIPTION ..........................
3. FEATURES .................................................
4. A B O U T T H E I N P U T O V E R L O A D
PROTECTION CIRCUITRY ...................
5. COVERAGE AREA ..................................
6. DIMENSONAL DIAGRAM .........................
Thank you for purchasing TOA's Slim Array Speaker.
Please carefully follow the instruction in this manual to ensure long, trouble free use of your equipment.
INSTRUCTION MANUAL
TZ-S240W-AS
2
7. INTERNAL WIRING DIAGRAM ..............
3
8. CHANGING TO HIGH IMPEDANCE .......
3
9. JOINING SPEAKERS ..........................
10. DIRECT WALL MOUNTING ................
11. SPECIFICATIONS ..........................
3
4
4
5
5
6
7
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toa TZ-S240W-AS
Summary of Contents for Toa TZ-S240W-AS
- Page 1 TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamichi, Chuo-ku, Kobe, Suederstrasse 282, 20537 Hamburg, Thank you for purchasing TOA’s Slim Array Speaker. Hyogo, Japan Germany Please carefully follow the instruction in this manual to ensure long, trouble free use of your equipment.
- Page 2 1. SAFETY PRECAUTION 10. DIRECT WALL MOUNTING • Before installation and use, be sure to carefully read all the instruction in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or Use provided accesories bracket for direct wall mounting.
-
Page 3: General Description
Step 2. Join 2 speakers using the SR-EP4 Extension plate. Fix the plate to the speaker using the hex head bolts • The TZ-S240W-AS is a 2-way slim array speaker having eight 10 cm woofers for low-frequency output, and 24 supplied with the SR-EP4. -
Page 4: Internal Wiring Diagram
Screw Terminals Note : Screw terminals is connected parallel internally 8. CHANGING TO HIGH IMPEDANCE 6. DIMENSIONAL DIAGRAM The TZ-S240W-AS speaker can be used for high-impedance applications with the installation of the optional MT-S0601 Matching Transformer. Unit: mm (millimeter) TZ-S240W-AS To install the MT-S0601 transformer, remove the input panel located on the speaker's rear panel.
