Instructions:
Erkopress 300 Tp
Erkopress 300 Tp-ci
Pressure forming unit for connection to the compressed air
system available.
Pressure forming unit with integrated compressor and reserve
compressed air.*
The function of the two units is identical.
The units are equipped with a touchless
temperature control** and touchpanel for
programming.

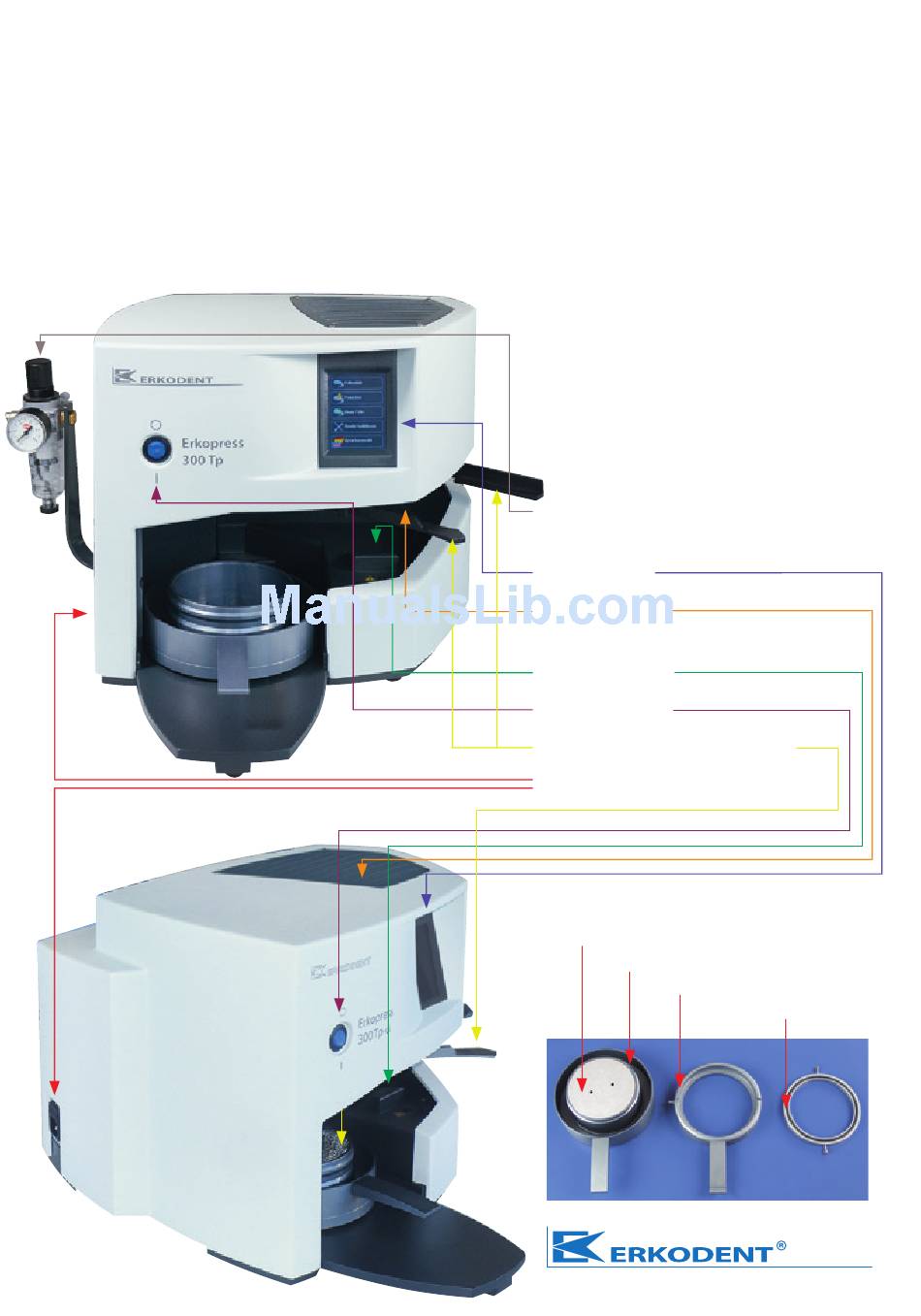

Compressed air supply and pressure
regulator (only Tp 300)
Touchpanel
Medium-wave
infrared heating element
Sensor window
Main switch
Fixture for foil reception
Mains connection (on the side)
Form pot with model plate and
Granules collecting device
Foil reception
Foil securing ring
* Pat. 19518211
**Pat. EP 1 905 380
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for erkodent Erkopress 300 Tp
- Page 1 Instructions: Erkopress 300 Tp Pressure forming unit for connection to the compressed air system available. Erkopress 300 Tp-ci Pressure forming unit with integrated compressor and reserve compressed air.* The function of the two units is identical. The units are equipped with a touchless temperature control** and touchpanel for programming.
- Page 2 Position the appliance, insert the power supply cable in the machine and the wall socket. Erkopress 300 Tp-ci: Position the appliance, insert the power supply cable in the machine and the wall socket. Unplug the appliances when not in use.
- Page 3 In order to avoid da- Recommendation Use the machine only with mages of the unit there granules. Excessive granu- must not be any granu- To avoid damages, remove granules from the les will fall in the surroun- les in the red-bordered base plate with magnets supplied along.
- Page 4 Select foil example, Erkodur, thickness 1 mm Thumb list of foils The list of foils contains all foils of the Erkodent range of products that can be used with this machine and that have been available at the time of production of this unit.
- Page 5 ”select foil“. New foils, either future Erkodent foils or foreign foils, are entered with the functional field ”new foil“ and are saved in the list of favourites.
- Page 6 Thermoforming 1. Selected foil 2. Foil is heated 3. Attention 4. Rated temperature thermoform shortly reached, thermoform! to 1. Correct foil Embed the model now to 3. 10 °C before to 4. After reaching the selected? or during the heating reaching the rated rated temperature the If yes, confirm.
- Page 7 Thermoforming 5. Cooling time 6. Cooling time expired 7. Display after thermoforming to 5. After thermofor- to 6 + 7. After the coo- to 6. + 7. If the same foil ming the cooling time ling time the display is to be thermoformed, runs backwards.
- Page 8 New foils can be future Erkodent foils or foreign foils. If Erkodent launches a new foil the necessary data will be found on the label (example: Erko new (neu), thickness 1.8 mm, rated temperature 150 °C, cooling time 1:40 min.).
- Page 9 Special functions The special functions allow to switch on and off the heating and the compres- sed air (Tp 300-ci, integrated compressor) independently of the program. To determine the rated temperature (thermoforming temperature) of an unknown foil, select ”heating on” (2.) and clamp the foil in the foil frame as mentioned under “thermoforming”.
- Page 10 Change factory settings for foils The rated temperature and the cooling time can be changed for one single thermoforming process or constantly, in the latter case as favourite. The changes are done in the window “selected foil” or “favourite”, see “select foil” or “save favourite”.
- Page 11 Maintenance Erkopress 300 TP/300 Tp-ci: Maintenance Erkopress 300 Tp To ensure that the unit maintains its full func- The condensation water level tion, the rubber seals require replacing once a in the water separator must not year when the unit is permanently in use. The exceed the marking “max”.
- Page 12 Erkodent program, guarantee card, declaration of conformity (if applicable) Erkodent Erich Kopp GmbH • Siemensstraße 3 • 72285 Pfalzgrafenweiler Germany • Tel.: +49 (0) 74 45 85 01-0 • Fax: +49 (0) 74 45 20 92 www.erkodent.com • info@erkodent.com...
