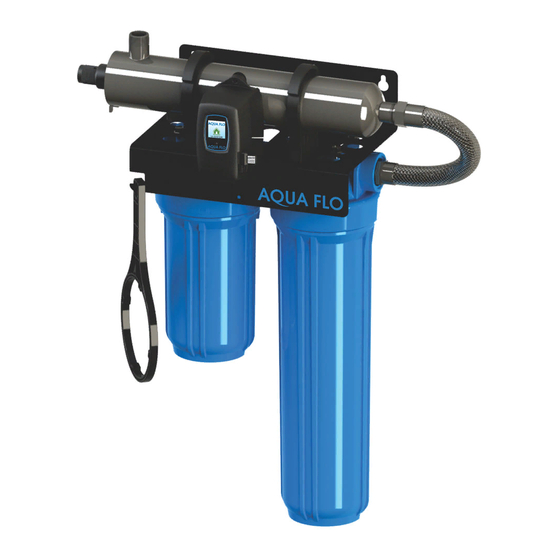

- Page 1 OWNER’S MANUAL Operation & Installation Instructions AQUA FLO- Rack-Mount Systems System Rated Flow Sediment Carbon GEN5-8R1 8 gpm GEN5-8R12 8 gpm GENH5-8R1 15 gpm GENH5-8R12 15 gpm...
- Page 2 This is chemical free process which is simple in its concept and effective in its abilities to inactivate microorganisms present in the water supply. Simple maintenance, continuous disinfection and ultimately safe water, AQUA FLO makes it that easy. P a g e...
-
Page 3: Table Of Contents
Lamp Countdown Sequence .................. 17 Lamp Countdown Reset Sequence ................ 18 Failure Modes ......................19 QR Codes .......................... 19 Expansion Modules ......................20 AQUA FLO Rack-Mount UV System Specifications ............21 Limited Warranty Statement: ................... 22 Warranty Registration ...................... 23 P a g e... -
Page 4: Safety Considerations
Safety Considerations Although your UV system has been manufactured to the highest safety standards, care must be followed when operating and/or maintaining your system. 1. Before servicing this equipment, disconnect the power cord from the electrical outlet. 2. Energy given off by the UV lamp can be harmful to your eyes and skin. NEVER look directly at an illuminated UV lamp without adequate eye protection and always protect your skin from direct exposure to the UV light. -
Page 5: Water Quality Parameters
80% for pre-treatment recommendations) You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a AQUA FLO UV disin- fection system. -
Page 6: Assembly
Assembly Unpack the system and ensure all the components are included with the system. Your system is shipped with the following components: P a g e... -
Page 7: System Sizing
AQUA FLO (Standard output lamp systems) SYSTEM SIZING The AQUA FLO rack-mount UV system is designed as a do-it-yourself (DIY) system with a single inlet and outlet port. This system comes fully assembled with the exception of a single stainless steel hose connection that comes unattached, yet fully taped for easy installation. - Page 8 PLEASE NOTE: All AQUA FLO UV disinfection systems are intended for indoor use only as they should not be exposed to the elements. The controller will require a ground fault circuit inter- rupter (GFCI or GFI) outlet and should be mounted beside or above the reactor.
-
Page 9: Installation
For water supplies where the maximum flow rate is unknown, a flow restrictor is rec- ommended so that the rated flow of your particular AQUA FLO system is not exceeded. The flow restrictor should be installed on the inlet port of the reactor. - Page 10 Step 8: Install the filter cartridges in their appropriate housings. For the AQUA FLO branded products, please refer to the chart located on page 12 of this manual. PLEASE NOTE: This chart indicates the correct cartridge position for the default “left-hand” orientation with the water inlet located on the left side of the rack system.
- Page 11 Figure 6. UV Sensor Installation Figure 7. IEP Connection Step 10: The reactor is now ready for water flow. When all plumbing connections have been completed, slowly turn on the water supply and check for leaks. Make sure the by-pass valves are functioning properly and that the water is flowing through the reactor.
- Page 12 Step 14: Your system is now ready to be plugged into the appropriate GFCI protected outlet. Refer to the following section before any water is allowed to flow through the system. Note: Installation of your AQUA FLO disinfection systems shall comply with applicable provincial/state & local regulations.
-
Page 13: System Disinfection
Reinstall the filter cartridge into the sump and flush the chlorine solution by opening all faucets until chlorine can no longer be detected. Your home has now been completely dis- infected with your AQUA FLO UV system ready to inactivate any microorganisms that enter the home. -
Page 14: Cleaning The Uv Sensor
Replace sensor following step 9 from the installation section of the manual. Temperature Management Devices Your AQUA FLO AQUA FLO system is designed to run continuously to ensure optimal disinfection. However, during periods when no water is drawn through the system, the energy from the disinfection process can cause the temperature of the water inside the chamber to rise. -
Page 15: Operation
Operation AQUA FLO systems come with a feature laden controller that incorporates both the lamp driver (ballast) and control features in one water-tight case. Two controllers are available for the AQUA FLO systems (depending on your model). Controller These controllers feature a power factor corrected, constant current lamp driver with a universal power input. -
Page 16: Aqua Flo Operational Screens
On systems without the UV monitor, the default screen shows the AQUA FLO Home Screen. At any point during operation the user is able to scroll through the AQUA FLO Home Screen, Lamp life remaining and QR Code/Contact Info screens by pressing the button located on the front of the controller. -
Page 17: Aqua Flo 6.0 Operational Screens
AQUA FLO Operational Screens On systems that have the UV sensor installed, the default screen shows the UV Intensity. At any point during operation the user is able to scroll through the UV Intensity, Lamp life remaining and QR Code screens by pressing the button located on the front of the controller. -
Page 18: Lamp Countdown Sequence
Lamp Countdown Sequence The system counts down the number of days until a lamp change is required. At seven days remaining, the screen changes to a yellow caution screen with an audible chirp ev- ery 15 seconds. Past the zero day threshold, the screen changes to solid red and cycles between a red “lamp expired”... -
Page 19: Failure Modes
Module failure Failure Boil Water Advisory: If any failure occurs on a AQUA FLO UV system, the water must not be used for human consumption until the system is returned to a safe operational mode. If the water is used for human consumption during this period, the water must be boiled (minimum 20 minutes at a full boil) prior to consumption. -
Page 20: Expansion Modules
“daisy chain” configura- tion. The following optional expansion modules are available for use on AQUA FLO UV controllers. Contact your authorized distributor for purchasing information. REMOTE ALARM CONNECTION MODULE: Al- lows for a connection to a remote device such as a buzzer, light, alarm system, PLC, etc., via a pair... -
Page 21: Aqua Flo Rack-Mount Uv System Specifications
AQUA FLO Rack-Mount UV System Specifications AQUA FLO EQUIPMENT SPECIFICATIONS RACK-MOUNT UV SYSTEMS MODEL GEN5-8R1 GEN5-8R12 GENH5-13R2 GENH5-13R22 8.0 gpm 15.0 gpm Flow Rate 30.3 lpm 56.8 lpm (@30mJ/cm 1.82 m 3.4 m 5.6 gpm 12 gpm Flow Rate 21.2 lpm 45.4 lpm... -
Page 22: Limited Warranty Statement
AQUA FLO are subject to the warranty provided by the manufacturer of said products and not by AQUA FLO’s warranty. AQUA FLO will not be liable for damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the product was not installed in accordance with AQUA FLO’s printed... -
Page 23: Warranty Registration
TO GET WARRANTY SERVICE Please contact the Dealer or Distributor where the product was originally purchased to obtain service under this warranty. Your Dealer / Distributor will obtain a Warranty Return Authoriza- tion and will then need to return the product to Canature, together with proof of purchase and installation date, failure date, and supporting installation data. - Page 24 Canature Watergroup Inc. 655 Park St. 9760 Mayflower Park Drive Regina, SK, S4N 5N1 Suite 110 CANADA Carmel, IN 46032 USA Toll Free: (877) 444-3348 Toll Free: (877) 771-6789 PN#910195...
