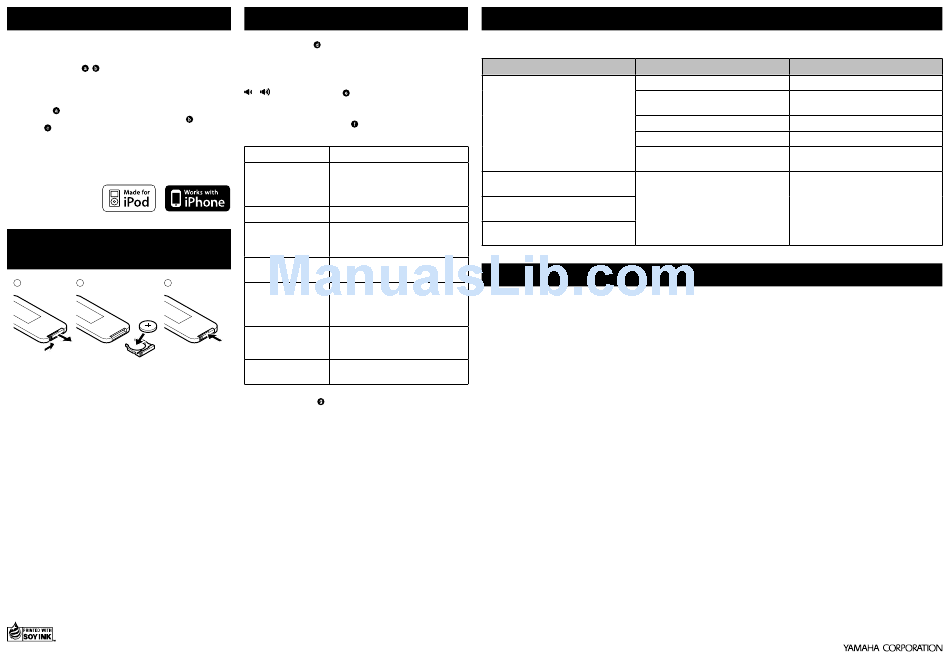

INTRODUCTION
PDX-30 is a portable player dock designed for iPhone or iPod series. The unit
can be operated by the remote control. Also the iPhone or iPod set into the unit is
automatically charged so you can enjoy playing music as long as you want.
Alphabetical letters below (
,
, etc.) can be used for reference to the
illustrations on the separate sheet "Quick Manual" for details.
Supplied accessories
Remote control [
] ................................................................................................. 1
AC adaptor (DC 15V, 2.66A, model number: NU40-2150266-I3) [
Power cable [
] ...................................................................................................... 1
Owner's Manual (this manual) ................................................................................ 1
Quick Manual ........................................................................................................... 1
Copyright and logo marks
iPhone
, iPod
"iPhone" and "iPod" are
trademarks of Apple Inc.,
registered in the U.S. and other
countries.
REPLACING THE BATTERY
IN THE REMOTE CONTROL
1
2
3
© 2008 Yamaha Corporation All rights reserved.
CONTROLS AND FUNCTIONS
Dock terminal [ ]
Connects the iPhone or iPod series. When the iPhone or iPod is connected, its
battery will be charged. When the iPhone or iPod is disconnected, the unit will be
in standby mode. The iPhone or iPod can be connected (or disconnected) anytime.
/
(Volume keys) [ ]
Adjusts the volume level.
] ................. 1
Status indicator (LED) [ ]
Indicates the current status of the unit.
LED status
The current status of this unit
Off
The unit is in standby mode. An iPhone or
iPod is not connected, or has stopped playing.
(However, lights up for 30 seconds after
connecting or stopping playback.)
Flashes green
Connecting, please wait.
Flashes green once
Adjusting the volume level with the volume
keys on the unit or operating with the remote
control.
Lights up green
The unit turns on. An iPhone or iPod is
connected.
Lights up green and flashes
Flashes red for 2 seconds: An unsupported iPod
red
is connected.
Keeps flashing red: Connection failed.
(Connect again.)
Flashes red
The protection circuitry has been activated.
(Disconnect the AC adaptor and wait for a
while.)
Flashes red once
The volume of this unit is set to maximum or
minimum.
DC IN 15V jack [ ]
Connect the AC adaptor to this jack to supply power. When the AC adaptor
is connected, the unit will be in standby mode, consuming a small quantity of
electricity. When an iPhone or iPod is connected to the unit in standby mode, the
unit turns on. When the iPhone or iPod is disconnected, the unit returns to standby
mode.
TROUBLESHOOTING
Refer to the table below if the unit does not function properly. If the problem you are experiencing is not listed below, or if the instruction below does not help, turn off this
unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center.
Problem
Cause
No sound
The iPhone or iPod is not connected firmly.
The iPhone or iPod software version has not been
updated.
The power of the unit is off.
The volume is turned down.
The protection circuitry has been activated by
excessive volume.
The iPhone or iPod being used is not supported by
Cannot change the volume of this unit by
this unit, or the iPhone or iPod is not connected
changing the volume of the iPhone or iPod.
firmly.
The iPhone or iPod display does not change
by pressing the remote control volume keys.
The unit cannot be operated by the remote
control.
SPECIFICATIONS
Supported iPod ........................................................................................................................................................... iPod (5th generation), iPod classic, iPod nano, iPod touch
Supported iPhone ...................................................................................................................................................................................................................... iPhone, iPhone 3G
Maximum RMS output power per channel (6 Ω 1 kHz, 10% THD) .................................................................................................................................................15 W + 15 W
Power Supply
U.S.A. and Canada models. ...................................................................................................................................................................................................AC 120 V, 60 Hz
Other models .........................................................................................................................................................................................................AC 100 to 240 V, 50/60 Hz
Power Consumption ........................................................................................................................................................................................................................................10 W
Power Consumption without connecting iPod/iPhone ......................................................................................................................................................................less than 1 W
Dimensions (W x D x H) ........................................................................................................................................................................................................350 x 125 x 109 mm
Weight (without accessories) .......................................................................................................................................................................................................... 1.7 kg (3.7 lbs)
iPod (4th generation or before), iPod without Dock connector, iPod photo or iPod mini are not supported by this unit.
*Specifications are subject to change without notice.
Remedy
Connect the iPhone or iPod firmly.
Download the latest iTunes software to update the
iPhone or iPod firmware version to the latest.
Connect the AC adaptor correctly.
Turn up the volume.
Turn down the volume.
Use the supported iPhone or iPod.
Connect the iPhone or iPod firmly.
(13-12/16" x 4-15/16" x 4-5/16")
