Page 1: Color Monitor
Color Monitor Operating Instructions WV-CK1420A Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. - Page 2 ENGLISH VERSION Warning: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents

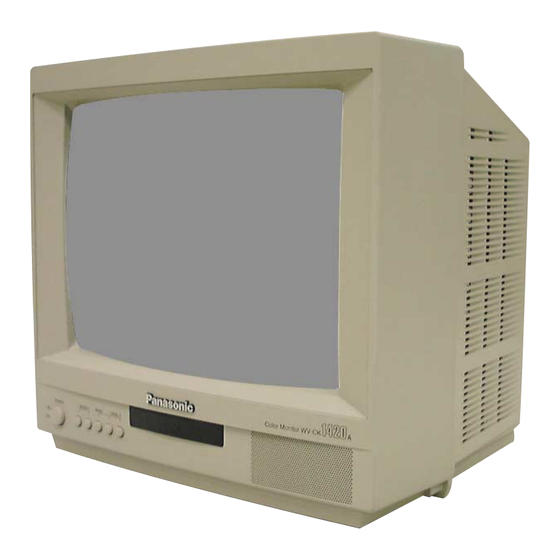

ADVANCED CONTROL OPERATION ... 3 CABLE INFORMATIONS ... 4 CONNECTION ... 4 SPECIFICATIONS ... 4 PREFACE The Panasonic’s Color Monitor WV-CK1420A produces sharp color pictures and audio output. FEATURES • Approx. 335.4mm (13 inches) diagonal actual visual size. • Looping through BNC connectors for video input and out- put. -
Page 4: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS –AUDIO+ MENU –LEVEL+ POWER 1. Power Switch (POWER, ON/OFF) This is a push-push type switch which turns the power of this monitor on and off. Press once and the switch remains down (;) for turning on the power of monitor. -
Page 5: Advanced Control Operation
ADVANCED CONTROL OPERATION • Displaying the Setup Display 1. Turn on the Power Switch of the Monitor. 2. Press the MENU button, the setup display shown below appears on the monitor screen. It will disappear automatically when no operation takes place for about 3 seconds. •... -
Page 6: Cable Informations
CABLE INFORMATIONS Power Cable 1. Keep the Power Switch q in the OFF position during installation. 2. Connect the Power Cord to a grounded electrical outlet. Video Cable 1. Use the RG-59/U (3C-2V), RG-6/U (5C-2V), RG-11/U (7C-2V) or RG-15/U (10C-2V) coaxial cable. 2. - Page 7 Panasonic Security and Digital Imaging Company A Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 Regional Offices: Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Southern: 1225 Northbrook Parkway, Suite 1-160, Suwanee, GA 30024 (770) 338-6838...
