Summary of Contents for Panasonic TH-50PF9UK
-
Page 1: Operating Instructions

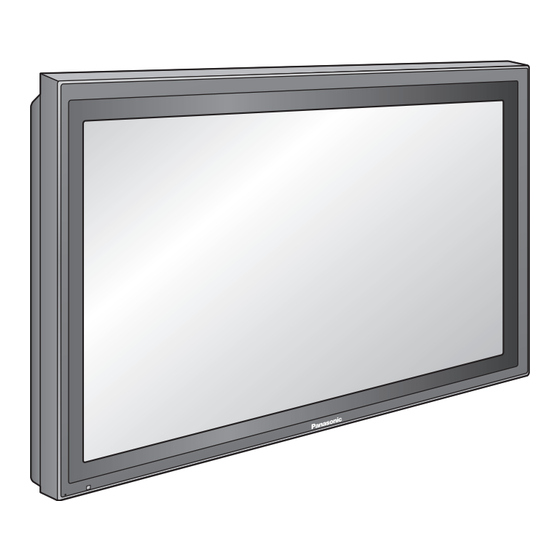

Operating Instructions High Defi nition Plasma Display TH-50PF9UK Model No. The illustration shown is an image. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. English TQBC2140... - Page 2 WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualifi ed service personnel. The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.
-
Page 3: Important Safety Instructions
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi... -
Page 4: Table Of Contents
Dear Panasonic Customer Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. -
Page 5: Fcc Statement
Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifi cations to this monitor not expressly approved by Panasonic Corporation of North America could cause harmful interference and would void the user’s authority to operate this device. -
Page 6: Safety Precautions
Safety Precautions CAUTION This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury. (All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.) •... -
Page 7: Maintenance
WARNING Setup Do not place the Plasma Display on sloped or unstable surfaces. • The Plasma Display may fall off or tip over. Do not place any objects on top of the Plasma Display. • If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fi... -
Page 8: Accessories
Accessories Accessories Supplied Check that you have the Accessories and items shown Operating Instruction book Fixing bands × 2 Remote Control Batteries Requires two AA batteries. 1. Pull and hold the hook, then open the battery cover. Helpful Hint: For frequent remote control users, replace old batteries with Alkaline batteries for longer life. -
Page 9: Connections
Connections When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation. Speakers (Optional accessories) SPEAKERS Terminals (R) – AC cord fi xing 1. Open the clamper. 2. -
Page 10: Pc Input Terminals Connection
Connections PC Input Terminals connection COMPUTER Notes: • Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input Terminal. • Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. -
Page 11: Serial Terminals Connection
Volume 00 - 63 Audio MUTE OFF Audio MUTE ON None Input select (toggle) Slot1 input Slot2 input Slot3 input PC input None Screen mode select (toggle) NORM NORMAL (4 : 3) ZOOM ZOOM FULL FULL JUST JUST SELF Panasonic AUTO... -
Page 12: Dvi-D Connection
Connections DVI-D connection PC with DVI-D video out DVI-D Input Connector Pin Layouts Connection port view Notes: • Additional equipment, cables and adapter plugs shown are not supplied with this set. • Refer to page 45 for applicable input signal. COMPONENT / RGB connection &... -
Page 13: Power On / Off
Power ON / OFF Connecting the AC cord plug to the Plasma Display. Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9) Connecting the plug to the Wall Outlet Press the Power switch on the Plasma Display to turn the set on: Power-On. -
Page 14: Basic Controls
Basic Controls Remote control sensor Main Power On / Off Switch Power Indicator The Power Indicator will light. • Power-OFF ... Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.) •... - Page 15 Standby (ON / OFF) button The Plasma Display must fi rst be plugged into the wall outlet and turned on at the power switch (see page 13). Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby mode.
-
Page 16: On-Screen Menu Displays
On-Screen Menu Displays To PICTURE adjust menu (see page 24) PICTURE NORMALIZE NORMAL PICTURE MENU STANDARD PICTURE BRIGHTNESS COLOR TINT SHARPNESS PICTURE NORMAL COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS Press to select “ON”. Press to enter ADVANCED SETTINGS. To ADVANCED SETTINGS (see page 24, 25) ADVANCED SETTINGS NORMALIZE... - Page 17 3 : 2 PULLDOWN AUTO COLOR SYSTEM VIDEO NR 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) NORMAL VIDEO NR Note: “SIGNAL” setup menu displays a different setting condition for each input signal. (see page 18) To setup SCREENSAVER...
-
Page 18: Initial Selections
Initial selections Selecting the input signal Select the input signals to be connected by installing the optional Terminal Boards. Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display. Input signals will change as follows: Notes: •... -
Page 19: Aspect Controls
• For a 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input, the mode is set to “FULL” mode, and switching is not possible. • Panasonic AUTO can be selected only during Video signal input. • The aspect mode is memorized separately for each input terminal. -
Page 20: Adjusting Pos. /Size
This picture position movement cannot be controlled by the POS. /SIZE function. • If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment. - Page 21 AUTO SETUP Automatically adjust H-POS / V-POS / CLOCK PHASE / DOT CLOCK and set H-SIZE / V-SIZE the standard value when RGB signal is input. Notes: • If the dot clock frequency is 162 MHz or higher, DOT CLOCK cannot be made. •...
-
Page 22: Multi Pip
MULTI PIP Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows below. Normal Viewing Press to swap main picture and sub picture. Press to select the input mode. Under main Picture and sub picture display, select the picture which you would like to change input modes. -
Page 23: Advanced Pip
Advanced PIP Press to display the Setup menu. Press to select “OSD Language”. Press and hold until the Options menu is displayed. Press to select Advanced PIP. Press to adjust the menu. Off : Sets normal two screen display mode On : Sets Advanced PIP mode. -
Page 24: Picture Adjustments
PICTURE Adjustments Press to display the PICTURE menu. Select to adjust each item. Press to select the menu to adjust. Select the desired level by looking at the picture behind the menu. Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting. -
Page 25: Advanced Settings
Item Effect PICTURE Less More BRIGHTNESS Darker Brighter COLOR Less More TINT Reddish Greenish SHARPNESS Less More ADVANCED SETTINGS Item Effect BLACK EXTENSION Less More INPUT LEVEL Less More W/B HIGH R Less More W/B HIGH B Less More W/B LOW R Less More W/B LOW B... -
Page 26: Sound Adjustment
SOUND Adjustment Press to display the SOUND menu. Select to adjust each item. Press to select the menu to adjust. Select the desired level by listening to the sound. BASS Adjusts low pitch sounds Adjusts normal sounds TREBLE Adjusts pitch sounds BALANCE Adjusts left and right volumes SURROUND... -
Page 27: Digital Zoom
Digital Zoom This displays an enlargement of the designated part of the displayed image. Display the “Operation Guide”. Press to access Digital Zoom. The “Operation Guide” will be displayed. During Digital Zoom, only the following buttons can be operated. [Remote control] Select the area of the image to be enlarged. -
Page 28: Present Time Setup / Set Up Timer
PRESENT TIME SETUP / SET UP TIMER The timer can switch the Plasma Display ON or OFF. Before attempting Timer Set, confi rm the PRESENT TIME OF DAY and adjust if necessary. Then set POWER ON TIME / POWER OFF TIME. Press to display the SET UP menu. -
Page 29: Set Up Timer
SET UP TIMER Display the SET UP TIMER SCREEN. Press to select POWER ON TIME / POWER OFF TIME. Press to set up POWER ON TIME / POWER OFF TIME. button: Forward button: Back Notes: • Pressing “ ” or “ ” button once changes POWER ON TIME / POWER OFF TIME 1minute. -
Page 30: Screensaver (For Preventing After-Images)
SCREENSAVER Do not display a still picture, especially in NORMAL mode, for any length of time. If the display must remain on, a SCREENSAVER should be used. Press to display the SET UP menu. Press to select the SCREENSAVER. Press to select the SCREENSAVER screen. NEGATIVE / SCROLL selection Press to select the FUNCTION. -
Page 31: Setup Of Screensaver Time
Setup of SCREENSAVER Time After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.) SCREENSAVER PRESENT TIME OF DAY 99:99 START WHITE BAR SCROLL FUNCTION... -
Page 32: Side Bar Adjust
SCREENSAVER (For preventing after-images ) SIDE BAR ADJUST Do not display a picture in NORMAL mode for an extended period, as this can cause an after-image to remain on the side bars on either side of the display fi eld. To reduce the risk of such an after-image, change the brightness of the side bars. -
Page 33: Reduces Power Consumption
Reduces power consumption • POWER SAVE: When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced. • STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 13-15), so standby power of the set is reduced. -
Page 34: Set Up For Multi Display
SET UP for MULTI DISPLAY By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens. For this mode of operation, each plasma display has to be set up with a Display number to determine its location. (Example) group of 4 (2 ×... -
Page 35: How To Set The Display Location Number For Each Plasma Display
How to set the Display location number for each Plasma Display Press to select HORIZONTAL SCALE. Press to select “× 1”, “× 2”, “× 3”, “× 4”. Press to select VERTICAL SCALE. Press to select “× 1”, “× 2”, “× 3”, “× 4”. Press to select SEAM HIDES VIDEO. -
Page 36: Seam Hides Video Setting
SET UP for MULTI DISPLAY SEAM HIDES VIDEO Setting To hide joints between TVs. Reference Suitable for moving image display. Step 6, Page 35 ID Remote Control Function You can set the remote control ID when you want to use this remote control on one of several different TVs. Switch on the right side. -
Page 37: Set Up For Input Signals
STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF ENGLISH ( US ) OSD LANGUAGE Press ACTION ( ) button [ VIDEO ] SIGNAL 3D Y/C FILTER (NTSC) COLOR SYSTEM AUTO 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) NORMAL VIDEO NR... -
Page 38: Color System / Panasonic Auto
Set the color system to match the input signal. If set to “AUTO”, the color system is determined automatically. Panasonic AUTO Set to “NORMAL” to view 4:3 images in an unchanged format when Panasonic AUTO is (4 : 3 ) selected. If you would like to view 4:3 images in Just format, set to “JUST”. -
Page 39: Sync
SYNC Select SIGNAL from the “SET UP” menu during RGB input signal. Press to adjust. Press to exit from adjust mode. Setting RGB sync signal Confi rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal). -
Page 40: Options Adjustments
Options Adjustments Press to display the Setup menu. Press to select “OSD Language”. Press and hold until the Options menu is displayed. Press to select your preferred menu. Press to adjust the menu. Press to confi rm. Press to exit from Options menu. - Page 41 Item Effect Press Off: Sets normal volume. Initial VOL Sets your preferred volume. level Notes: • When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range. • You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level”...
- Page 42 Options Adjustments Item Effect Off: All the buttons at the bottom of the main unit can be used. MENU & ENTER: Button lock Locks Locks all the button on bottom face of main unit. Off: You can use all of the buttons on the remote control. Remocon User1: You can only use User level...
-
Page 43: Shipping Condition
Shipping condition This function allows you to reset the unit to the factory setting. Press to display the SET UP menu. Press to select “OSD LANGUAGE”. Press and hold till the SHIPPING menu is displayed. Press to select “YES”. Press to confi rm. [from the unit] 1 Press the MENU button till the Setup menu is displayed. -
Page 44: Troubleshooting
Troubleshooting Before you call for service, determine the symptoms and make a few simple checks as shown below. Symptoms Picture Sound Interference Noisy Sound Normal Picture No Sound No Picture No Sound No Picture Normal Sound No Color Normal Sound No remote control operations can be performed. -
Page 45: Dvi-D/Component/Rgb/Pc Input Signals
DVI-D/COMPONENT/RGB/PC input signals Applicable input signals for Component / RGB, Mini D-sub 15P (Component / RGB), DVI-D ( Signal name 525 (480) / 60i 525 (480) / 60p 625 (575) / 50i 625 (575) / 50p 626 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60p... -
Page 46: Specifi Cations
Note: Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate. TH-50PF9UK 120 V AC, 50/60 Hz 650 W Save OFF 1.0 W, Save ON 0.8 W 0.1 W... - Page 47 One Panasonic Way 2A-4 Secaucus, NJ 07094 Panasonic Broadcast & Television Systems Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge...
-
Page 48: Limited Warranty Statement
LIMITED WARRANTY STATEMENT Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective.
