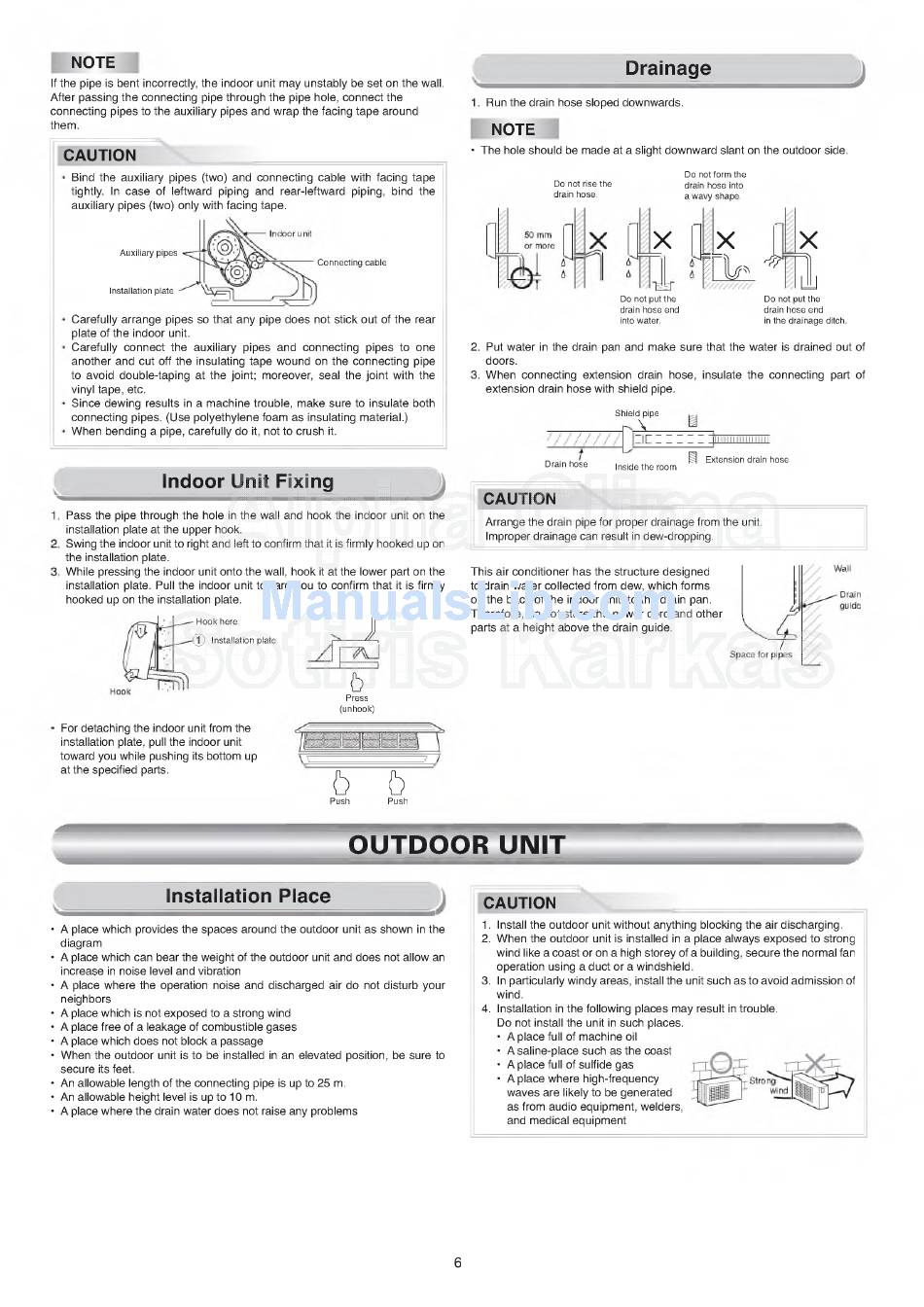

NOTE
If the pipe is bent incorrectly, the indoor unit may unstably be set on the wall.
After passing the connecting pipe through the pipe hole, connect the
connecting pipes to the auxiliary pipes and wrap the facing tape around
them.
CAUTION
Bind the auxiliary pipes (two) and connecting cable with facing tape
tightly. In case of leftward piping and rear-leftward piping, bind the
auxiliary pipes (two) only with facing tape.
A u x ilia r y p ip e s
In s ta lla tio n p la te
Carefully arrange pipes so that any pipe does not stick out of the rear
plate of the indoor unit.
Carefully connect the auxiliary pipes and connecting pipes to one
another and cut off the insulating tape wound on the connecting pipe
to avoid double-taping at the joint; moreover, seal the joint with the
vinyl tape, etc.
Since dewing results in a machine trouble, make sure to insulate both
connecting pipes. (Use polyethylene foam as insulating material.)
When bending a pipe, carefully do it, not to crush it.
Indoor Unit Fixing
Pass the pipe through the hole in the wall and hook the indoor unit on the
installation plate at the upper hook.
Swing the indoor unit to right and left to confi rm that it is fi rmly hooked up on
the installation plate.
While pressing the indoor unit onto the wall, hook it at the lower part on the
installation plate. Pull the indoor unit toward you to confi rm that it is firmly
hooked up on the installation plate.
H o o k here.
1 In s ta lla tio n p la te
For detaching the indoor unit from the
installation plate, pull the indoor unit
toward you while pushing its bottom up
at the specified parts.
Installation Place
• A place which provides the spaces around the outdoor unit as shown in the
diagram
• A place which can bear the weight of the outdoor unit and does not allow an
increase in noise level and vibration
• A place where the operation noise and discharged air do not disturb your
neighbors
• A place which is not exposed to a strong wind
• A place free of a leakage of combustible gases
• A place which does not block a passage
• When the outdoor unit is to be installed in an elevated position, be sure to
secure its feet.
• An allowable length of the connecting pipe is up to 25 m.
• An allowable height level is up to 10 m.
• A place where the drain water does not raise any problems
1. Run the drain hose sloped downwards.
NOTE
• The hole should be made at a slight downward slant on the outdoor side.
C o n n e c tin g c a b le
2. Put water in the drain pan and make sure that the water is drained out of
doors.
3. When connecting extension drain hose, insulate the connecting part of
extension drain hose with shield pipe.
J
CAUTION
Arrange the drain pipe for proper drainage from the unit.
Improper drainage can result in dew-dropping.
This air conditioner has the structure designed
to drain water collected from dew, which forms
on the back of the indoor unit, to the drain pan.
Therefore, do not store the power cord and other
parts at a height above the drain guide.
I
b
P re s s
(u n h o o k )
b b
P u s h P u sh

OUTDOOR UNIT

CAUTION
1. Install the outdoor unit without anything blocking the air discharging.
2. When the outdoor unit is installed in a place always exposed to strong
3. In particularly windy areas, install the unit such as to avoid admission of
4. Installation in the following places may result in trouble.
6
Drainage
D o n o t ris e th e
d ra in hose.
X
D o n o t p u t th e
d ra in h o s e e n d
in to w a te r.
A
S h ie ld p ipe
D ra in h o se
In s id e th e ro o m
wind like a coast or on a high storey of a building, secure the normal fan
operation using a duct or a windshield.
wind.
Do not install the unit in such places.
• A place full of machine oil
• A saline-place such as the coast
• A place full of sulfide gas
• A place where high-frequency
waves are likely to be generated
as from audio equipment, welders,
and medical equipment
j
D o n o t fo r m th e
d ra in h o s e in to
a w a v y sha p e .
X X
rcL i*
1
D o n o t p u t th e
d ra in h o s e e n d
in th e d ra in a g e d itc h .
ϋ E x te n s io n d ra in ho se
