Lock terminal board
(E70-0045-05)
-
R
FRONT
SPEAKERS
(6-16 )
Pin jack
(E63-0116-05)
CENTER SPEAKER
( 6-16 )
-
Lock terminal board
(E70-0046-05)
SURROUND SPEAKERS
(12-16 )
HOW to open the tray if not comes out.
BOTTOM SIDE

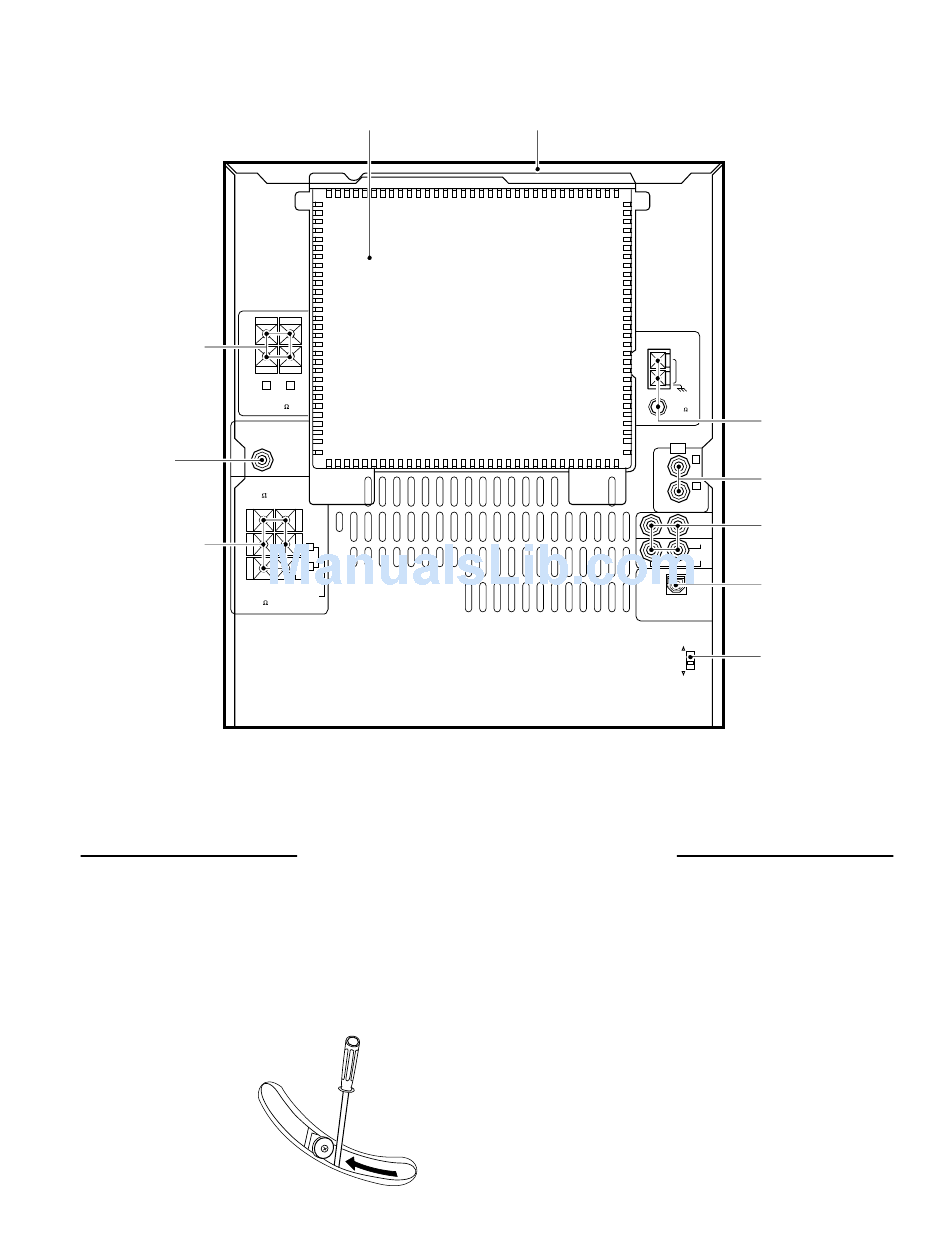

EXTERNAL VIEW

Cover
(F07-1692-01)
L
SUPER
WOOFER
PRE OUT
+
L
R

DISASSEMBLY FOR REPAIR

(1) Turn the friction arm counterclockwise
using a screw driver and the like.
(2) Pull out the tray frontwards by hand
when the tray comes just out.
RXD-803/803E/853/853E/A83
Metallic cabinet
(A01-3739-11)
ANTENNA
DIGITAL
OUT
OPTICAL
AC 110-
AC 220-
AM
GND
FM
75
Lock terminal board
(E70-0052-05)
6CH.
INPUT
L
Pin jack
(E63-0095-05)
R
FRONT
Pin jack
(E63-1008-05)
SURROUND
CENTER
SUB
WOOFER
Oscillating module
(W02-1114-15)
Slide switch
120V~
(S62-0001-05)
240V~
Illustration is RXD-853(M).
