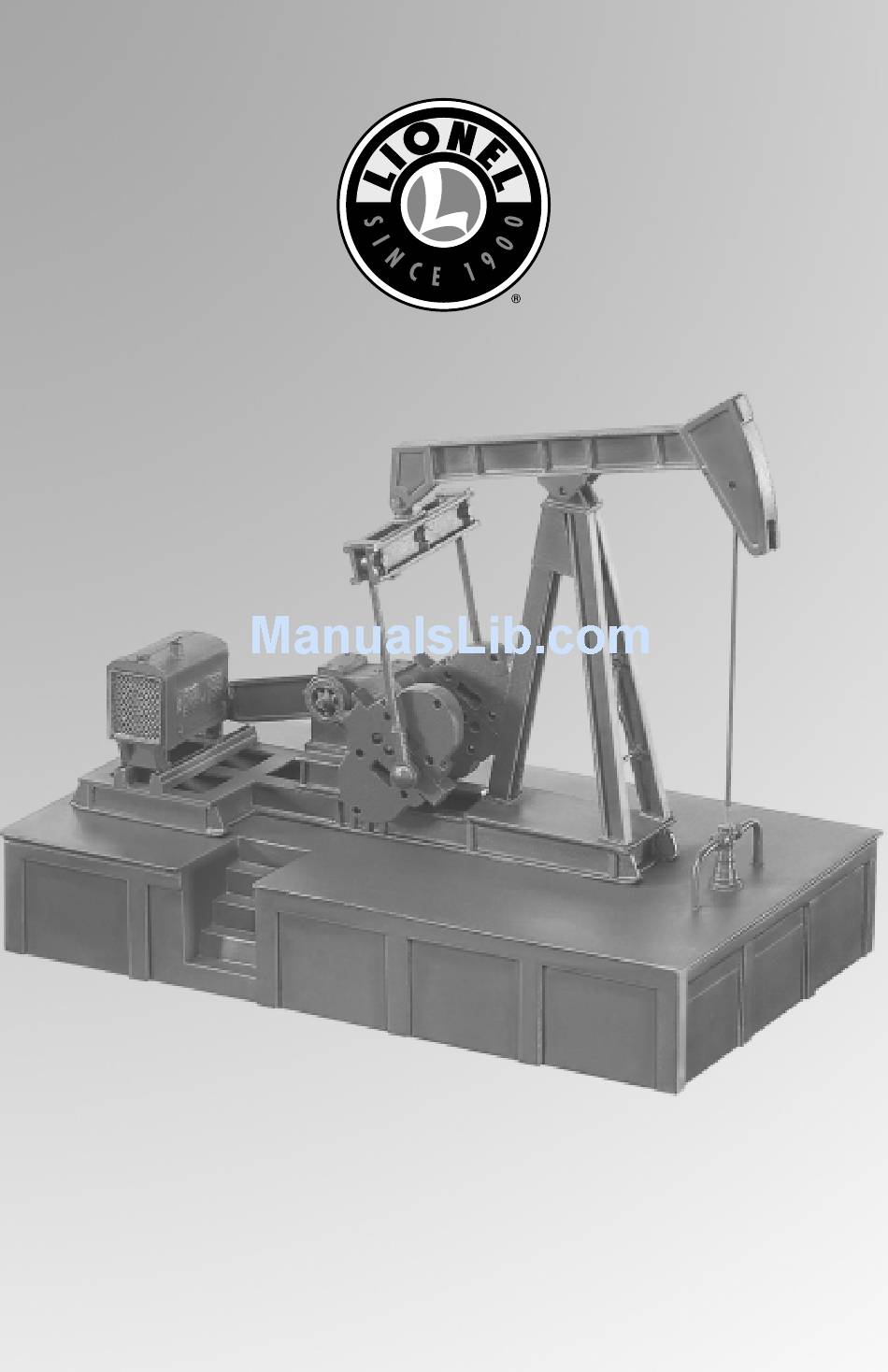

  • Page 1 73-4162-250 9/04 Lionel Oil Pump Owner’s Manual...
  • Page 2 Installing the accessory Operating the accessory Controlling the accessory in the Command Control environment Notes Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...
  • Page 3 3. Attach a final wire to the separate switch and connect it to the Common/Ground/U terminal on the power supply or the #2 terminal on the Lionel Lockon. FasTrack users, twist the end of the wire to the remaining Accessory Power Wire and insulate the connection.
  • Page 4 Installing the accessory (continued) Spring clip terminals Bottom of the accessory Separate To track or power supply switch POWER SUPPLY FasTrack Accessory Lockon Power Wire Figure 1. Accessory connections Operating the accessory se the separate switch (installed in the previous section) to turn the animation on and off. Figure 2.

  • Page 5: Controlling The Accessory In The Command Control Environment

    Controlling the accessory in the Command Control environment or operation in the TrainMaster Command Control environment, you may choose to wire this accessory with an SC-2 Switch and Accessory Controller (available separately, 6-22980) or the Accessory Switch Controller (available separately, 6-14182). Refer to these manuals for additional information.
  • Page 6 Controlling the accessory in the Command Control environment (continued) Accessory Switch Controller wiring and operation hree wires (not included) are needed to connect the accessory to the Accessory Switch Controller (ASC) and a separate accessory transformer. Refer to Figure 4. 1.
  • Page 7 Notes...

  • Page 8: Warranty Information

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
