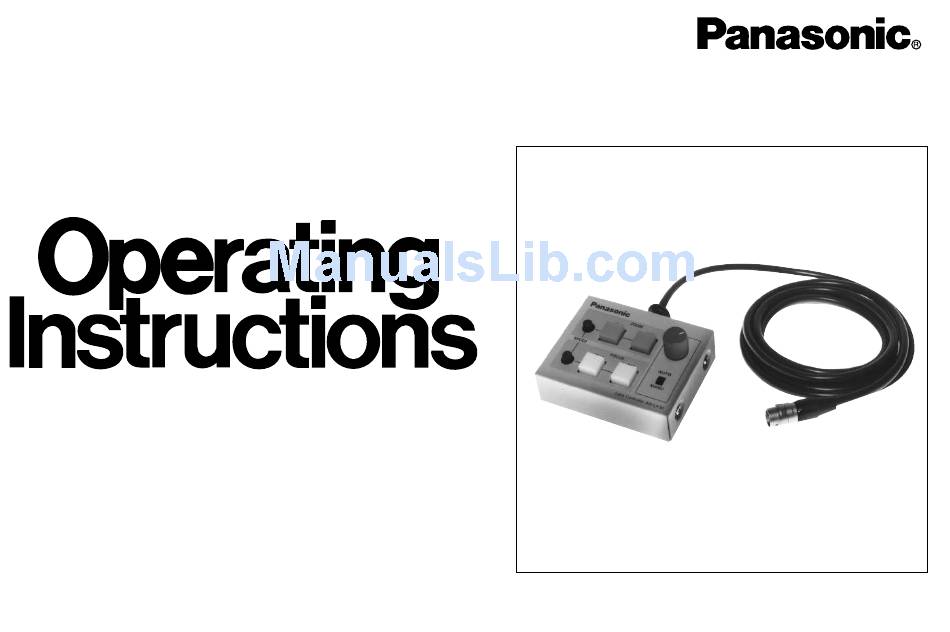

- Page 1 Lens Controller AW-LK30 Model No. Before attempting to connect or operate this product, please read these instructions completely and save this manual for future use.
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PER- SONNEL. The lightning flash with arrowhead sym- bol, within an equilateral triangle, is intended to alert the user to the pres- ence of uninsulated "dangerous voltage"...
-
Page 3: Table Of Contents
CONTENTS WARNING/CAUTION FOR SAFETY ... 4 PREFACE ... 5 PRECAUTIONS ... 5 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ... 6 INSTALLATION ... 8 SPECIFICATIONS ... 9 STANDARD ACCESSORIES ... 10... -
Page 4: Warning/Caution For Safety
WARNING/CAUTION FOR SAFETY WARNING • Refer all servicing to qualified personnel To reduce the risk of electric shock, don't remove cover or back, unless you are a qualified personnel. Refer all mountings, connections, servicing to quali- fied service personnel. • No water or moisture inside Do not let water or moisture into the product, or expose it to moisture, to prevent a fire and electric shock. -
Page 5: Preface
PREFACE The AW-LK30 is a lens controller for motor-driven lens- es that have a zoom/focus control cable (fitted with a 12-pin female connector). Connected to a lens control cable, it permits local control of lens zoom, focus, and iris. (Applicable lenses: Panasonic AW-S14XBMD, AW- LZ10MD6, AW-LZ14MD55, etc.) -
Page 6: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS SPEED q Zoom Speed Control [ZOOM SPEED L/H] To adjust lens zoom control speed. clockwise increases speed. w Zoom Control Tele Switch [ZOOM TELE] The lens zooms in the telescopic direction while the switch is kept depressed. ZOOM IRIS TELE... - Page 7 t Focus Control Near Switch [FOCUS NEAR] The lens focus draws near while the switch is kept depressed. y Focus Control Far Switch [FOCUS FAR] The lens focus moves far while the switch is kept depressed. u Iris Auto/Manual Switch [IRIS AUTO/MANU] At AUTO, the iris is automatically controlled (ALC).
-
Page 8: Installation
INSTALLATION Remote (zoom/focus control) cable Camera cable Zoom lens OPTION CARD MENU ITEM/AWC YES/ABC Camera NO/BAR – ZOOM IRIS TELE WIDE SPEED CLOSE OPEN FOCUS A U T O NEAR M A N U VIDEO OUT I/F REMOTE G/L IN IRIS To Iris connector DC12V IN... -
Page 9: Specifications
SPECIFICATIONS Power supply: 12 V DC, 60 mA (supplied from lens) Lens control: Zoom: Focus: Iris: Connecting cable length: 190 cm Operating temperature range: –10°C to +45°C (14°F to +113°F) Humidity: 30% to 90% Dimensions: 90 (W) x 40 (H) x 70 (D) mm [3-17/32” x 1-9/16” x 2-3/4”] Weight: 400 g (0.9 lbs.) Finish:... -
Page 10: Standard Accessories
STANDARD ACCESSORIES Clamper ... 1 each, right and left Clamp screw ... 1 pc Mounting screw ... 2 pcs -10-... - Page 11 Executive Office: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621 Mid-Atlantic: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621 Southeast Region: 1225 Northbrook Parkway, Ste 1-160 Suwanee, GA 30024...
