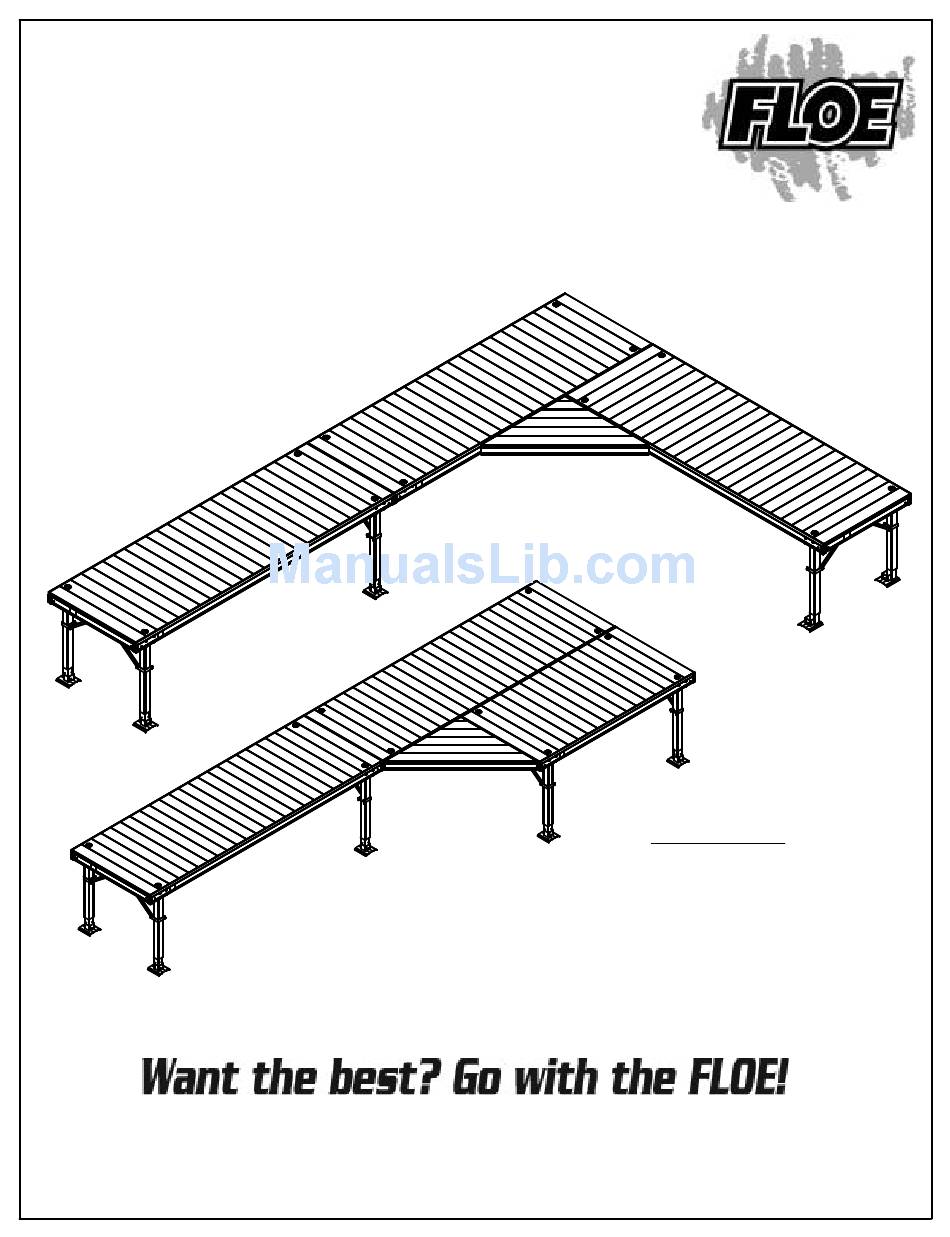

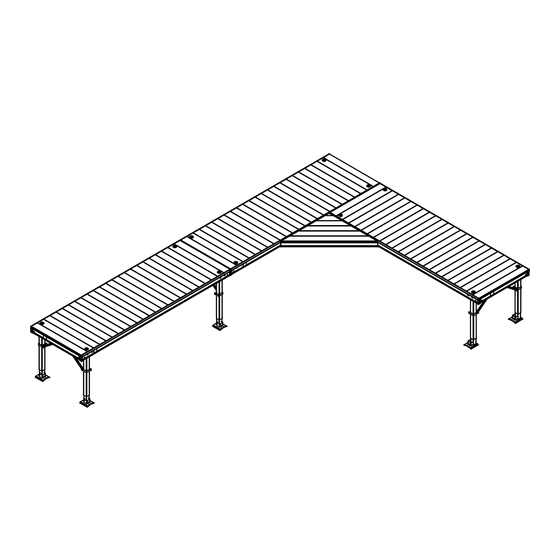

FLOE SECTIONAL DOCK WEDGE
ASSEMBLY INSTRUCTIONS
KIT P/N 510-02150-00 4' GREY ALUMINUM
KIT P/N 510-02155-00 4' ALUMA-GRAIN
INSTRUCTION P/N 610-02150-00
ISSUED: 4/14/2016
Sectional Docks and Leg Kits are sold separately.
SHEET 1 OF 4
TOOLS REQUIRED
- 7/32" ALLEN HEAD SOCKET
- 9/16" SOCKET OR WRENCH
- TORQUE WRENCH
- 13/32" DRILL BIT
- CORDLESS DRILL
- TAPE MEASURE
- PENCIL OR MARKER
O
c
Floe International, Inc.
48473 State Hwy. 65
McGregor, MN 55760
All rights reserved
Advertisement
Related Manuals for Floe SECTIONAL DOCK WEDGE
Summary of Contents for Floe SECTIONAL DOCK WEDGE
- Page 1 FLOE SECTIONAL DOCK WEDGE ASSEMBLY INSTRUCTIONS KIT P/N 510-02150-00 4' GREY ALUMINUM KIT P/N 510-02155-00 4' ALUMA-GRAIN TOOLS REQUIRED - 7/32" ALLEN HEAD SOCKET - 9/16" SOCKET OR WRENCH - TORQUE WRENCH Sectional Docks and Leg Kits are sold separately.
- Page 2 NUT, 3/8-16 ALUM 002-07002-00 QUICK CONNECT, SCTNL. DOCK 002-07025-00 SAFETY QC, SCTNL. DOCK 010-01200-00 BOLT, WEDGE T-SAFETY 110-02025-00 WELD'T, 4' SCTN'L WEDGE (GREY) 110-02027-00 WELD'T, 4' SCTN'L WEDGE ALUMA GRAIN 007-11301-00 DECAL, FLOE GRAPHICS 3 X 2.5 SHEET 2 OF 4...
- Page 3 STEP 1 - Attach a Quick Connect to the dock frame. Start by measuring 41" from the face of the trim on the opposing dock and up 1-3/4" from the bottom and mark. Drill a 13/32" bolt hole on that mark. The Quick Connect can be used as a drill guide.
- Page 4 STEP 3 - Attach a Safety Quick Connect to the Wedge frame. The position is predetermined by the bolt hole in the inside of the Wedge. Start by placing the Wedge in the three installed Quick Connects as shown in figure 3A.
