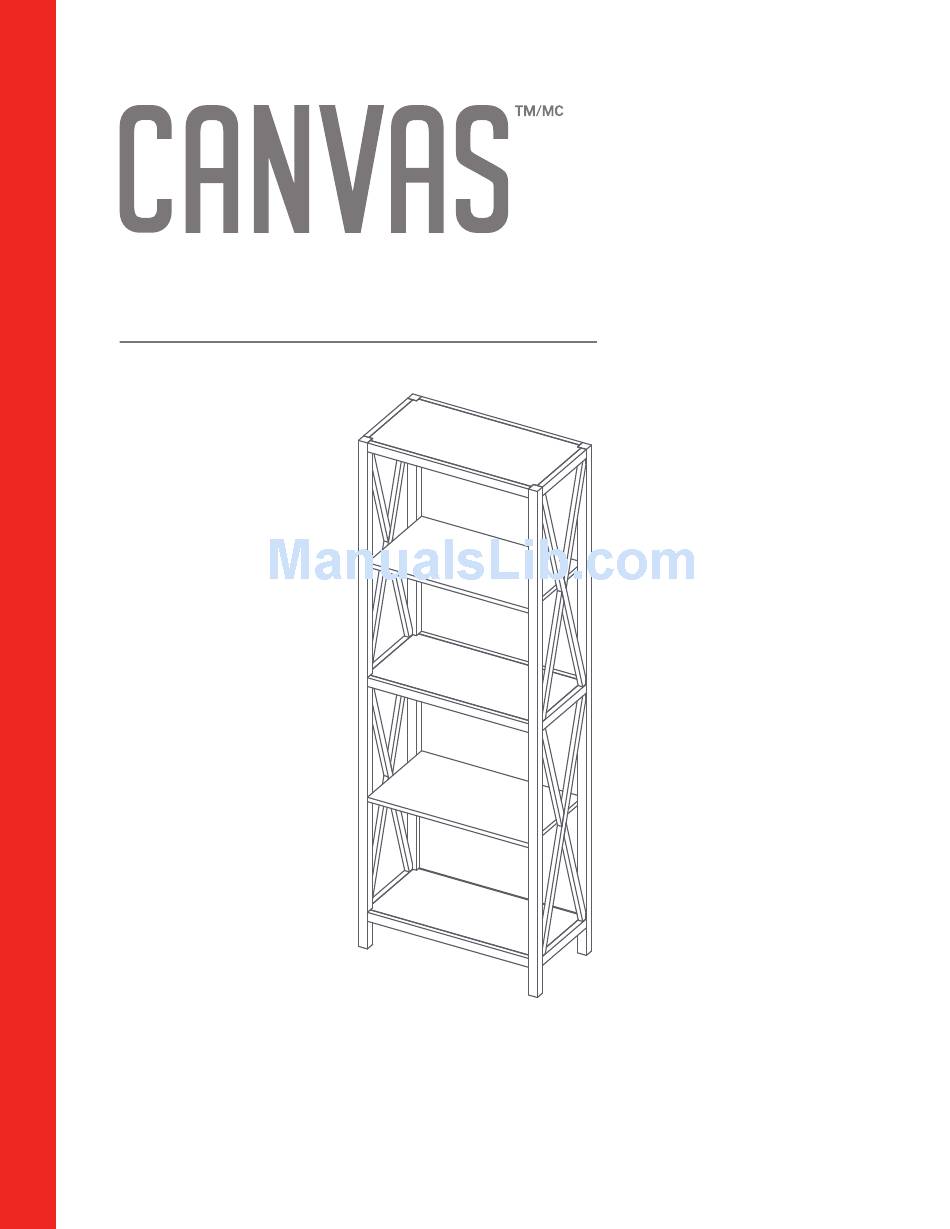

XAVIER BOOKCASE
MODEL N0. 068-7588-0
ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list. If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll-free).
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Canvas 068-7588-0
Summary of Contents for Canvas 068-7588-0
- Page 1 XAVIER BOOKCASE MODEL N0. 068-7588-0 ASSEMBLY INSTRUCTIONS IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the service centre at...
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
- Page 3 Table of Contents Parts List Assembly Warranty Needed for assembly: Hammer Screwdriver IMPORTANT: Retain for future reference, and read carefully.
- Page 4 Toll-free: 1-888-670-6684 | model no. 068-7588-0 Top panel - 2 Upper shelf - 1 Left side panel - 1 Right side panel - 1 Bottom panel - 1 Back panel - 1 Lower shelf- 1...
- Page 5 Shown at actual size Wooden dowel - 20 Shown at actual size Shown at actual size Cam bolt - 12 Pan head screw - 1 Shown at actual size Shown at actual size Cam - 12 Wall anchor - 1 Shown at actual size Shown at actual size Hex bolt - 12...
-
Page 6: Helpful Hints
Toll-free: 1-888-670-6684 | model no. 068-7588-0 Warning! To reduce the risk of serious injury, read the following safety instructions before assembly. • Read each section carefully before starting. It is very important that each step is performed in the correct order. - Page 7 Step 1 Requires 4, 5, A, B, C Step 2 Requires 4, 5, 6, A, B, C...
- Page 8 Toll-free: 1-888-670-6684 | model no. 068-7588-0 Step 3 Requires 3, 4, 5, 6, A, B, C, D, E, F, G Step 4 Requires 1, 7, A, B, C, D, E, F, G Hole for anti-tip strap...
- Page 9 Step 5 Requires 2, A, B, C, D, E, F, G Step 6 Requires H, I, J, K Attach wall strap (K) to back of product with pan-head screw (H). Drill a 1/4” (6.4 mm) diameter hole in the wallboard. Tap the wall anchor (I) into the hole until it is flush.
-
Page 10: Weight Limits
Toll-free: 1-888-670-6684 | model no. 068-7588-0 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: - Place heaviest items on the lowest shelves or in the lowest drawers and as far back as possible.
