Panasonic HDC-HS100P Operating Instructions Manual

Panasonic HDC-HS100P Operating Instructions Manual

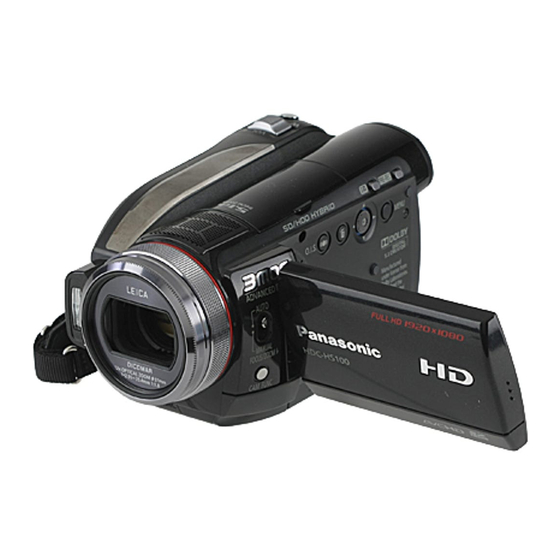

High definition video camera
Hide thumbs Also See for HDC-HS100P:
Table of Contents

Advertisement

Quick Links

Before connecting, operating or adjusting this product, please read the instructions completely.
Spanish Quick Use Guide is included.
Guía para rápida consulta en español está incluida.
For USA assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo
For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca
High Definition Video Camera
HDC-HS100P/PC
Model No.

Operating Instructions

VQT1T93

Advertisement

Table of Contents
loading

Related Manuals for Panasonic HDC-HS100P

Summary of Contents for Panasonic HDC-HS100P

  • Page 1: Operating Instructions

    Spanish Quick Use Guide is included. Guía para rápida consulta en español está incluida. For USA assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca Operating Instructions...

  • Page 2: Things You Should Know

    Things You Should Know Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the right.
  • Page 3 Model No.: HDC-HS100P Responsible party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Batteries Battery pack (Lithium ion battery pack) ≥ Use the specified unit to recharge the battery pack. ≥ Do not use the battery pack with equipment other than the specified unit. ≥ Do not get dirt, sand, liquids, or other foreign matter on the terminals. ≥...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings.
  • Page 6 Precautions USE & LOCATION WARNING ≥ TO AVOID SHOCK HAZARD ... Your camera and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your camera if it gets wet. Your camera has been designed for outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or...
  • Page 7 IMPORTANT ∫ Carefully observe copyright laws Whatever you have recorded and created can be used for your personal entertainment only. Under copyright laws, other materials cannot be used without obtaining permission from the holders of the copyrights. ∫ Cards that you can use with this unit SD Memory Card and SDHC Memory Card ≥...

  • Page 8: Table Of Contents

    Contents Accessories ... 10 Features ... 11 Quick Guide ... 12 Preparation Before using [1] Handling of HDD (Hard disk drive) ... 16 [2] Parts identification and handling... 17 Remote control ... 20 Setup [1] Power supply ... 22 Charging the battery ... 22 Inserting/removing the battery ...
  • Page 9 Playback Playback [1] Motion picture playback ... 74 Creating still picture from motion picture ... 77 Playing back motion pictures by date... 77 Intelligent scene selection ... 78 Repeat playback... 79 Resuming the previous playback... 79 [2] Still picture playback... 80 Playing back still pictures by date ...

  • Page 10: Accessories

    Accessories Check the accessories before using this unit. Battery pack VW-VBG130 AC adaptor VSK0697 AC cable K2CA2CA00025 DC cable K2GJYDC00002 Remote control N2QAEC000023 Button-type battery CR2025 VQT1T93 AV cable K2KC4CB00027 Component cable K2KZ9DB00004 USB cable K2KYYYY00050 CD-ROM...

  • Page 11: Features

    Features ∫ Very clear high definition pictures This unit can record detailed high definition images to an SD card or HDD (hard disk drive). High definition images (1920k1080) A Number of available scan lines 1080 High definition images ≥ High definition images have more than approximately 2 times the number of available scan lines and approximately 6 times the number of pixels compared with standard images.

  • Page 12: Quick Guide

    Quick Guide ∫ Charging the battery Charging lamp [CHARGE] A Lights up: Charging Goes off: Charging completed 1) Connect the AC cable to the AC adaptor and the AC outlet. 2) Insert the battery into the battery charger by aligning the arrows. ∫...

  • Page 13: Recording Motion Pictures

    ∫ Language selection 1) Press the MENU button, then select [LANGUAGE] and press the cursor button. 2) Select [English] and press the cursor button. ∫ Help mode The help mode explains the operation icons displayed. (Except headphone volume adjustment) ≥ Rotate the mode dial to select 1) Press the cursor button to display the icon.
  • Page 14 ∫ Motion picture playback 1) Rotate the mode dial to select 2) (When playing back from an SD card) Select [ ] (motion picture playback) B of ] (card playback) tab A with the cursor button. (When playing back from a HDD) Select [ ] (motion picture playback) D of ] (HDD playback) tab C with the cursor...

  • Page 15: 16 Before Using

    Preparation Recording Playback Backup With a PC Others 16 Before using 22 Setup VQT1T93...

  • Page 16: Handling Of Hdd (Hard Disk Drive)

    ≥ About disposing of or giving away this unit. (l 141) Indemnity about recorded content Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of...

  • Page 17: Parts Identification And Handling

    Before using LCD monitor open LCD monitor (l 35) Pull the LCD monitor out in the direction of the arrow with your fingers. ≥ It can open up to 90o. ≥ It can rotate up to 180o A towards the lens or 90o B towards the viewfinder.
  • Page 18 Intelligent auto button [iA] (l 51) PRE-REC button [PRE-REC] (l 45) Menu button [MENU] (l 29) 10 Battery holder (l 23) 11 DC input terminal [DC IN] (l 25) 12 USB terminal [ ] (l 100, 109, 119) 13 HDMI mini connector [HDMI] (l 92, 97) 14 Audio-video/headphone output terminal [AV/ ] (l 31, 56, 92, 108)
  • Page 19 30 Microphone terminal [MIC] ≥ A compatible plug-in powered microphone can be used as an external microphone. ≥ Audio will be stereo (2 ch) with the external microphone input. 31 Mode dial (l 28) 32 Recording start/stop button (l 41) 33 Status indicator (l 28) 34 LCD/EVF select switch [EVF/LCD] (l 35) 35 Viewfinder (l 35)

  • Page 20: Remote Control

    42 Grip belt Adjust the length of the grip belt so that it fits your hand. 1 Flip the belt. 2 Adjust the length. 3 Replace the belt. 43 Shoulder strap fixture 44 Battery release lever [BATTERY] (l 23) 45 Tripod receptacle This is a hole for attaching the unit to the optional tripod.

  • Page 21: Remote Control Usable Range

    ≥ Keep the button-type battery out of reach of children to prevent swallowing. Replace battery with Panasonic PART NO. CR2025 only. Use of another battery may present a risk of fire or explosion. Caution: Battery may explode if mistreated.

  • Page 22: Setup

    To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. ≥ Be aware that many batteries sold at extremely cheap prices or in situations where it is difficult to verify the actual products before purchase have proven to be counterfeit.

  • Page 23: Inserting/Removing The Battery

    ≥ We recommend using Panasonic batteries (l 10, 24, 148). ≥ If you use other batteries, we cannot guarantee the quality of this product. ≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.

  • Page 24: Charging And Recording Time

    Charging and recording time ∫ Charging/Recording time ≥ Temperature: 25 oC (77 oF)/humidity: 60% ≥ When using the viewfinder (times in parentheses are when using the LCD monitor) Battery model Charging number time Supplied battery/ VW-VBG130 2 h 35 min (optional) VW-VBG260 4 h 40 min...

  • Page 25: Connecting To The Ac Outlet

    ( ) will flash. ≥ The remaining battery capacity is displayed when using the Panasonic battery that you can use for this unit. It may take time to display the remaining battery capacity. The actual time can vary depending on your actual use.

  • Page 26: Preparation Of Sd Cards

    Preparation of SD cards Motion picture recording We recommend using SD cards conforming to Class 4 or higher of the SD Speed Class Rating the following SD cards made by Panasonic for motion picture recording. Cannot be used. Cannot be guaranteed in operation.

  • Page 27: Inserting/Removing An Sd Card

    Inserting/removing an SD card When using an SD card not from Panasonic, or one previously used on other equipment, for the first time on this unit, format the SD card. (l 91) When the SD card is formatted, all of the recorded data is deleted.

  • Page 28: Selecting A Mode (Turning The Unit On/Off)

    Setup Rotate the mode dial to switch to recording, playback or power OFF. Turn on the power by turning the mode dial to lock release button A. The status indicator lights and the power turns on. ≥ When the unit is turned on for the first time, a message asking you to set the date and time will appear.

  • Page 29: Using The Menu Screen

    Setup Operate the displayed menu screens with the cursor button. Press the MENU button. MENU ≥ The menu displayed differs depending on the position of the mode dial. Select the top menu A and move the cursor button right or press the cursor button.

  • Page 30: Language Selection

    Language selection You can select the language on the screen display and the menu screen. Press the MENU button, then select [LANGUAGE] and press the cursor button. Select [English] and press the cursor button. Menu list Recording mode *1 It is not displayed when the AUTO/MANUAL switch is set to AUTO. *2 It is not displayed when the Intelligent auto mode is [ON].
  • Page 31 ∫ [SETUP] [CLOCK SET] (l 33) [DISPLAY] The screen indications are selected as shown in the illustration below. [OFF] [ON] NOV 15 2008 NOV 15 2008 [DATE/TIME] (l 33) [DATE FORMAT] (l 33) [POWER SAVE] [OFF]: The power saving function is not activated. [5 MINUTES]: When about 5 minutes have passed without any operation, this unit automatically turns off...

  • Page 32: Playback Mode

    Playback mode *1 When the disc playback tab [ [INTEL. SCENE] (l 78) is selected, this does not appear. *2 Only when the disc playback tab [ appears. *3 This appears only when the card playback tab [ *4 This appears only when the HDD playback tab [ motion picture playback) ∫...

  • Page 33: Setting Date And Time

    Setup When the unit is turned on for the first time, a message asking you to set the date and time will appear. Select [YES] and perform steps 2 to 3 below to set the date and time. ¬ Rotate the mode dial to select Select the menu.

  • Page 34: World Time Setting (Displaying The Time Of The Travel Destination)

    World time setting (Displaying the time of the travel destination) It is possible to display and record the time at the travel destination by selecting your home region and the travel destination. Select the menu. (l 29) [BASIC] # [SET WORLD TIME] # [YES] ≥...

  • Page 35: Adjusting Lcd Monitor/ Viewfinder

    Setup ≥ These settings will not affect the images actually recorded. ≥ When the [POWER LCD] or [LCD SET] is set, set the LCD/EVF select switch to LCD. When the [EVF SET] is set or the viewfinder field of view is corrected, set the LCD/EVF select switch to EVF.

  • Page 36: Adjusting The Viewfinder Field Of View

    Adjusting the viewfinder field of view Adjust the focus by rotating the eyepiece corrector dial. Recording showing the contents to a partner ¬ Rotate the mode dial to select Rotate the LCD monitor towards the lens side. ≥ Both the LCD monitor and the viewfinder are turned on during the face-to-face recording regardless of the position of the LCD/EVF select switch.

  • Page 37: Recording (Basic)

    Preparation Recording Playback Backup With a PC Others 38 Recording (Basic) 52 Recording (Advanced) VQT1T93...

  • Page 38: Before Recording

    Recording (Basic) ∫ Basic camera positioning ≥ When you are outdoors, record pictures with the sunlight behind you. If the subject is backlit, it will become dark in the recording. ≥ When recording, make sure your footing is stable and there is no danger of colliding with another person or object.

  • Page 39: Auto Ground-Directional Standby (Ags)

    About auto mode AUTO MANUAL FOCUS/ZOOM Color balance (white balance) and focusing are adjusted automatically. Depending on the brightness of the subject etc., the aperture and shutter speed are automatically adjusted for an optimum brightness. (The shutter speed is adjusted to a maximum of 1/250 in recording mode.) jAutomatic white balance (l 143) jAuto focus (l 143)

  • Page 40: Quick Start

    Quick start This unit will resume recording pause mode about 0.6 seconds after the LCD monitor is reopened. ≥ When in quick start standby mode about 70% of the power used in recording pause mode is being consumed, so the recording time will be reduced.

  • Page 41: Recording Motion Pictures

    Recording (Basic) This unit records high definition images that are compatible with the AVCHD format on an SD card or HDD. Sound is recorded with the Dolby Digital 5.1 Creator. 0h00m00s 0h00m00s 0h00m00s R1h20m R1h20m R1h20m ≥ Rotate the mode dial while at the same time pressing in the lock release button A if changing from OFF to another mode.
  • Page 42 About the compatibility of the recorded motion pictures ≥ They are not compatible with devices other than those that support AVCHD. Images cannot be played with equipment that does not support AVCHD (ordinary DVD recorders). Confirm that your equipment supports AVCHD by referring to the operating instructions. ≥...
  • Page 43 For some SD cards, the message appears suddenly, and recording stops. Use a Panasonic SD card or another SD card which can be used to record motion pictures. (l 26) When the unit stops while a usable SD card for recording motion pictures (l 26) is used, the data writing rate has deteriorated.

  • Page 44: Recording Modes/Approximate Recordable Time

    Recording modes/approximate recordable time Switch the picture quality of the motion pictures to be recorded. Select the menu. (l 29) [RECORD SETUP] # [REC MODE] # desired setting SD card 1 GB 2 GB 4 GB 6 GB 8 GB 12 GB 16 GB 32 GB...

  • Page 45: Pre-Rec

    PRE-REC This prevents you from missing a shot. This allows recording of the pictures and sound to start approximately 3 seconds before the recording start/stop button is pressed. Press the PRE-REC button. PRE-REC ] appears on the screen and the unit PRE-REC repeats the update by recording motion pictures for about 3 seconds onto the built-in memory and...

  • Page 46: Recording Still Pictures

    Recording (Basic) The number of pixels recorded for still pictures is [ recorded while recording motion pictures. ≥ Rotate the mode dial while at the same time pressing in the lock release button A if changing from OFF to another mode. ≥...
  • Page 47 Press the button fully. ≥ In order to take better still pictures, the screen will brighten when the button is fully pressed. To record still pictures clearly ≥ While recording motion pictures or during the PRE-REC operation, the following arrangements are applied so that motion picture recording takes preference over still picture recording.

  • Page 48: Number Of Recordable Pictures

    ∫ About the focus indication ≥ The focus indication indicates the status of the auto focus. ≥ The focus indication does not appear in manual focus mode. ≥ You can record still pictures even if the focus indication does not appear, but pictures may be recorded without being focused.

  • Page 49: Zoom In/Out Function

    Recording (Basic) The maximum optical zoom ratio is 12k. ¬ Rotate the mode dial to select     Zoom lever T side: Close-up recording (zoom in) W side: Wide-angle recording (zoom out) ≥ The zoom speed varies depending on the range over which the zoom lever is moved.

  • Page 50: Optical Image Stabilizer

    Recording (Basic) Optical image stabilizer can stabilize the image without decreasing the image quality as much. ¬ Rotate the mode dial to select ≥ This function’s default setting is [ON]. ≥ Set the intelligent auto mode to [OFF] before turning the optical image stabilizer function to [OFF]. ≥...

  • Page 51: Intelligent Auto Mode

    Recording (Basic) It will make an optimal setting automatically depending on the objects and recording conditions. ¬ Set the mode dial to AUTO MANUAL FOCUS/ZOOM It is automatically set to the following modes depending on the objects and recording conditions. Mode Portrait When the object is a...

  • Page 52: Recording (Advanced)

    Recording (Advanced) Select the operation icons to add different effects to the images to be recorded. ¬ Rotate the mode dial to select Press the cursor button, and icons will be displayed on the screen. ≥ The indication changes each time the cursor button is moved down.

  • Page 53: Help Mode

    Tele macro volume adjustment *1 It is not displayed while recording. *2 It is not displayed when the Intelligent auto mode is [ON]. *3 It is displayed only when [AV JACK] is set to [HEADPHONE]. ≥ If you turn off the power or set the mode dial to self timer and tele macro functions are canceled.
  • Page 54 Function Self-timer Intelligent contrast control VQT1T93 Effect This is for recording still pictures using the timer. Each time the [ ] icon is selected, the indication changes by one setting in the following order: [Ø10] # [Ø2] # setting canceled Records after 10 seconds Ø10: Ø2:...
  • Page 55 Function Automatic face detection Soft skin mode MagicPix Tele macro Effect Brightness, quality, and focus are adjusted automatically so the face will be recorded clearly by detecting the face when it is recorded in the dark, such as when the light is shining from behind the objects.

  • Page 56: Volume Adjustment

    Function Headphone volume adjustment Fade: ≥ The thumbnails of scenes recorded using fade in become black (or white). ≥ It will be canceled automatically once the recording time for one scene exceeds 12 hours. Help mode: ≥ When the help mode is used, functions cannot be set.
  • Page 57 Soft skin mode: ≥ If the background or anything else in the scene has colors similar to the skin color, they will also be smoothed. ≥ If the brightness is insufficient, the effect may not be clear. ≥ If you record a person in the distance, the face may not be recorded clearly.

  • Page 58: Recording Functions Of Menus

    Recording (Advanced) ¬ Rotate the mode dial to select ≥ Set to [OFF] when the menus are not used. Function Guide line 24p digital cinema VQT1T93 Recording functions of menus Effect/Setting method You can check if the image is level while recording or playing back motion pictures and still pictures.

  • Page 59: Microphone Setup

    Function Microphone setup [SURROUND]: Sound is recorded with 5.1 ch surround microphone. [ZOOM MIC]: Directivity of the microphone is synchronized with the zoom operation. Sounds near the front of the unit are recorded more clearly if you zoom in (close-up) and surrounding sounds are recorded more realistically if you zoom out (wide angle).
  • Page 60 Function HD hi-speed burst shooting VQT1T93 Effect/Setting method 72 still pictures are recorded at a rate of 24 per second. Use this function to record an object with fast movement. ≥ The Intelligent auto mode is set to [OFF]. (l 51) Select the menu.
  • Page 61 Function Built-in flash Red eye reduction Shutter sound Auto slow shutter Effect/Setting method When the button is pressed, the flash is activated and the picture will be recorded. Use the built-in flash in order to record still pictures in dark places. Select the menu.
  • Page 62 Function Digital cinema color 24p digital cinema: ≥ [Digital Cinema Color] is turned [ON] and is not changeable. ≥ Motion pictures recorded while this setting is turned to [ON] may not be played back properly with a player that does not support 24p.
  • Page 63 Red eye reduction: ≥ The flash is activated 2 times. Do not move until the second flash is finished. ≥ Red eye phenomenon may appear depending on the recording conditions. Auto slow shutter: ≥ If the scene is low in brightness or contrast, the subject may not be focused in on.

  • Page 64: Recording Manually By Setting The Menu

    Recording (Advanced) ¬ Rotate the mode dial to select Set the AUTO/MANUAL switch to MANUAL. ] appears on the screen. Scene mode When you record images in different situations, this mode automatically sets optimum shutter speeds and apertures. Select the menu. (l 29) [BASIC] # [SCENE MODE] # [SET] # desired setting Icon...

  • Page 65: Wind Noise Reduction

    Sports mode ≥ For slow-motion playback or playback pause of recorded pictures, this mode helps diminish camera shake. ≥ During normal playback, the image movement may not look smooth. ≥ Color or brightness of the screen might change under fluorescent light, mercury light or sodium light, etc.

  • Page 66: Microphone Level

    Microphone level When recording, the input level from the built-in microphones and the external microphone terminal can be adjusted. ≥ Set the AUTO/MANUAL switch to MANUAL. (l 64) Select the menu. (l 29) [RECORD SETUP] # [MIC LEVEL] # [SETr ] or [SET] ≥...

  • Page 67: Picture Adjustment

    Picture adjustment Adjust the quality of the image while recording. Adjust by outputting to a TV while adjusting the quality of the image. ≥ Set the AUTO/MANUAL switch to MANUAL. (l 64) Select the menu. (l 29) [ADVANCED] # [PICTURE ADJUST] # [YES] Select the item with the cursor button and press the cursor...

  • Page 68: Luminance

    Luminance Displays the luminance level of the center of the screen (luminance display frame) in %. It makes the adjustment of the brightness of the object easier, by checking the luminance level of the object, when recording same object in different surroundings. Adjust the brightness using [IRIS].

  • Page 69: Recording Manually Using The Multi Manual Ring

    Recording (Advanced) Perform zoom operation, focus, white balance, shutter speed, and iris adjustments using the multi manual ring. ¬ Rotate the mode dial to select Set the AUTO/MANUAL switch to MANUAL. (l 64) A Multi manual ring Operate by rotating the ring B Switching between manual zoom and manual focus Manual zoom [ ] and manual focus [MF] is switched every time the AUTO/MANUAL switch is...

  • Page 70: Zoom Operation

    Zoom operation Zoom operation can be done using the multi manual ring. ≥ Move the AUTO/MANUAL switch from the MANUAL to FOCUS/ZOOM position, and display ]. (l 69) Zoom by rotating the ring. Manual focus adjustment If auto focusing is difficult due to the conditions, then use manual focus. ≥...

  • Page 71: White Balance

    White balance The automatic white balance function may not reproduce natural colors depending on the scenes or lighting conditions. If so, you can adjust the white balance manually. ≥ Set the AUTO/MANUAL switch to MANUAL. (l 64) Press the camera function button and select [WHITE BALANCE] by rotating the ring.

  • Page 72: Manual Shutter Speed/Iris Adjustment

    Manual shutter speed/iris adjustment Shutter Speed: Adjust it when recording fast-moving subjects. Iris: Adjust it when the screen is too bright or too dark. ≥ Set the AUTO/MANUAL switch to MANUAL. (l 64) Press the camera function button and select [SHUTTER SPEED] or [IRIS] by rotating the ring.
  • Page 73 Preparation Recording Playback Backup With a PC Others 74 Playback 83 Editing 92 With a TV VQT1T93...

  • Page 74: Motion Picture Playback

    Playback A Lock release button B Align with the status indicator. ≥ Rotate the mode dial while at the same time pressing in the lock release button if changing from OFF to another mode. Rotate the mode dial to select (When playing back from an SD card) Select [ ] (motion picture...
  • Page 75 Select the scene to be played back and press the cursor button. G Thumbnail display H Previous page I Next page J Play mode select button K Scene number The selected scene is played back on the full screen, and the operation icon is automatically displayed on the screen.

  • Page 76: Skip Playback

    Operating with the remote control Press the 6 or 5 button during playback. SEARCH PLAY SEARCH STILL ADV PAUSE STILL ADV ∫ Skip playback (to the start of a scene) (Operation is possible with the remote control only.) Press the : or 9 button during playback. SEARCH PLAY SEARCH...

  • Page 77: Creating Still Picture From Motion Picture

    Motion picture compatibility ≥ This unit is based on the AVCHD format. ≥ The video signal that can be played back on this unit is 1920k1080/60i, 1920k1080/24p or 1440k1080/60i. ≥ This unit may degrade or not play back motion pictures recorded or created on other products, and other products may degrade or not play back motion pictures recorded on this unit, even if the products...

  • Page 78: Intelligent Scene Selection

    The scenes recorded on the date selected are displayed as thumbnails. ≥ Move the cursor button up or down to select the playback date. Move the cursor button left to select the last date of the previous month, and move it to the right to select the last date of the following month.

  • Page 79: Repeat Playback

    Repeat playback Playback of the first scene starts after playback of the last scene finishes. Select the menu. (l 29) [VIDEO SETUP] # [REPEAT PLAY] # [ON] The [ ] indication appears on the thumbnail and full screen views. ≥ All the scenes on the SD card or HDD are played back repeatedly.

  • Page 80: Still Picture Playback

    Playback A Lock release button B Align with the status indicator. ≥ Rotate the mode dial while at the same time pressing in the lock release button if changing from OFF to another mode. Rotate the mode dial to select (When playing back from SD card) Select [ ] (still picture...
  • Page 81 Select the still picture to be played back and press the cursor button. G Play mode select button H Thumbnail display I Previous page J Next page K Still picture number L Folder/file name The selected still picture is played back on the full screen, and the operation icon is automatically displayed on the screen.

  • Page 82: Playing Back Still Pictures By Date

    Playing back still pictures by date Still pictures recorded on the same day can be played back in succession. Select (By date), then press the cursor button. Select the playback date, then press the cursor button. The still pictures recorded on the date selected are displayed as thumbnails.

  • Page 83: Editing

    Editing Deleted scenes/still pictures cannot be restored, so perform appropriate confirmation of the contents before proceeding with delete. ¬ Rotate the mode dial to select 0h 00m 00s 0h 00m 00s 0h 00m 00s ∫ Deleting multiple scenes/still pictures from the thumbnail display Press the button while the thumbnail view screen is...
  • Page 84 (Only when [SELECT] is selected in step 2) Select the scene/still picture to be deleted, then press the cursor button. ≥ To unselect the scene/still picture, press the cursor button again. ≥ Up to 99 scenes can be selected to be deleted. (Only when [SELECT] is selected in step 2) Press the button.

  • Page 85: Dividing A Scene To Delete

    Editing To delete an unnecessary portion of a scene, first divide the scene and then delete the unnecessary portion. ¬ Select [ ] (motion picture playback) of [ is set to . (l 74) Select the menu. (l 29) [EDIT SCENE] # [DIVIDE] # [SET] Select the scene to be divided, then press the cursor button.

  • Page 86: Protecting Scenes/Still Pictures

    Editing Scenes/still pictures can be protected so that they are not deleted by mistake. (Even if you protect some scenes/still pictures on an SD card or HDD, formatting the SD card or HDD will delete them.) ¬ Rotate the mode dial to select Select the menu.

  • Page 87: Dpof Setting

    Editing You can write the data selecting still pictures to be printed and the number of prints (DPOF data) onto the SD card. ¬ Select [ ] (still picture playback) of [ (l 80) ∫ What is DPOF? DPOF (Digital Print Order Format) is a format which allows the user of a digital camera to define which captured images on the SD card are to be printed, together with information on the...

  • Page 88: Copying Between Sd Card And Hdd

    Editing Motion pictures and still pictures recorded with this unit can be copied between an SD card inserted in this unit and HDD. Confirming remaining capacity on the copy destination ≥ When copying to the HDD, it cannot be copied if there is not enough remaining capacity on the HDD. ≥...

  • Page 89: Cursor Button

    Select the item and press the cursor button. [VIDEO & PICTURE]: All scenes are copied in order of motion pictures, then still pictures. Proceed to step 7. [VIDEO]: Motion pictures are copied. [PICTURE]: Still pictures are copied. (Only when [VIDEO]/[PICTURE] is selected in step 3) Select the item and press the cursor button.
  • Page 90 (Only when [SELECT DATE] is selected in step 4) Press the MENU button. MENU When the confirmation message appears, select [YES], then press the cursor button. ≥ If more than 2 SD cards are necessary to copy, change the card following the instructions on the screen.

  • Page 91: Formatting Sd Cards And Hdd

    Editing Please be aware that if an SD card or HDD is formatted, then all the data recorded on the SD card or HDD will be erased. Back up important data on a PC, DVD disc etc. ∫ Formatting SD cards ¬...

  • Page 92: With A Tv

    ≥ Use the supplied component cable to connect the unit via the component terminal on your TV, while using the supplied AV cable to connect it to the video terminal. Use of the following Panasonic HDMI mini cables is recommended to connect the unit to the HDMI terminal.
  • Page 93 ≥ Check that the plugs are inserted as far as they go. ≥ We recommend using Panasonic HDMI mini cables (optional). Part numbers: RP-CDHM15 (1.5 m/4.9 feet), RP-CDHM30 (3.0 m/9.8 feet) ≥ Do not use any other component cables except the supplied one.
  • Page 94 ≥ If a wide-screen TV is connected, adjust the aspect setting on the TV. (Refer to the operating instructions of the TV for details.) Refer to the following support site for information about Panasonic TVs with an SD card slot for playing back your pictures. http://panasonic.net/ ≥...

  • Page 95: Connecting With A Hdmi Mini Cable

    TV and then play back the recorded high definition images, you can enjoy them in high resolution with high quality sound. If you connect this unit to a Panasonic TV compatible with VIERA Link, linked operations (VIERA Link) are possible. (l 97) Select the desired method of HDMI output when using an HDMI mini cable (optional).

  • Page 96: Listening In 5.1 Channel Sound

    ≥ Please read the operating instructions for the AV amplifier, speakers and TV for more information about how to connect them etc. ≥ If you connect this unit to a Panasonic AV amplifier and Panasonic TV that are compatible with VIERA Link, linked operations (VIERA Link) become possible. (l 97) ≥...

  • Page 97: Playback Using Viera Link (Hdavi Control )

    EZ Sync ≥ This function allows you to use your remote control for the Panasonic TV for easy operations when this unit has been connected to a VIERA Link compatible device using a HDMI mini cable (optional) for automatic linked operations.
  • Page 98 VIERA Link, read the operating instructions for the devices. ≥ Available linked operations between this unit and a Panasonic TV is different depending on the types of Panasonic TVs even if they are compatible with VIERA Link. Refer to the operating instructions of the TV for the operations that support on the TV.

  • Page 99: Backup

    Preparation Recording Playback Backup With a PC Others 100 With other products VQT1T93...

  • Page 100: Connecting A Dvd Burner To Copy To/Play Back A Disc

    VW-BN1). The copied DVD disc can also be played back. ≥ Please read the operating instructions of the DVD burner for how to use it. Preparing for copying/playing back We recommend using Panasonic DVD burner VW-BN1. About discs that can be used for copying Copy to a new* 12 cm DVD-RAM, DVD-RW, DVD-R or DVD-R DL.
  • Page 101 Connect the AC adaptor (supplied with VW-BN1) to the DVD burner. ≥ You cannot supply power to the DVD burner from this unit. Connect this unit to the AC adaptor and set the mode dial to Connect this unit to the DVD burner with the Mini AB USB Connection Cable (supplied with VW-BN1).

  • Page 102: Copying To Discs

    Copying to discs Motion pictures are copied as AVCHD format high definition images. ≥ We recommend preparing the necessary number of discs that can be used for copying (l 100), and spare discs. ≥ You cannot copy from multiple SD cards to 1 disc. (You can additionally copy only to a DVD-RAM.) ≥...
  • Page 103 (Only when [SELECT DATE] is selected in step 4) Select the date you want to copy and press the cursor button. ≥ When the cursor button is pressed again, the selected date will be canceled. ≥ Up to 99 dates can be selected in succession. ≥...

  • Page 104: Important Notice

    Important Notice ≥ When connecting an optional DVD burner and this unit for copying a disc, do not insert a disc with recorded motion pictures into devices that do not support the AVCHD format. In some cases the disc may get stuck in the device. The disc will not play back on devices that do not support the AVCHD format.
  • Page 105 ∫ To copy the data on a new disc successively after confirming the contents of the copied disc by playing it back Press the DISC COPY button on the playback thumbnail view to display the selection screen in Step 2, so that you can copy data again. ≥...

  • Page 106: Playing Back The Copied Disc

    Playing back the copied disc ≥ Only discs that have been copied by connecting this unit to the DVD burner or where motion pictures have been recorded in AVCHD format can be played back. It may not be possible to play back discs recorded on other devices.

  • Page 107: Formatting Discs

    Managing the copied disc (Formatting, Auto protect, Displaying disc information) ≥ Connect this unit to the DVD burner and then select [PLAY DISC]. (l 100) ∫ Formatting discs This is for initializing DVD-RAM and DVD-RW discs. ≥ Select [ ] tab. Please be aware that if a disc is formatted, then all the data recorded on the disc will be erased.

  • Page 108: Dubbing Images Onto Other Video Device

    With other products Images played back on this unit can be dubbed onto a DVD recorder or video device. ≥ Images are dubbed in standard quality. ≥ Use the AC adaptor to free you from worrying about the battery running down. Connect this unit to a video device and then set the mode dial to ≥...

  • Page 109: With A Printer (Pictbridge)

    With other products To print pictures by directly connecting this unit to the printer, use a printer compatible with PictBridge. (Read the operating instructions for the printer.) PictBridge is an industry standard from the Camera & Imaging Products Association (CIPA) for direct printing.
  • Page 110 ≥ To cancel the setting, set the number of prints to [0]. ≥ Up to 8 files can be set in succession by repeating steps 4 and 5. Press the MENU button to display the PictBridge menus. MENU Select the date print setting on [DATE PRINT].

  • Page 111: With A Pc

    Preparation Recording Playback Backup With a PC Others 112 Before using 117 Setup 121 Using with a PC VQT1T93...

  • Page 112: What You Can Do With A Pc

    Before using Software required CD-ROM (supplied): HD Writer 2.6E for HDC VQT1T93 What you can do with a PC Available function Copying data to a PC: A Motion/Still pictures 1 Built-in HDD Copying in AVCHD format A Motion/Still pictures B Motion pictures 1 Built-in HDD Copying in DVD- Video format...
  • Page 113 Software required Standard Windows picture Playing back on a PC viewer or a commercially available picture viewer Windows Explorer Copying still pictures to a PC (l 120) Refer to page 122 if using a Macintosh. *1 Refer to the operating instructions of HD Writer 2.6E (PDF file) for details on how to use it. *2 Compatible media are SD card and discs (DVD-RAM, DVD-RW, DVD-R and DVD-R DL).

  • Page 114: End User License Agreement

    End User License Agreement Before opening the CD-ROM package, please read the following. You (“Licensee”) are granted a license for the Software defined in this End User Software Agreement (“Agreement”) on condition that you agree to the terms and conditions of this Agreement.

  • Page 115: Operating Environment

    Before using ≥ Even if the system requirements mentioned in these operating instructions are fulfilled, some PCs cannot be used. ≥ A CD-ROM drive is necessary to install the supplied software applications. (A compatible DVD writer drive and media are necessary for writing to a DVD.) ≥...
  • Page 116 Necessary software Windows Vista: DirectX 10 Windows XP/2000: DirectX 9.0c ≥ If you install the software on a PC that is not compatible with Sound DirectSound Support Interface USB port [Hi-Speed USB (USB 2.0)] Other requirements Mouse or equivalent pointing device ≥...

  • Page 117: Setup

    Setup When installing the software, log on to your PC as the Administrator (or with a user name with equivalent authorization) or with the user name for a standard user account. (If you do not have authorization to do this, consult your manager.) ≥...

  • Page 118: Control Panel

    After the installation is complete, restrictions are displayed. Check the contents, then close the window. ∫ Uninstalling HD Writer 2.6E Follow the steps below to uninstall any software applications that you no longer require. Select [start] # ([Settings] #) [Control Panel] # [Add or Remove Programs (Applications)] or [Uninstall a program].

  • Page 119: Connection And Recognition

    Setup After the software applications are installed, this unit must be connected to the PC and be correctly recognized by the PC. ≥ Remove the supplied CD-ROM from your PC. A USB cable (supplied) Connect this unit to the AC adaptor.

  • Page 120: About The Pc Display

    About the PC display When the unit is connected to a PC, it is recognized as an external drive. ≥ [Removable Disk] (Example: Example folder structure of an SD card: Removable Disk DCIM 100CDPFQ 101CDPFR 102CDPFS MISC PRIVATE AVCHD AVCHDTN BDMV IISVPL We recommend using HD Writer 2.6E to copy...

  • Page 121: Using With A Pc

    (On the PC) Select [start] # [All Programs (Programs)] # [Panasonic] # [HD Writer 2.6E] # [HD Writer]. ≥ For details on how to use the software applications, read the PDF operating instructions of the software.

  • Page 122: If Using Macintosh

    Using with a ≥ HD Writer 2.6E is not available for Macintosh. ∫ Operating environment for the card reader function (mass storage) Macintosh Mac OS X 10.4 Mac OS X 10.5 PowerPC G5 (1.8 GHz or higher) Intel Core Duo Intel Core Solo 64 MB or more Interface...

  • Page 123: Others

    Preparation Recording Playback Backup With a PC Others 124 Indications 130 Helpful hints VQT1T93...

  • Page 124: Indications

    Indications ∫ Recording indications Motion picture recording 0h00m00s R 1h20m 1920 PRE-REC 1/100 OPEN NOV 1 2008 12:34PM 3000 MEGA A Still picture recording (when the button is pressed halfway) Remaining battery power (l 25) 1h30m Remaining battery time (l 25) R 1h20m Remaining time for motion picture recording (l 43)

  • Page 125: Playback Indications

    Zoom magnification indication (l 49) Zoom microphone (l 59) Focus microphone (l 59) Wind noise reduction (l 65) Microphone level (l 66) Headphone (l 31) Automatic face detection (l 55) Backlight compensation (l 53) Soft skin mode (l 55) Tele macro (l 55) Fade (White), Fade (Black) (l 53) MagicPix function (l 55)
  • Page 126 DPOF already set (to more than 1) (l 87) Protected motion pictures/still pictures (l 86) Number of recording pixels for still pictures (l 48) 1920k1080 The picture size is not displayed for still pictures recorded with other products that have different picture sizes from the sizes shown above.

  • Page 127: Messages

    Messages Indications Major confirmation/error messages to be indicated on the LCD monitor or the viewfinder in text. RECOMMEND DATA BACK UP PERIODICALLY. We recommend backing up important recorded motion pictures and still pictures periodically to a PC, DVD disc etc. to protect it. This message does not indicate that there is a problem with this unit. HDD BACKUP RECOMMENDED.
  • Page 128 ≥ Use a battery that is compatible with this unit. (l 22) If using a Panasonic battery compatible with this unit, remove the battery and then insert it again. If the message appears even after repeating this several times, this unit needs repair. Detach the power and contact consumer support.

  • Page 129: About Recovery

    About recovery If faulty management information is found when the HDD or an SD card is accessed, one of the following messages may appear. Be sure to follow directions in the messages. (Repairing may take time depending on the error.) CONTROL DATA ERROR HAS BEEN DETECTED.

  • Page 130: Helpful Hints

    Helpful hints Some functions in this unit are disabled or cannot be selected due to the unit’s specifications. Functions Motion picture recording PRE-REC Microphone setup Wind noise reduction Digital zoom Intelligent auto mode Automatic face detection mode Backlight compensation Intelligent contrast control MagicPix (Set and cancel) Soft skin mode (Set and cancel) Tele macro (Set and cancel)
  • Page 131 Functions Guide lines 24p digital cinema HD hi-speed burst shooting mode Shutter sound Flash Auto slow shutter Digital cinema color Scene mode The sunset, fireworks or scenery mode of scene mode Luminance display Histogram display MF assist function Change of white balance Adjusting the shutter speed, iris/gain Conditions which disable the functions ≥...

  • Page 132: Troubleshooting

    Helpful hints Problem This unit cannot be turned on. This unit does not stay on long enough. Battery runs down quickly. This unit is turned off automatically. A clicking sound is heard when the unit is shaken about. Remaining battery indication is not displayed properly.
  • Page 133 Problem This unit cannot be operated though it is turned on. This unit does not operate normally. The remote control does not function. The remaining time indication or the elapsed time indication is not shown. Recording does not start although power is supplied to this unit and the SD card is correctly inserted.
  • Page 134 Problem Color balance of images is strange when recording in a place such as a gymnasium. Some playback images are skipped automatically. Scene does not playback to the end. Although this unit is correctly connected to a TV, images cannot be seen.
  • Page 135 Problem If the SD card is inserted in another device, it is not recognized. The indication disappears. The screen is frozen. No operation can be performed. Color or brightness of the image changes, or you may see horizontal bars in the image. Object seems to be warped White round spots like...
  • Page 136 Problem VIERA Link does not work. When connected by the USB cable, this unit is not detected by the PC. When the USB cable is disconnected, an error message will appear on the PC. The power of the DVD burner cannot be turned Cannot see the PDF operating instructions for HD Writer 2.6E.
  • Page 137 ∫ If scenes do not change smoothly when played back on another device The images may be still for several seconds at the joins between the scenes if the following operations are performed when multiple scenes have been continuously played back using another unit. ≥...
  • Page 138 ∫ When PRE-REC was used for recording 1 Normal recording 2 PRE-REC recording A The picture momentarily stops at the end of the last scene that was recorded normally before PRE- REC recording. ∫ When the recording mode was changed from HA/HG/HX to HE or from HE to HA/HG/HX A The picture momentarily stops where the scenes switch between HA/HG/HX and HE modes.

  • Page 139: When Deleting Scenes

    ∫ When deleting scenes ∫ Example 1: Deleting scenes midway through a sequence of scenes. 1 Scene to be deleted A The image will be still for several seconds wherever a scene was deleted. B The images of consecutive scenes where they are no deletions are played back smoothly one after another.

  • Page 140: Cautions For Use

    Cautions for use About this unit The unit and the SD card become warm during use. This is not a malfunction. Keep the High Definition Video Camera as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

  • Page 141: About The Battery

    3 seconds. When the HDD data deletion screen appears, select [YES], and then follow the on-screen instructions. ≥ Please look after the data in your HDD carefully. Panasonic will not be held responsible in the unlikely case that private data is divulged. About the battery The battery used in this unit is a rechargeable lithium-ion battery.

  • Page 142: About Condensation

    adaptor 1 m (3.3 feet) or more away from the radio. ≥ When using the AC adaptor, it may generate whirring sounds. However, this is normal. ≥ After use, be sure to disconnect the AC adaptor. (If it is left connected, a minute amount of current is consumed.) ≥...

  • Page 143: Explanation Of Terms

    Explanation of terms Automatic white balance White balance adjustment recognizes the color of light and adjusts so the white color will become a purer white. The unit determines the hue of light that comes through the lens, thereby judging the recording condition, and selects the closest hue setting.
  • Page 144 Recording a subject behind dirty or dusty window The subject behind the window will not be focused because the focus is on the dirty window. Similarly, when recording something on the opposite side of a road with heavy traffic, a vehicle that happens to pass by may be brought into focus.

  • Page 145: Specifications

    Specifications High Definition Video Camera Information for your safety Power source: Power consumption: Signal system Recording format Image sensor Lens Filter diameter Zoom Monitor Viewfinder Microphone Speaker White balance adjustment Standard illumination Minimum required illumination AV terminal video output level Component terminal video output level HDMI mini connector...
  • Page 146 HDMI mini connector audio output level MIC input Flash Dimensions Mass (Weight) Mass (Weight) in operation Operating temperature Operating humidity Battery operation time Motion pictures Recording media Compression Recording mode and transfer rate Picture size Audio compression VQT1T93 5.1 ch (AC3)/2 ch (Linear PCM) j70 dBV (Mic sensitivity j50 dB equivalent, 0 dB=1 V/Pa, 1 kHz) (Stereo mini jack) Reader/writer function:...
  • Page 147 Still pictures Recording media Compression Picture size AC adaptor Information for your safety Power source: Power consumption: DC output: Dimensions Mass (Weight) Specifications may change without prior notice. SD Memory Card: 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB (FAT12 and FAT16 system corresponding) SDHC Memory Card: 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32 system...

  • Page 148: Optional Accessories

    Optional accessories Accessory No. VW-AD21PP-K VW-VBG130 VW-VBG260 *2*3 VW-VBG6 VW-VH04 RP-CDHM15 RP-CDHM30 VW-T3714H VW-W3707H VW-LDC103PP VZ-LL10 VQT1T93 Figure AC adaptor with AC Cable and DC Cables Rechargeable Lithium Ion Battery Pack Rechargeable Lithium Ion Battery Pack Rechargeable Lithium Ion Battery Pack Battery pack holder kit HDMI mini cable Tele conversion lens...
  • Page 149 Accessory No. RP-SDM12GU1K RP-SDM06GU1K RP-SDM04GU1K RP-SDM02GU2A RP-SDM02GU1A RP-SDV32GU1K RP-SDV16GU1K RP-SDV08GU1K RP-SDV04GU1K RP-SDV02GU1A VW-BN1 *1 The supplied DC cables cannot be used on this unit. *2 Please refer to page 24, concerning the battery charging time and available recording time. *3 The battery pack holder kit VW-VH04 (optional) is necessary. *4 Available from Sep.

  • Page 150: Accessory Order Form (For Usa Customers)

    TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE In CANADA, please contact your local Panasonic dealer for more information on Accessories. VQT1T93 Price Each Your State &...

  • Page 151: Request For Service Notice (Usa Only)

    Request for Service Notice: Mail this completed form and your Proof of Purchase along with your unit to: Panasonic Camera and Digital Service Center • Please include your proof of purchase. (Failure to do so will delay your repair.) •...

  • Page 152: Limited Warranty (For Usa Customers)

    If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished...

  • Page 153: Customer Services Directory

    1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pstc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com...

  • Page 154: (For Canadian Customers)

    5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT – LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

  • Page 155: Index

    Index ∫ Numerics 24p digital cinema .....58 5.1 channel ......96 ∫...
  • Page 156 ∫ P PictBridge ......109 Picture adjustment .....67 Playing back motion pictures by date .

  • Page 157: Spanish Quick Use Guide/Guía Española Para El Uso Rápido

    Spanish Quick Use Guide/Guía española para el uso rápido ∫ Carga de la batería Luz indicadora de carga [CHARGE] A Encendida: Carga en curso Apagada: Carga completada 1) Conecte el cable de CA al adaptador de CA y a la toma de CA. 2) Instale la batería en el compartimiento alineando la marca y, a continuación, conéctela de forma segura.
  • Page 158 ≥ Para extraer la tarjeta SD, presione en el centro de la tarjeta SD y luego tire de ella derecho hacia fuera. 4) Cierre firmemente la tapa de la tarjeta SD. ≥ Ciérrela firmemente hasta que dispare. ∫ Selección del idioma 1) Pulse el botón MENU, seleccione [LANGUAGE] y, luego, pulse el botón cursor.
  • Page 159 ∫ Reproducción de películas 1) Gire el selector de modo para seleccionar 2) (Cuando reproduce la tarjeta SD) Seleccione [ ] (reproducción de películas) B de la ficha [ de tarjeta) A usando el botón cursor. (Cuando reproduce la HDD) Seleccione [ ] (reproducción de películas) D de la ficha [...
  • Page 160 Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Panasonic Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3...

This manual is also suitable for:

Hdc-hs100pcHdc-hs100kHdc hs100 - flash memory high definition camcorderH1 - toughbook - atom z540Hdc-sd100p

Table of Contents
