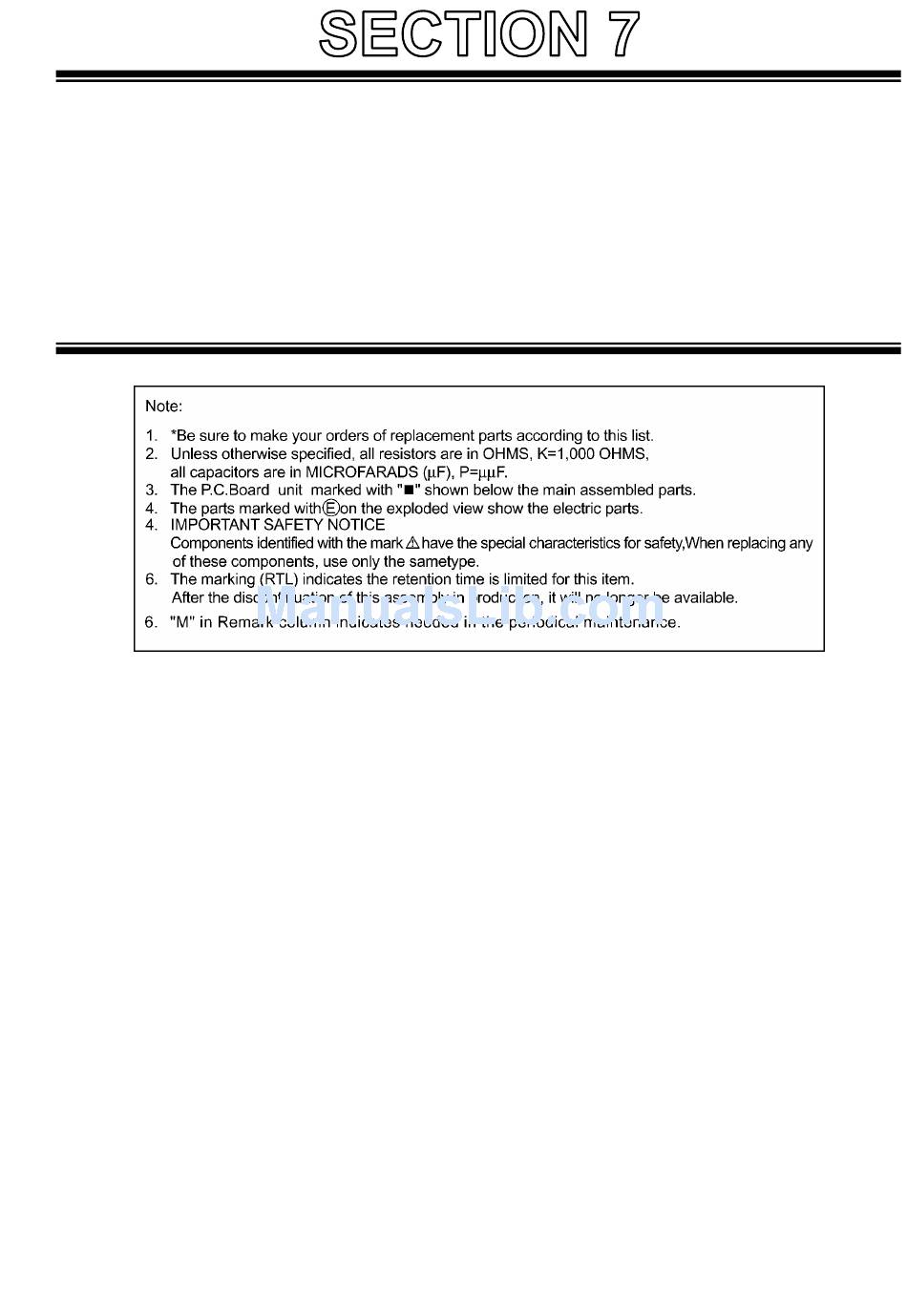

Panasonic Broadcast

Mechanical Parts List

AJ-HPX2000P, AJ-HPX2100E/MC, AJ-YA350G
MODEL No.:
CONTENTS
OVERALL SECTION (2) ..................................................................................................................MPL-3
CAMERA PARTS ASSEMBLY(1) ....................................................................................................MPL-5
CAMERA PARTS ASSEMBLY(2) ....................................................................................................MPL-7
CAMERA PARTS ASSEMBLY(3) ....................................................................................................MPL-7
SIDE CASE (R) PARTS ASSEMBLY...............................................................................................MPL-13
CARD GUIDE PARTS ASSEMBLY .................................................................................................MPL-15
REAR JACK PARTS ASSEMBLY....................................................................................................MPL-17
BACK CASE PARTS ASSEMBLY ...................................................................................................MPL-19
LCD PARTS ASSEMBLY.................................................................................................................MPL-21
PACKING PARTS ASSEMBLY........................................................................................................MPL-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AJ-HPX2000P and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic AJ-HPX2000P

  • Page 1: Table Of Contents

    Panasonic Broadcast Mechanical Parts List AJ-HPX2000P, AJ-HPX2100E/MC, AJ-YA350G MODEL No.: CONTENTS CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1)...MPL-1 OVERALL SECTION (2) ...MPL-3 CAMERA PARTS ASSEMBLY(1) ...MPL-5 CAMERA PARTS ASSEMBLY(2) ...MPL-7 CAMERA PARTS ASSEMBLY(3) ...MPL-7 TOP CASE & HANDLE PARTS ASSEMBLY ...MPL-11 SIDE CASE (R) PARTS ASSEMBLY...MPL-13...
  • Page 2: Casing & Frame Parts Assembly Overall Section (1)

    CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1) CAMERA ASS'Y (Page MPL-5,7,9) TOP CASE & HANDLE ASS'Y (Page MPL-11) MPL-1 Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. (BACK CASE ASS'Y) (Page MPL-19) SIDE CASE (R) ASS'Y...
  • Page 3 OVERALL SECTION (1) Ref.No. Part No. Part Name & DescriptionPcs VYK2B02 BOTTOM CASE U VMP4853 LENS CONNECTOR PLATE VYQ2306 FOOT BASE U VKC0560 HINGE VJF1158 CLAMPER  6 VEE1C95 LENS CABLE VSC5875 MIC SHEILD CASE VMP8764 PB GUIDE ANGLE BOTTOM VGQ8103 PB GUIDE 2 VEE0Z86...
  • Page 4 OVERALL SECTION (2) * The part number of card holder is written in Electric Parts List of each P.C.Board. REAR JACK ASS'Y (Page MPL-17) Components identified with the mark When replacing any of these components, use only the same type. E8-1 MPL-3 have the special characteristics for safety.
  • Page 5 OVERALL SECTION (2) Ref.No. Part No. Part Name & DescriptionPcs VMP8767 RECEIVER BOX VYF3042 RECEIVER COVER U VEE1B91 RECEIVER CABLE VWJ16G8100L0 FFC VWJ40G7145L0 FFC VWJ30G7125L0 FFC VEE0Z89 L SIDE CABLE VWJ40H2210L0 FFC VWJ30G6060L0 FFC VEE1A00 L SIDE LED CABLE  11 VEE1C61 USB CABLE ...
  • Page 6: Camera Parts Assembly(1)

    CAMERA PARTS ASSEMBLY(1) E/MC only E/MC only E/MC only MPL-5 Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type.
  • Page 7 VEP23650A DRIVE P.C.BOARD VEP23653A PULSE P.C.BOARD VEP23652A PRE AMP P.C.BOARD Remarks Ref.No. Part No. Part Name & DescriptionPcs 1 FOR AJ-HPX2000P 1 FOR AJ-HPX2100E/MC 1 FOR AJ-HPX2000P 1 FOR AJ-HPX2100E/MC 1 J0KG00000001 1 FOR AJ-HYPX2100E/MC 2 E/MC: 4PCS MPL-6 Remarks...
  • Page 8 CAMERA PARTS ASSEMBLY(2) MPL-7...
  • Page 9 SCREW XYN26+F6FJ SCREW XQS2+A4FJK SCREW XSB3+6FJK SCREW VEP20B25C CCD P.C.BOARD VEP80D27A POSITION SENSOR P.C.BOARD VEP80D28A POSITION SENSOR P.C.BOARD Remarks Ref.No. Part No. Part Name & DescriptionPcs 1 FOR AJ-HPX2000P 1 FOR AJ-HPX2100E/MC 1 FOR AJ-HPX2000P 1 FOR AJ-HPX2100E/MC MPL-8 Remarks...
  • Page 10: Camera Parts Assembly(2)

    CAMERA PARTS ASSEMBLY(3) MPL-9...
  • Page 11: Camera Parts Assembly(3)

    CAMERA PARTS ASSEMBLY(3) Ref.No. Part No. Part Name & DescriptionPcs VYK1R08 FRONT CASE 1U VJF1256 CABLE CLAMPER VMG0948 EVF RUBBER SHIELD VMC1210 FRONT DOOR SPRING VMP4850 FRONT DOOR ANGLE VMS4088 FRONT DOOR ANGLE PIN VKF2485 FRONT DOOR VMG0832 SHIELD TUBE VXU1620 RUBBER BUTTON ASS'Y VGU9299...
  • Page 12: Top Case & Handle Parts Assembly

    TOP CASE & HANDLE PARTS ASSEMBLY except , 11 , 14 , E24 , 106 , 110 , 111 , MPL-11 Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 112 112...
  • Page 13 TOP CASE & HANDLE PARTS ASSEMBLY Ref.No. Part No. Part Name & DescriptionPcs  1 VYK2B03 TOP CASE U VGM2190 TOP CASE VYQ3866 SLIDER U VGH4698 VF LOCK NAME PLATE U VGM2168 VF BASE VYQ4071 VF RING U VGU9854 SHAFT LOCK KNOB VLP0186 FERRITE CORE VJF1319...
  • Page 14: Side Case (R) Parts Assembly

    SIDE CASE (R) PARTS ASSEMBLY MPL-13 Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type.
  • Page 15 XQN2+BJ4FJK SCREW XTB26+6GFJK SCREW XYN2+J6FJ SCREW VEP80E01A SPD LCD P.C.BOARD Remarks Ref.No. Part No. Part Name & DescriptionPcs VEP80D82A 1 FOR AJ-HPX2000P VEP80D11A 1 FOR AJ-HPX2100E/MC VEP80E07A VEP80D09A 1 FOR AJ-HPX2000P VEP80D03A 1 FOR AJ-HPX2100E/MC VEP80C64A VEP80D04A 2 J0KG00000001 MPL-14 Remarks SPD SSW P.C.BOARD...
  • Page 16: Card Guide Parts Assembly

    CARD GUIDE PARTS ASSEMBLY * The part number of card holder is written in Electric Parts List of each P.C.Board. MPL-15...
  • Page 17 CARD GUIDE PARTS ASSEMBLY Ref.No. Part No. Part Name & DescriptionPcs VGQ9272 CARD GUIDE VGH4773 CARD PLATE 1 VMT1581 PB HOLD CUSHION (4) VSC5673 CARD EARTH ANGLE VSC5674 CARD GUIDE HEAT SINK 1 VSC5675 CARD GUIDE HEAT SINK 2 VMT1628 CARD BRAKE PAD VGH4802 CAD PLATE 2...
  • Page 18: Rear Jack Parts Assembly

    REAR JACK PARTS ASSEMBLY MPL-17 Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type.
  • Page 19 REAR JACK PARTS ASSEMBLY Ref.No. Part No. Part Name & DescriptionPcs VEJ2279 REAR JACK 1U VGU9300 SLIDE SW BUTTON VMG1511 RUBBER CAP C VMG1085 RAIN COVER RUBBER VGL1038 BOTTOM TALLY COVER VEE1B06 CABLE VEE1C30 ECU CABLE U  8 VEE1C96 DC OUT CABLE U K1SYYYYA0002 BNC CONNECTOR VEE1B45...
  • Page 20: Back Case Parts Assembly

    BACK CASE PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. MPL-19...
  • Page 21 BACK CASE PARTS ASSEMBLY Ref.No. Part No. Part Name & DescriptionPcs VYK0Z63 BACK CASE U VJF1476 BATTERY ADAPTOR B VGF0960 CONNECTOR COVER VGF1058 BACK CASE COVER VMX2606 SPACER  6 VJF1347S ANTON BRACKET VKC0601 HINGE (REAR) VJF1498 TERMINAL HOLDER VJR0696 CONNECTION TERMINAL VJF1158 CLAMPER...
  • Page 22: Lcd Parts Assembly

    LCD PARTS ASSEMBLY MPL-21...
  • Page 23 LCD PARTS ASSEMBLY Ref.No. Part No. Part Name & DescriptionPcs VYK2B05 LCD U VGQ8616 HINGE COVER (LOWER) VGQ8775 HINGE COVER (TOP) VXD0465 HINGE VMG1286 CUSHION RUBBER VKW3338 UPPER LCD COVER VGP6152 LCD CASE BOTTOM VMT1717 WATERPROOF PAD VMZ3610 LCD PCB INSULATION SHEET XQN16+B4FJK SCREW VEP08346A...
  • Page 24: Packing Parts Assembly

    PACKING PARTS ASSEMBLY E only MC only MC only Components identified with the mark When replacing any of these components, use only the same type. E only MC only MC only MC only MPL-23 have the special characteristics for safety. MC only MC only MC only...
  • Page 25 PACKING CASE Remarks Ref.No. Part No. Part Name & DescriptionPcs 1 AJ-HPX2000P 1 FOR AJ-HPX2100E 1 FOR AJ-HPX2100MC 1 (CD-R)FOR AJ-HPX2000P/2100E 1 FOR AJ-HPX2100MC 1 AJ-HPX2000P 1 FOR AJ-HPX2100E/MC 2 FOR AJ-HPX2100E 2 FOR AJ-HPX2100MC 8 FOR AJ-HPX2100MC 1 FOR AJ-HPX2100MC...
