Summary of Contents for Panasonic AG-HSC1UP
-

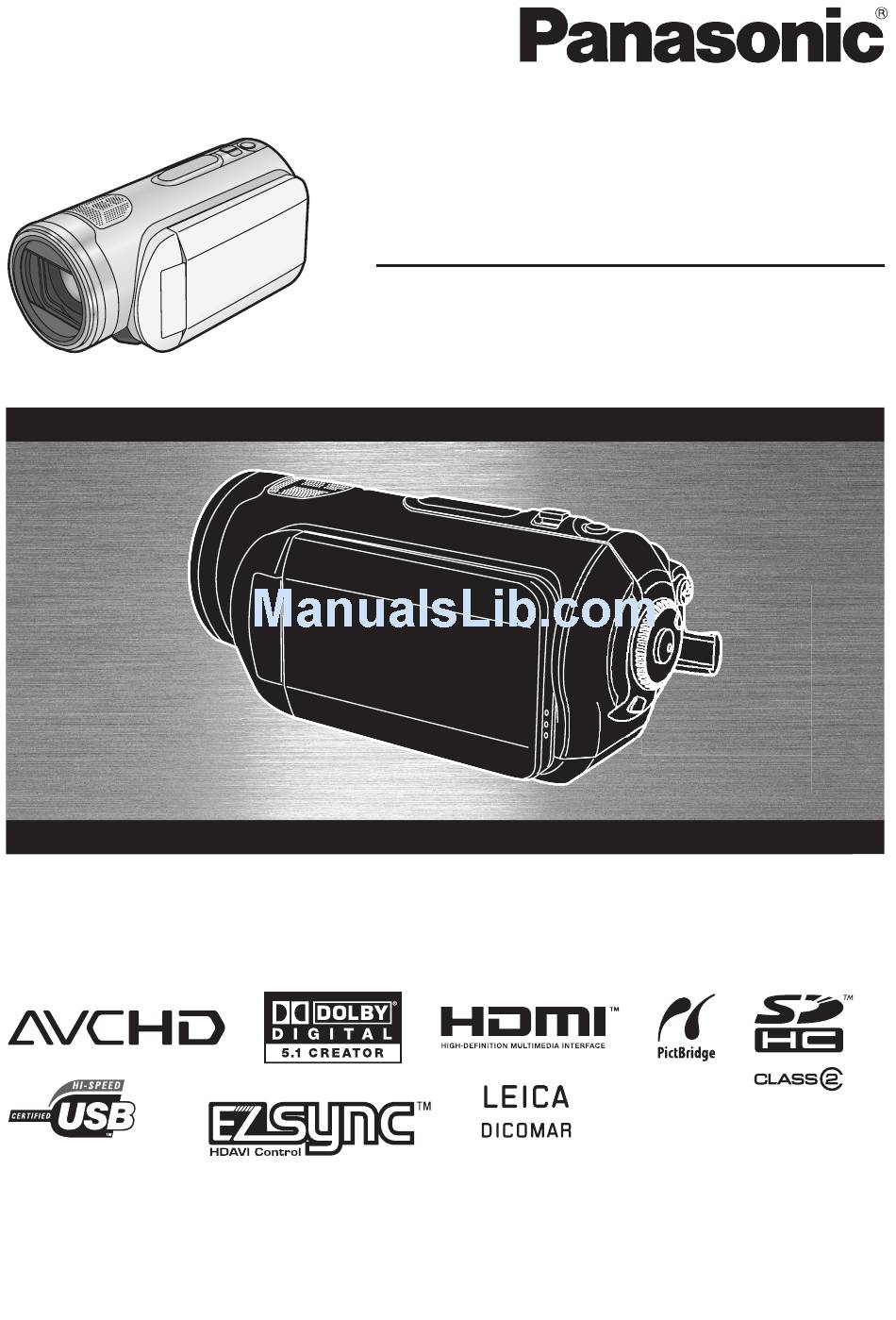

Page 1: Operating Instructions
Operating Instructions High Definition Video Camera AG-HSC1UP Model No. Before connecting, operating or adjusting this product, please read the instructions completely. Spanish Quick Use Guide is included. Guía para rápida consulta en español está incluida. VQT1F36... -
Page 2: Things You Should Know
Things You Should Know Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the right. - Page 3 Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support contact: Panasonic Broadcast & Television Systems Company 1-800-524-1448 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Batteries 1) Battery pack (Lithium ion battery pack) ≥Use the specified unit to recharge the battery pack. ≥Do not use the battery pack with equipment other than the specified unit. ≥Do not get dirt, sand, liquids, or other foreign matter on the terminals. ≥Do not touch the plug terminals (i and j) with metal objects.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. - Page 6 Precautions USE & LOCATION WARNING ≥TO AVOID SHOCK HAZARD ... Your camera and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your camera if it gets wet. Your camera has been designed for outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or even a...
- Page 7 ª Indemnity concerning recording content The manufacturer shall in no event be liable for the loss of recordings due to malfunction or defect of this unit, its accessories or recordable media. IMPORTANT ª Carefully observe copyright laws Whatever you have recorded and created can be used for your personal entertainment only.
-
Page 8: Table Of Contents
Contents Quick Guide ... 10 Before using Features of the High Definition Video Camera... 13 Accessories ... 18 Parts identification and handling ... 19 Using the LCD monitor ... 24 Using the remote control... 24 Cards that you can use with this unit... - Page 9 Contents Editing Editing scenes... 74 Deleting scenes...74 Protecting scenes...75 Editing still pictures... 76 Deleting still pictures ...76 Protecting still pictures ...77 DPOF setting...78 Card management Formatting ... 79 Formatting an SD card ...79 With other products With a TV... 80 Playback using EZ Sync™...
-
Page 10: Quick Guide
Quick Guide ª Charging the battery 1) Connect the AC cable to the AC adaptor and the AC outlet. 2) Put the battery on the battery mount by aligning the mark, and then securely plug it in. ≥The output plug of the AC cable is not completely connected to the AC adaptor jack. - Page 11 ª Inserting/removing an SD card 1) Set the mode dial to OFF. 2) Open the LCD monitor and then open the card slot cover. 3) Insert/remove the SD card into/from the card slot. ≥When inserting an SD card, face the label side A upwards and press it straight in as far as it goes.
-
Page 12: Motion Picture Playback
ª Motion picture playback 1) Rotate the mode dial to select 2) Press the cursor button up and then left to select the (motion pict ure playback) tab. A Motion picture playback tab 3) Select the scene to be played back. B Previous page C Next page D Scene number... -
Page 13: Before Using
Features of the High Definition Video Camera Very clear high definition pictures This unit is an AVCHD format video camera for recording highly detailed high definition images on an SD card. You can watch images in high-resolution HD video if you connect this unit and a high definition TV and then play back the images. - Page 14 Watching high definition images If you connect this unit and a high definition TV with a HDMI cable (optional) and then play back the pictures, you can enjoy watching them in high definition. A High definition TV B HDMI cable (optional) ≥If you connect this unit to a TV that does not support high definition, the images will be standard quality.
- Page 15 Using the remote control for the TV for playback If you connect this unit to a Panasonic TV compatible with EZ Sync cable, you can use the remote control for the TV for playback. Refer to the operating instructions of the TV for details.
- Page 16 Listening in 5.1 channel surround sound This unit has 5 internal microphones and a Dolby Digital 5.1 Creator so you can record sound with presence that is even closer to the actual sound. The low bass area is sent to the 0.1 channel subwoofer and you can playback sound with three-dimensional presence if you connect to a device that is compatible with the 5.1 surround system.
- Page 17 Saving the data on the SD card When the SD card is full or to prevent the data from being deleted, use the supplied software (HD Writer Ver1.0E for SD1) to copy the data on the SD card to the hard disk of the computer. A USB cable (supplied) ª...
-
Page 18: Accessories
K2KZ9CB00002 Component cable K2KZ9DB00004 USB cable K2KZ4CB00011 CD-ROM SD Media Storage VW-PT2ZP ≥The standard accessories for this unit are the same as the standard accessories for the Panasonic High Definition Video Camera HDC-SD1 except for the SD Media Storage. VQT1F36... -
Page 19: Parts Identification And Handling
Parts identification and handling 1) Lens (LEICA DICOMAR) 2) Built-in flash for still pictures only (l 57) 3) Recording lamp (l 107) 4) White balance sensor/remote control sensor (l 25, 66) 5) Lens cover 6) Status indicator (l 32) 7) Mode dial (l 32) 8) LCD monitor open latch (l 24) 9) Menu button [MENU] (l 39) 10) Battery cable cover (l 22) - Page 20 15) Internal microphones (5.1 channel support) 16) Zoom lever [W/T] (In recording mode) (l 52) Volume lever [sVOLr] (In playback mode) (l 70) 17) Photoshot button [ ] (l 48) 18) Tripod receptacle (l 23) 19) Battery cover (l 29) VQT1F36...
- Page 21 20) Power LCD button [POWER LCD] (l 42) 21) Reset button [RESET] (l 118) 22) LCD monitor (l 24) Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD monitor screen. However, this is not a malfunction and does not affect the recorded picture.
-
Page 22: Open The Battery Cover
≥The cable of the battery pack holder kit can pass through the hole. ≥Keep the battery cable cover closed when using this unit normally. ¢ The optional accessories are the same as for the Panasonic High Definition Video Camera HDC-SD1. -
Page 23: Lens Hood
Using grip belt Adjust the length of the grip belt so that it fits your hand, and hold it properly. Flip the belt. Put your hand through the grip belt. A Rubber grip 1 Loosen the belt. 2 Put your hand through the belt as far as it goes. -
Page 24: Using The Lcd Monitor
Using the LCD monitor You can record the image while viewing it on the LCD monitor. Place your finger on LCD monitor open latch and pull the LCD monitor out in the direction of the arrow. ≥It can open up to 90o. Adjust the angle of the LCD monitor as desired. -
Page 25: Remote Control Usable Range
Dispose of used batteries according to the manufacturer’s instructions. Replace battery with Panasonic PART NO. CR2025 only. Use of another battery may present a risk of fire or explosion. Caution: Battery may explode if mistreated. -
Page 26: Cards That You Can Use With This Unit
ª About SD cards that you can use for motion picture recording We recommend using SD Memory cards and SDHC Memory cards conforming to Class 2 or higher of the SD Speed Class Rating or the following SD cards made by Panasonic for motion picture recording. Pro High Speed... -
Page 27: Handling Precautions
≥4 GB (or more) Memory Cards that do not have the SDHC logo are not based on SD Memory Card Specifications. ≥Use this unit to format SD cards. If an SD card is formatted on other products (such as a computer), the time spent for recording may become longer and you may not be able to use the SD card. -
Page 28: Setup
≥If the DC cable is connected to the AC adaptor, then the battery will not charge. Remove the DC cable from the AC adaptor. ≥The Panasonic battery that can be used with this unit is VW-VBG130. Other Panasonic batteries will not work. (l 30) Connect the AC cable to the AC adaptor and the AC outlet. -
Page 29: Inserting/Removing The Battery
Inserting/removing the battery Inserting the battery Open the battery cover. ≥Push A while sliding it. Insert the battery until it clicks paying attention to the direction of the battery. B Push the center of the battery until it locks. Close the battery cover. Removing the battery Open the battery cover. -
Page 30: Charging Time And Recordable Time
≥In order to safely use the unit, we recommend that you use genuine Panasonic batteries which have been subject to our quality control process. -
Page 31: Connecting To The Ac Outlet
ª About the remaining battery capacity indication The remaining battery capacity is displayed in minutes when using the Panasonic battery that you can use for this unit. It may take time to display the remaining battery capacity. ≥The display changes as the battery capacity reduces. -
Page 32: Selecting A Mode (Turning The Unit On/Off)
Selecting a mode (Turning the unit on/off) Rotate the mode dial to switch to recording, playback, PC connection or power OFF. ≥Rotate the mode dial slowly. How to turn on the power While pressing the lock release button, set the mode dial to ≥Rotate the mode dial while at the same time pressing in the lock release button A if changing from OFF to another mode. -
Page 33: Quick Start
Turning the power on and off with the LCD monitor The power can be turned on and off with the LCD monitor when the mode dial is set to ª To turn on the power Open the LCD monitor. The status indicator A lights and the power turns ª... -
Page 34: Inserting/Removing An Sd Card
Open the LCD monitor. The status indicator A lights red and the unit is put into recording pause approx. 1.7 seconds after it is turned on. ª To cancel Quick start Press the MENU button, then select [SETUP] # [QUICK START] # [OFF] and press the cursor button. -
Page 35: How To Use The Cursor Button
ª Concerning the SD card ≥Do not touch the terminals on the back of the SD card. ≥Electrical noise, static electricity or the failure of this unit or the SD card may damage or erase the data stored on the SD card. Save important data recorded on this unit to a PC using the USB cable (supplied), HD Writer Ver1.0E for SD1 etc. - Page 36 Operations during recording Rotate the mode dial to select ¬ Press the center of the cursor button, and icons will be displayed on the screen. ≥The indication disappears when the center of the cursor button is pressed again. ≥The indication changes each time the cursor button is moved down.
- Page 37 About the operation icons displayed in each mode Recording mode Icon (1/3) (2/3) Ø (3/3) ß Set the AUTO/MANUAL/FOCUS switch to MANUAL. In manual mode [MANUAL] (4/4) Set the AUTO/MANUAL/FOCUS switch to FOCUS. In manual focus mode [FOCUS] (5/5) ≥The shaded operation icons are not displayed while recording. ≥About switching between AUTO and MANUAL (l 44) Direction Backlight compensation...
-
Page 38: Playback Mode
Playback mode ( Icon Direction ∫ Playback mode ( Icon Direction ∫ VQT1F36 In motion picture playback) Function Playback/pause Stop playback and show thumbnails Rewind (during playback) Reverse slow/frame playback (during pause) Fast forward (during playback) Forward slow/frame playback (during pause) In still picture playback) Function Slide show start/pause... -
Page 39: Using The Menu Screen
Help mode The help mode explains the operation icons displayed when the AUTO/MANUAL/FOCUS switch is set to AUTO in recording mode. Rotate the mode dial to select ¬ Press the cursor button to display the icon. Move the cursor button right to select [ Move the cursor button up, left or right to select the desired icon. -
Page 40: Submenu Item
Move the cursor button up or down in order to select the submenu item. C Current settings on menus Move the cursor button right or press the cursor button. Move the cursor button up or down in order to select the desired item. -
Page 41: Setting Date And Time
Setting date and time When the unit is turned on for the first time, a message asking you to set the date and time will appear. ≥Move the cursor button up or down to select [YES], press the center of the cursor button and then perform steps 2 and 3 below to set the date and time. -
Page 42: Switching The Language
Switching the language You can switch the language on the screen display or the menu screen. Press the MENU button, then select [LANGUAGE] and press the center of the cursor button. Select [English] and press the center of the cursor button. Adjusting LCD monitor Adjusting the brightness and the color level of the LCD monitor... -
Page 43: Recording
Before recording First, format the SD card if one which has been used on another device is going to be used for the first time on this unit. (l 79) When the SD card is formatted, all of the recorded data is deleted. Once the data is deleted, it cannot be restored. -
Page 44: Auto Ground-Directional Standby (Ags)
ª About auto mode Set the AUTO/MANUAL/FOCUS switch to AUTO, and color balance (white balance) and focusing will be adjusted automatically. – Automatic white balance (l 123) – Auto focus (l 124) Depending on the brightness of the subject etc., the aperture and shutter speed are automatically adjusted for an optimum brightness. -
Page 45: Recording Motion Pictures
Recording motion pictures Record motion pictures on an SD card. ≥Use an SD card that can be used for motion picture recording. (l 26) ≥This unit records high definition images that are compatible with the 16:9 aspect ratio of a wide-screen TV. - Page 46 At this time, the following message appears. When motion pictures are to be recorded, use a Panasonic SD card or another SD card which can be used to record motion pictures. (l 26) REC STOPPED. NOW WRITING.
-
Page 47: Recording Modes/Recordable Time Available For The Motion Picture
Rotate the mode dial to select ¬ Press the MENU button, then select [VIDEO] [REC MODE] desired item and press the cursor button. Approximate recording times of motion pictures per SD card made by Panasonic SD card memory 256 MB 2 min 512 MB... -
Page 48: Recording Still Pictures (Jpeg)
Recording still pictures (JPEG) Record the still picture on an SD card. ≥This number of recording pixels for still pictures is compatible with the 16:9 aspect ratio of a wide-screen TV. They are recorded at 1920k1080. Rotate the mode dial to select The lens cover opens automatically. - Page 49 ≥If the [PICT. QUALITY] is set to [ mosaic-pattern noise may appear on a playback image depending on the picture content. ≥While this unit accesses the SD card ( displayed/the card access lamp is lit), do not perform the following operations. The SD card or the recorded data may be damaged.
- Page 50 Switching the shutter effect on/off You can add a shutter sound when recording still pictures. Press the MENU button, then select [PICTURE] [SHTR EFFECT] [ON] or [OFF] and press the cursor button. ≥This function’s default setting is [ON]. ≥This function does not work during motion picture recording.
-
Page 51: Picture Quality/Approximate Number Of Recordable Pictures On An Sd Card
Picture Quality/Approximate Number of Recordable Pictures on an SD Card Picture quality Selecting the picture quality. Press the MENU button, then select [PICTURE] [PICT. QUALITY] desired item and press the cursor button. : Still pictures with a high picture quality are recorded. -
Page 52: Various Recording Functions
Various recording functions Zoom in/out function You can zoom in up to 12k optically. Rotate the mode dial to select ¬ Move the zoom lever. T side: Close-up recording (zoom in) W side: Wide-angle recording (zoom out) ≥If you take your finger off the zoom lever during zoom operation, the operation sound may be recorded. -
Page 53: Recording Yourself
About using the zoom microphone function The zoom microphone is linked to the zooming operation and the sound sensitivity direction (directivity) of the microphone changes as you zoom. Far away sounds are recorded more clearly if you zoom in (close-up) and the surrounding sound is recorded with presence if you zoom out (wide angle). -
Page 54: Backlight Compensation Function
Backlight compensation function This is for preventing a backlit subject from being darkened. Use this function when the light is emanating from behind the subject and the subject appears dark. Rotate the mode dial to select ¬ Press the cursor button. Then move the cursor button down to display the icon shown in the illustration. -
Page 55: Magicpix Function
Press the recording start/stop button. Pause recording. (Fade out) The image/audio gradually disappears. After the image/audio completely disappears, recording stops. ≥After recording, the fade setting is canceled. To cancel fading Select [ ] again. To select the color for fade in/out The color which appears in fading pictures can be selected. -
Page 56: Soft Skin Mode
Soft skin mode This makes skin colors appear softer for a more attractive appearance. This is more effective if you record a subject more closely from the torso up. Rotate the mode dial to select ¬ Press the cursor button. Then move the cursor button down to display the icon shown in the illustration. -
Page 57: Self-Timer Recording
Self-timer recording You can record still pictures on an SD card using the timer. Rotate the mode dial to select ¬ Press the cursor button. Then move the cursor button down to display the icon shown in the illustration. Move the cursor button up to select [ Ø... -
Page 58: Red Eye Reduction Function
≥When [FLASH AUTO] is set, the ambient brightness is automatically detected, and the flash will activate only when necessary. (If the flash is not necessary, the [ßA] indicator will not appear when the PHOTO SHOT button is pressed halfway.) ≥This function’s default setting is [FLASH AUTO]. -
Page 59: Image Stabilizer Function
Image stabilizer function This is for reducing image shakes (jitter) during recording. Reduces the image shaking (jitter) due to hand movement when recording. Rotate the mode dial to select ¬ Press the MENU button, then select [BASIC] [O.I.S.] [ON] and press the cursor button. -
Page 60: Wind Noise Reduction Function
To cancel the guide line function Press the MENU button, then select [BASIC] or [PLAY SETUP] # [GUIDE LINES] # [OFF] and press the cursor button. ≥The guide lines do not appear on the images actually recorded. Wind noise reduction function This is for reducing the wind noise coming into the microphone when recording. - Page 61 Move the cursor button left or right to adjust the microphone input level. A Center B Front left C Back left D Front right E Back right F Microphone input level ≥A gain value for each of the 5 built-in microphones is displayed.
-
Page 62: Zebra Display
Zebra display This is for displaying the parts that are too bright. Parts where white saturation (color saturation) is likely to occur (extremely brightly lit or shiny parts) are displayed with diagonal lines (zebra pattern). Rotate the mode dial to select ¬... -
Page 63: Manual Recording Functions
Manual recording functions Scene mode This is for recording in various situations. When you record images in different situations, this mode automatically sets optimum shutter speeds and apertures. Rotate the mode dial to select ¬ Set the AUTO/MANUAL/FOCUS switch to MANUAL. Press the MENU button, then select [BASIC] [SCENE MODE]... -
Page 64: Manual Focus Adjustment
Manual focus adjustment If auto focusing is difficult due to the conditions, then manual focusing is available. Rotate the mode dial to select ¬ (When MF assist function is used) Press the MENU button, then select [ADVANCED] [MF ASSIST] [ON] and press the cursor button. -
Page 65: White Balance
White balance This is for recording in natural colors. The automatic white balance function may not reproduce natural colors depending on the scenes or lighting conditions. If so, you can adjust the white balance manually. Rotate the mode dial to select ¬... -
Page 66: Manual Shutter Speed/Aperture Adjustment
ª About the white balance sensor The white balance sensor A detects the type of light source during recording. Do not cover the white balance sensor during recording, or it may not function properly. ª About the black balance adjustment This is one of the 3CCD system functions that automatically adjusts the black when the white balance is set in the manual adjustment mode. - Page 67 ≥When the iris value is adjusted to brighter than [OPEN], it changes to the gain value. To restore to automatic adjustment Set the AUTO/MANUAL/FOCUS switch to AUTO. ≥When setting both the shutter speed and the iris/gain value, set the shutter speed and then set the iris/gain value.
-
Page 68: Playback
Playback Motion picture playback Play back motion pictures. Rotate the mode dial to select The lens cover closes. Press the cursor button up and then left to select the picture playback) tab. A Motion picture playback tab The motion pictures are displayed as thumbnails (reduced-size images). - Page 69 ª About motion picture compatibility ≥This unit is based on the AVCHD format. ≥The video signal that can be played back on this unit is 1440k1080/60i. ≥This unit may degrade or not playback motion pictures recorded or created on other products, and other products may degrade or not playback motion pictures recorded on this unit, even if the products support the AVCHD.
- Page 70 Frame-by-frame playback The motion picture is advanced one frame at a time. Move the cursor button up during playback to pause the playback. Move the cursor button right. (The frames will be advanced one at a time in the reverse direction when you move the cursor button left.) ≥Normal playback is restored when you...
-
Page 71: Playing Back Motion Pictures By Date
Playing back motion pictures by date Recorded scenes are grouped by date on this unit. Scenes recorded on the same day can be played back in succession. Press the MENU button, then select [PLAY SETUP] [PLAY MODE] [BY DATE] and press the cursor button. -
Page 72: Resuming The Previous Playback
Resuming the previous playback If playback of a scene was stopped halfway, the playback can be resumed from where it was stopped. Press the MENU button, then select [PLAY SETUP] [RESUME PLAY] [ON] and press the cursor button. If playback of a motion picture is stopped, [ appears on the thumbnail view of the stopped scene. - Page 73 ≥If 9 or more files have been recorded, the next (or previous) page can be displayed by moving the cursor button left and right or moving the cursor button down, selecting by moving the cursor button left and right and then pressing the center of the cursor button.
-
Page 74: Editing Scenes
Editing Editing scenes Deleting scenes This is for deleting scenes recorded on SD cards. The deleted scenes cannot be restored. Deleting scenes one at a time Rotate the mode dial to select ¬ and then select the picture playback) tab. Press the button during playback. -
Page 75: Protecting Scenes
(Only when [SELECT] is selected in step 2) Press the button. When the confirmation message appears, select [YES], then press the cursor button. (Only when [SELECT] is selected in step 2) To continue deleting other scenes Repeat steps 3-5. To complete editing Press the MENU button. -
Page 76: Editing Still Pictures
Editing still pictures Deleting still pictures This is for deleting still picture files recorded on SD cards. The deleted files cannot be restored. Deleting files one at a time Rotate the mode dial to select ¬ and then select the playback) tab. -
Page 77: Protecting Still Pictures
When the confirmation message appears, select [YES], then press the cursor button. (Only when [SELECT] is selected in step 2) To continue deleting other files Repeat steps 3-5. To complete editing Press the MENU button. ª Deleting still picture files recorded on an SD card by other products A still picture file (other than JPEG) that cannot... -
Page 78: Dpof Setting
DPOF setting This is for writing the printing data on an SD card. You can write the data of the still pictures to be printed and the number of prints (DPOF data) onto the SD card. Rotate the mode dial to select ¬... -
Page 79: Card Management
Card management Formatting Formatting an SD card This is for initializing cards. Please be aware that if an SD card is formatted, then all the data recorded on the card will be erased. Store important data on a computer etc. Rotate the mode dial to select ¬... -
Page 80: With Other Products
With other products With a TV Playback on TV The motion pictures and still pictures recorded on this unit can be played back on a TV screen. Connect this unit to a TV with one of the following terminals. When connecting to a HDMI terminal, a connection cable (optional) is necessary. - Page 81 HDMI compatible high definition TV and then play back the recorded high definition images (l 13), you can enjoy them in high resolution with high quality sound. If you connect this unit to a Panasonic TV compatible with EZ Sync linked operations are possible. (l 87) Connect this unit and a TV with the HDMI cable (optional).
-
Page 82: Connecting With Hdmi
ª About the settings when connecting with HDMI When this unit is connected to another device with a HDMI cable, the output setting on this unit can be changed. HDMI output resolution You can switch the method to output the images. Press the MENU button, then select [SETUP] [HDMI RESOLUTION]... - Page 83 D Surround speaker E Subwoofer F AV amplifier (optional) ≥If you connect this unit to a Panasonic AV amplifier and Panasonic TV that are compatible with EZ Sync (HDAVI Control ≥Audio recorded from an external microphone is in stereo (2ch).
- Page 84 3 Connecting with the component cable (supplied) and the AV cable (supplied) Connect this unit and a TV with the component cable (supplied) and the AV cable (supplied). COMPONENT A Component cable (supplied) B AV cable (supplied) ≥Connect to terminals of the same color. ≥The component terminal C is for outputting images only so be sure to also connect the AV cable.
- Page 85 ª If the image or audio from this unit is not output on the TV ≥Check that the plugs are inserted as far as they ≥Check the connected terminal. ≥Check the TV’s input setting (input switch). (For more information, please read the operating instructions for the TV.) ≥If the images are not displayed correctly on a wide-screen TV, adjust the aspect setting on...
- Page 86 4 Connecting with the AV cable (supplied) Connect this unit and a TV with the AV cable (supplied). A AV cable (supplied) Set the mode dial to Change the input channel on the TV. Example: Select the [Video 2] channel etc. (The name of the channel may differ depending on the connected terminal.) Start playback on this unit.
-
Page 87: Playback Using Ez Sync™ (Hdavi Control™)
Playback using EZ Sync™ (HDAVI Control™) If you connect this unit to a Panasonic TV compatible with EZ Sync cable, the following linked operations become possible. ≥You can use the remote control for the TV to control playback on this unit. -
Page 88: Operate With The Remote Control For The Tv
≥Available linked operations between this unit and a Panasonic TV is different depending on the types of Panasonic TVs even if they are compatible with EZ Sync. Refer to the operating instructions of the TV for the operations that support on the TV. -
Page 89: Dubbing Images Onto A Connected Dvd Recorder Or Video Device
Dubbing images onto a connected DVD recorder or video device This is for dubbing images recorded on this unit onto a DVD recorder, video device etc. ≥Images are dubbed in standard quality. ≥Use the AC adaptor to free you from worrying about the battery running down. -
Page 90: With A Printer (Pictbridge)
With a printer (PictBridge) To print pictures by directly connecting this unit to the printer, use a printer compatible with PictBridge. (Read the operating instructions for the printer.) ≥Use the AC adaptor to free you from worrying about the battery running down. Insert an SD card with recorded ¬... - Page 91 Select the layout setting on [PAGE LAYOUT]. [STANDARD]: Layout specific to the printer No frame print Frame print ≥You cannot set page layouts not supported on the printer. Select [PRINT] [YES] and press the cursor button to print the pictures. ≥Exit PictBridge by disconnecting the USB cable (supplied) after the pictures have been printed.
-
Page 92: With A Computer
Before using with a computer What you can do with a computer Data type [Write data to media]* Motion picture [Copy between media]* Playing back on a computer Still picture Copying files to a computer *Compatible media are SD card and discs (DVD-RAM, DVD-RW, DVD-R and DVD-R DL). ≥When you connect this unit and a computer, always insert the battery and connect the AC adaptor. -
Page 93: Contents On Provided Cd-Rom
With a computer Contents on provided CD-ROM The following software applications are contained on the provided CD-ROM. ≥The software is the same as the software on the CD-ROM provided with Panasonic High Definition Video Camera HDC-SD1. ª HD Writer Ver1.0E for SD1... -
Page 94: End User License Agreement
End User License Agreement Before opening the CD-ROM package, please read the following. You (“Licensee”) are granted a license for the Software defined in this End User Software Agreement (“Agreement”) on condition that you agree to the terms and conditions of this Agreement. -
Page 95: Operating Environment
Operating environment ≥A CD-ROM drive is necessary to install the supplied software applications. (A compatible drive and media are necessary for writing to a DVD.) ≥When 2 or more USB devices are connected to a computer, or when devices are connected through USB hubs or by using extension cables, proper operation is not guaranteed. - Page 96 ≥DVD discs authored with this software are not guaranteed to play in all DVD players that do not support the AVCHD. ≥Operation is not guaranteed on Microsoft Windows XP Media Center Edition, Tablet PC Edition and not compatible with 64 bit operation systems. ≥This software is not compatible with a multi-boot environment.
-
Page 97: Installation
Installation When installing the software, log on to your computer as the Administrator or with a user name with equivalent authorization. (If you do not have authorization to do this, consult your manager.) ≥Before starting the installation, close any other software applications which are running. -
Page 98: Reading The Operating Instructions Of The Software Applications
For details on how to use the software applications, read the PDF operating instructions. ≥You will need Adobe Acrobat Reader 5.0 or later to read the PDF operating instructions. Select [start] [All Programs (Programs)] [Panasonic] [HD Writer Ver1.0E for SD1] [Manual (PDF Format)]. VQT1F36 Software application uninstallation Follow the steps below to uninstall any software applications that you no longer require. -
Page 99: Connection And Recognition
Connection and recognition Connection and recognition procedures After the software applications are installed, this unit must be connected to the computer and be correctly recognized by the computer. ≥Connect after installing the software applications. ≥Remove the supplied CD-ROM if it is inserted in the computer. -
Page 100: About The Computer Display
About the computer display When the unit is connected to a computer, it is recognized as an external drive. [Removable Disk] is displayed in [My Computer]. Example folder structure of an SD card: Removable Disk DCIM 100CDPFP MISC PRIVATE AVCHD ≥AVCHD format motion picture files ([00000.MTS] etc.) are saved in the [BDMV] folder. -
Page 101: To Disconnect Usb Cable Safely
To disconnect USB cable safely Double click the tray displayed on the computer. Hardware disconnect dialogue appears. ≥Depending on your computer’s settings, this icon may not be displayed. Select [USB Mass Storage Device] and click [Stop]. Verify [MATSHITA HDC-SD1 USB Device] is selected and click [OK]. -
Page 102: Using Hd Writer Ver1.0E For Sd1
USB cables.) (On the computer) Select [start] [All Programs (Programs)] [Panasonic] for SD1] to turn on ≥The HD Writer Ver1.0E for SD1 introductory screen is displayed. If [OK] is clicked, the software will start. - Page 103 Click the [Start copying] button. ≥A confirmation message appears. Click [Yes] and copying starts. ≥After copying is complete, a message appears. If [Yes] is clicked, all the motion pictures and still pictures on the SD card will be deleted. ª Writing back to an SD card ≥Insert an SD card in this unit and format the card.
-
Page 104: If Using Macintosh
If using Macintosh ≥Even if the system requirements mentioned in these operating instructions are fulfilled, some personal computers cannot be used. ≥Apple, Mac OS is either registered trademarks or trademarks of Apple Computer, Inc. in the United States and/or other countries. ≥PowerPC is a trademark of International Business Machines Corporation. -
Page 105: Others
Others Menus and Indications Menu list Recording menus ª [BASIC] [SCENE MODE] (l 63) [D.ZOOM] (l 52) [O.I.S.] (l 59) [GUIDE LINES] (l 59) [CLOCK SET] (l 41) ª [VIDEO] [REC MODE] (l 47) [FADE COLOR] (l 55) [WIND CUT] (l 60) [ZOOM MIC] (l 53) [MIC LEVEL] (l 60) [AGS] (l 44) -
Page 106: Playback Menus
Playback menus (motion picture playback) ª [PLAY SETUP] [PLAY MODE] (l 71) [REPEAT PLAY] (l 71) [RESUME PLAY] (l 72) [SCENE PROTECT] (l 75) [GUIDE LINES] (l 59) ª [SETUP] [FORMAT CARD] (l 79) [DISPLAY] (l 107) [DATE/TIME] (l 41) [DATE FORMAT] (l 41) [POWER SAVE] (l 107) [BEEP SOUND] (l 107) -
Page 107: Menus Related To [Advanced] And [Setup]
Menus related to [ADVANCED] and [SETUP] ≥Underlined items are the initial shipping condition. ª [REC LAMP] ≥[OFF] ≥[ON] The recording lamp lights during recording and flashes when the unit receives a signal from the remote control or when the self-timer is counting down. -
Page 108: Indications
Indications ª Recording indications Motion picture recording 30min 0h00m00s R30min 1/100 OPEN DEC 15 2007 3:30PM Still picture recording (when the PHOTO SHOT button is pressed halfway) 30min 0h00m00s R30min 1/100 OPEN MEGA Ｍ Remaining battery power 30min Remaining battery time R30min Remaining time for motion picture recording... -
Page 109: Playback Indications
ª Playback indications Motion picture playback Still picture playback Playback Pause Cue/Review playback Last/first scene paused Skip playback Slow motion playback Frame-by-frame playback ;1/2; 0h00m00s Playback time Play mode All scenes Scenes recorded on the selected date No.10 Scene number Volume adjustment 15 15 Repeat playback... -
Page 110: Messages
You are attempting to connect an AC adaptor not compatible with this unit. Use the supplied AC adaptor. (l 31) If using a Panasonic battery compatible with this unit (l 30), remove the battery and then insert it again. If the message appears even after repeating this several times, this unit needs repair. - Page 111 CANNOT PROTECT. AGS MODE ON-REC PAUSED PUSH THE RESET SWITCH. CANNOT SET. CHANGE MODE TO USE USB. DISCONNECT USB CABLE. PLEASE CONNECT AC ADAPTOR AND BATTERY. RECONNECT USB CABLE. DISCONNECT USB CABLE. DISCONNECT USB CABLE. Scenes on SD cards for which the top menu has been created with HD Writer Ver1.0E for SD1 cannot be protected.
-
Page 112: About Recovery
About recovery When the SD card is accessed, you try to playback a scene or faulty control information is read, one of the messages below may be displayed. (Depending on the error, this may take time.) When connecting to AC adaptor or the remaining capacity of the battery is enough: [FINISHED.] When the remaining capacity of the battery is low: [PLEASE CONNECT AC ADAPTOR OR CHANGE BATTERY.]... -
Page 113: Functions That Cannot Be Used Simultaneously
Functions that cannot be used simultaneously Some functions in this unit are disabled or cannot be selected due to the unit’s specifications. The table below shows examples of functions restricted by various conditions. Functions Backlight compensation MagicPix (Set and cancel) Soft skin mode (Set and cancel) Tele macro (Set and cancel) Help mode... -
Page 114: Troubleshooting
Troubleshooting ª Unit operations Problem This unit cannot be turned on. This unit is turned off automatically. This unit does not stay on long enough. A clicking sound is heard when the unit is shaken. Battery runs down quickly. The minute display of the remaining battery power indication is not displayed correctly. - Page 115 Problem This unit cannot be operated though powered up. This unit does not operate normally. The remote control does not function. The screen has changed suddenly. A function indication such as the remaining time indication or the elapsed time indication is not shown.
- Page 116 Problem Auto focus function does not work. Recorded still pictures are not clear. Sound is not played back from the built-in speaker of this unit. Sound is played back from one side of speakers when motion pictures recorded on this unit are played back on another device.
- Page 117 Problem Scenes cannot be deleted. The images on the SD card do not look normal. Even if an SD card is formatted, it cannot be used. If the SD card is inserted in this unit, it is not recognized. If the SD card is inserted in another device, it is not recognized.
- Page 118 Problem “PUSH THE RESET SWITCH.” is displayed. VQT1F36 Check points ≥The unit has automatically detected an error. Press the RESET button with the projecting part of the grip belt A. This will restart the unit. ≥If you do not press the RESET button, the power to this unit is turned off automatically about 1 minute later.
- Page 119 ª When connected to another device Problem EZ Sync does not work. With the EZ Sync on, the power to the unit does not turn off even if the TV is turned off. ª With a computer Problem Even if connected by the USB cable, this unit is not recognized by the computer.
-
Page 120: Cautions For Use
Cautions for use About this unit The unit and the SD card become warm during use. This is not a malfunction. Keep the High Definition Video Camera as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.). -
Page 121: About The Battery
About the battery The battery used in this unit is a rechargeable lithium-ion battery. It is susceptible to humidity and temperature and the effect increases the more the temperature rises or falls. In cold areas, the full charge indication may not appear or the low battery indication may appear about 5 minutes after starting use. -
Page 122: Lcd Monitor
About the SD card ≥The memory capacity indicated on the label of an SD card is the total of the capacity for copyright protection and management and the capacity which can be used on the unit, a computer etc. ≥During prolonged use, the unit’s surfaces and the SD card will heat up slightly. -
Page 123: Explanation Of Terms
About condensation When condensation forms on the unit, the lens will cloud up and the unit may not work properly. Make every effort to ensure that condensation does not form. If it does form, take the actions described below. Causes of condensation Condensation takes place when the ambient temperature or humidity is changed as follows. -
Page 124: Auto Focus
Outside of the effective range of automatic white balance adjustment, the image will become reddish or bluish. Even within the effective range of automatic white balance adjustment, the automatic white balance adjustment may not function properly if there is more than one light source. -
Page 125: Specifications
Specifications High Definition Video Camera Information for your safety Power source: Power consumption: Signal system Recording format Image sensor Lens Filter diameter Zoom Monitor Microphone Speaker White balance adjustment Standard illumination Minimum required illumination Video output level DC 9.3 V (When using AC adaptor) DC 7.2 V (When using battery) Recording: 8.0 W 1080/60i... - Page 126 Component terminal output level HDMI terminal output level Audio output level (Line) Mic input Flash Dimensions Mass Mass in operation Operating temperature Operating humidity Battery operation time Motion pictures Recording media Compression Recording mode and transfer rate Audio compression VQT1F36 1.0 Vp-p, 75 h Pb: 0.7 Vp-p, 75 h Pr: 0.7 Vp-p, 75 h...
- Page 127 Still pictures Recording media Compression Picture size AC adaptor Information for your safety Power source: Power consumption: DC output: Dimensions Mass Battery pack Information for your safety Maximum voltage: Nominal voltage: Rated capacitance: Specifications may change without prior notice. SD Memory Card: 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB (FAT12 and FAT16 system corresponding) SDHC Memory Card:...
-
Page 128: Optional Accessories
Optional accessories Others The optional accessories are the same as for the Panasonic High Definition Video Camera HDC-SD1. Accessory No. VW-AD21PP-K VW-VBG130* RP-SDR01GU1A RP-SDR512U1A RP-SDM04GU1K RP-SDM02GU1A RP-SDV04GU1K RP-SDV02GU1A RP-SDV01GU1A *Please refer to page 30, concerning the battery charging time and available recording time. -
Page 129: Limited Warranty (For Usa Customers)
All Accessories Including batteries, cables, and tapes. Carry-in or mail-in service in the USA may be obtained during the warranty period by contacting a Panasonic Broadcast & Television Systems Company Authorized Service Center either by using the website http://www.panasonic.com/support/ or by calling toll free 1-800-526-6610 to locate the nearest authorized Service Center. - Page 130 If you have a problem with this product that is not handled to your satisfaction, then write the Consumer Affairs Department at the Company address indicated above. IN THE USA FOR THE NEAREST SERVICE CENTER FOR TECHNICAL SUPPORT CALL 1-800-526-6610 CALL 1-800-524-1448 Website: http://www.panasonic.com/support/ Email: pbtscservice@us.panasonic.com REGISTER YOUR PRODUCT WWW.PANASONIC.COM/REGISTER IN PUERTO RICO FOR SERVICE CALL 787-750-5135 VQT1F36...
-
Page 131: Limited Warranty Statement (For Canadian Customers)
LIMITED WARRANTY STATEMENT (For Canadian Customers) Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. -
Page 132: Index
Index Others ª Numerics 5.1 channel ...83 ª A/V terminal ...21, 84, 86 AC adaptor ...28, 31, 121 Aperture ...66 Auto focus ...124 Auto Ground-Directional Standby (AGS) ...44 Automatic white balance ...65, 123 AVCHD ...13 ª Backlight compensation ...54 Battery ...28, 29, 121 Battery cable cover ...22 Beep sound ...107 Black balance ...66... - Page 133 ª Recordable time ...30, 47 Recording lamp ...107 Recording modes ...47 Recording time elapsed ...46 Red eye reduction ...58 Remaining battery capacity indication ...31 Remaining number of still pictures ...49 Remaining time left for recording ...46 Remote control ...24 Repair ...112 Repeat playback ...71 Resume playback ...72 ª...
-
Page 134: Spanish Quick Use Guide/Guía Española Para El Uso Rápido
Spanish Quick Use Guide/Guía Others española para el uso rápido ª Carga de la batería 1) Conecte el cable de CA al adaptador de CA y a la toma de CA. 2) Instale la batería en el compartimiento alineando la marca y, a continuación, conéctela de forma segura. - Page 135 ª Insertar/extraer una tarjeta SD 1) Ajuste el selector de modo en la posición OFF. 2) Abra la pantalla LCD y luego abra la tapa de la ranura de la tarjeta. 3) Inserte/extraiga la tarjeta SD de la ranura de la tarjeta. ≥Para insertar una tarjeta SD, colóquela con el lado de la etiqueta A hacia arriba e insértela derecho hacia dentro, hasta que...
- Page 136 ª Reproducción de películas 1) Gire el selector de modo para seleccionar 2) Pulse el cursor hacia arriba y luego hacia la izquierda para seleccionar la ficha (reproducción de películas). A Ficha reproducción de películas 3) Seleccione la escena que desea reproducir.
- Page 137 VQT1F36...
- Page 138 VQT1F36...
- Page 139 VQT1F36...
- Page 140 PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY UNIT COMPANY OF PANASONIC CORPORATION OF NORTH AMERICA Executive Office: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7196 Southeast Region: (201) 348-7162 WESTERN ZONE: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500...
