S P E C I F I C AT I O N S

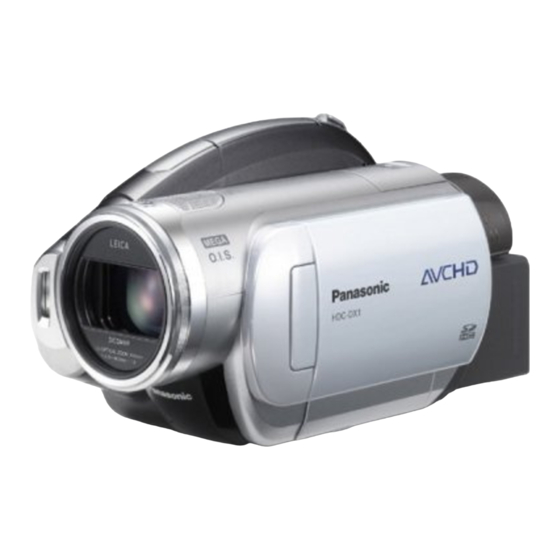

HDC - DX1
HDC-DX1/SD1
GENERAL
Power Supply
DX1: DC 7.3 V/7.2 V SD1: DC9.3V/7.2V
Power Consumption
DX1: 11.4W SD1: 8.0W
Weight (w/o Battery)
DX1: 680g SD1: 430g
Dimensions (W x H x D)
DX1: 91.5 x 90.2 x 162.4mm SD1: 74.1 x 67 x 137mm
Recording Format
AVCHD (Moving Picture) / JPEG (Still Picture)
LENS SECTION
DX1: 1/4"CCD x 3 (560k x 3pixel Total/
520k x 3[16:9](Moving Picture/ Still Picture) Effective)
Image Sensor
SD1: 1/4"CCD x 3 (560k x 3pixel Total/
520k x 3[16:9](Moving Picture/ Still Picture) Effective)
F Value
F1.8 (WIDE) — F2.8 (TELE)
Optical Zoom
12x Variable Speed Zoom
Focal Length
4.0 — 48.0 mm
Filter Diameter
43 mm
35mm Film Camera Equivalent
38.5 — 462mm[16:9] (Moving Picture/ Still Picture)
Lens Brand
Leica Dicomar
CAMERA SECTION
Minimum Illumination
2 Lux (Colour Night View)
Focus
AF/Manual
White Balance
Auto/Indoor/Outdoor/White Set
Shutter Speed
1/50 — 1/8000 sec.(Moving Picture), 1/50 — 1/8000 sec.(Still Picture)
Iris
Auto/Manual
Backlight Compensation
Yes
EVF
DX1: 0.44" Wide (180k pixels) SD1: —
Monitor
3.0" Wide LCD(250 k pixels)
Microphone
Stereo 5ECM, 5.1-Ch Surround Sound, Zoom Mic,Wind Noise Reduction
Date Recording
Auto Date (in Data Code)
OSD Language
English/German/French/Italian/Spanish/Dutch/Swedish/Polish/Czech
Image Stabilizer
O.I.S.
Digital Zoom
30x/700x
Flash
1m — 2.5m (approx.)
FUNCTIONS
•HD Crystal Engine •Focus Assist •Composition Guide Lines •Tele Macro •Soft Skin •Simultaneous Recording (Moving Pictures/Still Pictures)
•Colour Night View •0Lux Colour Night View (DX1) •One-Touch Navigation •Help Mode •Auto Lens Cover
•Built-in Flash •Thumbnail View •Easy on/off •Quick Start (SD1) •AGS (Anti-Ground Shooting)
SYSTEM REQUIREMENTS (HDC-SD1)
Card Reader Function
HD Writer Ver 1.0E for SD1
(Mass Storage)
USB port
USB port
Interface
(Hi-Speed USB (USB2.0) recommended)
Windows
®
2000
(SP4)
(SP4)
Windows
®
XP
(SP2)
(SP1/SP2)
®
®
®
®
Intel
Pentium
III
Intel
Pentium
III
CPU
1.0GHz or higher
450MHz or higher
•Weight and dimensions shown are approximate. •Design, functions, and specifications are subject to change without notice. •All monitor
and TV pictures are simulated. •Some accessories are not available in some countries. •1GB=1 billion bytes. Usable capacity will be
less. •You are not allowed to reproduce (copy), or transfer to a network, any part of the software applications supplied with this product for
commercial purposes without written authorization. •Panasonic will in no way be liable for any damages sustained directly or indirectly from
the use of this product or from any trouble occurring therein. •Panasonic will also in no way be liable for any losses of data caused by this
product. •SDHC Logo is a trademark. •SD Logo is a trademark. • Microsoft®, Windows® and DirectX® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.•Leica is a registered trademark of Leica Microsystems IR
GmbH. •Dicomar is a registered trademark of Leica Camera AG. •Microsoft product screen shot(s) reprinted with permission from Microsoft
Corporation. •Other names of systems and products mentioned in this brochure are usually the registered trademarks or trademarks of the
manufacturers who developed the system or product concerned. •Microsoft®, Windows®, and NetMeeting® are registered trademarks of
Microsoft Corporation of the U.S.A. •All other company and product names are trademarks of their respective corporations.
HDC - SD1
DISC SECTION (DX1)
8cm DVD-RAM Ver.2.1 / 8cm DVD-R for General Ver.2.0 /
Applicable Disc
8cm DVD-RW Ver.1.1 2x-speed(2x/1x) / DVD-R for DL Ver.3.0
Cue/Review
Forward/Reverse
Skip
Forward/Reverse
CARD SECTION
Card Slot
SD/ SDHC
Still Picture
JPEG Picture size: 1920x1080[16:9]2.1MEGA
DPOF
Max 999stills
PictBridge
Yes
RECORDING SECTION
Format
AVCHD (Moving Picture)
Recording Mode
HF(13Mbps/CBR), HN(9Mbps/VBR), HE(6Mbps/VBR)
Playback Mode
HF(13Mbps/CBR), HN(9Mbps/VBR), HE(6Mbps/VBR)
Audio Recording System
Dolby Digital (Dolby AC3)/5.1ch or 2ch
INTERFACE
AV
Out
HDMI
Out
USB
Hi-Speed USB(USB 2.0)(miniB)
Video Component
Out
Accessory Shoe
DX1: Cold SD1: —
STANDARD ACCESSORIES
AC Adaptor
Yes
AC Cable
Yes
DC Cable
Yes
Battery Pack
Lithium-Ion
Video Component Cable
Yes
AV Cable
AV Multi
IR Remote
Yes
PC Cable
USB
SD Memory Card
DX1: — SD1: 4GB
CD-ROM
DX1: — SD1: HD Writer Ver1.0E for SD1
•About HD Writer Ver 1.0E
•This software is not compatible with a multi-boot environment.
•This software is not compatible with a multi-CPU environment.
•Operation is not guaranteed on Microsoft® Windows® XP Media Center Edition, Tablet PC Edition and
not compatible with 64-bit operation systems.
•Supplied CD-ROM is available for Windows only.
•This software is not compatible with Microsoft Windows 3.1, Windows 95,Windows 98,
Windows Me and Windows NT.
•Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
•Other names of systems and products mentioned in this brochure are usually the registered
trademarks or trademarks of the manufacturers who developed the system or product concerned.
http://panasonic.co.jp/pavc/global/videocamera/
HDC - DX1
V I D E O
C A M E R A
HDC - SD1
*The term full HD as applied to Panasonic video cameras for home use
refers to images recorded with 1,080 vertical pixels (scanning lines).
