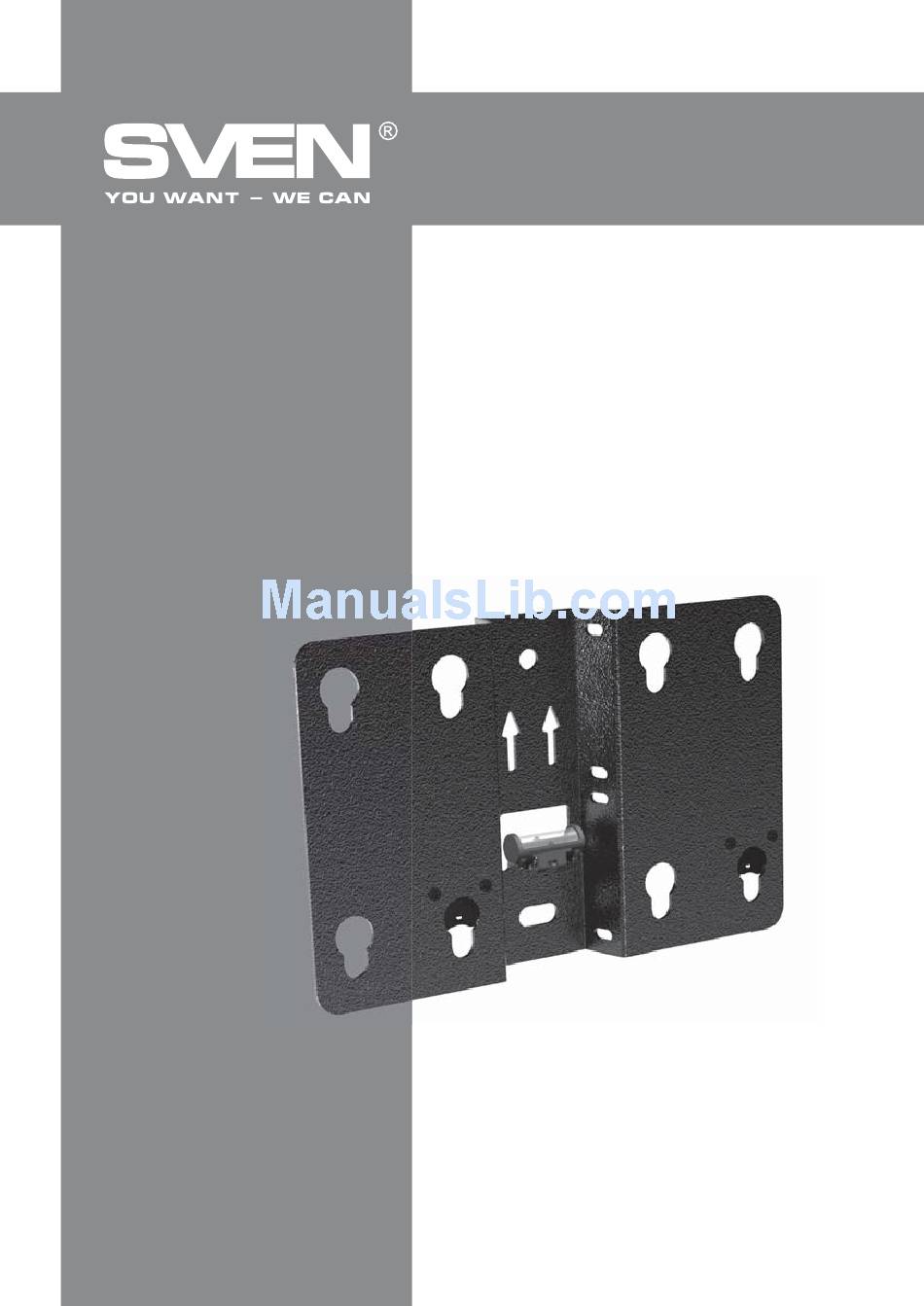

- Page 1 Wall Mount for LED/LCD TVs and Monitors USER’S MANUAL FS17-21 www.sven.fi...
- Page 2 FS17-21 User’s Manual Congratulations on your purchase of the Sven wall mount! COPYRIGHT © 2015. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
- Page 3 Wall Mount for LED/LCD TVs and Monitors 2. APPLICATION FS17-21 is designed for wall-mounting LED/LCD TV sets and monitors. 3. SAFETY PRECAUTIONS • Do not exceed the maximum load specified in the Manual to avoid accidents or damage. • Before installing the wall mount, read this Manual carefully and follow all the instructions when installing.
- Page 4 FS17-21 User’s Manual 6. MOUNTING AND INSTALLATION • Choose a wall to hang your mount on. It’s recommended that the height H and the distance L from the viewer be cal- culated according to the formulas in the figures on the left. •...
- Page 5 Wall Mount for LED/LCD TVs and Monitors Маx 1.5N·M 13 мм • Fix the mount on the wall using dowels (see Fig. c). • Fix the suitable screws and washers (inclu- ded in the package) on the rear panel of your TV, as shown in Fig.
- Page 6 Distance from wall, mm Coating type high-strength polymer Notes: • Technical specifications given in this table are supplemental information and cannot give occasion to claims. • Technical specifications are subject to change without notice due to the improvement of SVEN production.
- Page 7 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
