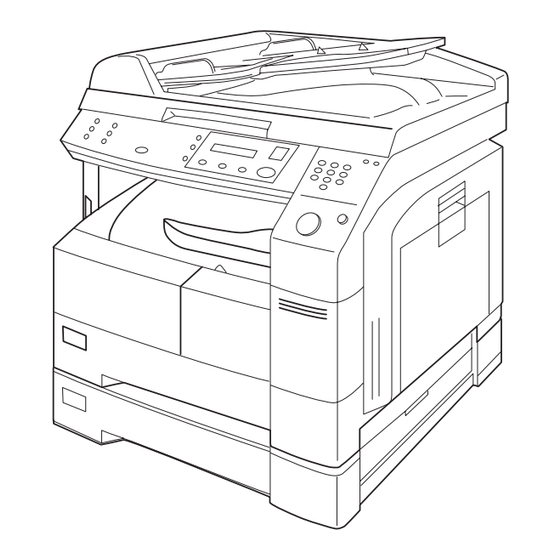

Panasonic DP-1510P Operating Instructions Manual
Digital imaging systems
Hide thumbs
Also See for DP-1510P:
- Service manual (486 pages) ,
- Technical manual (320 pages) ,
- Operating instructions manual (192 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Panasonic DP-1510P
Summary of Contents for Panasonic DP-1510P
-

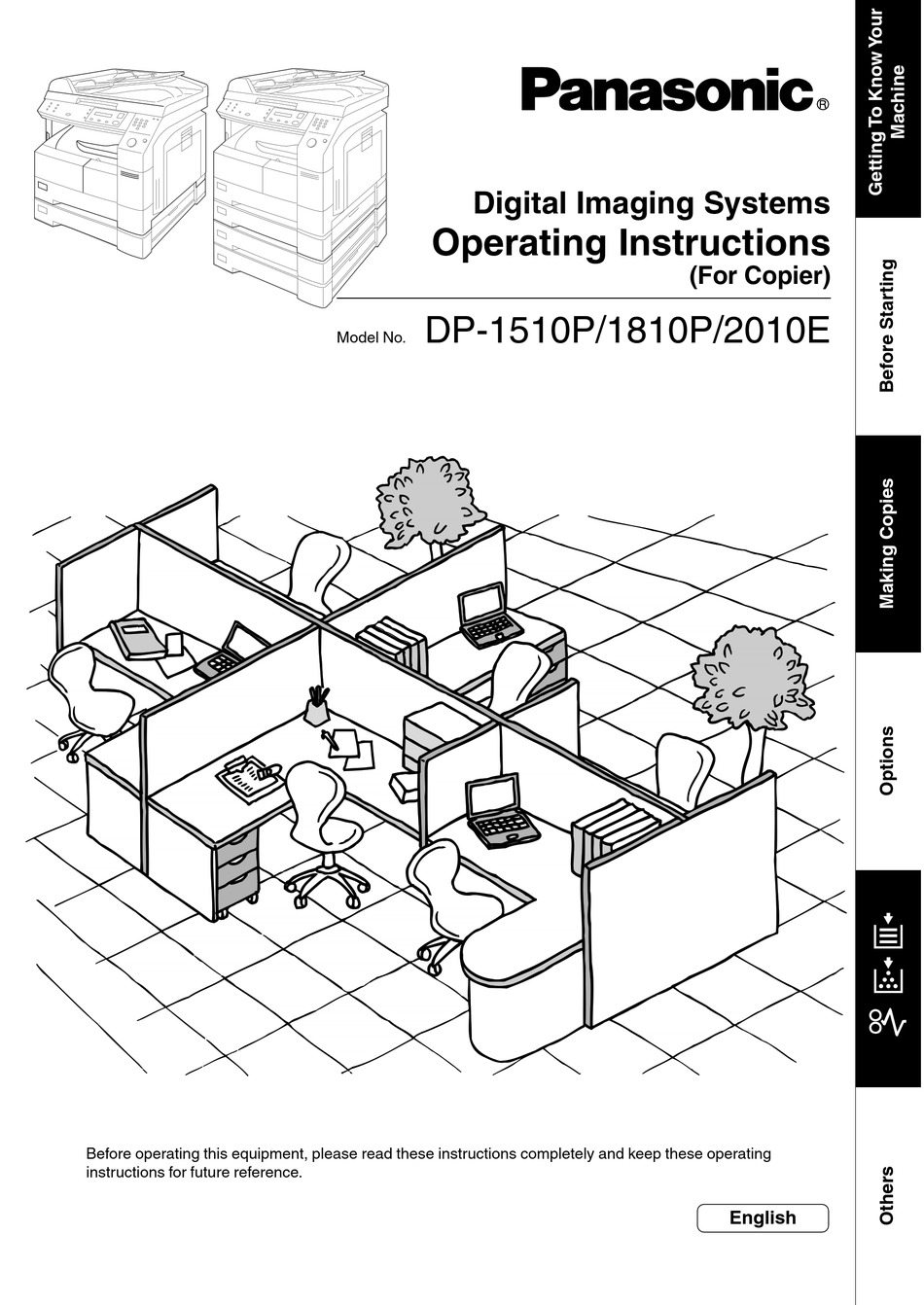

Page 1: Operating Instructions
DP-1810P with Options DP-2010E with Options Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference. Digital Imaging Systems Operating Instructions DP-1510P/1810P/2010E Model No. (For Copier) English... - Page 2 IMPORTANT INFORMATION When requesting information, supplies or service always refer to the model and serial number of your machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine. For your convenience, space is provided below to record information you may need in the future. Model No.
-
Page 3: Operation Chart
Operation Chart Common Features and Usage I I I I I Basic Operation Original Place the Load Paper Original Turn the Power Switch On I I I I I Position of the Original From ADF (or i-ADF) From Platen ADF Tray FLS1 FLS2 Original Guides... -
Page 4: Energy Star
NERGY ® environment. The default functions can be adjusted depending on your office requirements. Please ask your authorised Panasonic dealer for more details. ® Partner, Panasonic has determined that this product meets the guidelines for energy efficiency. compliant product will reduce energy consumption and ultimately benefit the... -
Page 5: Table Of Contents
Table of Contents Getting To Know Your Machine Operation Chart ... 3 Common Features and Usage ... 3 Energy Star ... 4 Before Starting Precautions ... 7 For Your Safety ... 7 Handling ... 8 Toner and Paper ... 8 Ventilation ... - Page 6 Table of Contents Options Accessories ... 39 Problem Solving Problem Solving ... 42 Troubleshooting ... 52 Others Specifications ... 55 Options and Supplies ... 57 Components ... 39 Automatic Document Feeder ... 40 Adding Paper (J) ... 42 Adding the Toner and Replacing Waste Toner Container (?) ... 43 Removing a Misfed Paper ...
-
Page 7: Precautions
Precautions For Your Safety I I I I I Laser Safety LASER SAFETY This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury. CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. -
Page 8: Handling
56 - 128 g/m ) paper. C For optimum performance, it is recommended that only Panasonic Brand supplies are used in the copier. The copier should be installed in a well-ventilated area to minimise the ozone density in the air. -
Page 9: Installation
If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR OFFICE THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. -
Page 10: Control Panel
C The Control Panel displayed above shows only copier functions. Please refer to the NOTE appropriate operating instructions for other control panel functions or in the Panasonic Document Management System CD-ROM for the Printer control panel functions. C The illustration above shows the DP-2010E control panel. - Page 11 C The Control Panel displayed above shows only copier functions. Please refer NOTE to the appropriate operating instructions for other control panel functions or in the Panasonic Document Management System CD-ROM for the Printer control panel functions. Contents C Stops the copy run.
-
Page 12: Basic Copy
Basic Copy Full Size Copying Copying the Same Size Originals (1:1) Copy size is automatically selected. Place the Original Manually Selecting Exposure Control or Original Type ∗ Use Clear key when cancelling the copy count. NOTE ∗∗ While the copier is warming up, you may position your original on the copier, enter your copy job selections and press the Start key. -
Page 13: Reduction Or Enlargement Copying
Reduction or Enlargement Copying Copying with Preset Ratios Place the Select the Original ORIGINAL SIZE C If the desired copy size is different from the paper size loaded in the paper NOTE tray, use the sheet bypass. (See page 15) C Press the RESET key to cancel all job settings. -
Page 14: Zoom Copying
Basic Copy Zoom Copying Zoom Copies with variable zoom ratios from 50 % to 200 % in 1 % increments. Place the Select ORIGINAL Original SIZE (without using ADF/i-ADF) C When changing the paper size after setting the zoom ratio, please use the paper tray ATTENTION key. -
Page 15: Using The Sheet Bypass
Using the Sheet Bypass Copying on Special Paper, etc. Side Guides C Do not feed curled paper through the sheet bypass to avoid misfeed. ATTENTION C Adjust the side guides properly to avoid skewing, wrinkling or misfeeding. NOTE Place the original. Open the sheet bypass. -
Page 16: Creative Features
Creative Features 2 in 1 Copy 2 in 1 Copy From two 1-Sided originals, side by side, to 1-Sided pages. Landscape (Orientation) Procedure ADF/i-ADF Face-Up Place the Originals C The ADF/i-ADF is required for 2 in 1 copy. NOTE CPress the RESET key to cancel all job settings. CNumbers in parenthesis “... -
Page 17: Page Copy
2 PAGE COPY 2 PAGE Copy Copying two facing pages on a A3 size original on two separate A4 size sheets. Procedure Place the Press the 2 Originals PAGE COPY Platen A3 size original Book Mark C To reset all job settings, press the RESET key. NOTE Creative Features ORIGINAL SIZE... -
Page 18: Book/Edge/Margin
Creative Features BOOK/EDGE/MARGIN BOOK Key Eliminates dark inner binding shadows when copying from a book. EDGE Key Creates a blank edge. MARGIN Key Shifts the image to the right or left. Procedure Press Cursor (G or F) keys to adjust the void width while the button is blinking. -
Page 19: 2-Sided/1-Sided Copy
2-Sided/1-Sided Copy (For DP-2010E) Key Operation Press 2-Sided/1-Sided Copy key (circulation) to select a 2-Sided/1-Sided Copy function. 2-Sided/1-Sided Copy key From 1-Sided originals to 2-Sided 1 \ 2 copies. From 2-Sided originals to 2-Sided 2 \ 2 copies. Book \ 2 From book originals to 2-Sided copies. -
Page 20: 2/2 \ 1/2 \ 2 Copy
Creative Features 1 \ \ \ \ \ 2 / 2 \ \ \ \ \ 1 / 2 \ \ \ \ \ 2 Copy (For DP-2010E) 1 \ \ \ \ \ 2 Copy From 1-Sided originals to 2-Sided copies. -
Page 21: Book \ 2 Copy
Book \ \ \ \ \ 2 Copy (For DP-2010E) Book \ \ \ \ \ 2 Copy From book originals to 2-Sided copies. A3 size originals only. Facing (Book Format) Place the Press 2-Sided/ 1-Sided Copy key Original on (circulation) to select the Platen Book \ 2... -
Page 22: Job Memory
Creative Features Job Memory Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a later time. JOB MEMORY PRESS M1,M2 TO STORE. RECALL JOB MEMORY LOADING... C Stored job(s) will not be deleted even if the power switch is turned Off. NOTE C When storing a new job into programmed memory, the previously stored job will be overwritten. -
Page 23: I Sort Copy
Sort Copy Sort Copy The sort copy has 2 available electronic sorting functions as follows: Note: Before using the sort copy, select the desired sorting mode by setting its function first (See page 29). Sort Multiple copies sorted automatically. Platen Glass ADF/i-ADF ADF/i-ADF: Place the Originals... -
Page 24: Other Features
Other Features Energy Saver/Interrupt Mode ENERGY SAVER INTERRUPT ∗ Energy saver time (15 minutes) and Sleep time (30 minutes) can be changed by the NOTE key operator. (See page 31) INTERRUPT (F1) Key These modes can save power while the copier is not in use. -
Page 25: Skyshot Mode
Skyshot Mode I I I I I Skyshot allows copying a manuscript without generating dark borders even if the platen cover or ADF/i-ADF is opened. Skyshot mode eliminates dark borders around the originals, and is especially convenient for copying small-sized originals like bank checks or documents with unusual shapes (round, oval, etc.). - Page 26 Other Features Skyshot Mode I I I I I Manual Skyshot Mode When using this function, the custom size should be registered into memory (M1, M2) in advance. (See page 32) Platen Upper- left corner FUNCTION MODE ENTER NO. OR ∨ ∧ 2:COPIER SETTINGS PRESS SET TO SELECT COPIER PARAM.
-
Page 27: Combined Function Table
Combined Function Table 2-ORIGINAL H H H H H COPY Next Selections First Selections Zoom Copy O O O O O O O A A O A A A O 2 in 1 Copy A A A A A A O 2 Page Copy 1 \ 2 O A A A A A O... -
Page 28: Function
Function Using Function Modes to Change the Initial Copy Modes General Functions General Functions for Key Operator Procedure FUNCTION MODE ENTER NO. OR ∨ ∧ Checking the Copier’s Total Counter To display the copier’s Total Counter, press the COPY SIZE and PAPER TRAY keys simultaneously. -
Page 29: General Functions
General Functions Modes SORT MODE DEFAULT SORT MEMORY USAGE DEPT. COUNTER SORT-ROTATE DEFAULT KEY OPERATOR MODE Function Selects the sort mode. C NON-SORT, SORT (For DP-1810P/2010E) Displays the amount of sort memory used on the panel. C OFF, DISPLAY (For DP-1810P/2010E) Copy usage and copy limit of the selected department and total copy usage will appear on the screen. -
Page 30: Copier Settings
Function Copier Settings MARGIN DEFAULT EDGE DEFAULT BOOK MARGIN DEF. FRAME MARGIN 2-SIDED MODE DEF. 2 in 1 WITH FRAME DIGITAL SKYSHOT MANUAL SKYSHOT AUTO EXPOSURE 1 \ 2 BINDING DEF. 2 \ 1 BINDING DEF. BOOK \ 2 DEFAULT 2 in 1 DEFAULT 2 PAGE MODE DEF. -
Page 31: General Functions For Key Operator
General Functions for Key Operator Modes PAPER SIZE AUTO RESET TIME ENERGY SAVER MODE LANGUAGE DEFAULT SPECIAL TRAY 1 SPECIAL TRAY 2 KEY/TOUCH BEEP BYPASS SET BEEP ORIG. SET BEEP ADF DEPT. COUNTER MODE TOTAL COUNT PC PRINT COUNT TCP/IP ADDRESS TCP/IP SUBNET MSK TCP/IP G/W ADDR. -
Page 32: Copier Settings For Key Operator
Function Copier Settings for Key Operator ORIGINAL (HOME) TEXT CONTRAST T/P CONTRAST PHOTO CONTRAST MAX. COPY SETTING M1, SIZE M2, SIZE MEM. FULL ACTION C It is necessary to input the Key Operator ID code before changing items on NOTE this page. -
Page 33: Function Setting
Function Setting I I I I I Changing the Auto Exposure Setting You can select whether the copying density is adjusted automatically for text and photographic originals. Press the FUNCTION key. Proceed as Follows: FUNCTION MODE (1-2) ENTER NO. OR ∨ ∧ 2:COPIER SETTINGS PRESS SET TO SELECT COPIER PARAM. -
Page 34: Function Setting For Key Operator
Function Function Setting for Key Operator I I I I I Changing the Paper Size The Paper Trays are designed to accommodate A5, A4, A4 R, FLS/B4 and A3 size paper. To change the paper size, perform the steps shown below. Press the FUNCTION key. - Page 35 Function Setting for Key Operator Changing the Paper Guide and Paper Size Indicator in the Paper Tray Paper Guide a a a a a Stopper Paper Guide b b b b b Size Indicator C It is recommended that the paper guide b be fixed in place with screws. NOTE Consult an authorised servicing dealer for details on how to fasten with screws.
-
Page 36: Department Counter
Function Function Setting for Key Operator I I I I I Department Counter The Key Operator can manage, limit copies, counters and code numbers for each department. (Maximum department counters: 50) Press the FUNCTION key. Proceed as Follows: FUNCTION MODE ENTER NO. - Page 37 Function Setting for Key Operator Select the Department Counter Mode. DEPT.COUNTER MODE 1:TOTAL COUNTER DEPT. CODE (01-50) ENTER NO. OR ∨ ∧ Change the Department ID Code, limit the maximum number of copies and Department Counter number. ID CODE 01:1234 MAX COPIES 01:123456 DEPT.COUNTER...
-
Page 39: Accessories
C To increase the memory capacity for DP-1510P/1810P electronic sorting and sort printing. (For DP-1810P/2010E) C To increase the memory capacity for sort printing. (For DP-1510P) 2nd/4th Paper Feed Module (DA-DS182) C To increase the paper feed sources and capacity. -
Page 40: Automatic Document Feeder
Accessories Automatic Document Feeder ADF (DA-AS180) / i-ADF (DA-AR201) 1. Features # Automatic Original Feeding C The ADF/i-ADF tray can hold up to 50 A4 size originals of 80 g/m A3 size originals). It can accommodate from A5 to A3 size originals. C Automatic original size detection. - Page 41 3. Operation Operation Procedure ADF/i-ADF Face-Up Place the Original Inappropriate Originals C Paper with a smooth surface such as glossy and coated papers C Transparencies C Originals with a lead edge that is “creased”, “folded”, “punched” or “glued” C To copy these kinds of originals, use the Platen Glass instead. NOTE For Duplex Copy (If required)
-
Page 42: Problem Solving
Problem Solving Adding Paper (J J J J J ) 550-Sheet Paper Tray C Do not use paper with folds or wrinkles. ATTENTION C Unused paper should always be placed into a bag and the opening should be sealed Refer to page 35 for details on adjusting the paper tray size. for storage. -
Page 43: Adding The Toner And Replacing Waste Toner Container (?)
Adding the Toner and Replacing Waste Toner Container (? ? ? ? ? ) Continued on the next page... C For optimum copy quality use the recommended Panasonic toner. Store toner in a cool ATTENTION dark place. Do not unseal toner before use. Use it as fast as possible after unsealing. - Page 44 Problem Solving Adding the Toner and Replacing Waste Toner Container (? ? ? ? ? ) Incorrect C Do not reuse the toner from the Waste Toner Container. ATTENTION Correct # Shake the new Toner Bottle four or five times to loosen the contents.
-
Page 45: Removing A Misfed Paper
I I I I I Paper Misfeed Indicators and Locations When a paper misfeed occurs, the misfeed indicator and the misfeed location(s) will be displayed on the panel display. For DP-1510P/1810P Paper Misfeed Locations A: ADF (see page 51), i-ADF(see page 50) (J70, J71) - Page 46 Problem Solving Removing a Misfed Paper For DP-1510P/1810P C Make sure that the misfeed indicator goes off after removing all misfed paper. ATTENTION Paper Exit Area C Make sure that the misfeed indicator goes off after removing all misfed paper.
- Page 47 For DP-1510P/1810P For DP-2010E C Make sure that the misfeed indicator goes off after removing all misfed paper. ATTENTION Paper Entry/Transport Area C Make sure that the misfeed indicator goes off after removing all misfed paper. Open the Right Cover.
- Page 48 Problem Solving Removing a Misfed Paper ADU Area (For DP-2010E only) C Make sure that the misfeed indicator goes off after removing all misfed paper. Open the Right Cover. Remove the misfed paper. If copy paper is fed far into the copier; # Turn the right paper clearing knob.
- Page 49 Problem Solving For DP-1510P/1810P For DP-2010E C Make sure that the misfeed indicator goes off after removing all misfed ATTENTION paper. Paper Feed Module C Make sure that the misfeed indicator goes off after removing all misfed paper. # Pull the paper tray out.
- Page 50 Problem Solving Removing a Misfed Paper C Push the tab ATTENTION C To prevent original(s) damage, please make sure to open the ADF Cover before removing misfed original(s). I i-ADF (For DP-2010E only) C Make sure that the misfeed indicator goes off after removing all misfed paper.
- Page 51 For DP-1510P/1810P C To prevent original(s) damage, please make sure to open the ADF Cover ATTENTION before removing misfed original(s). Problem Solving C Make sure that the misfeed indicator goes off after removing all misfed paper. # Open the Entry Cover.
-
Page 52: Troubleshooting
Troubleshooting Before Calling Service Unit Does Not Operate Does the display light? (No) Does the Energy Saver key flash (or light) and displays are turned OFF? (See page (No) Does any of the U## codes and messages appear on the display? (U01, U07, U13, U14, U20 and U21) (See page 54) (No) - Page 53 2. The Toner Charging Mode starts and the LCD displays: CHARGING TONER Add Toner Warning Indicator: C Flashing = Toner Bottle is nearly empty C Lit = Toner Bottle is empty 3. This message is displayed for approximately 200 seconds. CHARGING TONER ∗...
-
Page 54: User Error Codes (U Code)
Troubleshooting User Error Codes (U Code) The self-diagnostic functions detect troubles in the important components of the copier. When any trouble occurs, the copier stops. Code CLOSE FRONT/RT COVER CLOSE FEED COVER TONER IS RUNNING LOW NO WASTE TONER BOX WASTE TONER BOX IS FULL CLOSE ADF COVER CLOSE PLATEN COVER... -
Page 55: Specifications
Specifications I I I I I DP-1510P/1810P/2010E (Copier) Type Desktop Platen Type Fixed Acceptable Originals Sheets, Books (max. A3) Copying Method Laser Electrophotography Fixing Method Heat Roller Fixing Imaging Method Dry-Type Single component imaging Resolution Max. 600 dpi Maximum Copy Size Void Area Max. - Page 56 Specifications ADF (DA-AS180) Tray Capacity Paper Size Paper Weight Electrical Requirements Dimensions (W × × × × × D × × × × × H) Weight i-ADF (DA-AR201) Tray Capacity Paper Size Paper Weight Electrical Requirements Dimensions (W × × × × × D × × × × × H) Weight 2nd/4th Paper Feed Module (DA-DS182) Paper Size...
-
Page 57: Options And Supplies
Options and Supplies The DP-1510P/1810P/2010E is a digital photocopier which can produce images with great clarity. Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and supplies. We hope you find that the wide ranging capabilities will make your office-place more productive and efficient. - Page 60 For Service, Call: Matsushita Electric Industrial Co., Ltd. Osaka 542-8588, Japan S0602-1062 DZSD001730-1 June 2002 Printed in Japan...
